ABB SDCS-CON-H01 Maintenance-Ready Spare for DCS800 Automation

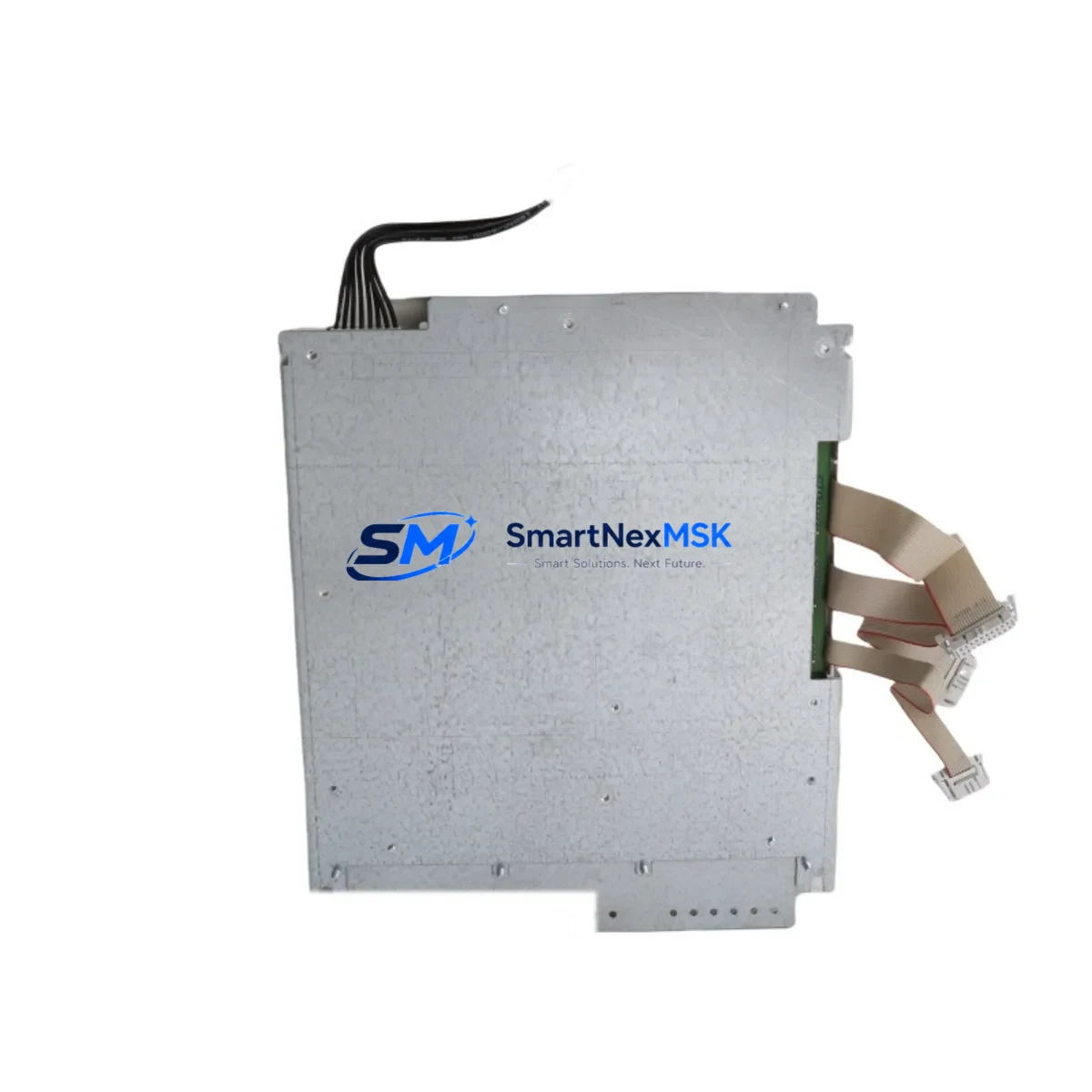

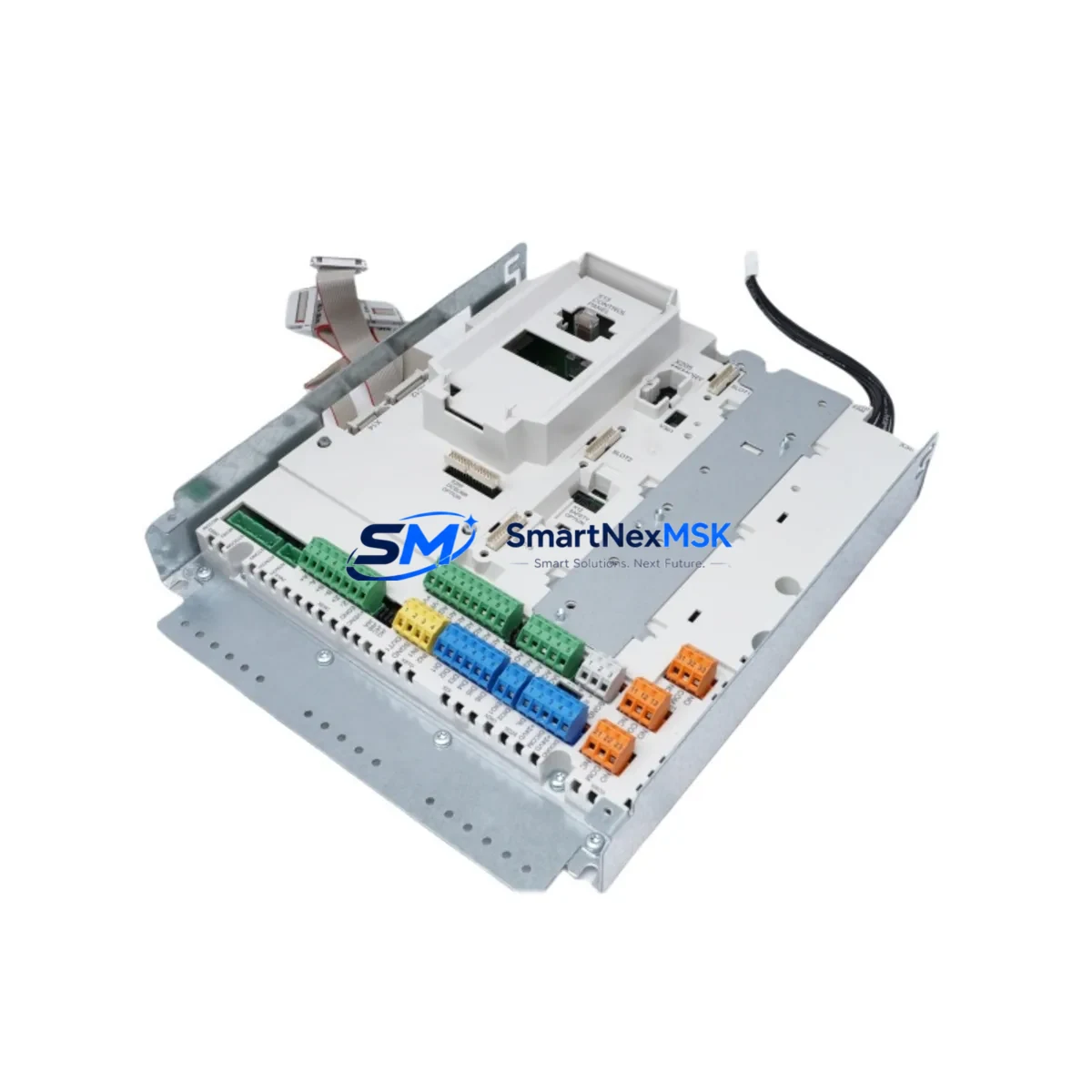

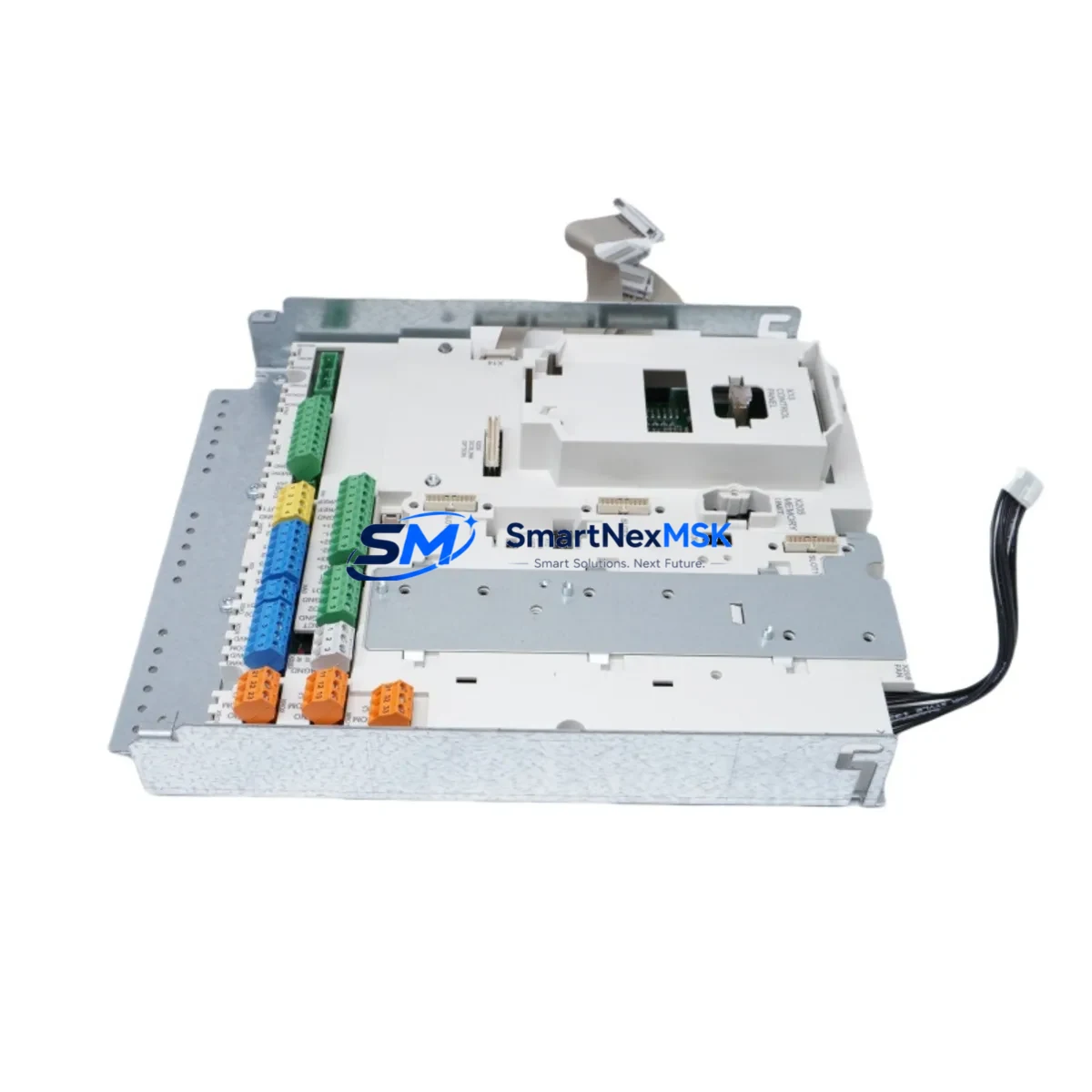

The ABB SDCS-CON-H01 (part number 3ADT320000R1501) is the central control board of the ABB DCS800 series DC drive platform — one of the most widely deployed DC drive families in heavy industrial environments including steel mills, paper machines, mining hoists, and large-scale process lines. When this board fails or degrades, the entire drive becomes inoperable, making unplanned downtime a critical risk. Sourcing a verified, tested replacement unit is the fastest path to restoring production continuity.
For maintenance engineers managing aging DCS800 installations, the SDCS-CON-H01 is the intelligence core of the drive: it handles closed-loop speed and torque regulation, field current control, serial communications, and I/O interfacing. A fault on this board typically manifests as drive trip codes, loss of speed reference response, communication dropouts on the DDCS fiber-optic link, or complete drive lockout. Identifying the board as the root cause — rather than a peripheral component — requires systematic fault isolation before committing to replacement.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | SDCS-CON-H01 / 3ADT320000R1501 |
| Brand | ABB |
| Compatible Series | ABB DCS800 DC Drive Series |
| Board Function | Main Control Board — Speed, Torque, Field, I/O, Communications |
| Communication Interface | DDCS Fiber-Optic, Serial RS-485, optional fieldbus via adapter |
| Supply Voltage (Logic) | 24 VDC (internal SMPS from drive power section) |
| Operating Temperature | 0°C to +55°C (drive enclosure ambient) |
| Origin | Germany (ABB Drives manufacturing) |
| Weight | 690 g |
| Application Environment | Industrial — steel, paper, mining, marine, process automation |
| Maintenance Recommendation | Replace on confirmed board fault; inspect SDCS-PIN-H01 power interface simultaneously |
| Warranty | 12 Months — covers functional defects under normal operating conditions |
| Pre-Shipment Testing | Full functional verification prior to dispatch |
Maintenance Planning for Continuous Operation
When a DCS800 drive is taken offline for SDCS-CON-H01 replacement, experienced maintenance teams treat the event as a full drive health audit. The control board does not operate in isolation — it interfaces directly with the SDCS-PIN-H01 power interface board, which handles the gate pulse distribution to the thyristor bridge. If the CON-H01 has failed due to overvoltage transients or supply instability, the PIN-H01 should be inspected for latent damage before the new board is commissioned.
The 24 VDC auxiliary power supply feeding the control electronics is another critical checkpoint. A degraded SMPS or unstable auxiliary supply is a common root cause of intermittent control board faults in DCS800 drives. Verifying supply rail stability with a scope before installing the replacement board prevents repeat failures. Similarly, the SDCS-FEX-2 field excitation module — which the CON-H01 controls directly — should be checked for correct field current feedback and wiring integrity.
On the communications side, the DDCS fiber-optic link connecting the DCS800 to an upstream ACS800 master drive or a NDBU-95 branching unit should be inspected for fiber contamination, bend radius violations, or connector wear. A degraded fiber link can cause the replacement CON-H01 to generate spurious communication fault codes, leading to misdiagnosis of the new board. If the installation uses a fieldbus adapter such as the RDCO-02 DeviceNet module or an RPBA-01 PROFIBUS adapter, verify adapter firmware compatibility with the replacement board revision.
Terminal block integrity on the I/O wiring — speed reference inputs, enable signals, fault relay outputs, and analog tachometer feedback — should be confirmed with a continuity check before drive restart. Loose or corroded terminals on the X1 and X2 connector rows of the CON-H01 are a frequent source of intermittent faults that are incorrectly attributed to board failure. Including a set of spare terminal blocks and ferrules in the drive cabinet spares kit is a low-cost measure that prevents extended troubleshooting time during future maintenance events.
For sites running multiple DCS800 drives in a coordinated line, maintaining at least one SDCS-CON-H01 as a cold spare in the local stores is strongly recommended. The board is common across a wide range of DCS800 frame sizes, making a single spare unit applicable to multiple drives on the same site.
Site Replacement Workflow
Step 1 — Fault Confirmation: Before ordering or installing a replacement SDCS-CON-H01, retrieve the active fault log from the drive panel (ACS-CP-D or ACS-CP-C control panel) and document all fault codes. Confirm that the fault pattern is consistent with a control board failure rather than a peripheral issue such as a faulty encoder, a tripped motor thermistor, or a fieldbus communication error from an upstream PLC.
Step 2 — Safe Isolation: Isolate the drive from the AC supply and verify zero voltage on the DC bus capacitors using a calibrated meter before opening the drive cabinet. The DCS800 DC bus can retain dangerous charge for several minutes after supply disconnection. Follow site LOTO procedures.
Step 3 — Board Removal: Photograph the existing wiring and fiber connections before disconnection. Label all connectors. The SDCS-CON-H01 is secured by a set of mounting screws and connects to the drive backplane via edge connectors and ribbon cables. Handle the replacement board with ESD precautions — use a grounded wrist strap and anti-static packaging.
Step 4 — Parameter Backup and Restore: If the original board is partially functional, use DriveWindow or the control panel to export the full parameter set before removal. The replacement board will require parameter upload to match the original drive configuration, including motor nameplate data, speed scaling, and protection thresholds. If no backup exists, the drive must be recommissioned from the motor nameplate data.
Step 5 — Commissioning Check: After installation, perform a no-load test run at reduced speed reference before reconnecting the mechanical load. Verify speed feedback, field current regulation, and fault relay outputs are functioning correctly. Confirm DDCS communication status if the drive is part of a multi-drive system.
This workflow applies equally when replacing an older SDCS-CON-2 or SDCS-CON-4 board in legacy DCS500 installations that are being upgraded to DCS800 hardware — a common life-extension strategy for sites that cannot justify a full drive replacement.
Spare Parts Support FAQ
Q: Is the SDCS-CON-H01 3ADT320000R1501 compatible with all DCS800 frame sizes?
A: The SDCS-CON-H01 is the standard control board used across the DCS800 product family. Compatibility should be confirmed against the drive’s nameplate and existing board revision. Contact our technical team with your drive serial number for confirmation before ordering.
Q: What is included in the 12-month warranty?
A: The 12-month warranty covers functional defects under normal operating and installation conditions. Each unit is fully tested prior to dispatch. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or failure to follow ABB commissioning guidelines.
Q: How quickly can the SDCS-CON-H01 be dispatched for emergency downtime situations?
A: In-stock units are dispatched within 1 business day. Express international shipping is available to most industrial regions. Contact sales@smartnexmsk.com or call +86 18259474341 for urgent requirements and lead time confirmation.
Q: Can I verify the board’s revision level before shipment to ensure compatibility with my drive?
A: Yes. Provide your drive serial number and existing board revision marking when placing your order. Our team will confirm revision compatibility and document the shipped unit’s revision level on the packing list.
