ABB SDCS-IOE-2C Maintenance-Ready Spare for DCS800 Automation

ABB SDCS-IOE-2C Maintenance-Ready Spare for DCS800 Automation

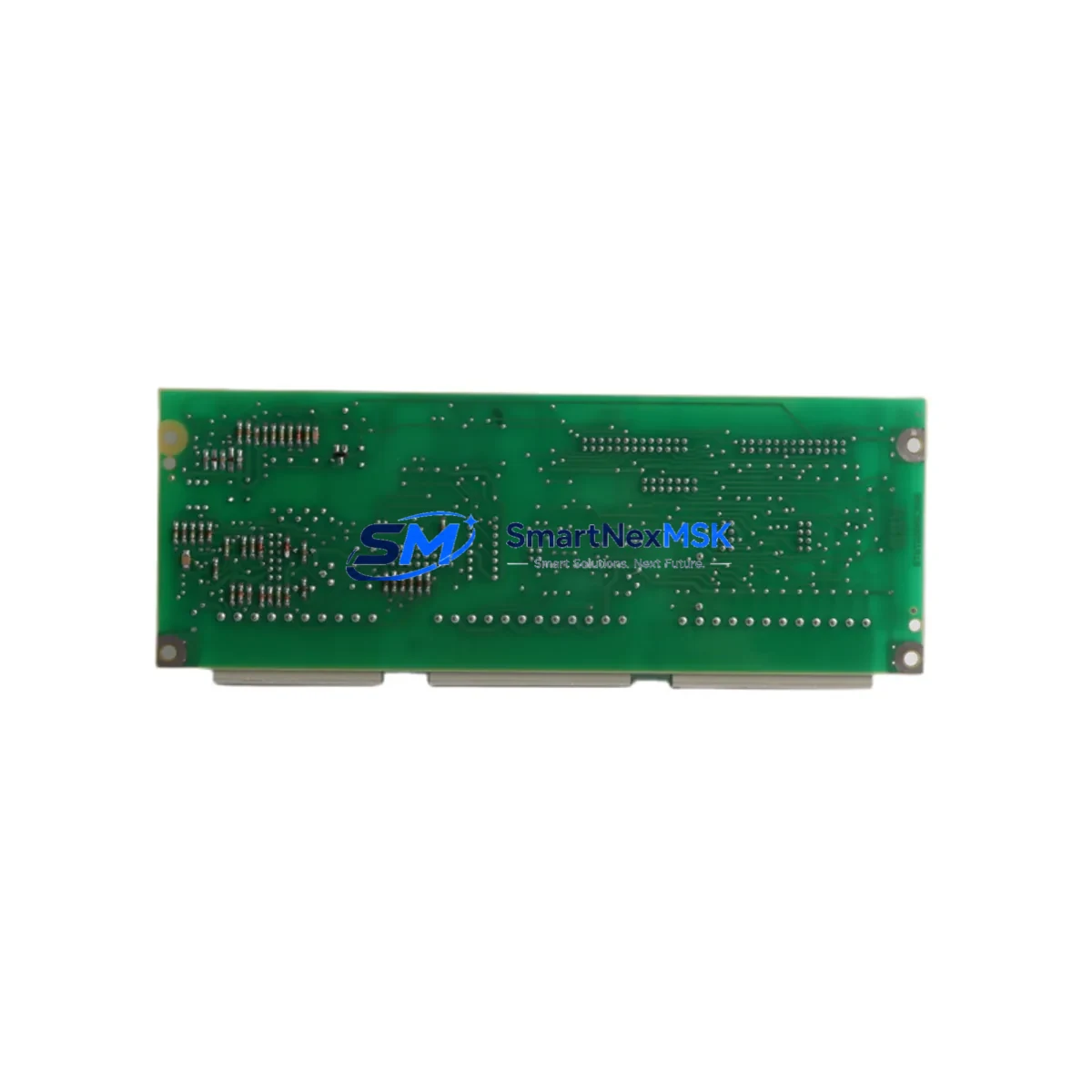

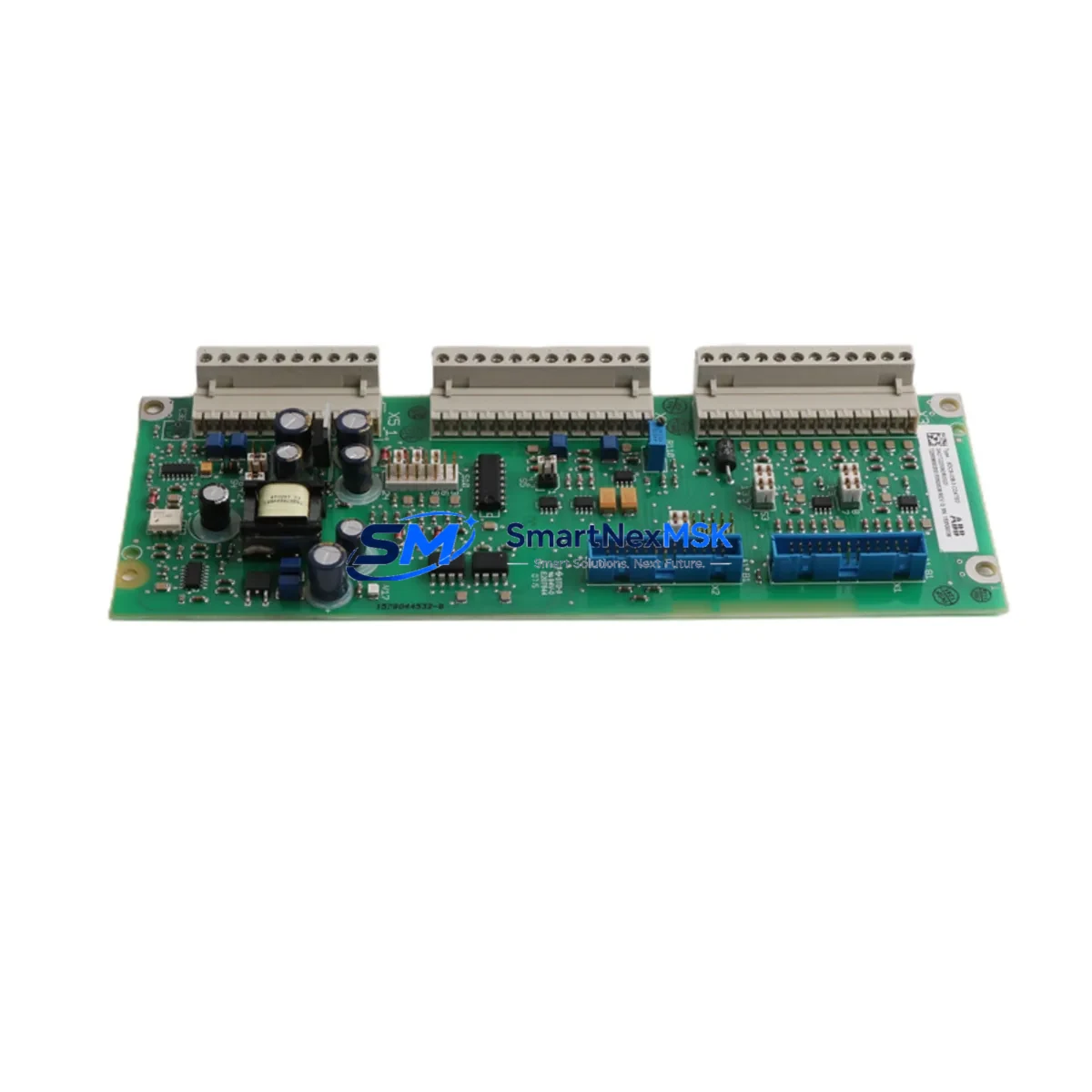

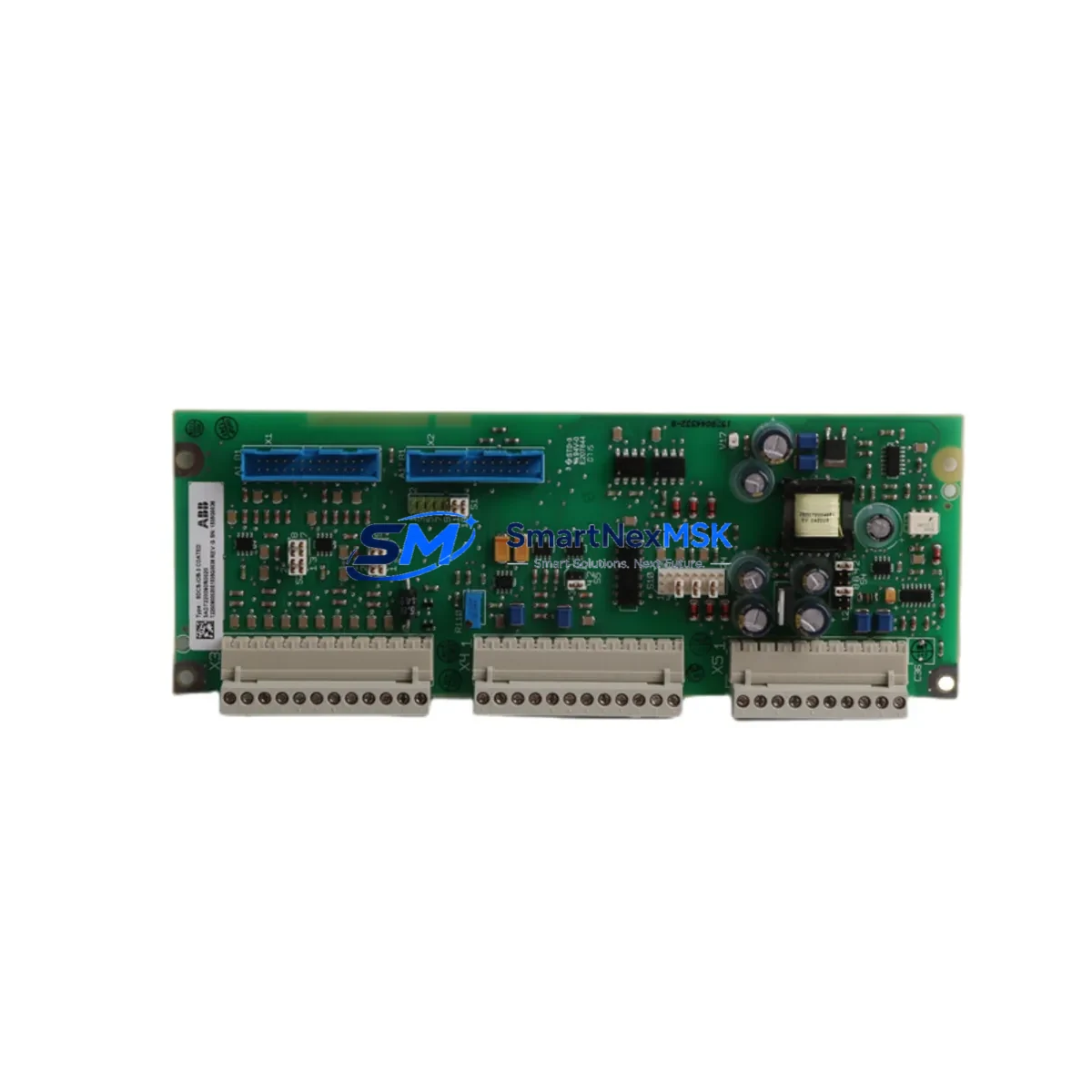

The ABB SDCS-IOE-2C is an original I/O extension and measurement board engineered for the ABB DCS800 series DC drives. In industrial environments where DC motor control systems underpin continuous production lines — paper mills, metal rolling mills, crane drives, and winding systems — an unplanned failure of the I/O extension board can trigger immediate process shutdown. Stocking a verified SDCS-IOE-2C spare is a frontline strategy for minimizing mean time to repair (MTTR) and protecting operational continuity.

This board expands the analog and digital I/O capacity of the DCS800 drive, enabling precise speed reference inputs, torque feedback signals, and auxiliary control functions. Its role in the drive’s signal chain makes it a critical component during both routine commissioning and emergency fault recovery. Maintenance engineers working on DCS800 platforms recognize the SDCS-IOE-2C as a board that must be available on-site or within short lead time — not sourced reactively after a fault has already halted production.

Every unit supplied by SMARTNEXMSK is sourced from verified channels, inspected prior to dispatch, and covered by a 12-month warranty. Functional testing is performed before shipment to confirm signal integrity, connector condition, and board-level continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS800 drive triggers an I/O-related fault — such as AI/AO signal loss, digital input non-response, or speed reference dropout — the SDCS-IOE-2C is among the first boards to inspect. However, experienced maintenance engineers know that replacing the I/O extension board in isolation rarely resolves the root cause without a broader cabinet inspection.

Begin by verifying the SDCS-CON-4 main control board, which interfaces directly with the SDCS-IOE-2C via the internal ribbon connector. A degraded CON-4 can corrupt I/O signals even when the extension board itself is functional. Simultaneously, check the SDCS-POW-4 power supply board — insufficient or unstable 24 VDC logic supply is a common cause of intermittent I/O faults that are misdiagnosed as board failures.

Inspect the SDCS-FEX-2 field excitation board if the drive controls a separately excited DC motor; field current irregularities often manifest as analog feedback anomalies on the I/O extension board’s measurement channels. For drives integrated into multi-drive systems, also verify the SDCS-COM-8 or SDCS-COM-81 fieldbus communication module — communication dropouts can mask or trigger false I/O fault codes.

On the wiring side, inspect all terminal blocks and signal cables connected to the X4 and X5 connectors on the SDCS-IOE-2C. Loose terminations, corroded contacts, or shielding failures on analog signal cables are frequent contributors to measurement drift. If the drive cabinet includes signal isolators between the PLC and the drive’s analog inputs, verify isolator output levels match the board’s expected input range (typically 0–10 V or 4–20 mA). Also confirm the condition of DC bus fuses and varistors within the drive cabinet — these protective components degrade silently and can cause board-level damage during transient events if not replaced on schedule.

For plants running legacy DCS800 installations beyond their original design life, a proactive spare kit should include the SDCS-IOE-2C alongside the SDCS-CON-4, SDCS-POW-4, and a set of pre-crimped replacement cables for the internal board connectors. Maintaining this kit on-site reduces emergency response time from days to hours. Procurement engineers should also consider stocking the SDCS-FEX-2 and a spare SDCS-COM-81 communication module to cover the full control-section failure envelope in a single purchase order.

Site Replacement Workflow

Step 1 — Fault Isolation: Use the DCS800 keypad or DriveWindow software to read active fault codes. I/O-related faults (e.g., F-xx AI/AO errors) point directly to the SDCS-IOE-2C or its wiring. Export the full parameter file via DriveWindow before powering down — this is essential for rapid recommissioning after board replacement.

Step 2 — Safe Isolation: Isolate the drive from mains supply and confirm DC bus discharge (wait minimum 5 minutes after power-off, verify with a calibrated voltmeter). Apply lockout/tagout per site safety procedures before opening the cabinet.

Step 3 — Board Removal: Disconnect the ribbon cable and all signal connectors from the SDCS-IOE-2C. Photograph connector positions before removal. Extract the board from its slot using the designated extraction handles — avoid flexing the PCB.

Step 4 — Replacement Installation: Seat the new SDCS-IOE-2C firmly into the slot. Reconnect all signal connectors and the ribbon cable. Verify no connectors are partially seated. Inspect the X4 and X5 terminal blocks for any pre-existing wiring damage before closing the cabinet.

Step 5 — Parameter Restore & Commissioning: Power up the drive and restore the saved parameter file. Verify all analog input/output signals are reading correctly via the keypad or DriveWindow. Run a no-load test before returning the drive to production. This workflow supports direct replacement of older SDCS-IOE-2 (non-C revision) boards in most DCS800 configurations — confirm with the drive’s hardware manual for revision-specific notes.

Spare Parts Support FAQ

Q1: Is the SDCS-IOE-2C compatible with all DCS800 drive ratings?
The SDCS-IOE-2C is designed for the DCS800 control section and is compatible across the standard DCS800-S01 through DCS800-S04 current ratings. Compatibility with special variants (e.g., DCS800-EP or regenerative configurations) should be confirmed against the drive’s hardware revision. Contact us with your drive nameplate data for pre-order confirmation.

Q2: What does the 12-month warranty cover?
The warranty covers functional failure under normal operating conditions for 12 months from the date of shipment. Each board is tested for signal continuity and connector integrity before dispatch. Warranty claims are supported with replacement or refund — contact sales@smartnexmsk.com with the order reference and fault description.

Q3: How quickly can the SDCS-IOE-2C be shipped for emergency downtime recovery?
In-stock units are dispatched within 1–2 business days. Express shipping options are available for urgent downtime situations. Contact +86 18259474341 directly for emergency order processing and lead time confirmation.

Q4: Can I use the SDCS-IOE-2C as a long-term lifecycle spare for an aging DCS800 system?
Yes. The SDCS-IOE-2C is well-suited as a long-term lifecycle spare for DCS800 systems approaching or past their nominal service life. Storing one or two units on-site as part of a planned obsolescence strategy is recommended for plants where DCS800 drives are critical to production. Units are shipped in anti-static packaging to preserve board integrity during extended storage periods.
