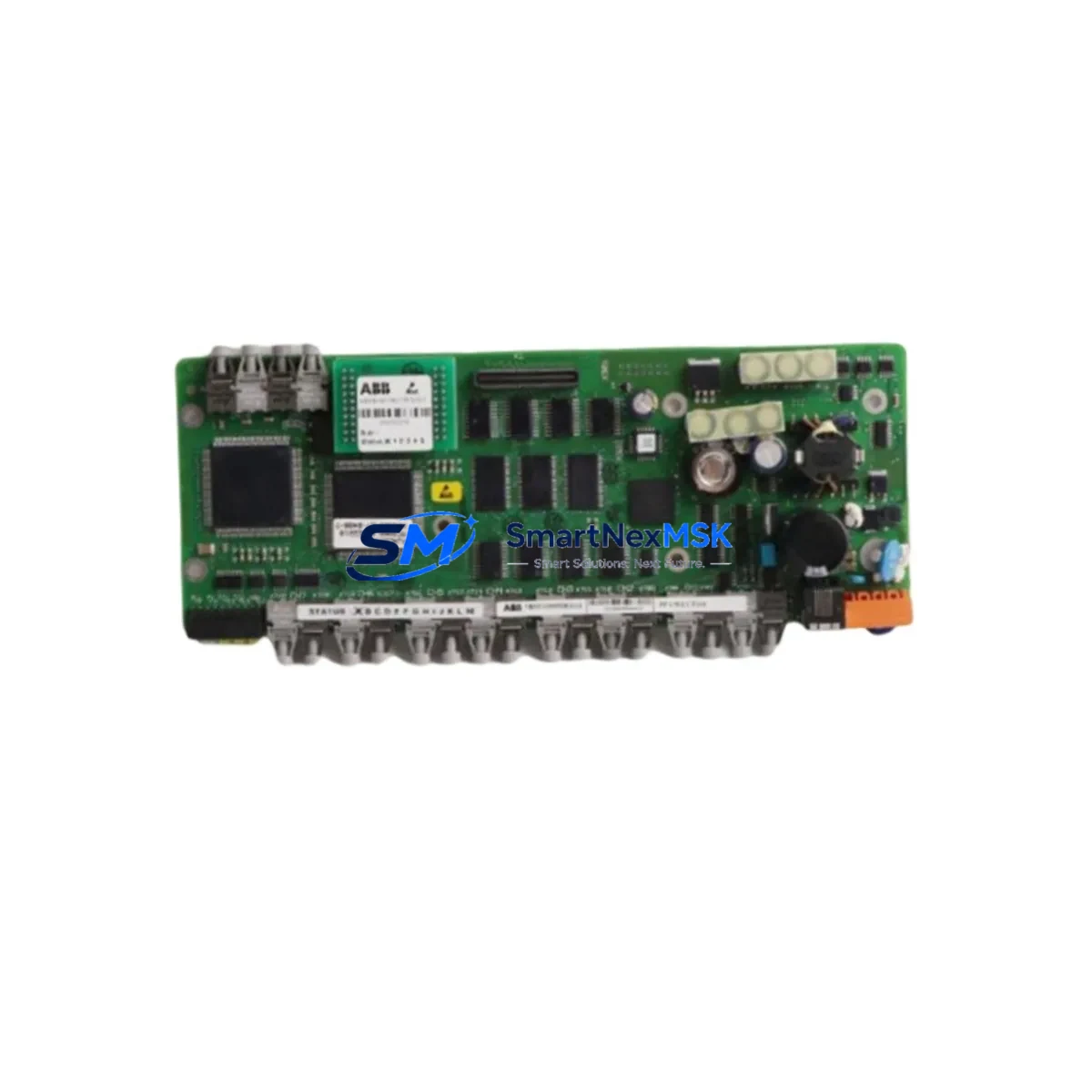

ABB SDCS-PIN-205B-COAT 3ADT220090R0035 DCS500 Spare: Maintenance-Ready DC Drive Supply Board

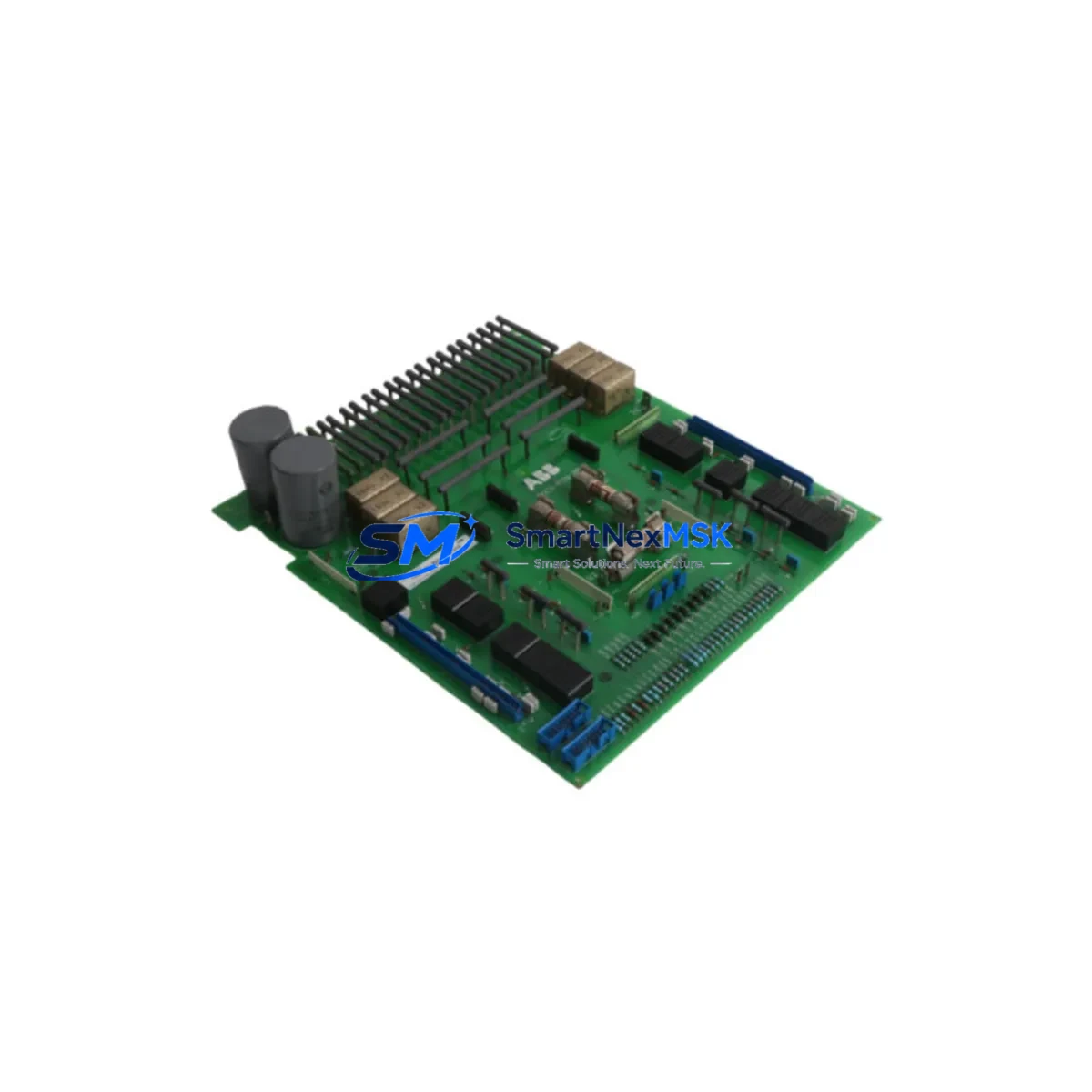

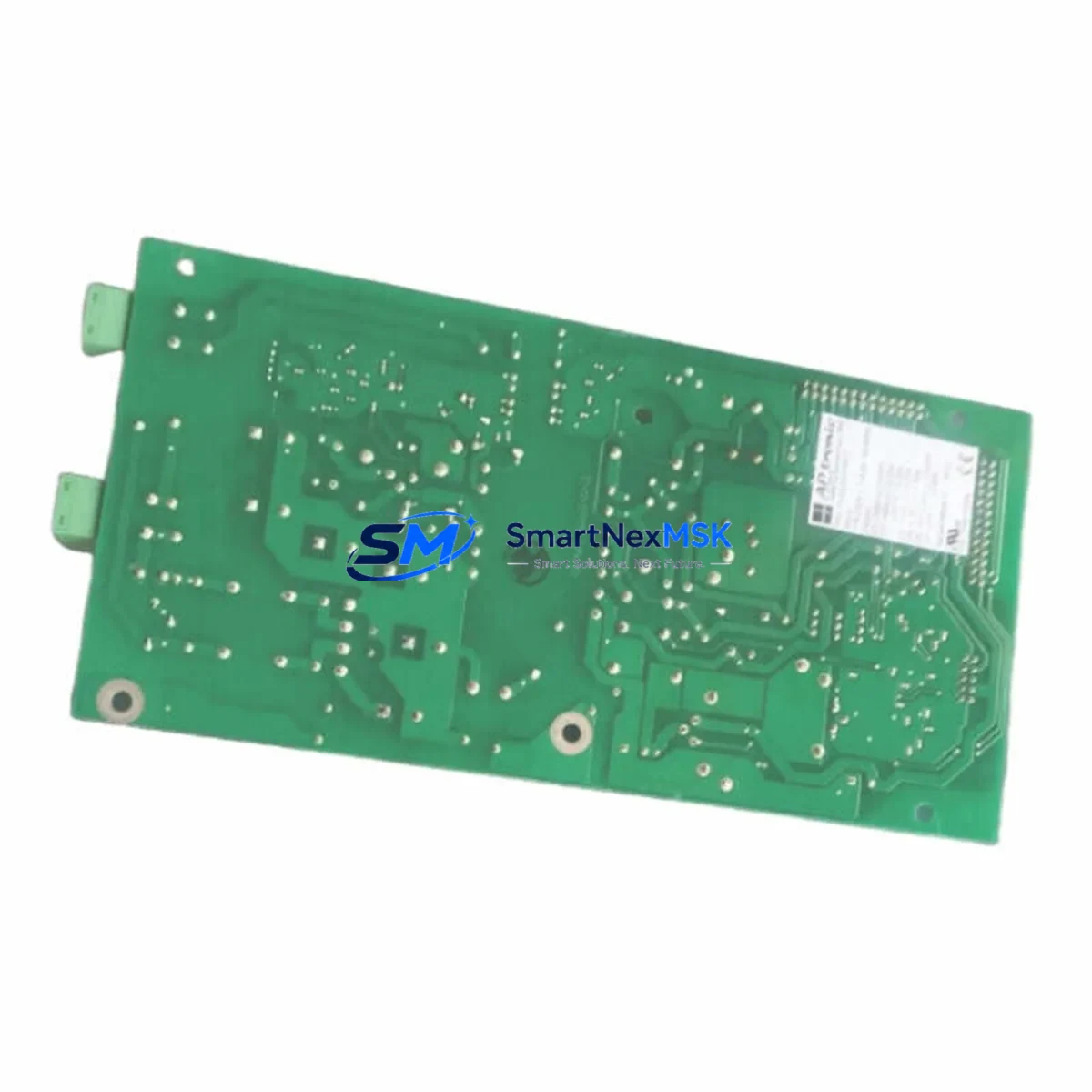

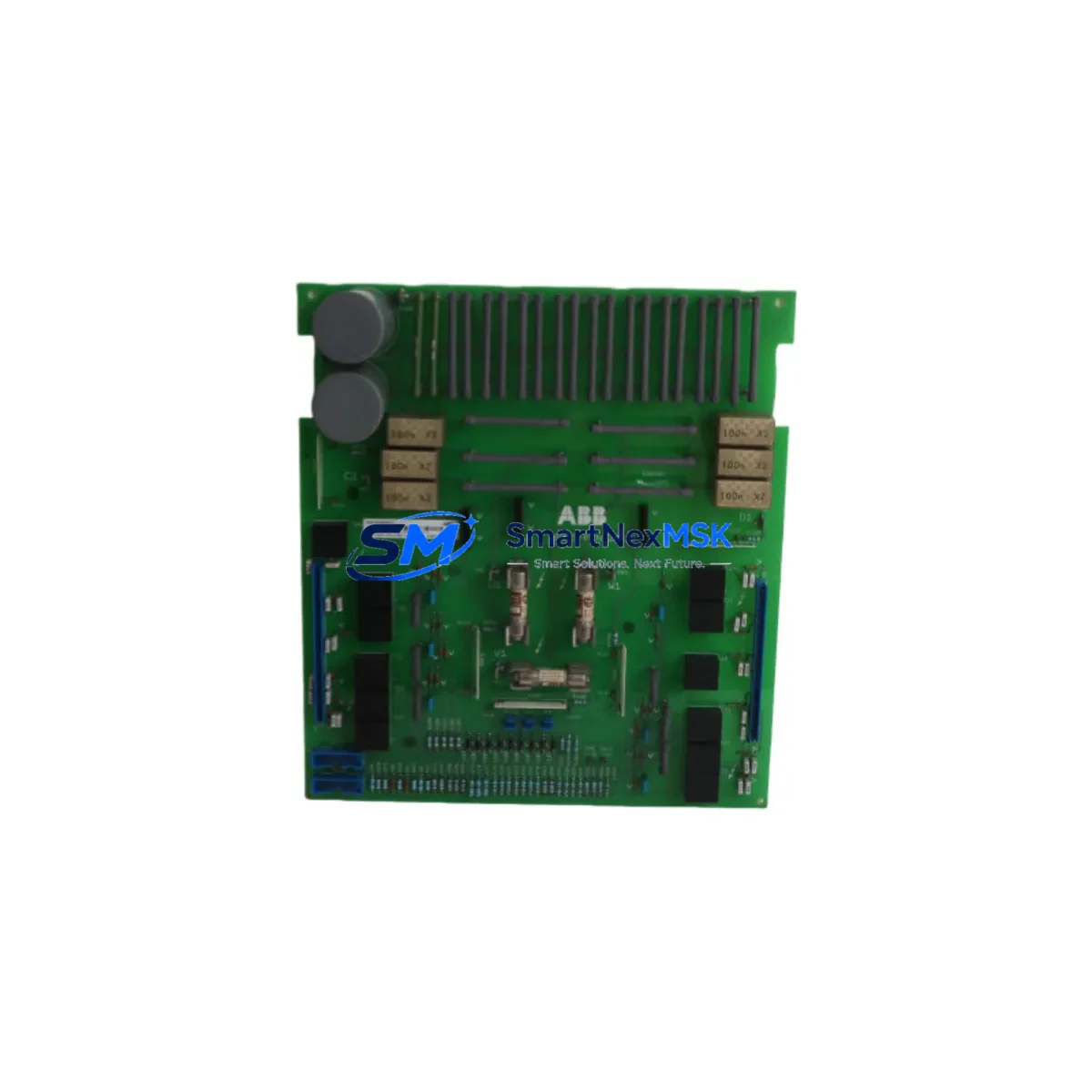

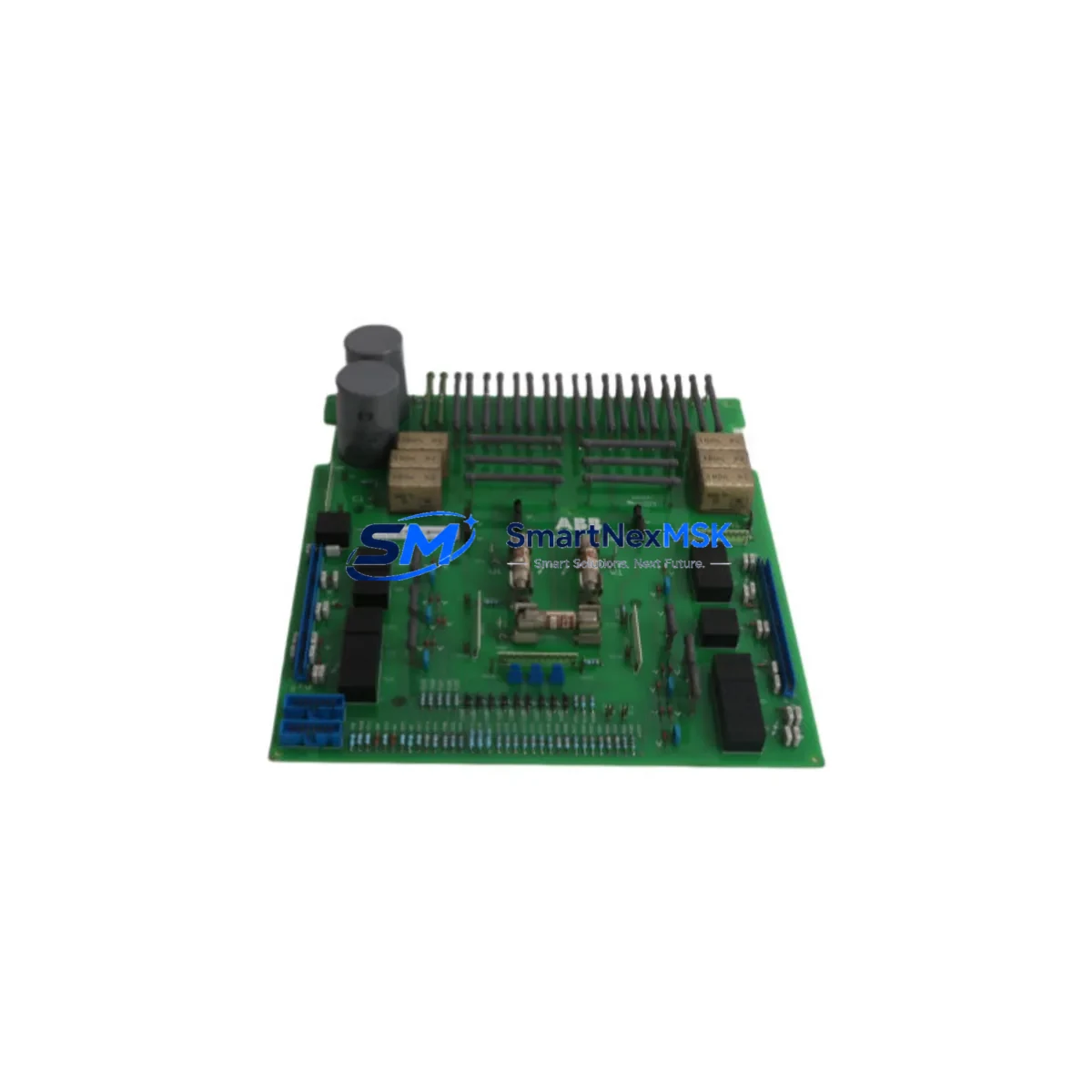

The ABB SDCS-PIN-205B-COAT (3ADT220090R0035) is an original conformal-coated power interface and supply board designed for ABB DCS500 and DCS550 series DC drives. In industrial environments where DC motor control systems underpin continuous production lines, paper mills, steel rolling mills, and material handling conveyors, an unplanned drive failure can cascade into hours of costly downtime. Stocking a verified OEM replacement for this board is a fundamental element of any proactive maintenance strategy.

This board serves as the critical link between the drive’s control electronics and its power supply circuitry. The conformal coating (COAT suffix) provides enhanced protection against humidity, condensation, dust, and corrosive atmospheres — making it the preferred variant for installations in harsh industrial enclosures, coastal facilities, and chemical processing environments. Sourced directly from ABB’s authorized supply chain, each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DCS500 or DCS550 drive trips on a supply fault or power interface alarm, the SDCS-PIN-205B-COAT is frequently the first board to inspect. However, experienced maintenance engineers know that replacing this board in isolation without auditing the surrounding components risks repeat failures and extended troubleshooting cycles. A structured inspection of the following components is strongly recommended during any planned or emergency replacement:

• SDCS-CON-2 / SDCS-CON-2B Control Board: The main control board communicates directly with the PIN board. Check for firmware compatibility and inspect connector pins for oxidation or mechanical damage.
• SDCS-POW-1 Power Supply Board: Verify output voltages on the internal 24 VDC and auxiliary rails. A degraded POW-1 can stress the PIN board and cause premature failure.
• SDCS-FEX-2 / SDCS-FEX-2A Field Excitation Board: In four-quadrant DC drive applications, the field excitation board works in close coordination with the power interface. Inspect for thermal discoloration and capacitor bulging.
• Thyristor/SCR Power Modules: A shorted or leaky thyristor can send voltage spikes back into the control board stack. Measure forward voltage drop and gate trigger current before reinstalling the new PIN board.
• DC Bus Capacitors and Snubber Networks: Aged capacitors increase ripple voltage on the DC bus, which directly stresses the supply board. Measure capacitance and ESR as part of the overhaul.
• SDCS-IOB-3 / SDCS-IOB-3A I/O Extension Board: Inspect all analog and digital I/O terminals for loose wiring, corrosion, or signal drift that could mask the root cause of the original fault.
• Fiber Optic Communication Links (DDCS / RDCO): For drives integrated into a DCS or PROFIBUS network, verify fiber optic cable integrity and RDCO module seating. Communication faults can mimic power supply alarms.
• Terminal Blocks and Wiring Harnesses: Inspect all 24 VDC control wiring, shielded signal cables, and PE (protective earth) connections within the drive cabinet. Loose terminals are a leading cause of intermittent supply board faults.
• Cooling Fan and Thermal Management: Confirm that the drive’s internal cooling fan is operational and that heatsink fins are free of dust accumulation. Thermal stress is the primary aging mechanism for conformal-coated boards in sealed enclosures.
• Panel-Mount Fuses and MCBs: Check all control circuit fuses (typically 2A–6A) and the main incoming MCB for signs of thermal damage or nuisance tripping history.

Maintaining a minimum of one SDCS-PIN-205B-COAT in your on-site spare parts inventory — alongside a SDCS-CON-2B and SDCS-POW-1 — is the industry-standard approach for facilities running DCS500 or DCS550 drives in critical process roles. This three-board kit covers the majority of field-replaceable fault scenarios and can restore drive operation within a single shift.

Site Replacement Workflow

Replacing the SDCS-PIN-205B-COAT on-site is a structured process that, when followed correctly, minimizes drive downtime to under two hours for a trained technician:

1. Isolate and Lock Out: De-energize the drive, apply LOTO (Lockout/Tagout), and wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify bus voltage with a calibrated meter before opening the cabinet.
2. Document Current Configuration: Photograph all wiring connections, record drive parameter settings (use the ABB DriveWindow or keypad upload function), and note the existing board hardware revision markings.
3. Remove the Faulty Board: Disconnect all ribbon cables and connectors in sequence. Handle the board by its edges only; avoid contact with conformal-coated component surfaces.
4. Inspect the Replacement Unit: Confirm the 3ADT220090R0035 reference number on the board label. Visually inspect for shipping damage. Compare hardware revision with the removed board — contact SMARTNEXMSK if revisions differ significantly.
5. Install and Reconnect: Seat the new board firmly, reconnect all cables in reverse removal order, and torque terminal screws to the drive’s specified values.
6. Power-Up and Parameter Restore: Energize the drive, restore saved parameters, and run the drive’s auto-tuning or identification routine if required by the firmware version.
7. Functional Test: Run the motor at low speed under no-load conditions, verify all I/O signals, and confirm fault-free operation before returning the drive to production service.

This workflow applies equally to planned preventive replacements and emergency breakdown scenarios. For legacy DCS500 installations where the original board revision is no longer available, SMARTNEXMSK can advise on compatible successor part numbers and cross-reference options to maintain system continuity without requiring a full drive upgrade.

Spare Parts Support FAQ

Q1: Is the SDCS-PIN-205B-COAT compatible with both DCS500 and DCS550 drive series?
Yes. The SDCS-PIN-205B-COAT (3ADT220090R0035) is designed for use across the ABB DCS500 and DCS550 DC drive families. However, compatibility depends on the specific drive type code, hardware revision, and firmware version. We recommend providing your full drive nameplate data when ordering so our technical team can confirm the correct board variant for your application.

Q2: What does the COAT suffix indicate, and why does it matter for my installation?
The COAT suffix denotes that the PCB has been treated with a conformal coating — a protective polymer layer applied over the circuit board to resist moisture, condensation, dust, and mild chemical exposure. This variant is mandatory for drives installed in humid, coastal, or chemically aggressive environments, and is also recommended as the preferred replacement for any DCS500/DCS550 installation to maximize board service life.

Q3: How does SMARTNEXMSK verify the condition of spare boards before shipment?
Every SDCS-PIN-205B-COAT unit undergoes a pre-shipment functional check covering visual inspection, ESD-safe handling, and electrical verification of key supply rails. Units are shipped in anti-static ESD packaging within foam-padded export cartons to prevent transit damage. Each shipment includes a test record and is covered by a 12-month warranty from the date of shipment.

Q4: What is the recommended spare parts stocking strategy for DCS500/DCS550 drives?
For facilities with two or more DCS500/DCS550 drives in critical service, we recommend maintaining at minimum: one SDCS-PIN-205B-COAT, one SDCS-CON-2B control board, and one SDCS-POW-1 power supply board as on-site cold spares. For drives in 24/7 continuous process roles, consider a hot-standby drive or a pre-configured spare drive module. SMARTNEXMSK offers long-term supply agreements and consignment stocking programs for high-volume maintenance customers.
