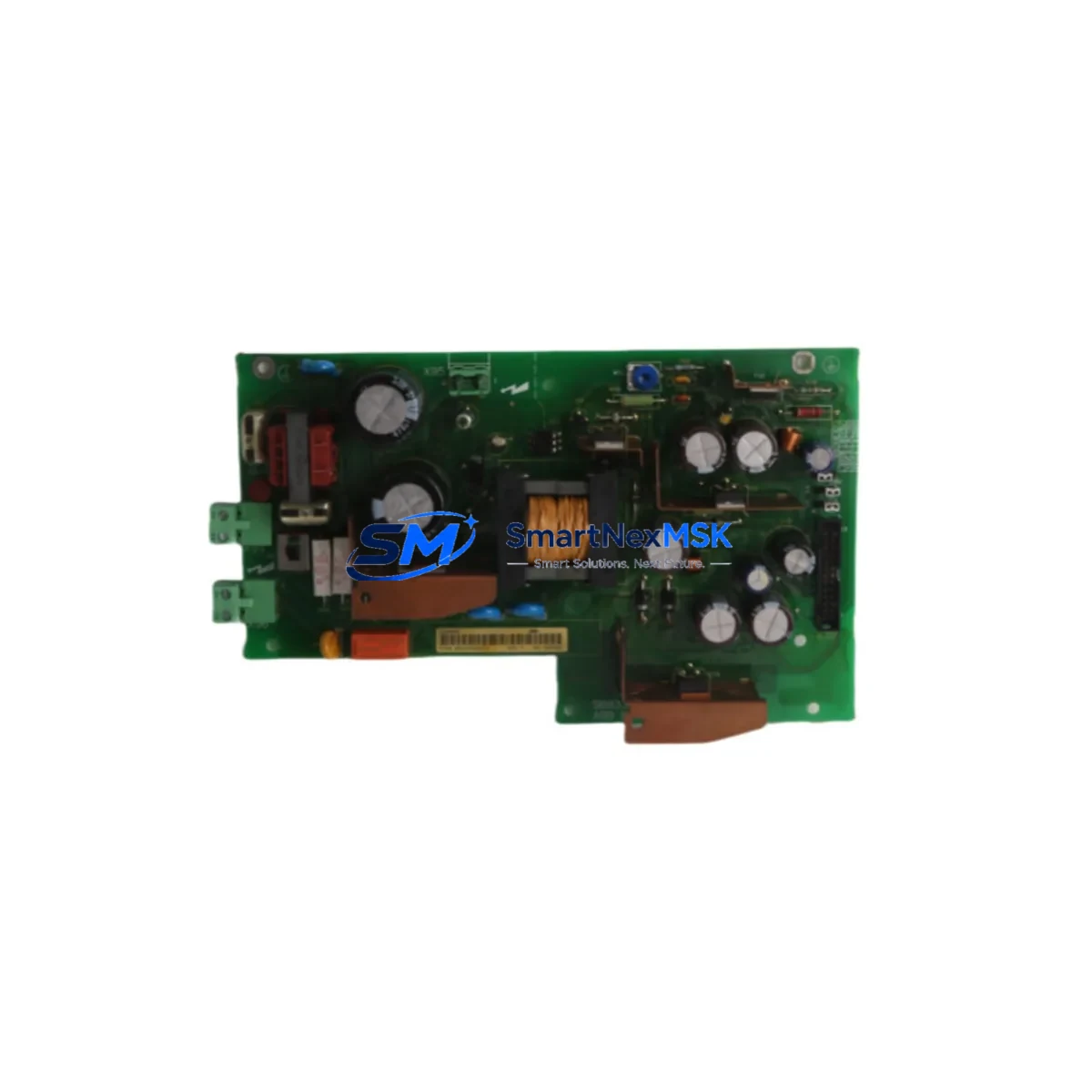

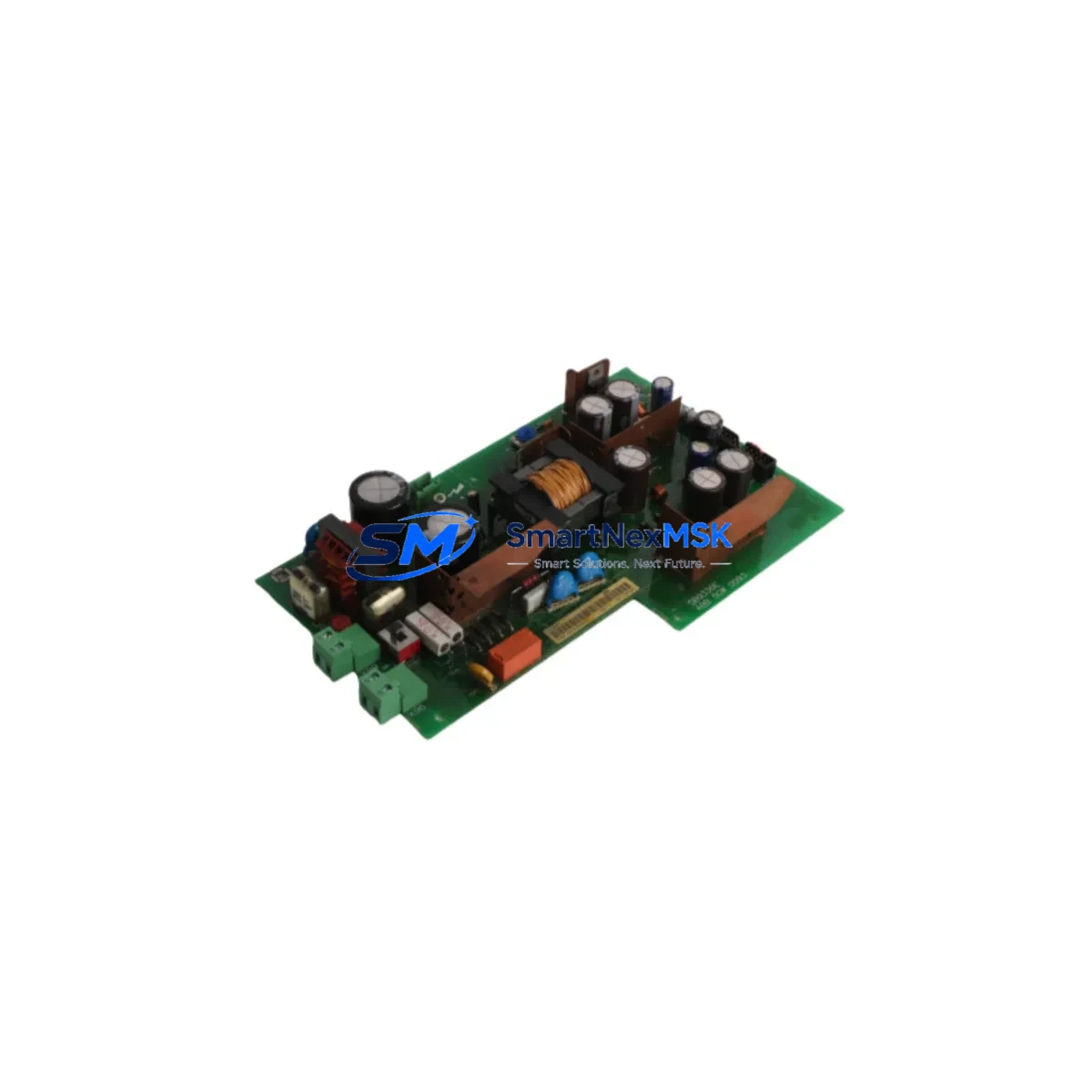

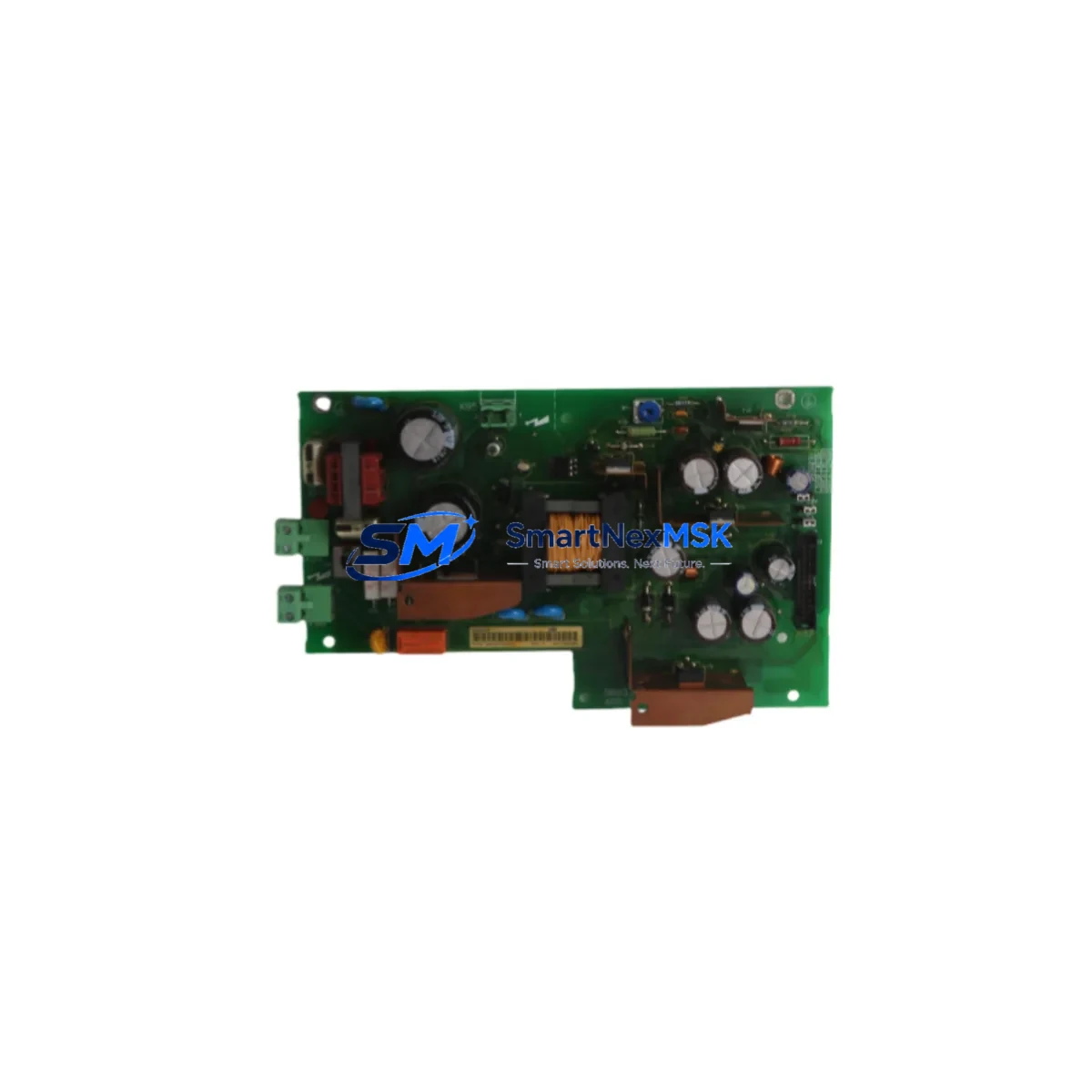

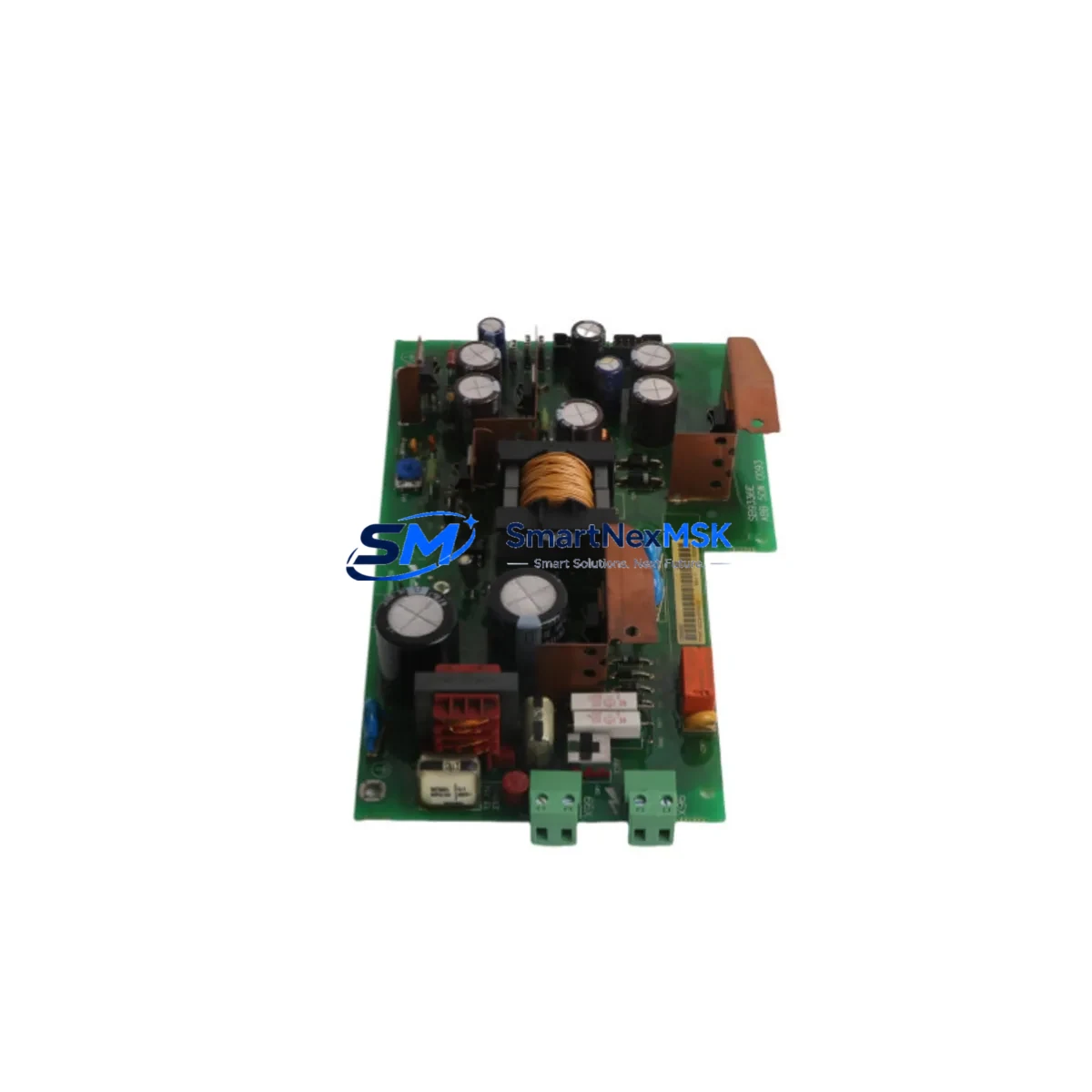

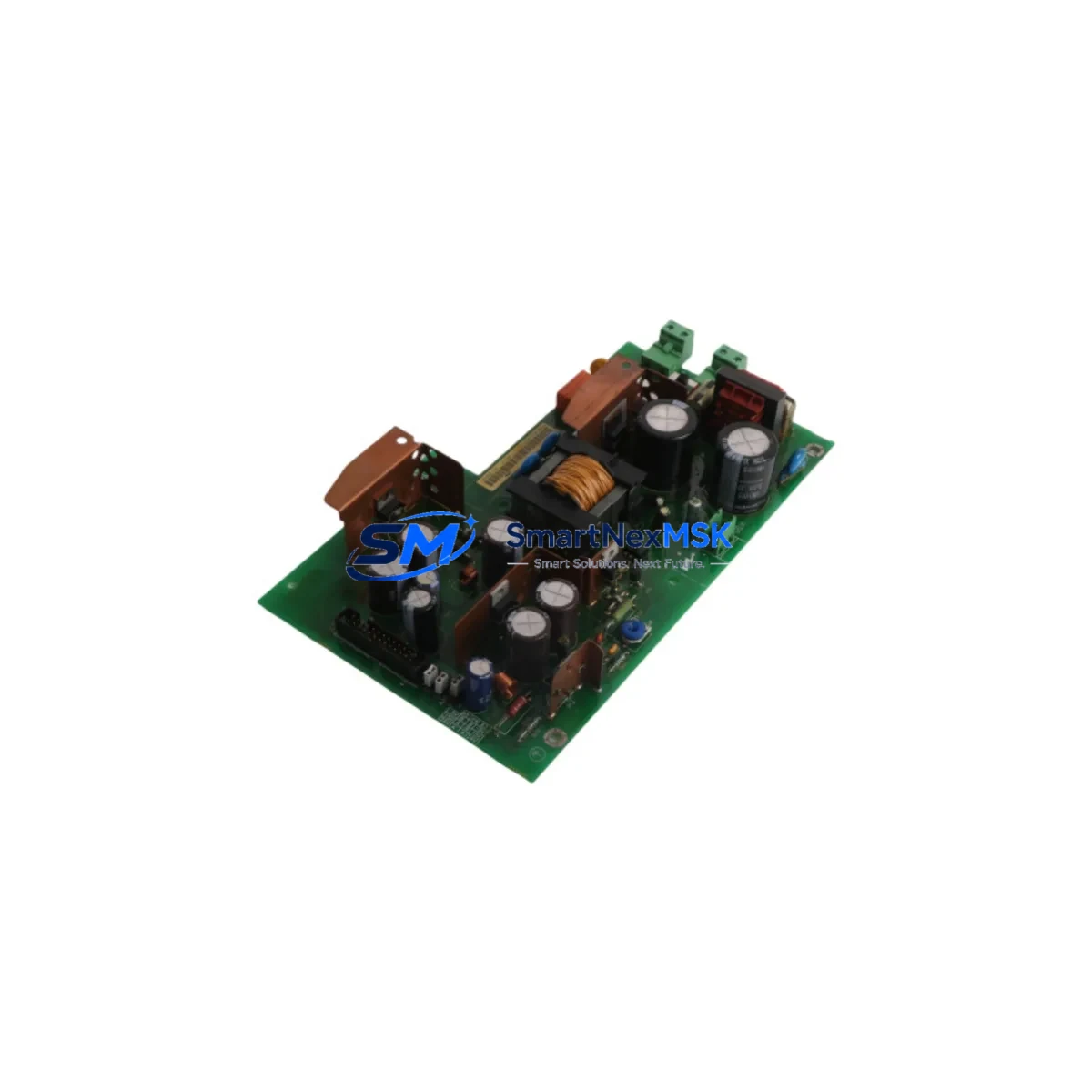

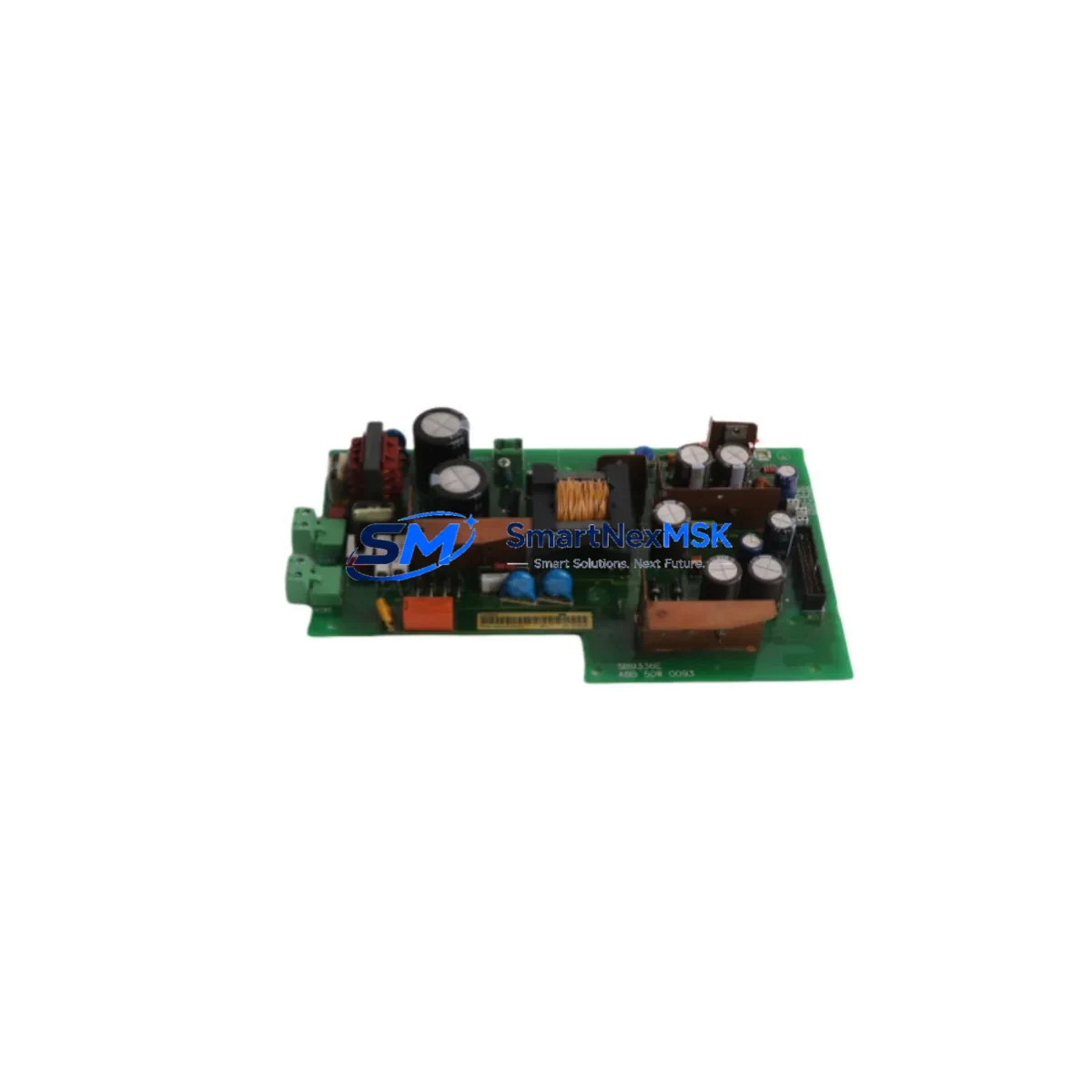

ABB SDCS-POW-1C Retrofit-Ready Power Supply for DCS800

ABB SDCS-POW-1C Retrofit-Ready Power Supply for DCS800 Control Systems: Compatible Modernization & Smooth Legacy Upgrade

The ABB SDCS-POW-1C is a dedicated power supply module engineered for the ABB DCS800 and DCS400 series DC drive platforms. As aging DC drive installations reach end-of-life or face discontinued spare part availability, the SDCS-POW-1C has become a critical component in retrofit projects, legacy system restorations, and control cabinet upgrades across industries including steel, paper, mining, and material handling. Whether you are replacing a failed unit in an emergency shutdown scenario or executing a planned modernization of an older thyristor-based drive system, the SDCS-POW-1C provides the electrical compatibility and mechanical form factor required for a reliable, low-risk swap.

This module supplies the internal auxiliary power rails required by the DCS800 drive’s control electronics, gate firing circuits, and field excitation boards. It interfaces directly with the DCS800 control board stack, including the SDCS-CON-4 control board and the SDCS-FEX-2 field excitation module, ensuring that all internal logic voltages remain stable during both steady-state operation and transient load conditions. When replacing a failed SDCS-POW-1C in the field, engineers must verify the incoming AC supply voltage range — typically 230 VAC or 115 VAC depending on the drive’s regional configuration — and confirm that the terminal block wiring matches the original layout before energizing the replacement unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the SDCS-POW-1C into an existing DCS800 installation requires a structured approach that accounts for the full control architecture of the drive system. Before removing the failed module, document the existing wiring on the X1 and X2 terminal blocks of the power supply board, as these carry the AC input feeds and the DC output rails to the SDCS-CON-4 control board. In multi-drive installations where several DCS800 units share a common DC bus, it is essential to isolate the affected drive from the bus before beginning any module swap to prevent back-feeding from adjacent drives.

During the planning phase, engineers should audit the full drive cabinet to identify any associated components that may also be approaching end-of-life. The SDCS-CON-4 control board, which handles the main speed and current regulation algorithms, is frequently replaced alongside the SDCS-POW-1C in older DCS800 frames where the control electronics have accumulated significant operating hours. Similarly, the SDCS-FEX-2 field excitation module should be inspected for capacitor aging and relay contact wear, as field supply instability can cause repeated power supply faults that are sometimes misdiagnosed as SDCS-POW-1C failures.

For installations that include a RDCO-03 DDCS communication adapter connecting the DCS800 to an ACS800 or AC800M master controller via fiber optic link, the communication link should be verified after the power supply replacement to confirm that the drive node address and baud rate settings have been retained in the SDCS-CON-4 non-volatile memory. In systems using a RPBA-01 Profibus adapter or an RDNA-01 DeviceNet adapter, the fieldbus configuration parameters stored in parameter groups 51 and 52 should be backed up using DriveWindow Light before the module swap begins.

Panel builders and system integrators upgrading older control cabinets that house DCS800 drives alongside ABB ACS550 or ACS880 AC drives should also account for the 24 VDC auxiliary power distribution within the cabinet. The SDCS-POW-1C does not source the 24 VDC I/O supply for external sensors and actuators — this is typically provided by a separate PSTX30 or PSTX60 power supply unit mounted on the DIN rail within the cabinet. Confirming that this external 24 VDC rail remains stable during the drive power-down sequence is an important step in preventing I/O faults from being logged in the PLC or DCS during the maintenance window.

In applications where the DCS800 drive controls a DC motor coupled to a winder, extruder, or rolling mill, the SDCS-PIN-51 pulse encoder interface board may also be present in the drive’s I/O slot. This board should be carefully disconnected and reseated after the SDCS-POW-1C replacement to ensure that the encoder signal conditioning circuits are properly powered from the new module’s output rails. Failure to reseat the SDCS-PIN-51 correctly can result in speed feedback loss faults during the initial test run after commissioning.

Downtime Control During System Migration

Minimizing unplanned downtime during a SDCS-POW-1C replacement is achievable through disciplined pre-maintenance preparation. Before scheduling the maintenance window, use DriveWindow or DriveWindow Light to perform a full parameter backup of the DCS800 drive, saving all parameter groups to a PC file. This backup captures the motor nameplate data entered in parameter group 99, the speed controller tuning values in group 23, the current controller settings in group 20, and any application-specific macro configurations that have been customized for the process. With this backup in hand, a replacement SDCS-POW-1C can be installed and the drive restored to full operational status within a single shift, even if the SDCS-CON-4 control board also requires replacement.

During the physical swap, the drive’s main contactor and field supply breaker should be opened and locked out before any module is touched. The SDCS-POW-1C is secured to the drive frame by a set of captive screws and connects to the control board stack via a multi-pin edge connector. After installing the replacement module, verify the AC input voltage at the X1 terminal block with a calibrated multimeter before closing the main contactor. Once the drive powers up, check the drive’s fault history log on the CDP control panel or via DriveWindow to confirm that no new faults have been generated by the replacement procedure.

For production lines where even a single-shift outage is unacceptable, maintaining a pre-tested spare SDCS-POW-1C in the local spare parts inventory is the most effective downtime mitigation strategy. Each unit shipped by SMARTNEXMSK undergoes a functional power-on test and output voltage verification before dispatch, reducing the risk of receiving a non-functional replacement that would extend the maintenance window.

Retrofit Support FAQ

Q1: Is the SDCS-POW-1C a direct drop-in replacement for all DCS800 frame sizes?
The SDCS-POW-1C is compatible with DCS800 drives across the standard frame range (D1 through D7). However, the AC input voltage jumper setting must be verified and matched to the local supply voltage before installation. Drives configured for 115 VAC input in North American installations require the jumper to be set differently from European 230 VAC configurations. Always confirm the jumper position against the drive’s original documentation or the label on the existing module before powering up.

Q2: Can the SDCS-POW-1C be used in DCS400 series drives?
Yes. The SDCS-POW-1C is mechanically and electrically compatible with the DCS400 series, which shares the same control board architecture as the DCS800. The terminal block layout and edge connector pinout are identical across both series, making the SDCS-POW-1C a common spare part for sites that operate a mixed fleet of DCS400 and DCS800 drives.

Q3: What commissioning steps are required after replacing the SDCS-POW-1C?
After physical installation, restore the parameter backup using DriveWindow. Verify that the motor identification run (parameter 99.10) does not need to be repeated — in most cases, a simple parameter restore is sufficient if the motor and mechanical load have not changed. Check the drive’s I/O wiring against the terminal diagram, confirm the fieldbus adapter (RDCO-03, RPBA-01, or RDNA-01) is communicating correctly, and perform a no-load test run before returning the drive to production. Document the replacement in the site’s maintenance log.

Q4: Does the replacement unit come with a warranty, and has it been tested before shipment?
Yes. Every SDCS-POW-1C supplied by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. Each unit undergoes a pre-shipment functional test including power-on verification and output voltage measurement across all DC rails. Test records are available upon request. Units are packaged in anti-static ESD bags with foam cushioning to prevent transit damage.
