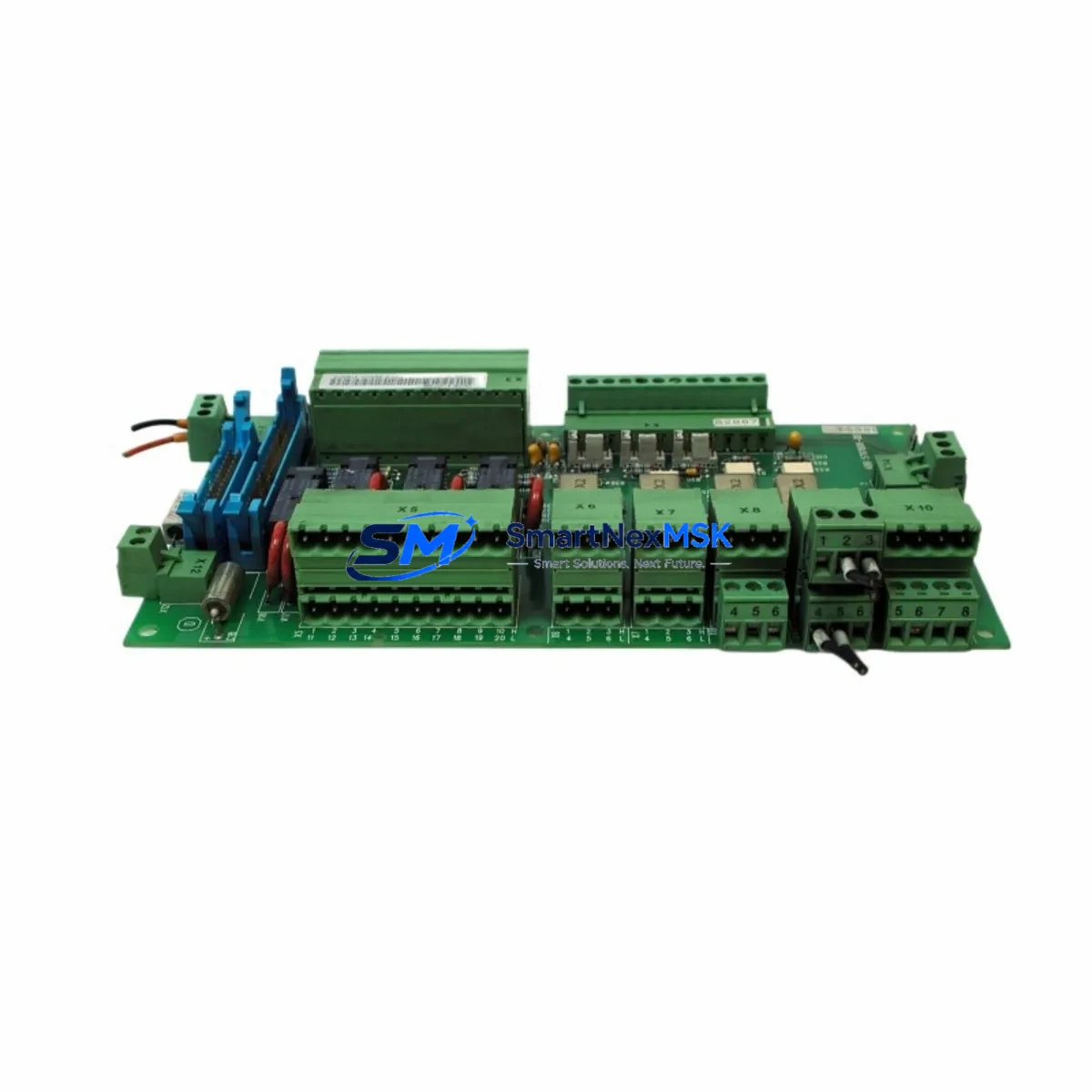

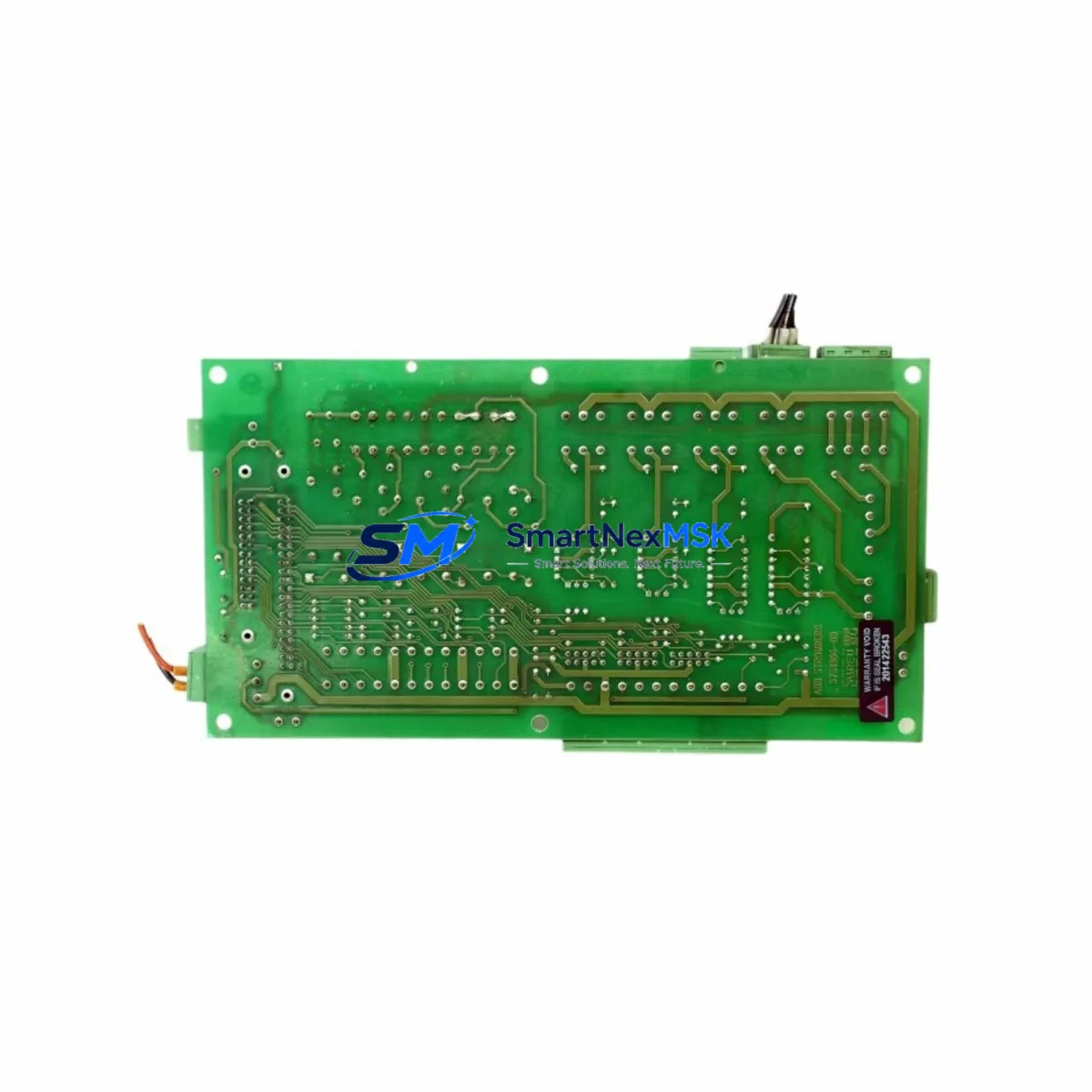

ABB SNAT602 TAC Retrofit-Ready Relay Output for ACS Drive Control Systems
The ABB SNAT602 TAC is a relay output module engineered for seamless integration into ABB ACS-series variable frequency drive (VFD) control architectures. As legacy ACS 400, ACS 600, and ACS 800 drive platforms approach end-of-life, the SNAT602 TAC remains a critical spare for engineers managing retrofit projects, production line upgrades, and control cabinet modernization. Whether you are replacing a failed relay output board, expanding I/O capacity on an existing drive, or migrating a legacy system to a current-generation control platform, the SNAT602 TAC provides a verified, drop-in compatible solution backed by a 12-month warranty and pre-shipment functional testing.
This module handles relay-based digital output signaling within the ACS drive’s internal control bus, interfacing directly with the drive’s RMIO or RDCO control boards. It is designed to operate within the standard ACS drive backplane, requiring no firmware modification when used as a direct replacement in the same drive generation. For cross-generation upgrades — for example, migrating from an ACS 600 to an ACS 880 platform — engineers should verify backplane slot compatibility, relay contact ratings, and the output signal mapping within the drive’s parameter set before commissioning.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Drive Series | ABB ACS 400, ACS 600, ACS 800 (verify slot for ACS 880) |
| Module Type | Relay Output Module (TAC board) |
| Interface / Backplane | ACS internal control bus; standard drive backplane slot |
| Terminal Wiring | Screw-terminal relay contacts; verify contact rating (voltage/current) against field wiring |
| Communication Compatibility | Compatible with DDCS, PROFIBUS (via RPBA-01), Modbus RTU (via RMBA-01) when used with existing adapter modules |
| Replacement Recommendation | Direct drop-in for same-generation ACS drives; cross-generation requires parameter remapping |
| Commissioning Notes | Verify relay output group parameters (Group 14/35 in ACS 800); test NO/NC contact states before live operation |
| Installation Requirement | Power-off drive before module swap; observe ESD precautions; re-lock backplane connector |
| Warranty | 12 months from shipment date; covers manufacturing defects and functional failure |
| Pre-Shipment Testing | Functional relay contact test performed on every unit before dispatch |
Retrofit Planning for Existing Automation Systems
A successful SNAT602 TAC retrofit begins well before the module arrives on site. Engineers should start by auditing the existing ACS drive cabinet layout, confirming the number of occupied backplane slots and identifying whether the RMIO main control board or an RDCO fiber optic communication board is present. In many legacy installations, the SNAT602 TAC works alongside an AINT board (auxiliary interface) and an APOW power supply board — both of which should be inspected for capacitor aging and contact oxidation during the same maintenance window.
Terminal wiring is a common source of commissioning delay. Before removing the old relay output module, photograph and document all field wiring connections at the relay terminal block. Relay output signals in ACS 800 systems are typically mapped to parameter Group 14 (Digital Outputs) and Group 35 (Motor Temperature), and these assignments must be re-verified after module replacement. If the drive is connected to an ABB Panel Bus or communicates with an AC500 PLC via PROFIBUS-DP using an RPBA-01 adapter, confirm that the relay output status words are correctly mapped in the PLC program before restarting the drive.
For sites running ABB’s DriveWindow or DriveStudio commissioning software, a parameter backup should be taken from the existing drive before any hardware change. This backup allows rapid restoration of all drive parameters — including relay output assignments, speed references, and PID control settings — after the SNAT602 TAC is installed. If the control system includes an ABB CP600 or CP620 HMI panel, verify that the HMI’s relay status display pages reference the correct drive parameter addresses, as address offsets can shift when a new output module is introduced.
In multi-drive installations where several ACS 800 units share a common DC bus or are coordinated by a master PLC, the relay output signals from the SNAT602 TAC may feed interlock circuits that control upstream contactors, safety relays, or motor protection relays. These interlock chains must be traced and tested individually after module replacement to confirm that no latent wiring fault has been masked by the failed original module. A PROFIBUS segment analyzer or Modbus diagnostic tool is recommended for verifying communication integrity across the drive network after the retrofit is complete.
Downtime Control During System Migration
Minimizing production downtime during a relay output module replacement requires a structured hot-swap preparation protocol. Begin by scheduling the replacement during a planned maintenance window and pre-staging the SNAT602 TAC alongside all required tools: a torque screwdriver, ESD wrist strap, parameter backup device, and a relay contact tester. If the drive controls a critical process — such as a conveyor, pump, or compressor — coordinate with operations to arrange a manual bypass or temporary process hold before initiating the swap.
The module exchange itself typically takes 15–30 minutes for an experienced technician. The critical time investment lies in post-installation verification: relay contact continuity testing, parameter group review, a no-load test run, and a supervised loaded test run. For drives integrated into a DCS or SCADA system via Modbus TCP or PROFIBUS, confirm that the relay output status signals are correctly received at the control room before releasing the drive back to automatic operation. Keeping a pre-tested spare SNAT602 TAC in local inventory eliminates lead-time risk and reduces unplanned downtime from hours to minutes.
Retrofit Support FAQ
Q1: Is the SNAT602 TAC a direct replacement for the original module in my ACS 800 drive?
Yes. The SNAT602 TAC is a direct plug-in replacement for the relay output position in ACS 800 drives using the standard backplane. No firmware changes are required for same-generation replacements. For ACS 600 applications, verify the backplane slot type and relay contact rating before installation.
Q2: What wiring checks are required before powering up after installation?
Confirm that all relay output field wiring is reconnected to the correct terminal positions, that relay contact ratings match the field load (voltage and current), and that the relay output parameter assignments in Group 14 and Group 35 match the original configuration. A relay contact continuity test with the drive powered off is strongly recommended before the first power-up.
Q3: Will the SNAT602 TAC work with my existing PROFIBUS or Modbus communication setup?
Yes. The SNAT602 TAC operates independently of the drive’s fieldbus communication layer. Your existing RPBA-01 PROFIBUS adapter or RMBA-01 Modbus RTU adapter will continue to function normally. Relay output status words mapped in your PLC or DCS program should not require remapping for a direct same-slot replacement.
Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every SNAT602 TAC unit undergoes functional relay contact testing before dispatch. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty support includes technical diagnosis assistance and unit replacement. Contact sales@smartnexmsk.com for warranty claims or pre-sales compatibility verification.
