ABB TB825 3BSE036634R1 Retrofit-Ready Optical Media Converter

ABB TB825 3BSE036634R1 Retrofit-Ready Optical Media Converter for Advant OCS MOD 300 Control Systems

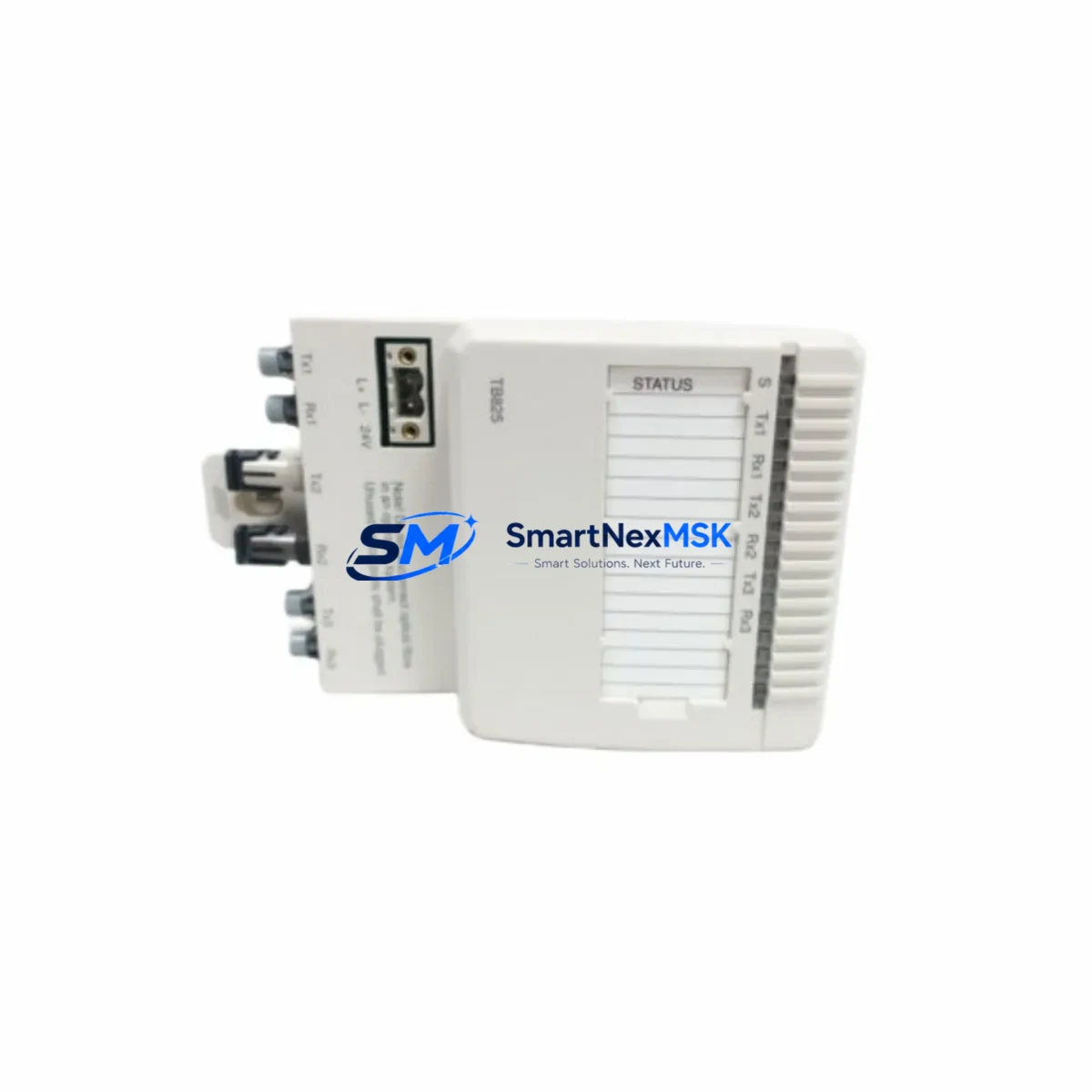

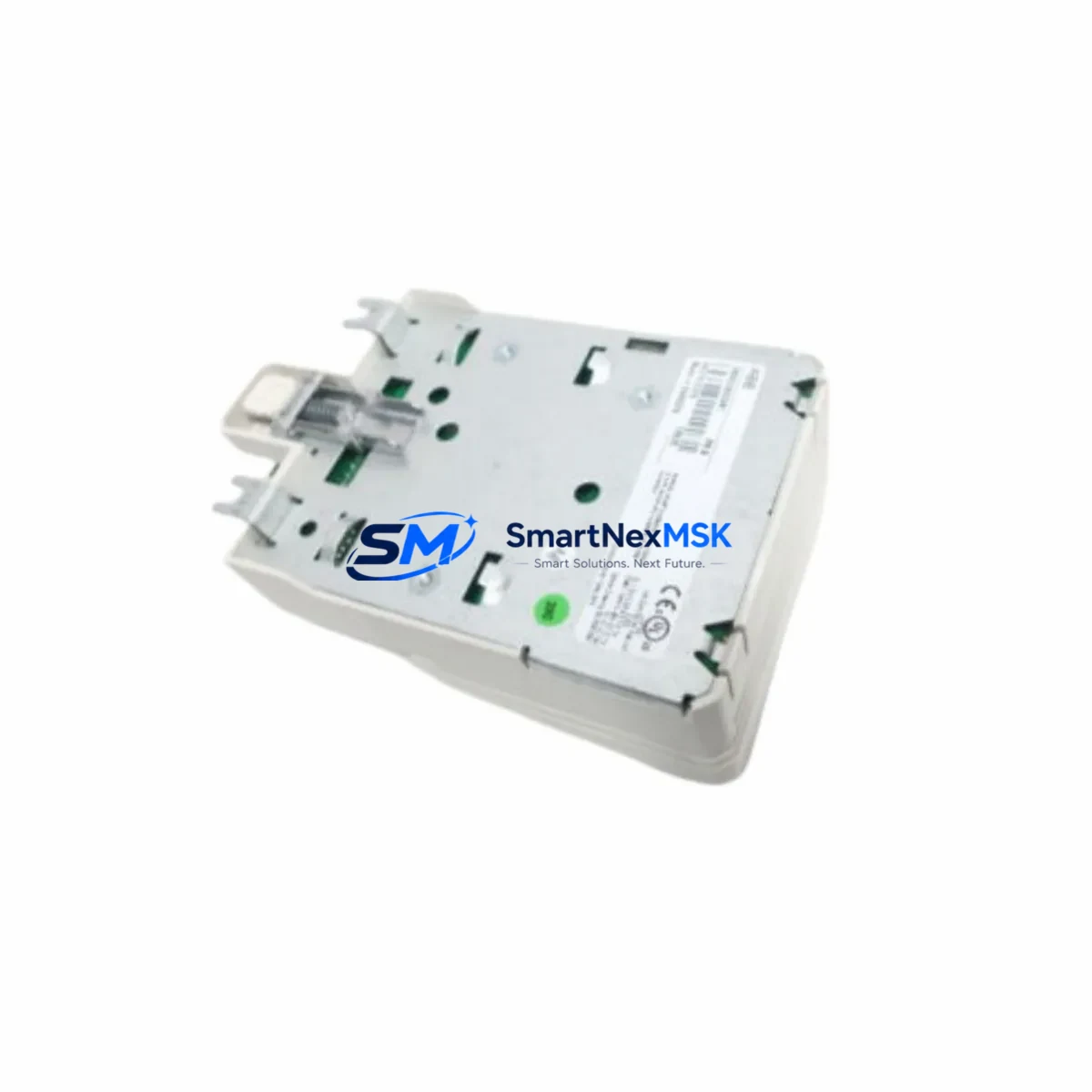

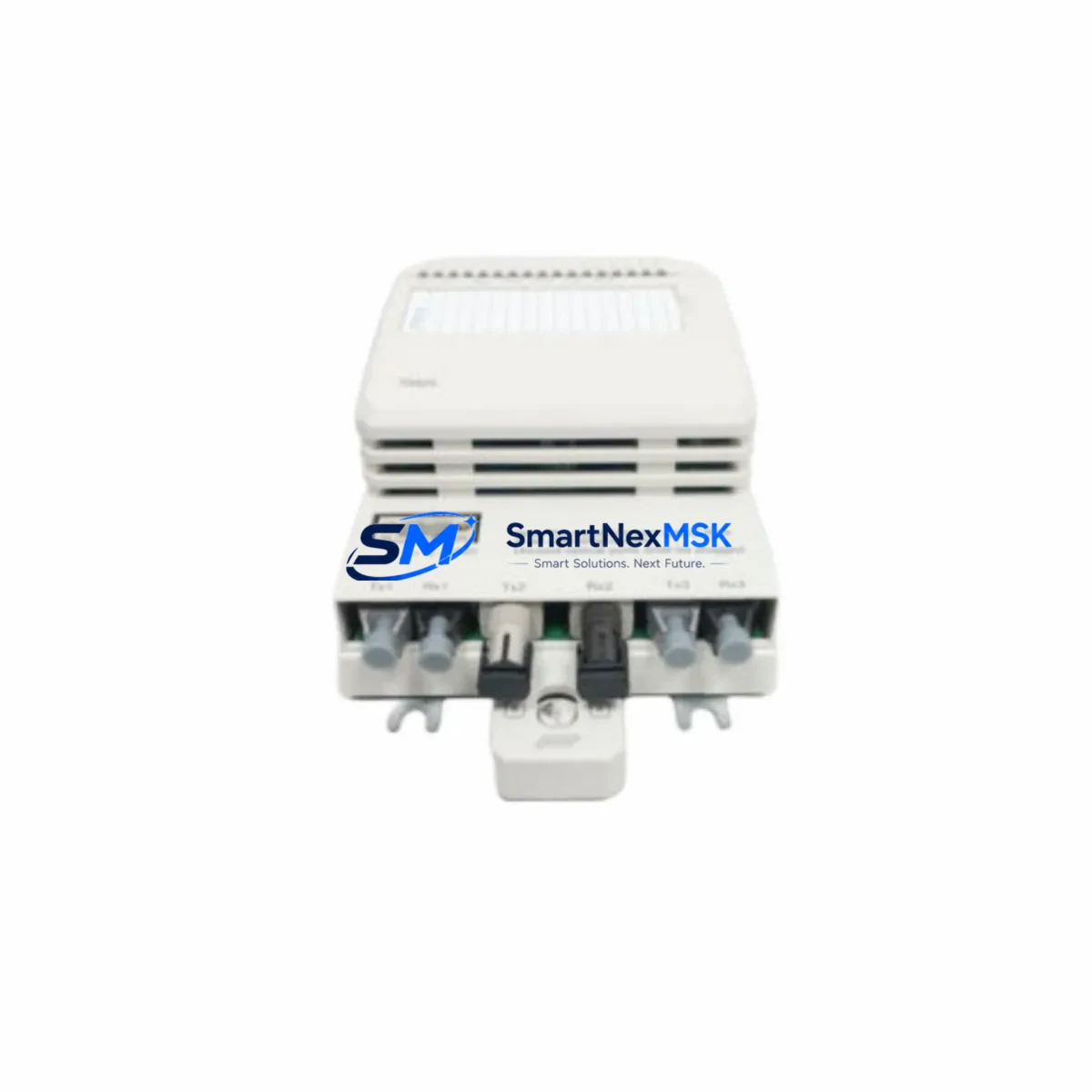

The ABB TB825 (part number 3BSE036634R1) is a fiber-optic media converter module designed for the ABB Advant OCS MOD 300 distributed control system platform. As legacy MOD 300 installations approach end-of-life support cycles, the TB825 3BSE036634R1 has become a critical retrofit and replacement component for engineers tasked with extending the operational life of existing control architectures without full system migration. This module enables reliable optical signal conversion between the controller backplane and field communication networks, maintaining the integrity of the supervisory control loop during phased upgrade programs.

Whether you are replacing a failed unit on an active production line, sourcing a tested spare for a scheduled turnaround, or executing a controlled upgrade of an aging Advant OCS installation, the TB825 3BSE036634R1 provides a verified drop-in replacement path that minimizes engineering risk and reduces unplanned downtime exposure.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TB825 3BSE036634R1 into an existing MOD 300 control system requires a structured pre-installation review. Engineers should begin by auditing the current rack configuration, identifying the precise slot position of the original TB825 and confirming that the host rack — typically a MB510 or MB520 module bus unit — has sufficient backplane capacity to support the replacement module without rebalancing the power budget.

The optical fiber segment connected to the TB825 typically forms part of an AF 100 ring or star topology. Before removing the failed module, document the fiber port assignments and verify that the SC or ST connectors are clean and undamaged. In installations where the TB825 interfaces with a CI522A or CI532 communication interface module, confirm that the communication link status is logged in the MasterView 800 or equivalent engineering workstation before breaking the optical path.

For sites running mixed I/O architectures — combining older AI810, AO810, DI810, or DO810 analog and digital I/O modules with the MOD 300 controller — it is important to verify that the replacement TB825 does not alter the module scan cycle or introduce latency on the fieldbus segment. In time-critical loops such as burner management or compressor surge control, even brief communication interruptions can trigger safety shutdowns. Coordinate with the control room operator to place affected loops in manual mode before proceeding.

Sites that have partially migrated to the ABB 800xA System should pay particular attention to the OPC server configuration and the AF 100 gateway settings. If the TB825 segment feeds an AC 800M controller via a CI854 PROFIBUS interface or a CI857 HART interface, the replacement procedure must include a post-installation communication test from the 800xA engineering station to confirm that all field device tags are visible and reporting correctly.

Power module verification is a frequently overlooked step. The PM150 and PM511 power supply modules in MOD 300 racks have defined current budgets. Adding a replacement TB825 to a rack that is already near its power ceiling — particularly in racks also hosting TB840 or TB842 fieldbus communication modules — can cause intermittent resets. Measure the actual rail current before and after module insertion using the rack’s built-in diagnostics or an external clamp meter.

For sites requiring a programming cable connection during commissioning, the TK212A or TK501 serial programming cable may be needed to access the controller’s configuration tool. Ensure the engineering workstation running MasterPiece 200/1 or Control Builder M has the correct driver version installed before attempting any online program download or parameter adjustment following the TB825 replacement.

Downtime Control During System Migration

Minimizing production downtime during a TB825 3BSE036634R1 replacement requires advance preparation and a clearly defined cutover sequence. The recommended approach is to pre-configure and bench-test the replacement module before the scheduled maintenance window. Verify the DIP switch address settings against the original module’s configuration record — if no record exists, read the settings directly from the installed unit before removal.

Where the process permits, place all control loops served by the affected AF 100 segment into manual or local control mode prior to module extraction. This preserves the last known output state at the field actuators and prevents uncontrolled process excursions during the brief communication interruption. For batch processes or continuous reactors where manual mode is not operationally acceptable, coordinate a planned short shutdown rather than attempting a live swap without loop isolation.

After inserting the replacement TB825 3BSE036634R1, allow the module to complete its self-test sequence — typically indicated by the module’s LED status indicators cycling through their initialization pattern. Do not restore the AF 100 optical link until the module’s RUN LED is steady. Once communication is restored, verify from the engineering workstation that all I/O modules on the segment are reporting correctly before returning loops to automatic control. Document the replacement in the site’s maintenance management system and update the spare parts inventory to reflect the consumed unit.

Maintaining a tested spare TB825 3BSE036634R1 on-site is strongly recommended for any facility where this module is installed in a critical control path. Given the discontinuation of ABB factory support for legacy MOD 300 hardware, third-party tested inventory with a 12-month warranty provides the most reliable supply assurance for ongoing operations and future turnaround planning.

Retrofit Support FAQ

Q1: Is the TB825 3BSE036634R1 a direct replacement for all TB825 variants in the MOD 300 system?
The 3BSE036634R1 is the primary catalog reference for the TB825 optical media converter. In most MOD 300 rack configurations, it is a direct slot-for-slot replacement. However, if your installation includes an early-generation MOD 300 rack with a different backplane revision, confirm the hardware revision compatibility with your system documentation or contact our technical team before ordering.

Q2: What commissioning steps are required after installing the replacement TB825?
After physical installation, verify that the module address DIP switches match the original configuration. Power on the rack and confirm the module’s LED indicators show a healthy RUN state. From the engineering workstation, perform a communication check on the AF 100 segment and confirm all downstream I/O modules — such as AI810, DI810, or AO810 — are online and reporting correctly. No firmware download is typically required for a like-for-like replacement.

Q3: How do I verify wiring and fiber connections before powering on the replacement module?
Inspect the ST-type fiber connectors for contamination or physical damage and clean with an appropriate fiber optic cleaning tool if necessary. Confirm that the transmit (TX) and receive (RX) fiber ports are connected to the correct counterpart ports on the adjacent TB825 or CI522A module. Use an optical power meter to verify signal levels are within the specified range before closing the rack door and restoring power.

Q4: What does the 12-month warranty cover, and what is the shipping and testing process?
All TB825 3BSE036634R1 units supplied by SMARTNEXMSK are functionally tested prior to shipment. The 12-month warranty covers defects in materials and workmanship under normal operating conditions. Each unit is shipped with a test report. In the event of a warranty claim, contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement or repair will be arranged promptly to minimize your operational impact.
