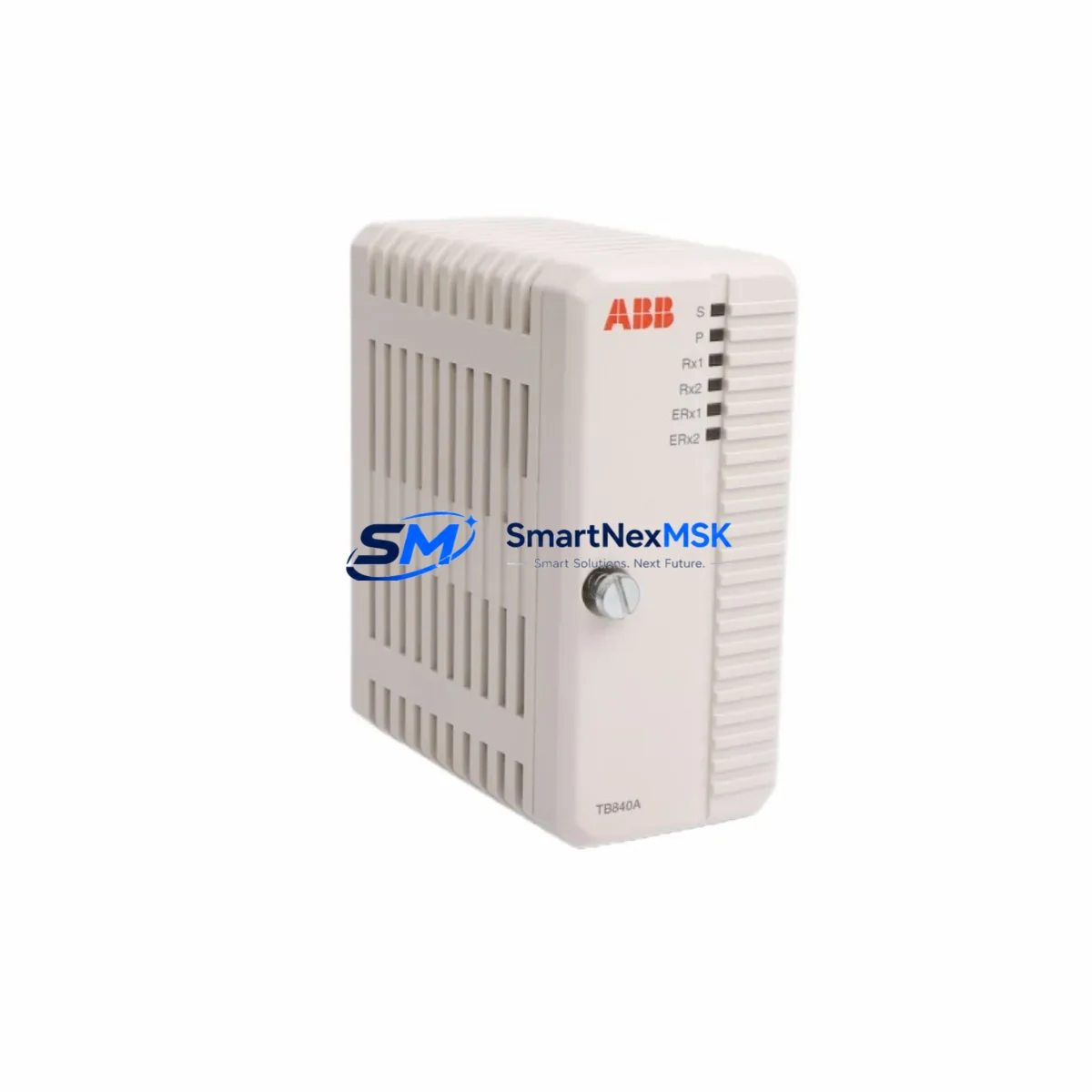

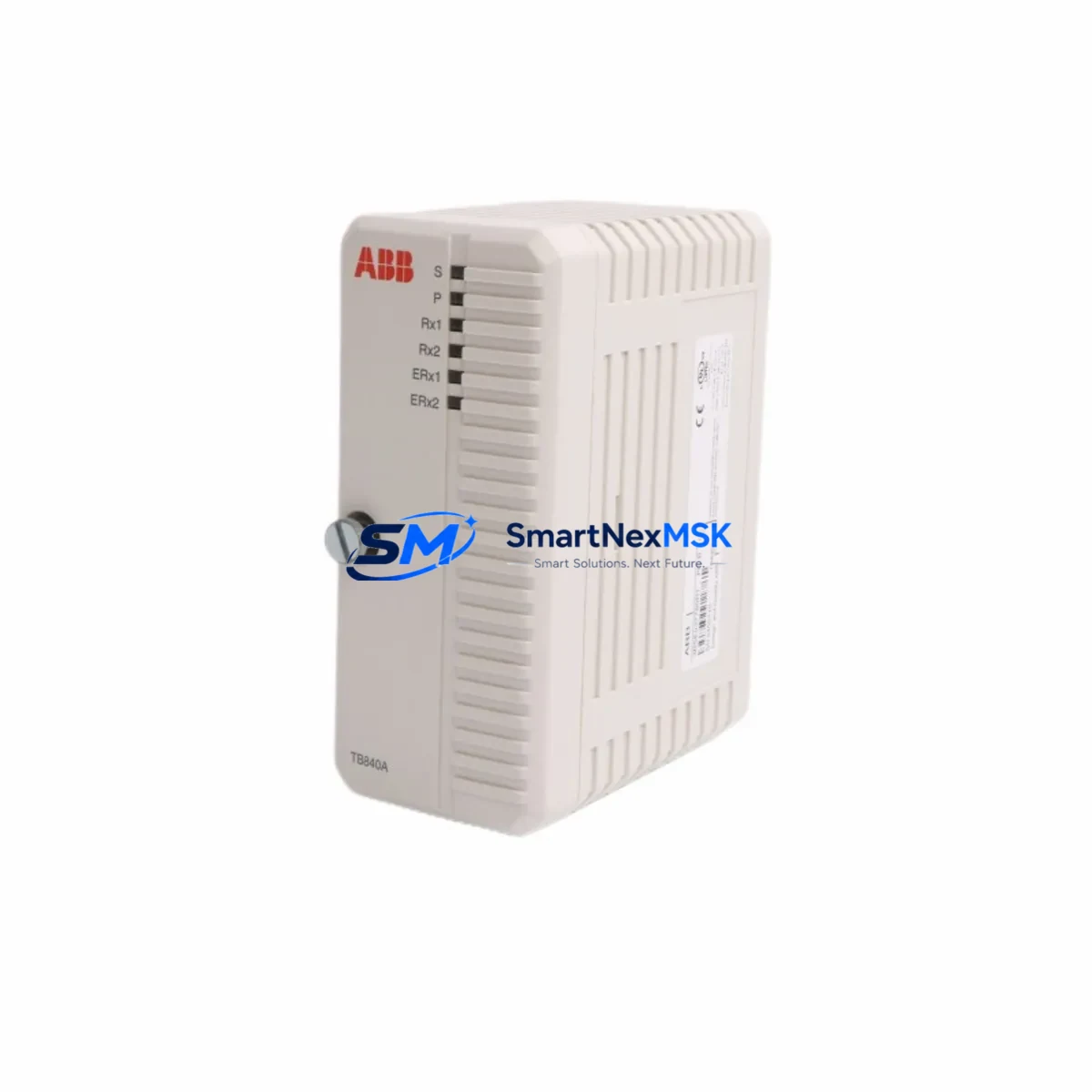

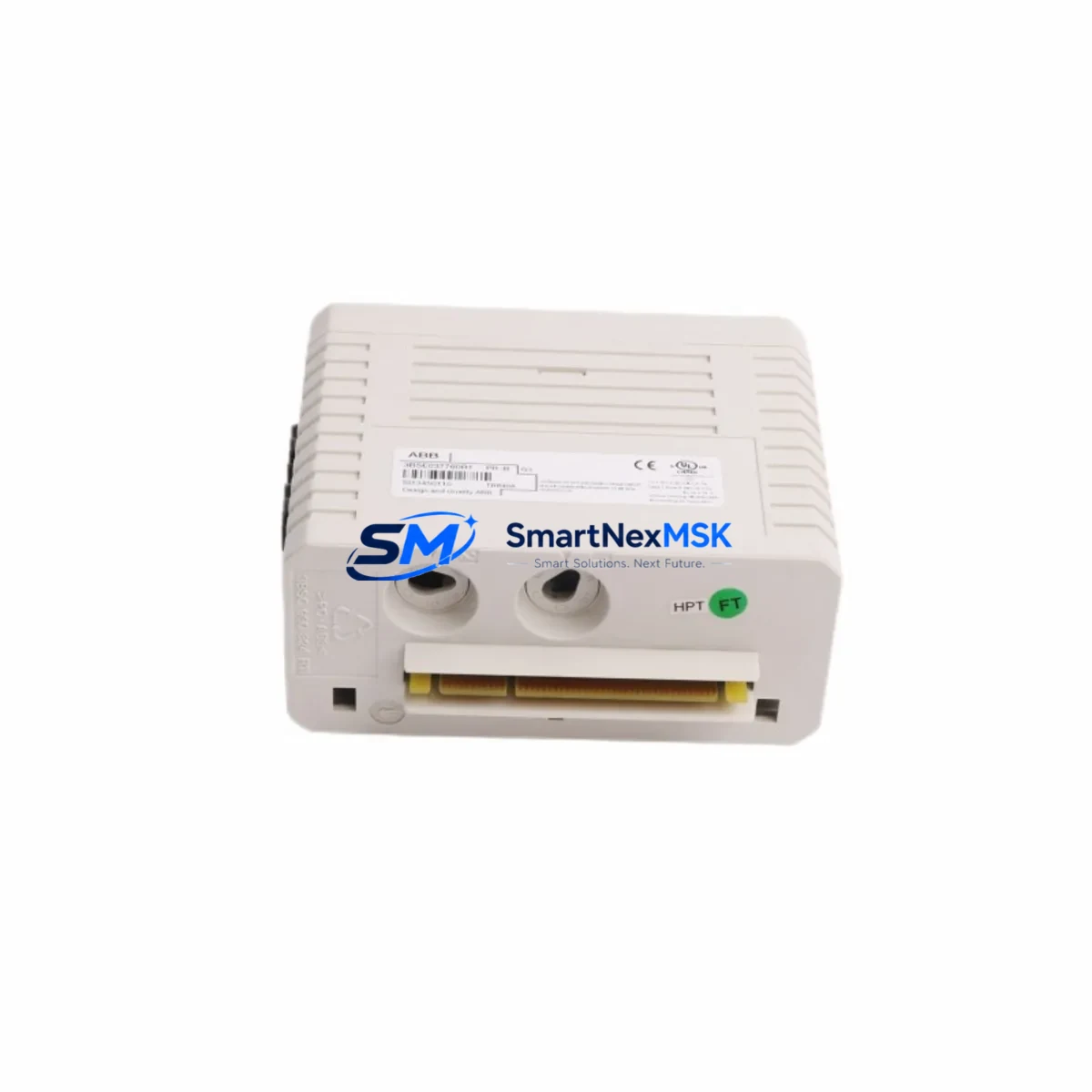

ABB TB840A 3BSE037760R1 Retrofit-Ready Modulebus Cluster Modem

ABB TB840A 3BSE037760R1 Retrofit-Ready Modulebus Cluster Modem for AC800M Control Systems

The ABB TB840A (3BSE037760R1) is a Modulebus Cluster Modem designed for use within the ABB AC800M distributed control system platform. As legacy AC800M installations age and original spare parts become increasingly scarce, the TB840A serves as a critical retrofit component for engineers tasked with sustaining, upgrading, or migrating existing control architectures without full system replacement. This module enables continued Modulebus communication between controllers and I/O clusters, preserving the integrity of existing control logic while extending the operational life of the automation system.

Whether you are replacing a failed unit on an active production line, building a retrofit kit for a scheduled turnaround, or sourcing verified spares for a long-term maintenance contract, the TB840A 3BSE037760R1 is stocked, tested, and ready to ship with a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting an AC800M-based control system requires careful pre-planning across hardware, software, and field wiring layers. The TB840A 3BSE037760R1 typically appears in retrofit scopes alongside several other critical components. Engineers commonly need to audit the PM864 or PM866 controller modules to confirm firmware revision compatibility with the replacement modem. The S800 I/O backplane must be inspected for physical damage and correct slot assignments before the new TB840A is seated.

Power budget verification is essential: the SS822 or SS823 redundant power supply modules must have sufficient headroom to support the TB840A alongside all active I/O modules in the cluster. Overloaded power rails are a common cause of intermittent communication faults after a modem swap. Terminal wiring on AI810, AO810V2, DI810, and DO810 I/O modules within the same cluster should be documented and photographed before any hardware is disturbed.

For systems using CI854 PROFIBUS DP communication interfaces or CI857 FOUNDATION Fieldbus HSE modules in the same control cabinet, protocol migration planning must account for address conflicts and bus termination settings. If the retrofit involves moving from a single-cluster to a multi-cluster Modulebus topology, additional TB840A units and updated cluster addressing in Control Builder M (CBM) are required before the new configuration can be downloaded to the controller.

HMI screens built in ABB 800xA System or legacy Operate IT environments should be reviewed for I/O tag bindings that reference the cluster being modified. Tag re-mapping errors are a leading cause of post-retrofit alarm floods and process deviations. Where AF100 Advant Fieldbus or older MB300 Modulebus segments are being migrated to the AC800M / S800 architecture, the TB840A serves as the termination point for the new Modulebus segment, and all legacy field device addresses must be re-assigned accordingly.

Before closing the control cabinet, verify that the TK212A programming cable or Ethernet connection to the CBM engineering station is functional, and perform a full online download with force-check disabled to avoid unintended output activation during the first controller scan after restart.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any AC800M retrofit involving the TB840A Modulebus Cluster Modem. The recommended approach is a hot-standby swap procedure where the replacement module is pre-configured offline — DIP switch address set, firmware version confirmed, and physical condition inspected — before the production system is taken offline.

Schedule the swap during a planned maintenance window and coordinate with the process team to place the affected control loop in manual mode at the DCS operator station. This prevents automatic control actions from executing on stale I/O data during the module exchange. If the AC800M controller supports redundancy via a paired PM864 or PM866, activate the redundant controller path before removing the TB840A to maintain process visibility throughout the swap.

After seating the new TB840A, power up the I/O station and observe the Modulebus status LEDs. A solid green RUN indicator confirms successful cluster initialization. In Control Builder M, navigate to the hardware configuration tree and perform an online hardware scan to verify that all I/O modules in the cluster are recognized at their correct addresses. Do not perform a full program download until all I/O channels have been verified against the pre-retrofit documentation.

For critical loops — particularly those controlling pressure relief, temperature interlock, or motor protection — perform a point-by-point I/O check using the CBM Force function in a controlled sequence before returning the loop to automatic mode. Document the completion of each check in the site maintenance log. Total swap time for an experienced engineer with a pre-staged TB840A is typically under 45 minutes, keeping production impact to a single planned maintenance interval.

Retrofit Support FAQ

Q1: Is the TB840A 3BSE037760R1 a direct drop-in replacement for the TB840 (3BSE021009R1)?
Yes. The TB840A is the current-generation successor to the TB840 and is fully backward compatible with existing S800 I/O stations and AC800M controller configurations. No hardware adapter or software reconfiguration is required for a direct swap. The DIP switch address setting on the replacement unit must match the address of the module being replaced.

Q2: What pre-shipment testing is performed on the TB840A?
Each TB840A unit undergoes functional power-on testing and Modulebus communication verification before shipment. Units are inspected for physical integrity, connector condition, and LED functionality. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the TB840A be used in a redundant Modulebus cluster configuration?
The TB840A supports redundant cluster modem configurations when paired with a second TB840A unit in the same S800 I/O station. Redundancy must be enabled in the Control Builder M hardware configuration and the controller firmware must support redundant Modulebus operation. Confirm your PM8xx controller firmware version with ABB documentation before enabling redundancy.

Q4: What should I verify if the TB840A shows a fault LED after installation?
First, confirm that the DIP switch address on the TB840A matches the cluster address defined in the CBM hardware configuration. Second, verify that the S800 backplane power supply (SS822/SS823) is within its rated load capacity. Third, check that the Modulebus cable termination resistors are correctly installed at both ends of the bus segment. If the fault persists, perform a hardware rescan in CBM and review the controller event log for Modulebus timeout or address conflict messages.
