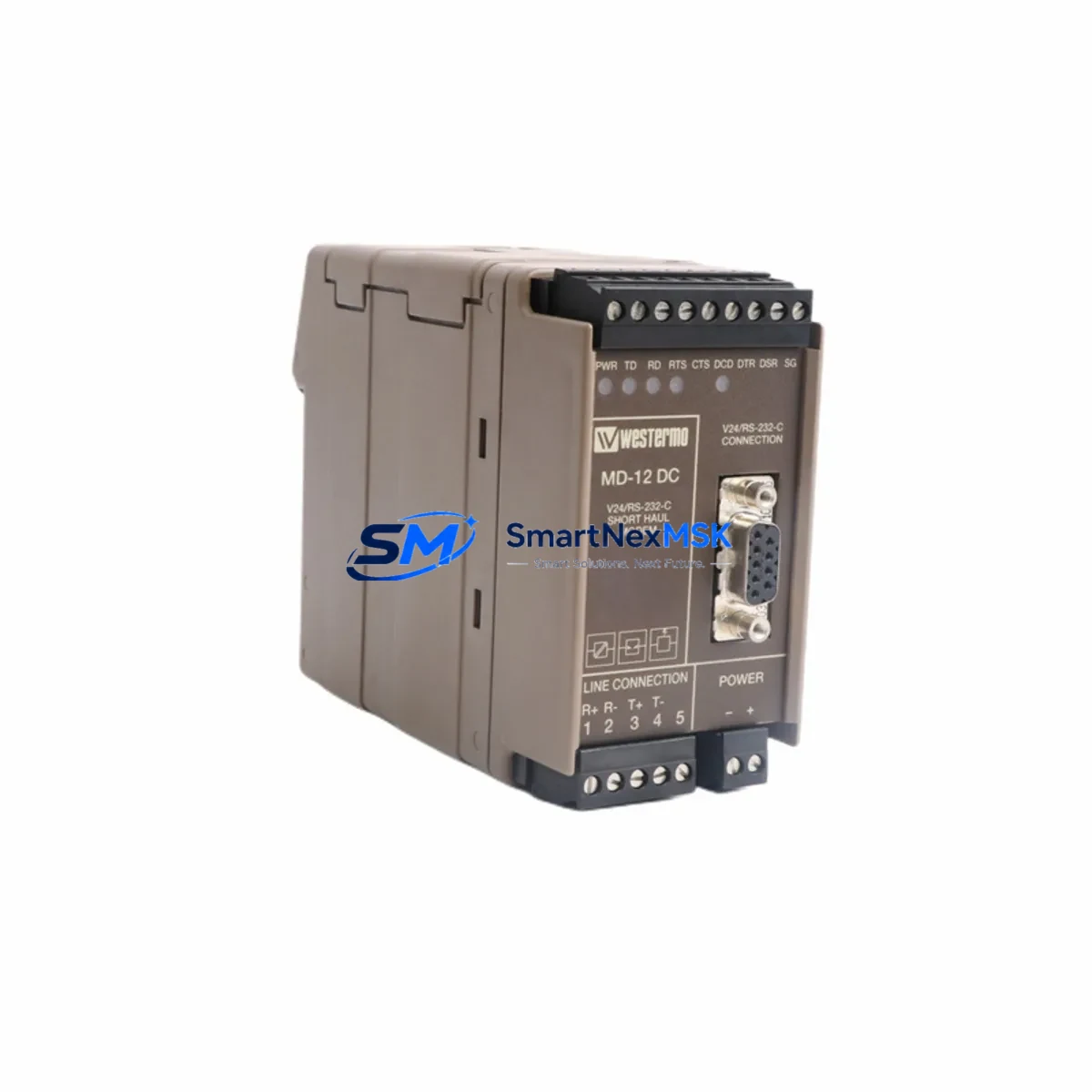

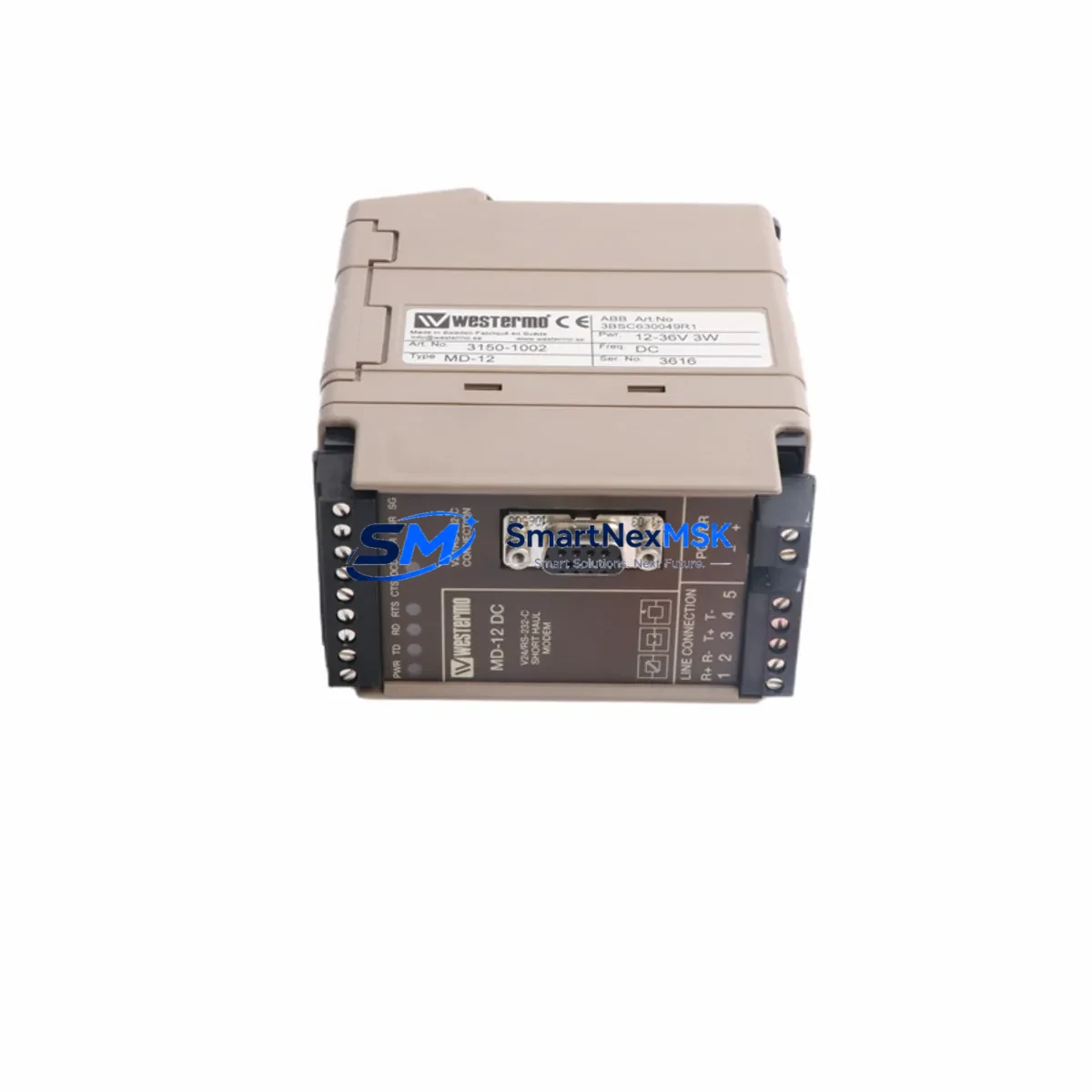

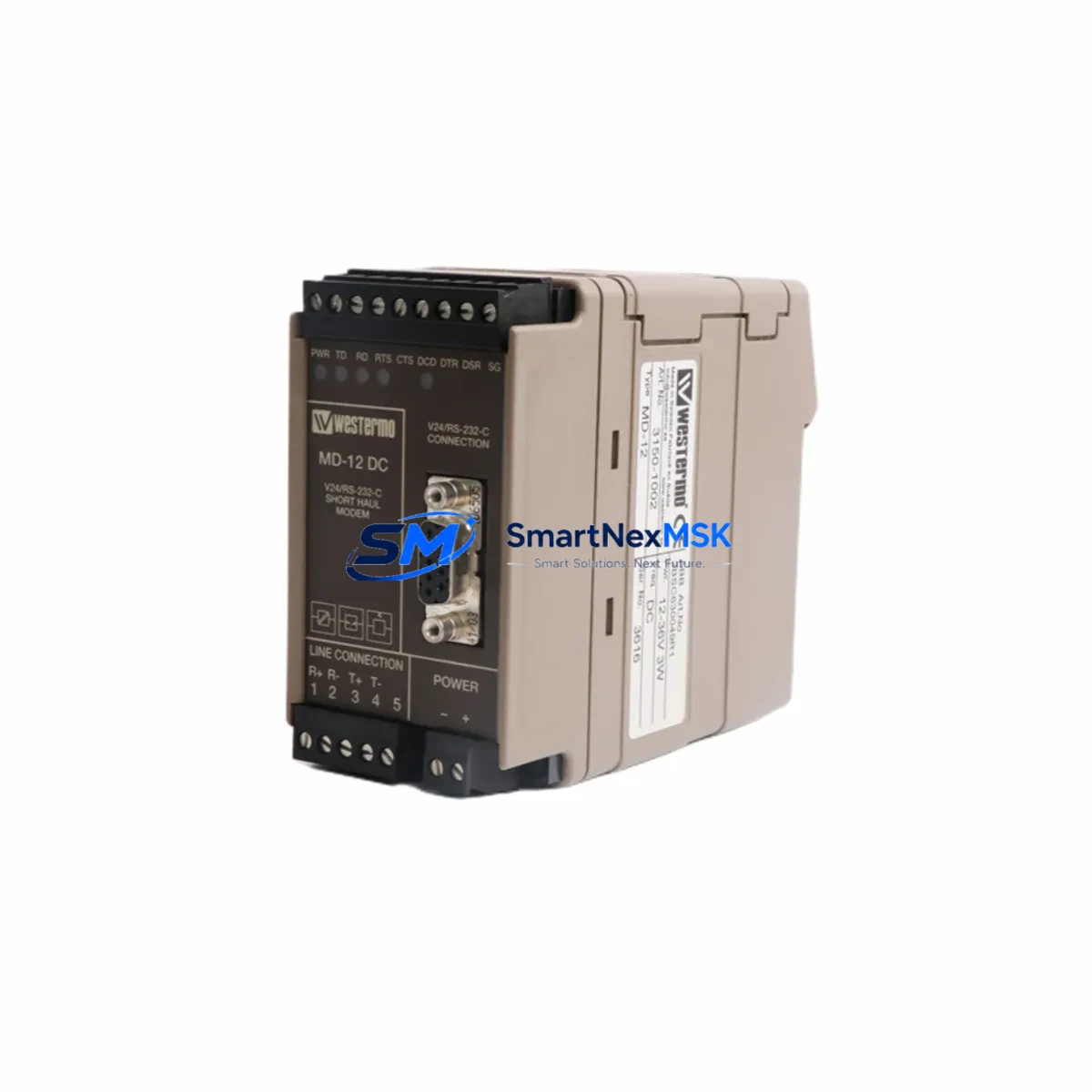

ABB TC562 3BSC630049R1 Maintenance-Ready Spare for MOD 300 Automation
The ABB TC562 (part number 3BSC630049R1) is an original short-distance modem module designed for the Advant MOD 300 Distributed Control System. In industrial facilities where MOD 300 controllers manage critical process loops — from chemical reactors to power generation auxiliaries — the TC562 serves as the communication backbone between controller nodes and remote I/O stations. A failed or degraded TC562 can isolate entire process segments, triggering unplanned shutdowns and costly production losses. Maintaining a verified, tested spare on the shelf is the single most effective measure a maintenance team can take to protect system uptime.
At SMARTNEXMSK, every TC562 3BSC630049R1 unit is sourced from original ABB supply channels, inspected against factory specifications, and function-tested before dispatch. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Our global logistics network supports urgent air-freight delivery to minimize downtime windows for critical replacement events.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | 3BSC630049R1 |
| Model | TC562 |
| Manufacturer | ABB (Germany) |
| Function | Short-Distance Modem for DCS Node Communication |
| Compatible System | ABB Advant MOD 300 DCS |
| Communication Type | Serial / Modem-based inter-node link |
| Mounting | DIN-rail / backplane slot per MOD 300 cabinet standard |
| Operating Temperature | 0 °C to +55 °C (standard industrial range) |
| Origin | Germany (DE) |
| Condition | Original, New / Refurbished-to-spec |
| Compatibility Verified | ABB Advant MOD 300 controller cabinets |
| Warranty | 12 Months — covers manufacturing defects and operational failure |
| Testing | Function-tested and inspected prior to shipment |
| Lead Time | In-stock: ships within 24–48 hours; urgent air-freight available |
| Maintenance Interval | Inspect every 12 months or per planned shutdown schedule |
Maintenance Planning for Continuous Operation
When a maintenance or procurement engineer schedules replacement of the TC562 3BSC630049R1, the replacement event should be treated as a broader cabinet health check rather than a single-component swap. The TC562 operates within a communication chain that depends on the integrity of several adjacent components, and a degraded modem is often a symptom of wider electrical stress in the control cabinet.
Begin by inspecting the ABB DSCS 140 or DSCS 150 communication supervisor module that coordinates the node link where the TC562 operates — a failing supervisor can accelerate modem wear. Check the ABB DSMB 127 or DSMB 176 motherboard / backplane for oxidized connector pins or cracked solder joints at the TC562 slot. Verify the 24 VDC power supply module (such as the ABB DSQC 604 or equivalent MOD 300 PSU) is delivering stable voltage within ±2% tolerance, as voltage ripple is a leading cause of modem communication errors.
Inspect all shielded communication cables connecting the TC562 to remote I/O stations — cable shield continuity and connector seating are critical for signal integrity over longer runs. Review the ABB DSDI 110 or DSDO 115 digital I/O modules in the same cabinet for alarm flags that may indicate upstream communication faults originating from the TC562 link. If the system includes signal isolators on the modem output lines, verify their isolation resistance and replace any units showing degraded performance.
For systems with ABB Advant Controller 450 (AC450) or AC410 as the host controller, confirm that firmware compatibility between the replacement TC562 and the controller version is maintained — consult the MOD 300 hardware compatibility matrix before installation. Where redundant communication paths are configured, test the switchover behavior after TC562 replacement to confirm automatic failover operates correctly. Finally, update the spare parts register to reflect the new TC562 serial number and installation date, and schedule the next inspection at 12 months.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement TC562 3BSC630049R1 part number matches the installed unit. Cross-reference the MOD 300 hardware list and verify the firmware revision is compatible with the host AC450 or AC410 controller. Do not substitute with TC560 or TC563 variants without engineering sign-off, as connector pinouts and signal levels differ.
Step 2 — Safe isolation: Place the affected communication node in manual or backup control mode per site safety procedures. Notify the control room operator. De-energize the cabinet section housing the TC562 following LOTO (Lockout/Tagout) protocol.
Step 3 — Physical replacement: Remove the failed TC562 by releasing the module locking lever and sliding it from the backplane slot. Inspect the backplane connector for damage or contamination before inserting the replacement unit. Seat the new TC562 firmly until the locking lever engages.
Step 4 — Power-up and diagnostics: Re-energize the cabinet section and observe the TC562 status LEDs. A solid green link LED confirms successful node communication establishment. Use the MOD 300 engineering workstation to verify all remote I/O points on the affected node are reporting correctly.
Step 5 — System handback: Return the process loop to automatic control. Document the replacement in the maintenance management system (CMMS) with the new TC562 serial number, installation date, and technician sign-off. Schedule the next planned inspection at 12 months.
This workflow minimizes downtime to a typical window of 30–90 minutes for a prepared maintenance team with a pre-tested spare on hand, compared to multi-day outages when sourcing replacement parts reactively.
Spare Parts Support FAQ
Q1: Is the TC562 3BSC630049R1 still available as a new original part, or only as refurbished?
SMARTNEXMSK maintains stock of both new original and professionally refurbished-to-specification TC562 units. All refurbished units undergo full functional testing and are supplied with the same 12-month warranty as new stock. Availability is confirmed at the time of inquiry — contact sales@smartnexmsk.com for current stock status.
Q2: How do I verify compatibility before ordering?
Provide your MOD 300 system hardware list or the existing TC562 nameplate data (part number 3BSC630049R1 and any revision suffix) when placing your inquiry. Our technical team will cross-reference against the ABB Advant MOD 300 hardware compatibility matrix and confirm fit before shipment. We do not dispatch units without compatibility confirmation for critical DCS applications.
Q3: What does the 12-month warranty cover, and what is the claims process?
The warranty covers manufacturing defects and operational failures under normal service conditions for 12 months from the date of shipment. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with the order reference, installation date, and a description of the failure mode. Replacement or repair is arranged within 5 business days of claim approval.
Q4: Can SMARTNEXMSK support long-term supply for aging MOD 300 systems?
Yes. We specialize in long-term spare parts support for legacy DCS and PLC platforms including the ABB Advant MOD 300 series. We maintain forward stock of high-demand modules and can establish blanket purchase agreements for facilities managing extended system lifecycles. Contact our sales team to discuss a tailored spare parts program for your site.
