ABB TK850V007 Retrofit-Ready Bus Cable for AC500 Systems

ABB TK850V007 Retrofit-Ready Bus Cable for AC500 Control Systems

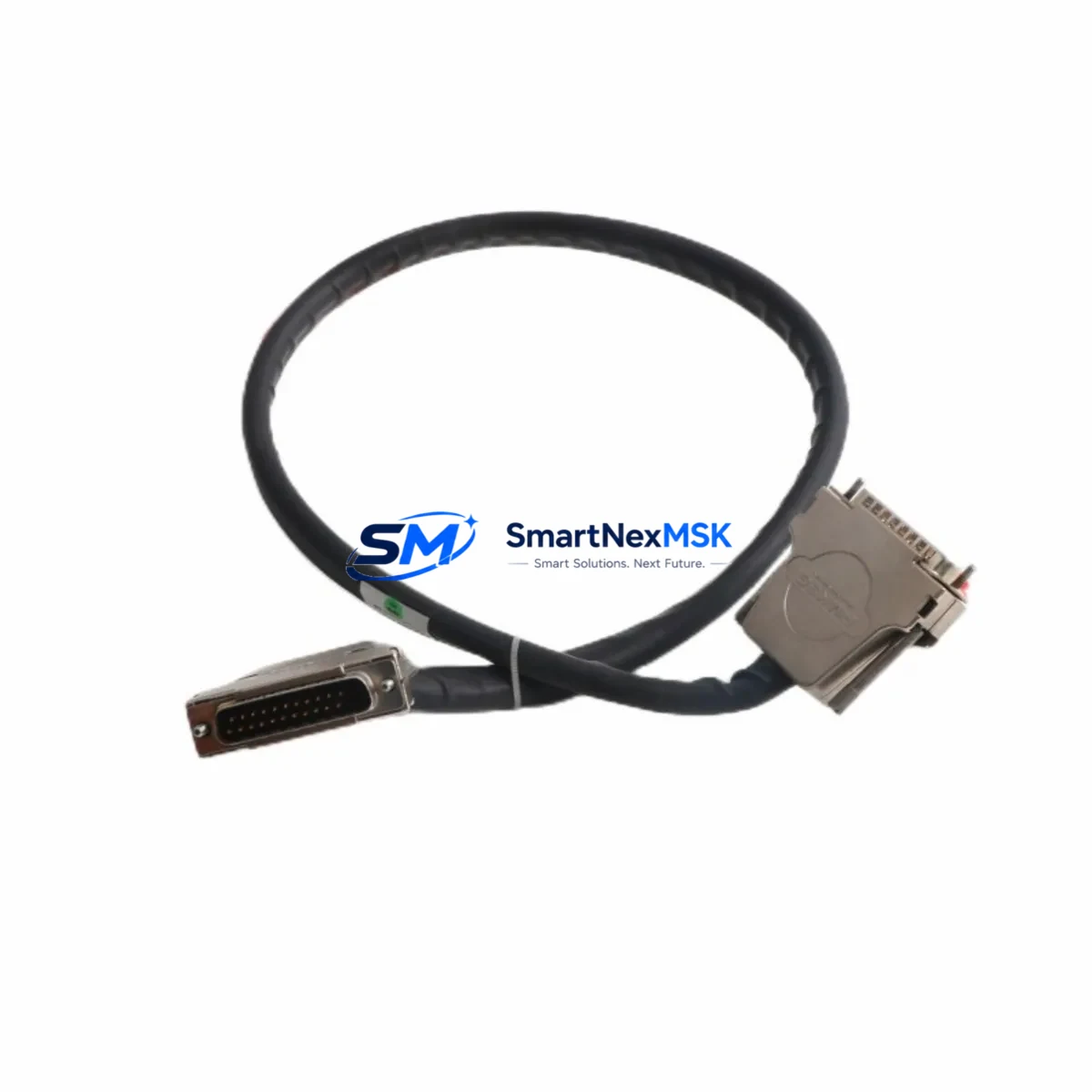

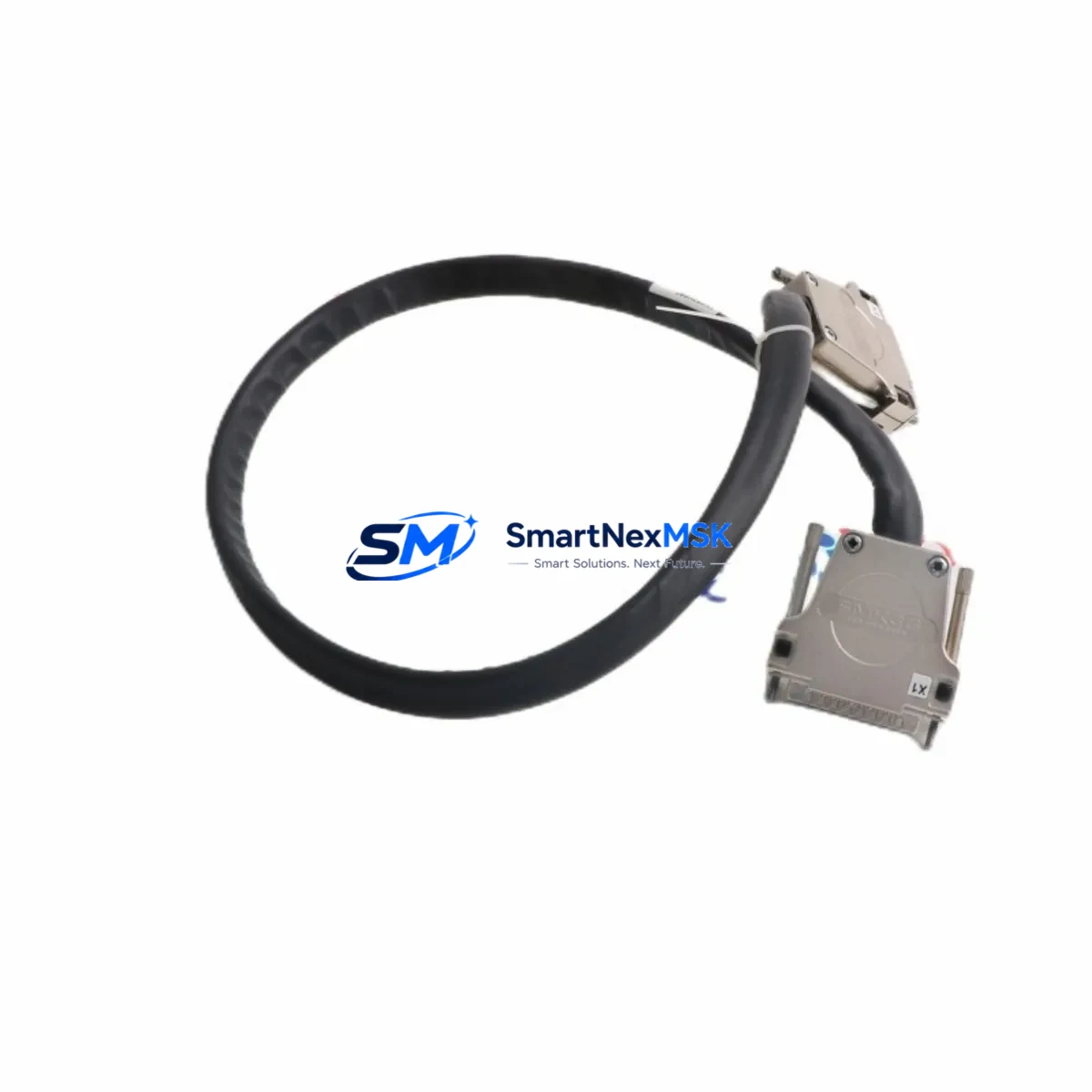

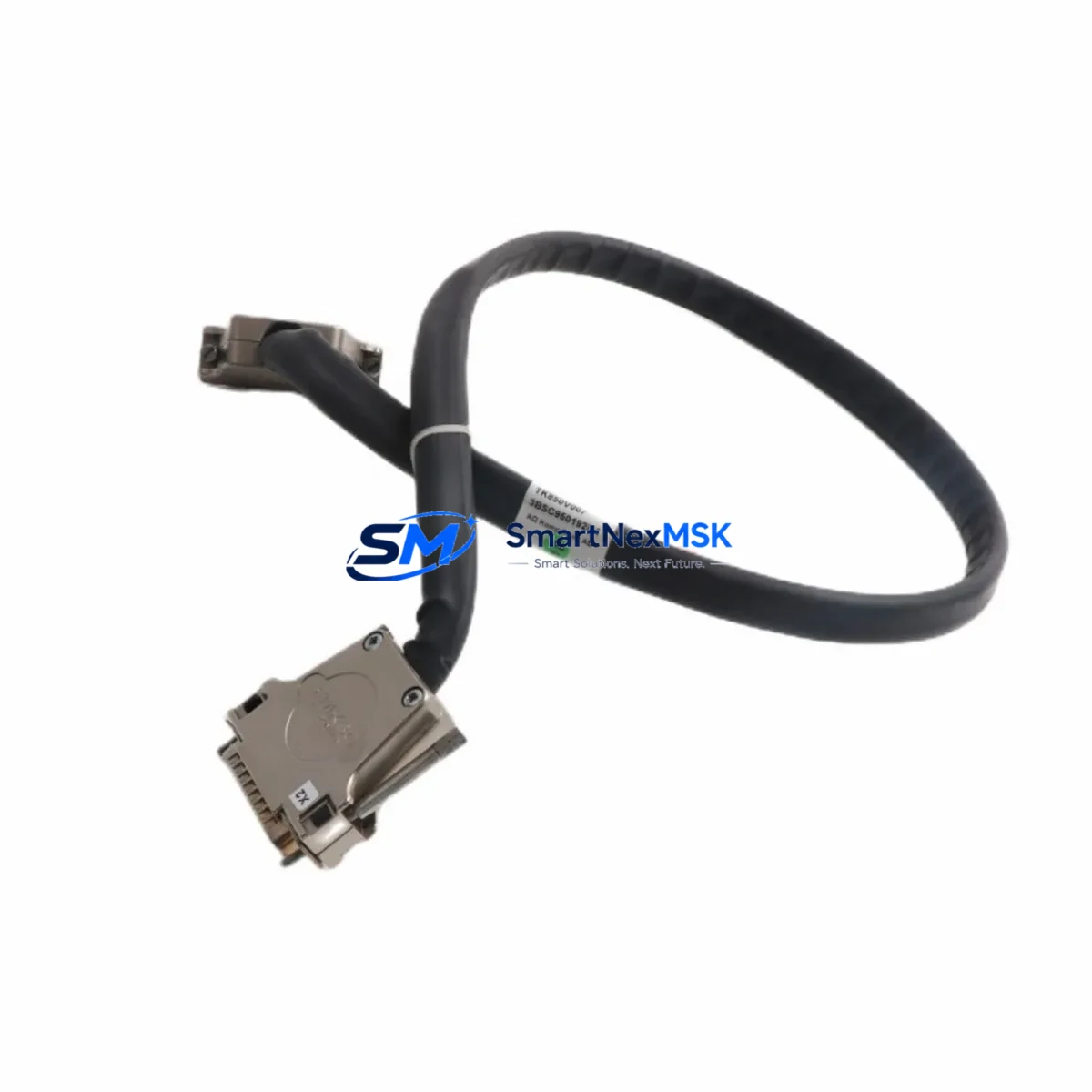

The ABB TK850V007 (part number 3BSC950192R1) is a 0.7-metre bus extension cable engineered for the AC500 PLC platform, one of ABB’s most widely deployed modular control architectures in process automation, machine control, and infrastructure applications. As legacy AC500 installations age and original cabling reaches end-of-service life, the TK850V007 serves as a direct, wiring-compatible replacement that allows engineers to restore full backplane communication without modifying rack layouts, terminal assignments, or PLC program logic.

This cable connects the CPU module — typically a PM571, PM581, PM591, or PM595 — to expansion I/O racks or communication modules mounted in adjacent TB711, TB721, or TB731 terminal base assemblies. The 0.7 m length is the standard inter-rack span used in most AC500 control cabinet configurations, making TK850V007 the first-choice replacement when the original cable shows signs of connector wear, insulation fatigue, or intermittent bus faults. For installations requiring longer spans, the TK850V007 is often used alongside TK850V010 (1.0 m) or TK850V020 (2.0 m) cables to reach remote I/O racks mounted in separate enclosure sections.

When planning a retrofit or cable replacement, engineers should verify the following before installation: confirm the backplane bus connector type on both the CPU terminal base and the target I/O terminal base; check that the replacement cable length matches the physical distance between rack mounting positions; and inspect the locking tab condition on the existing connectors to ensure the new cable seats and latches correctly. In multi-rack systems using DI581, DO581, AI531, or AO531 I/O modules, the bus cable carries both power and data signals, so a damaged or poorly seated TK850V007 can cause the entire I/O segment to drop offline — making correct installation critical to system continuity.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

In a typical AC500 retrofit scenario, the TK850V007 replacement is one element of a broader control cabinet modernization. Engineers upgrading aging AC500 V1 installations to AC500 V2 or V3 architecture will often replace not only the bus cable but also the CPU module itself — moving from an older PM571 to a PM591 or PM595 to gain expanded memory, faster scan times, and support for modern communication protocols. During this process, the terminal bases (TB711 or TB721) are usually retained since they are mechanically compatible across AC500 generations, which significantly reduces rewiring time and cabinet downtime.

I/O modules such as the DI581 (16-channel digital input), DO581 (16-channel digital output), AI531 (8-channel analog input), and AO531 (4-channel analog output) are typically retained during a CPU upgrade, as these modules remain fully compatible with newer AC500 CPUs. The TK850V007 bus cable connects these I/O racks to the upgraded CPU without any modification to field wiring or terminal assignments. Engineers should confirm module address settings in Automation Builder after the CPU swap to ensure the I/O map matches the existing program logic.

For systems that include communication modules such as the CM572-DP (PROFIBUS DP master) or CM589-PNIO (PROFINET I/O), the bus cable replacement must be coordinated with a communication link verification step. After installing the new TK850V007, engineers should check that the communication module is recognized on the backplane and that the network diagnostic LEDs return to normal operating status before resuming production. In installations where an HMI panel — such as an ABB CP600 or a third-party SCADA terminal — is connected via Modbus TCP or OPC-UA, the HMI communication link should be tested independently to confirm that the backplane cable replacement has not introduced any address conflicts or scan-cycle delays.

Power supply capacity is another critical checkpoint during retrofit planning. The AC500 backplane distributes 24 VDC from the power supply module (PS501 or PS560) across all connected I/O racks via the bus cable. When adding I/O modules or upgrading to a higher-density rack configuration, engineers must verify that the total current draw of all connected modules does not exceed the power supply’s rated output. The TK850V007 itself does not add significant load, but it is the conduit through which all downstream I/O power is delivered, making its integrity essential to stable system operation.

Downtime Control During System Migration

Minimizing production downtime during a bus cable replacement or broader AC500 retrofit requires careful pre-migration preparation. Before any hardware is removed, engineers should export the complete PLC program from the existing CPU using ABB Automation Builder, including all task configurations, variable tables, and communication settings. This backup ensures that if the new CPU or cable installation encounters an unexpected issue, the original program can be restored quickly without relying on memory or manual reconstruction.

The physical cable swap itself — replacing the TK850V007 — typically takes less than five minutes when the replacement cable is on hand and the connector positions are accessible. The primary time risk in most retrofits is not the hardware swap but the post-installation verification: confirming that all I/O racks are recognized, that module addresses match the program configuration, and that field signals are reading correctly before the system is returned to automatic mode. Preparing a commissioning checklist that covers backplane recognition, I/O force-test, HMI screen validation, and communication link status can reduce verification time significantly and prevent the need for a second maintenance window.

For critical processes where even a brief interruption is unacceptable, engineers can pre-configure a spare CPU module with the backed-up program and test the complete assembly — including the new TK850V007 cable and all I/O modules — on a bench rack before the scheduled maintenance window. This hot-swap preparation approach allows the entire pre-tested assembly to be installed during a planned shutdown, with the verification steps already completed offline. All units supplied by SMARTNEXMSK are pre-tested before shipment and covered by a 12-month warranty, supporting this approach with confidence in component reliability.

Retrofit Support FAQ

Q1: Is the TK850V007 a direct replacement for the original ABB bus cable, or are there wiring modifications required?
The TK850V007 (3BSC950192R1) is a direct drop-in replacement for the original ABB AC500 bus extension cable of the same part number. No wiring modifications, terminal reassignments, or program changes are required. After installation, perform a cold restart of the CPU and verify that all I/O racks are recognized in Automation Builder before returning the system to service.

Q2: What commissioning steps are required after replacing the bus cable?
After installing the new TK850V007, power on the system and observe the CPU and I/O module status LEDs. In Automation Builder, go online with the CPU and verify that all configured I/O modules appear in the hardware tree with no fault indicators. Perform a forced I/O test on representative digital and analog channels to confirm signal integrity. If a communication module (CM572-DP or CM589-PNIO) is installed, verify network diagnostic status before resuming automatic operation.

Q3: Can the TK850V007 be used with both AC500 V2 and AC500 V3 CPUs?
Yes. The TK850V007 bus cable is mechanically and electrically compatible with both AC500 V2 (PM571, PM581, PM591) and AC500 V3 (PM595) CPU generations, as well as with all standard AC500 terminal bases (TB711, TB721, TB731). This cross-generation compatibility makes it suitable for mixed-generation installations and phased upgrade projects where V2 and V3 modules coexist in the same rack.

Q4: What warranty and pre-shipment testing does SMARTNEXMSK provide for the TK850V007?
All TK850V007 cables supplied by SMARTNEXMSK are inspected and functionally tested before shipment to verify connector integrity and cable continuity. Each unit is covered by a 12-month warranty against manufacturing defects. In the event of a warranty claim, SMARTNEXMSK provides replacement or refund support with documented test records available upon request.
