ABB TU811V1 3BSE013231R1 Retrofit-Ready I/O Termination for S800

ABB TU811V1 3BSE013231R1 Retrofit-Ready I/O Termination Unit for S800 Control Systems

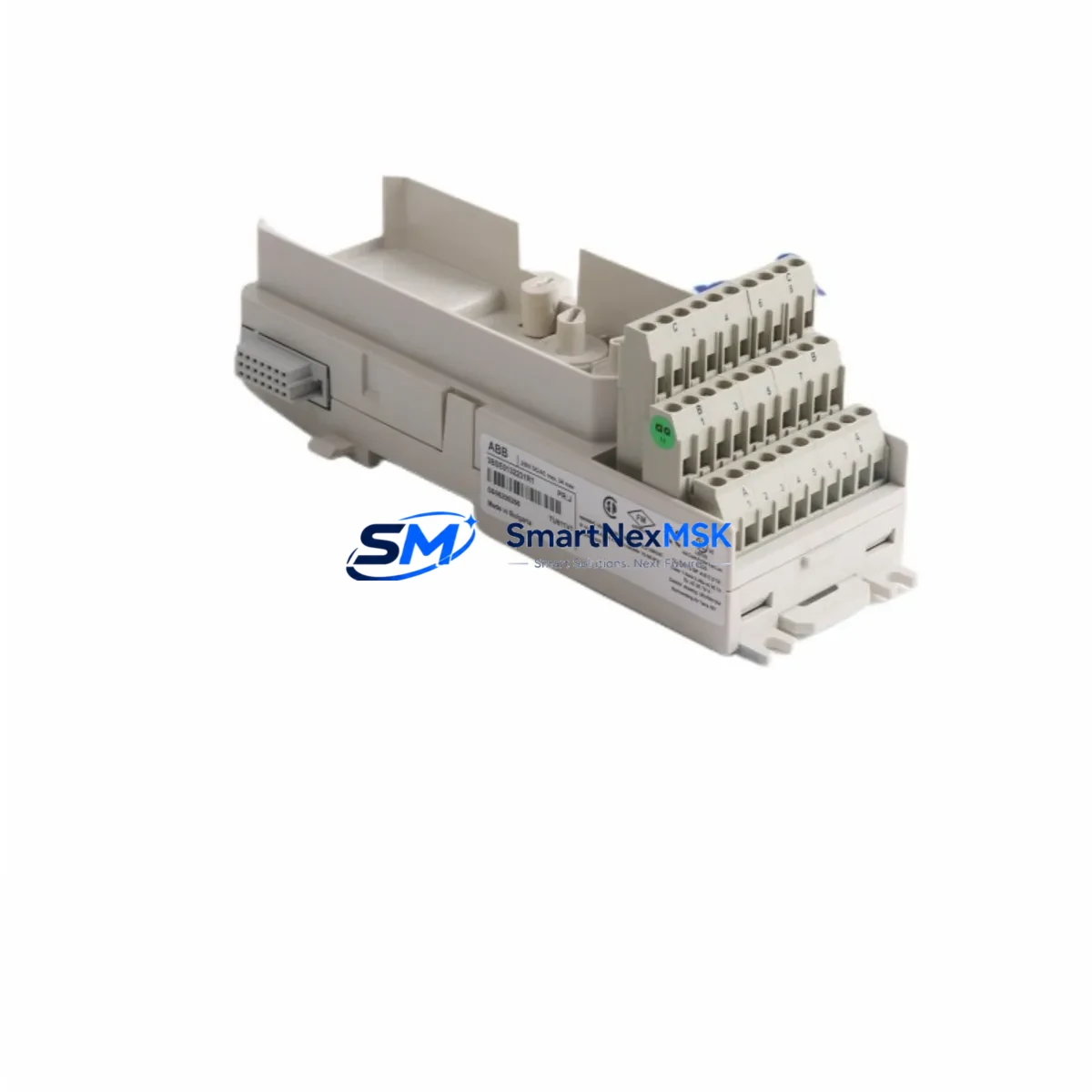

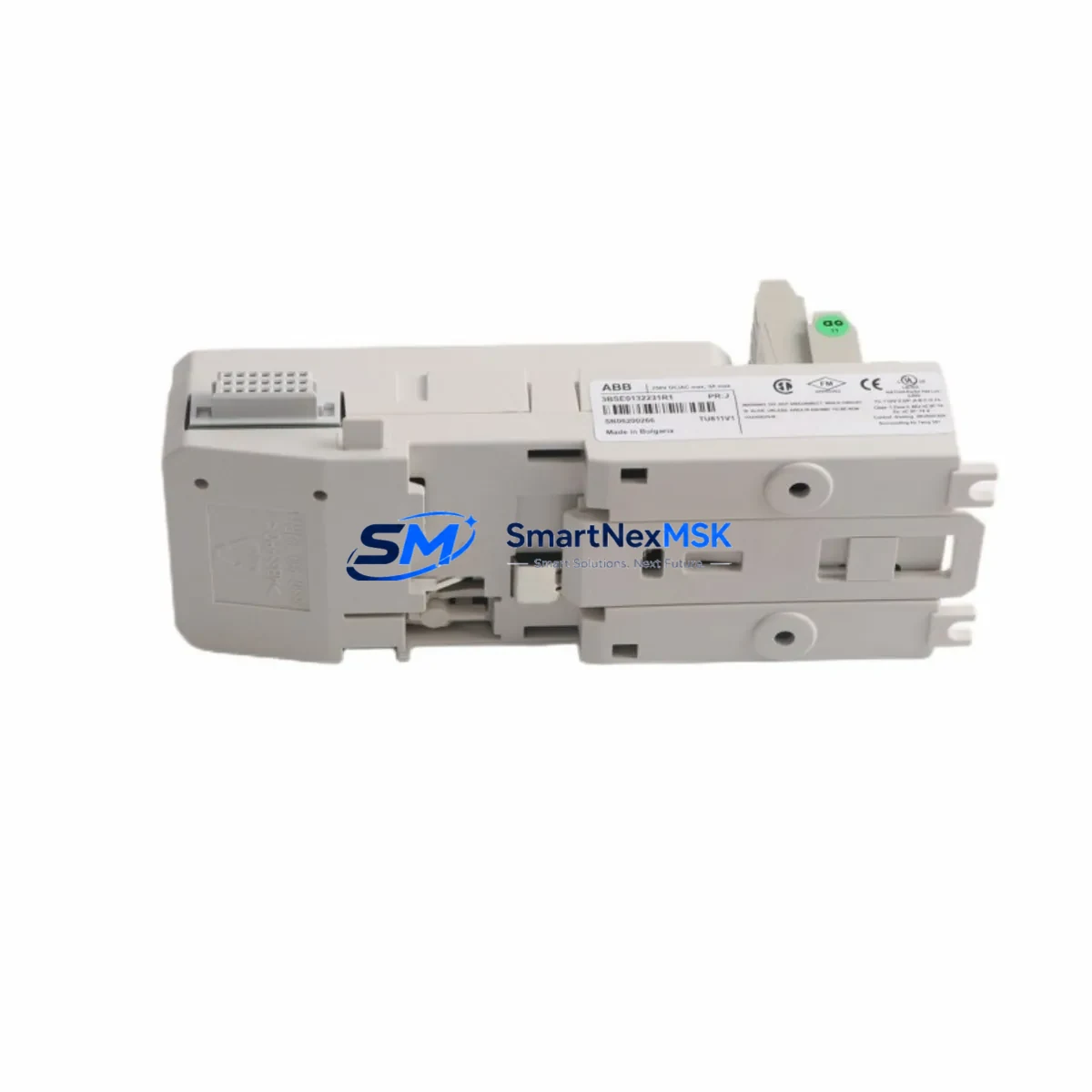

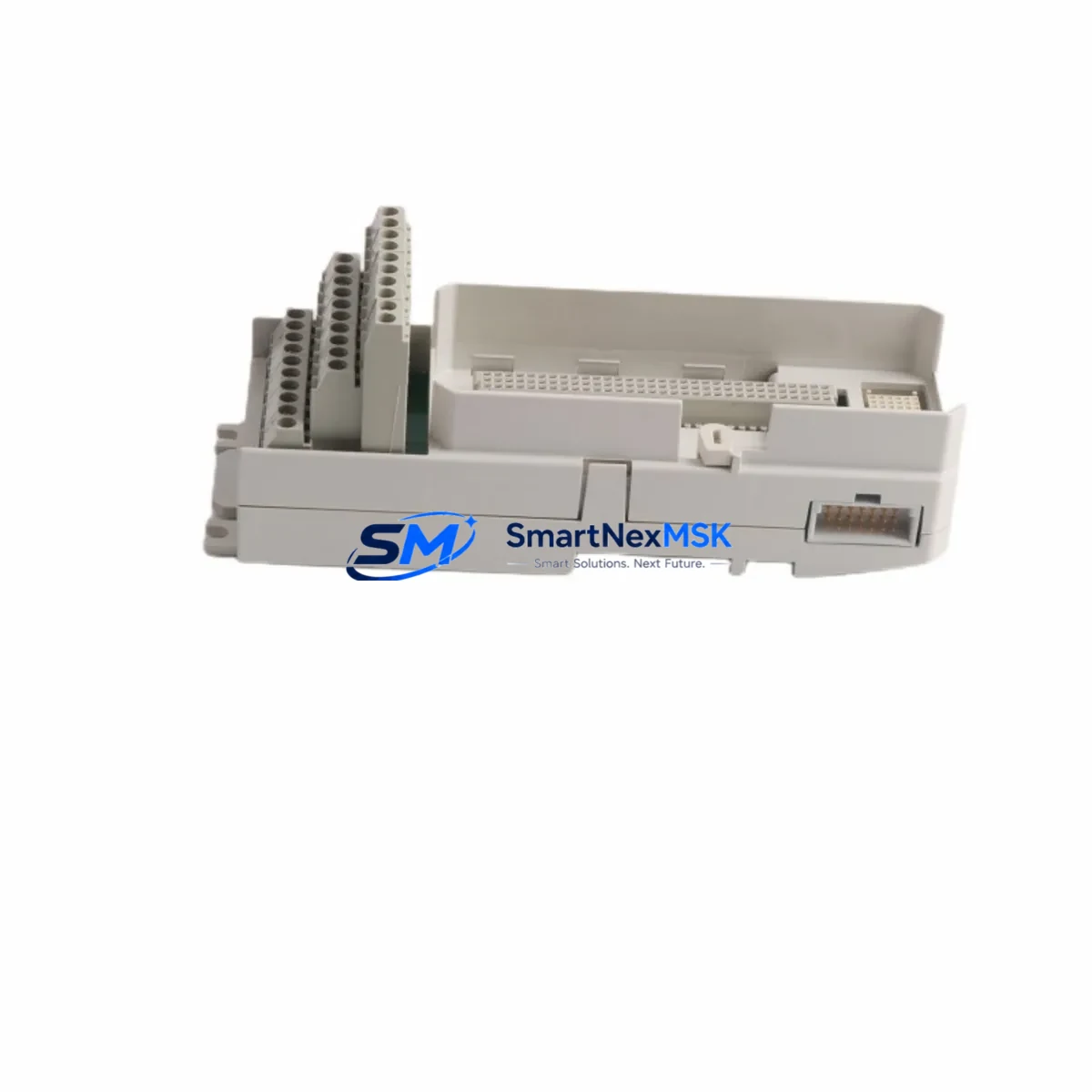

The ABB TU811V1 (catalog number 3BSE013231R1) is a field-proven I/O termination unit designed for the ABB S800 I/O series, widely deployed across process automation, power generation, oil & gas, and chemical plant control systems. As legacy DCS installations built on the AC800M controller platform approach end-of-life or require capacity expansion, the TU811V1 remains one of the most sought-after retrofit and replacement components in the ABB ecosystem. SMARTNEXMSK maintains verified stock of the TU811V1 3BSE013231R1 with full functional testing, traceability documentation, and a 12-month warranty on every unit shipped.

Whether you are replacing a failed termination unit on a running production line, upgrading a control cabinet from an older S800 I/O configuration, or migrating I/O channels from a discontinued module to a current-generation rack, the TU811V1 provides the electrical and mechanical interface required to maintain signal integrity between field wiring and the S800 I/O modules mounted above it. Its screw-terminal design accommodates standard 0.5–2.5 mm² field cables, and the integrated module locking mechanism ensures reliable seating of the AI810, AO810, DI810, DO810, and similar S800 I/O signal modules without requiring backplane reconfiguration or address reassignment in the AC800M engineering tool.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the replacement unit arrives on site. When planning a TU811V1 swap in an operating plant, engineers should first pull the existing I/O list from the AC800M project in Control Builder M and cross-reference each channel assignment against the field wiring schedule. The termination unit itself carries no channel configuration — all signal scaling, range selection, and channel enable/disable settings reside in the I/O module (for example, the AI810 analog input module or the DI810 digital input module) and are stored in the AC800M controller project. This means a like-for-like TU811V1 replacement does not require any program modification, provided the field wiring is reconnected to the correct terminal positions.

For control cabinets that house multiple S800 I/O racks, it is common to find the TB820V2 ModuleBus modem or the CI854B PROFIBUS DP coupler managing communication between the AC800M controller and the distributed I/O nodes. Before removing the faulty termination unit, confirm that the ModuleBus optical fiber link or the PROFIBUS segment remains active on adjacent nodes — a single disconnected rack can cause a communication fault that propagates to the controller’s diagnostic log and may trigger a process alarm. Where possible, schedule the swap during a planned maintenance window and use the AC800M’s hot-swap capability to minimize disruption to adjacent I/O channels.

Power supply capacity is another critical checkpoint. The S800 I/O rack draws 24 VDC from a dedicated field power supply — typically an ABB SD831 or SD832 power supply unit — and the total current draw depends on the number and type of I/O modules installed. Adding a replacement TU811V1 to an expanded rack should be preceded by a load calculation to confirm the existing power supply can support the additional module. If the cabinet is already near capacity, a second SD832 or an SS832 redundant power supply may be required before the retrofit can proceed safely.

For sites migrating from older S100 or S400 I/O architectures to the S800 platform, the TU811V1 is frequently part of a broader upgrade that also involves replacing the CI810B or CI820V1 communication interface modules, re-terminating field cables to the new screw-terminal layout, and updating the AC800M project with revised I/O channel mappings. In these scenarios, it is advisable to prepare a parallel test rack — populated with the new TU811V1, the target I/O modules, and a spare PM856 or PM864 controller — and validate the program logic offline before cutting over the live system. The TP830 programming cable or a standard Ethernet connection to the AC800M’s service port can be used to download and verify the updated project without interrupting the running process.

HMI screens connected via the ABB 800xA system or a standalone InduSoft/WinCC SCADA layer should also be reviewed during retrofit planning. Tag names and I/O addresses mapped in the HMI project must match the channel assignments in the updated AC800M project. A mismatch between the HMI tag database and the controller I/O list is one of the most common causes of extended commissioning time after a hardware swap.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any plant engineer authorizing a DCS component replacement. For the TU811V1, the replacement procedure can typically be completed in under 30 minutes by a qualified instrument technician, provided the following preparation steps are completed in advance:

First, photograph or scan the existing field wiring terminations before disconnecting any cables. Even when a wiring schedule is available, field modifications made over years of operation may not be reflected in the as-built documentation. A clear photographic record eliminates ambiguity during reconnection and reduces the risk of a miswired channel causing a process trip after the unit is powered up.

Second, use Control Builder M to force the affected I/O channels to a safe state — typically a defined fallback value or a hold-last-value condition — before removing the termination unit. This prevents the AC800M from generating spurious process alarms or executing unintended control actions while the I/O module is physically disconnected from the field wiring. The same forced-value approach should be applied to any interlock logic that references channels on the affected rack.

Third, after installing the replacement TU811V1 and reconnecting field wiring, perform a channel-by-channel loop check before releasing the I/O channels from forced mode. Verify that each analog input reads the correct process value and that each digital output drives the correct field device. For PROFIBUS DP segments managed by a CI854B coupler, confirm that the GSD file configuration in the master controller matches the physical node address set on the coupler’s rotary switch.

SMARTNEXMSK ships all TU811V1 3BSE013231R1 units with a pre-shipment functional test report. Each unit is powered and verified against the S800 I/O electrical specification before dispatch, reducing the risk of a DOA (dead-on-arrival) scenario that would extend the maintenance window. Standard lead time from confirmed order to dispatch is 1–3 business days for in-stock units, with express freight options available for emergency breakdown situations.

Retrofit Support FAQ

Q1: Is the TU811V1 3BSE013231R1 a direct replacement for an existing TU811V1 on my S800 rack?
Yes. The TU811V1 3BSE013231R1 is the standard catalog version of this termination unit and is a direct mechanical and electrical replacement for any existing TU811V1 installed in an S800 I/O rack. No backplane modification, address change, or program update is required for a like-for-like swap. Simply reconnect field wiring to the same terminal positions and reseat the I/O module.

Q2: Can the TU811V1 be used with both analog and digital S800 I/O modules?
Yes. The TU811V1 is a universal termination unit compatible with the full range of S800 I/O signal modules, including AI810, AI820 (analog input), AO810, AO820 (analog output), DI810, DI820 (digital input), DO810, DO820 (digital output), and DX810 (digital mixed). The specific signal type is determined by the I/O module mounted on the termination unit, not by the termination unit itself.

Q3: What commissioning checks are required after installing a replacement TU811V1?
After installation, reconnect all field cables to their original terminal positions and reseat the I/O module. In Control Builder M, release any forced channel values and monitor the diagnostic view for communication faults. Perform a loop check on each channel to confirm correct signal reading or output response. For PROFIBUS DP nodes, verify that the CI854B or CI858 coupler shows a healthy bus status LED before releasing the rack to normal operation.

Q4: What warranty and testing does SMARTNEXMSK provide with the TU811V1 3BSE013231R1?
Every TU811V1 3BSE013231R1 shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional test against the ABB S800 I/O electrical specification, and a test report is included with the delivery documentation. Units found to be defective within the warranty period are replaced or refunded at no additional cost. For emergency breakdown orders, expedited shipping and same-day dispatch are available upon request.
