ABB TU818 3BSE069209R1 Retrofit-Ready MTU for S800 I/O

ABB TU818 3BSE069209R1 Retrofit-Ready Module Termination Unit for S800 I/O Control Systems

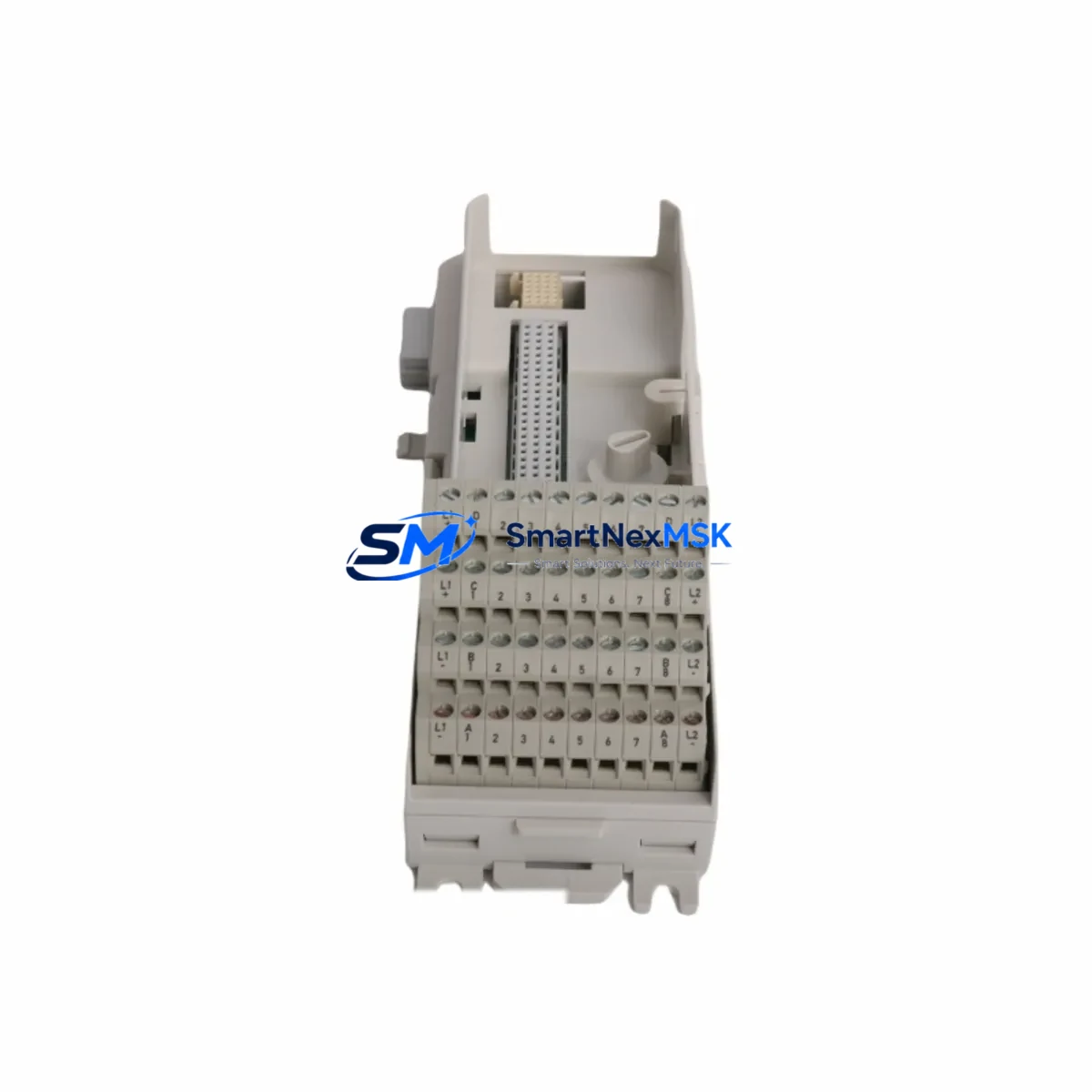

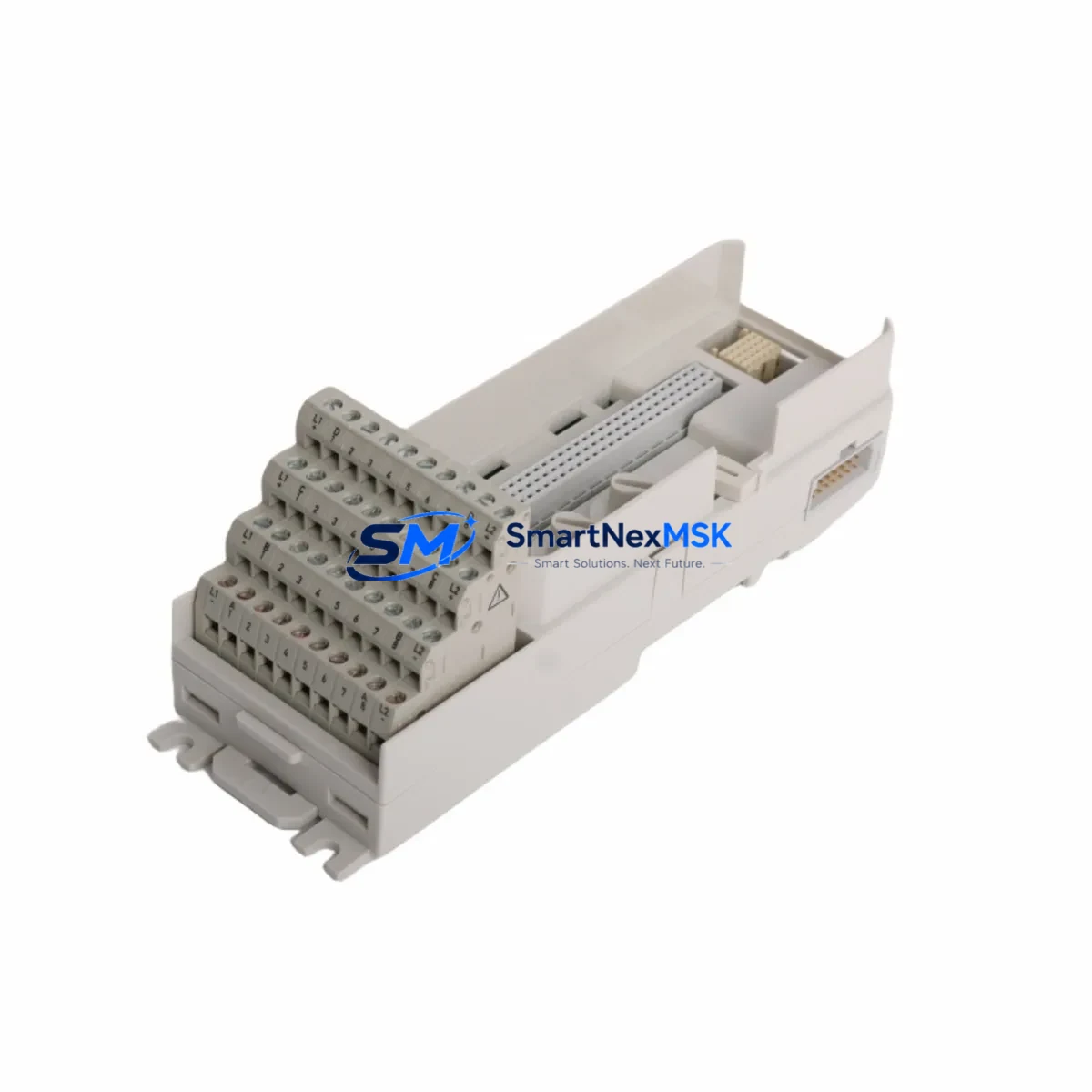

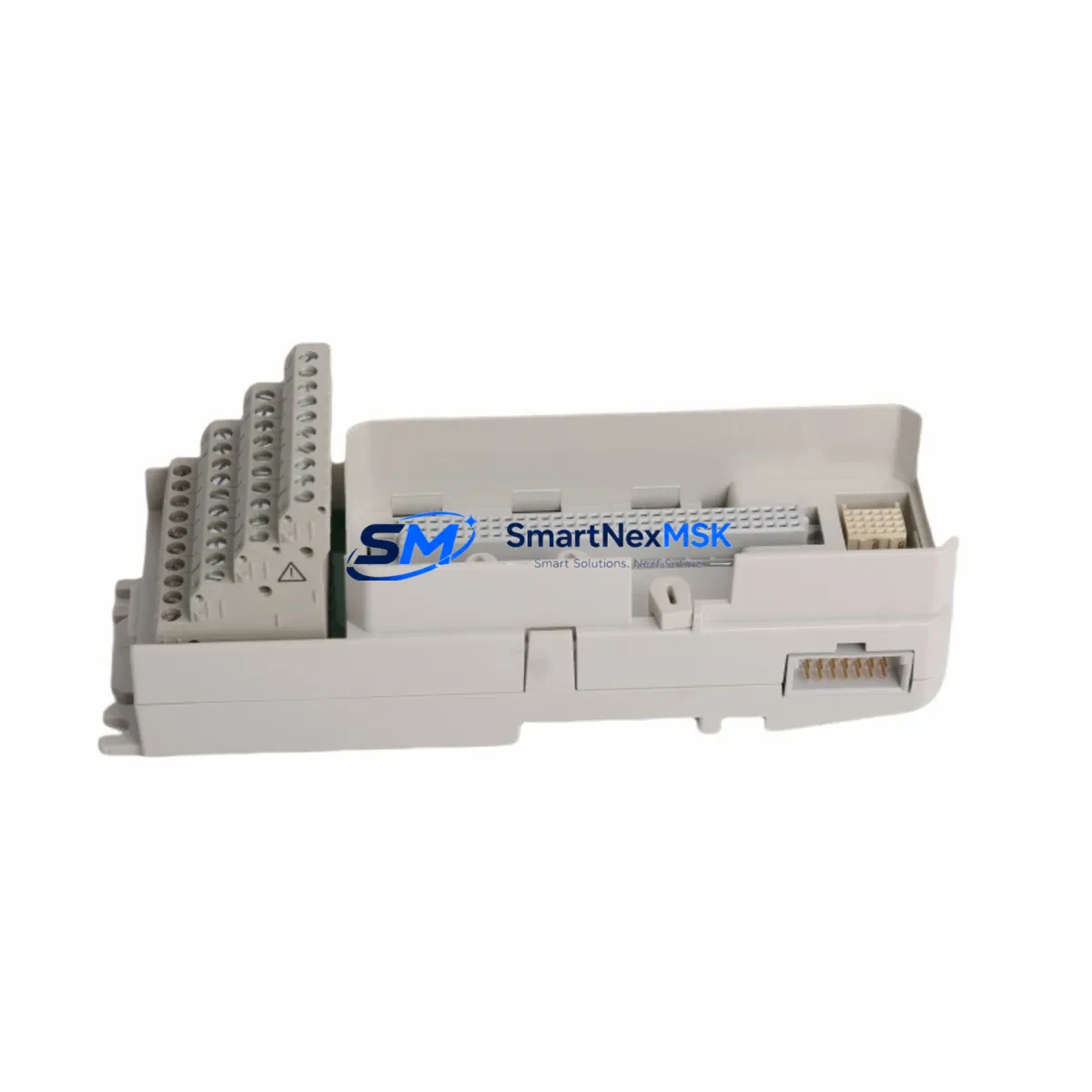

The ABB TU818 (3BSE069209R1) is a Compact Module Termination Unit designed for the ABB S800 I/O platform, widely deployed in process automation, power generation, and continuous manufacturing environments. As legacy S800 I/O installations age and original ABB supply chains tighten, the TU818 has become a critical retrofit component for engineers tasked with extending the operational life of existing DCS and PLC control architectures without full system replacement.

This termination unit provides the physical and electrical interface between field wiring and S800 I/O modules such as the AI810, AO810V2, DI810, DO810, and DI811. Its compact footprint allows installation in space-constrained control cabinets where legacy MTUs have failed or become unavailable. The TU818 supports direct field wiring termination, eliminating the need for intermediate terminal blocks in many retrofit scenarios and reducing overall cabinet wiring complexity during upgrade projects.

When planning a retrofit around the TU818 3BSE069209R1, engineers must verify several key parameters before committing to installation. Power supply capacity at the S800 I/O bus coupler — typically the CI801 or CI830B — must be confirmed to support the additional module load introduced during expansion or replacement. Terminal wiring compatibility should be checked against the original MTU wiring schedule, as field cable cross-sections and shielding requirements may differ between the TU818 and older termination units such as the TU810V1 or TU811V1. Backplane interface alignment with the target I/O module must also be verified, particularly when substituting modules across S800 sub-series revisions.

Module addressing within the AC 800M controller — typically configured via Control Builder M — does not change when a like-for-like MTU replacement is performed, which significantly reduces software re-commissioning risk. However, if the retrofit involves migrating from an older S800 I/O generation to a current-production module, engineers should audit the function block library version in the AC 800M project to confirm compatibility with any updated module firmware. HMI screens built on ABB 800xA or third-party SCADA platforms referencing specific I/O channel tags will remain valid provided the module type and channel count are preserved during the swap.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the TU818 3BSE069209R1 begins with a thorough audit of the existing control cabinet. Engineers should document the current MTU type, field wiring schedule, and I/O module assignments before any hardware is removed. In systems where the CI801 bus coupler is used, the Modulebus segment load must be recalculated if additional I/O modules are being added as part of the upgrade. Where the CI830B or CI840A PROFIBUS coupler is in use, the PROFIBUS DP segment address and GSD file configuration should be reviewed to ensure the replacement module is correctly recognized by the master controller.

During cabinet preparation, the following components are commonly involved in a TU818-based retrofit: the AC 800M controller backplane and its associated PM864 or PM866 processor module, the S800 I/O power supply unit (SD821 or SD822) which must be verified for adequate current headroom, the CI801 or CI830B bus coupler connecting the I/O cluster to the controller, individual I/O modules such as the AI810 analog input or DO810 digital output modules seated on the new MTU, and the TB820V2 or TB840A termination boards where extended field wiring is required. In larger cabinet upgrades, the S800 I/O rack or mounting rail assembly may also need to be replaced to accommodate the compact MTU form factor of the TU818.

For systems migrating from PROFIBUS DP to a higher-level communication architecture, the TU818 remains compatible with existing S800 I/O modules while the bus coupler is upgraded independently. This staged approach — replacing the MTU and I/O modules first, then upgrading the communication layer — is a proven strategy for minimizing disruption to running processes. Programming cable connections to the AC 800M via the TK212A or USB-to-serial adapter should be tested before the cutover window to confirm Control Builder M can reach the controller and download any revised I/O configuration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any live-system retrofit. For TU818 replacements in continuous process environments, the recommended approach is to pre-wire the new MTU and I/O module assembly on a temporary DIN rail outside the cabinet, verify module recognition in Control Builder M in offline simulation mode, and prepare a complete wiring transfer checklist organized by terminal number before the maintenance window opens.

During the cutover, field cables should be transferred one terminal at a time, with each signal verified against the original wiring schedule before the next is moved. Where the process cannot tolerate even brief signal interruption, a parallel wiring strategy — running new cables to the TU818 while the original MTU remains in service — allows the cutover to be completed as a single switchover event rather than a sequential rewiring. After hardware installation, the AC 800M controller should be restarted in warm-start mode where possible to preserve program state and avoid resetting process interlocks. HMI screens on the 800xA system or connected SCADA should be monitored for alarm floods during the first 15 minutes of post-cutover operation to confirm all I/O channels are reporting correctly.

All units supplied by SMARTNEXMSK are function-tested prior to shipment and include a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Retrofit Support FAQ

Q: Is the TU818 3BSE069209R1 a direct drop-in replacement for the TU810V1 or TU811V1?
A: The TU818 is mechanically and electrically compatible with the same S800 I/O module family as the TU810V1 and TU811V1. Field wiring terminal layout is similar, but engineers should verify the wiring schedule against the TU818 datasheet before transfer, as terminal numbering may differ slightly between revisions.

Q: Will I need to modify my AC 800M program after replacing the MTU?
A: In a like-for-like MTU replacement where the same I/O module type is reinstalled, no program changes are required. Module addressing and function block assignments remain valid. If the I/O module type is also being changed as part of the upgrade, a Control Builder M project update and download will be necessary.

Q: What pre-shipment testing is performed on the TU818 units?
A: Each TU818 3BSE069209R1 unit supplied by SMARTNEXMSK undergoes functional verification including backplane interface continuity, terminal integrity, and module seating confirmation before dispatch. Units are shipped with original or equivalent protective packaging and include a 12-month warranty from the shipment date.

Q: Can the TU818 be used with PROFIBUS DP and Modulebus couplers in the same S800 I/O system?
A: Yes. The TU818 MTU is coupler-agnostic at the module level — it interfaces with the I/O module directly and is compatible with any S800-supported bus coupler including the CI801 (Modulebus), CI830B (PROFIBUS DP), and CI840A (PROFIBUS DP redundant). The communication protocol is determined by the bus coupler, not the MTU.
