ABB TU830V1 3BSE013234R1 Retrofit-Ready Termination for S800

ABB TU830V1 3BSE013234R1 Retrofit-Ready Termination Unit for S800 I/O Control Systems

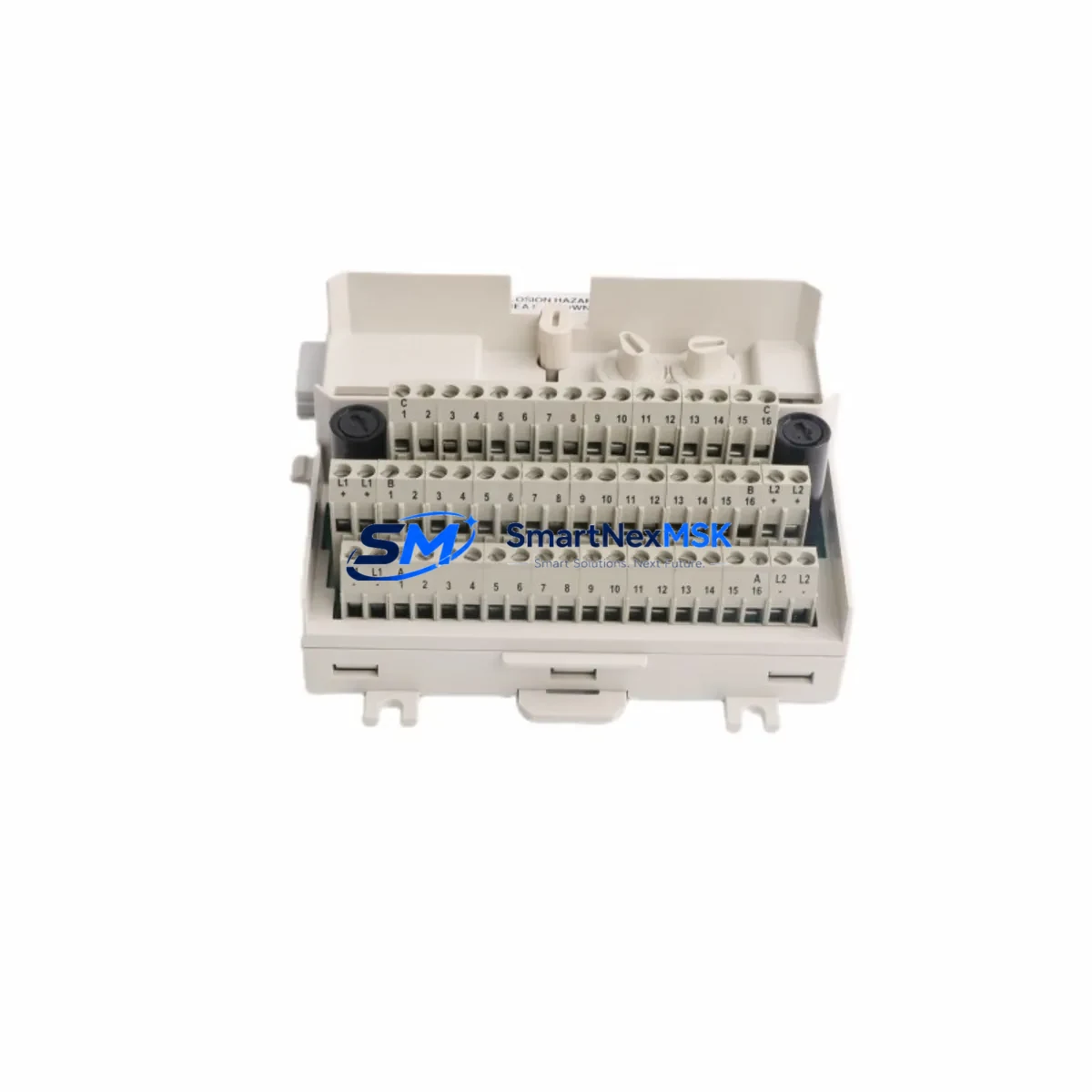

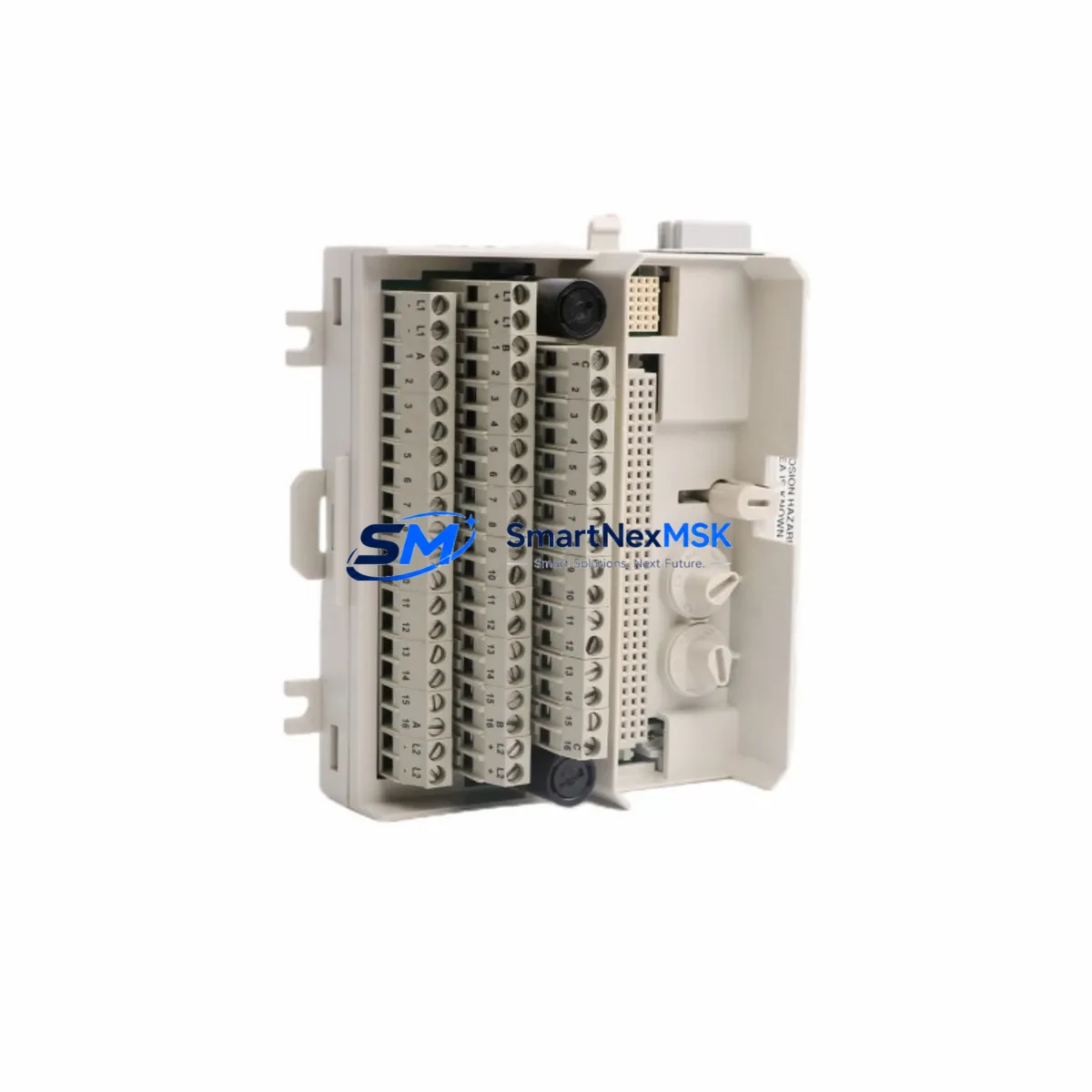

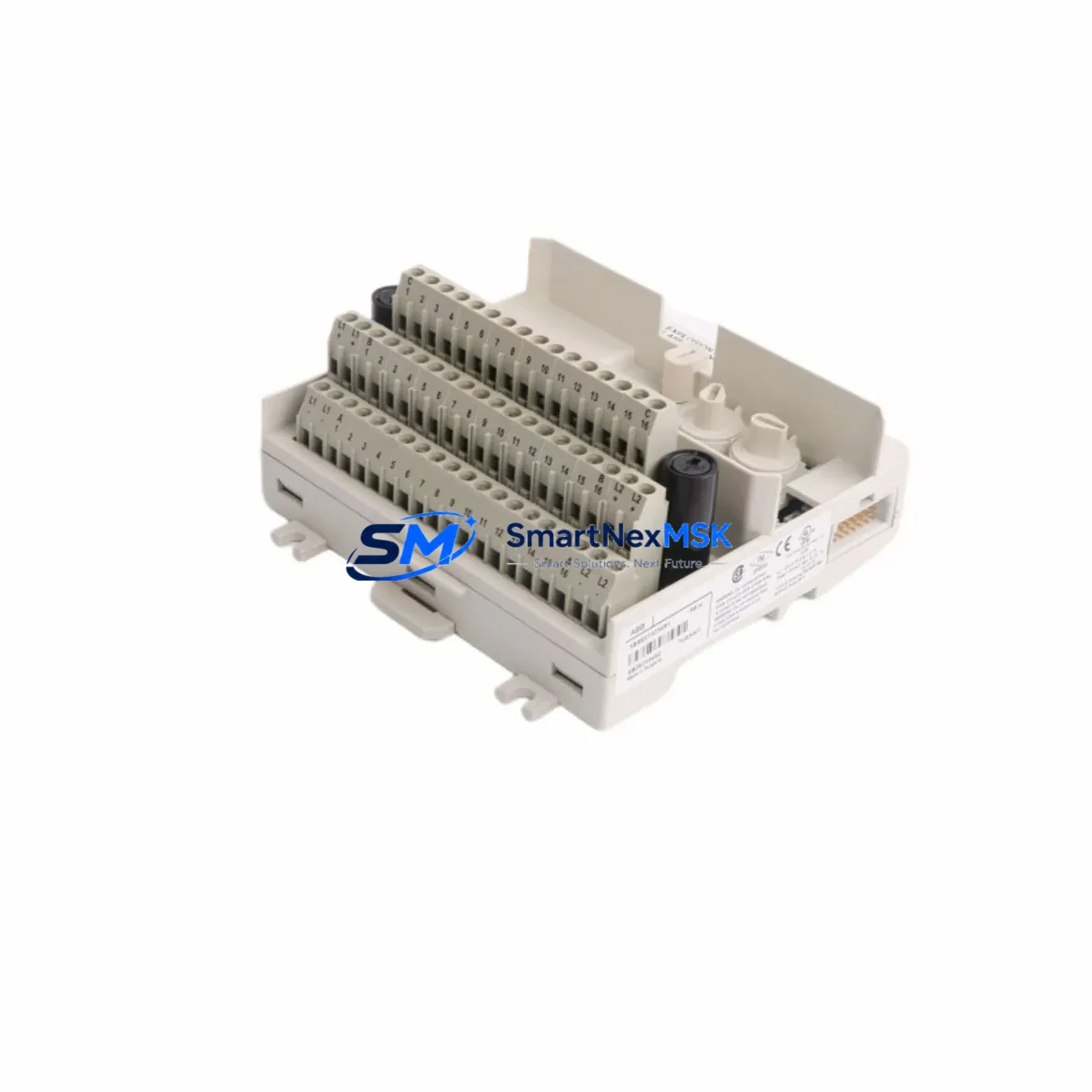

The ABB TU830V1 (catalog number 3BSE013234R1) is an Extended Termination Unit engineered for the ABB S800 I/O series, widely deployed across process automation, power generation, and continuous manufacturing environments. As legacy DCS and PLC installations approach end-of-life, the TU830V1 has become a critical component in retrofit projects where engineers must replace discontinued termination units without rewiring field cables or modifying existing marshalling cabinets. Its screw-terminal design and standardized backplane interface allow direct substitution in most S800 I/O rack configurations, making it the preferred choice for brownfield upgrade programs targeting minimal downtime and maximum compatibility with existing control logic.

In modernization projects involving ABB System 800xA or earlier AC800M controller platforms, the TU830V1 serves as the physical interface between field instrumentation and the I/O module stack. Engineers replacing aging AI810, AO810V2, DI810, or DO810 modules will find that the TU830V1 preserves existing terminal assignments, eliminating the need to re-document or re-label field wiring. This is particularly valuable in facilities where original as-built drawings are incomplete or where field modifications have accumulated over decades of operation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the TU830V1 into a running plant begins well before the physical swap. During the planning phase, engineers should audit the existing S800 I/O rack layout to confirm available slot positions and verify that the CI840A or CI854A communication interface module is firmware-compatible with the replacement unit. Power budget calculations for the MTU rail must account for all co-installed modules — including AI810 analog input modules, DI810 digital input modules, and AO810V2 analog output modules — to ensure the PS800 power supply unit can sustain the expanded load without voltage droop during peak scan cycles.

Wiring adaptation is the most time-sensitive task in any termination unit replacement. The TU830V1 uses the same 40-pin screw terminal layout as its predecessor TU830 (3BSE013232R1), so field cables terminated on the original unit can be transferred block-by-block using the existing cable schedule. Engineers should photograph or scan the original terminal strip before disconnection and cross-reference against the I/O list in Control Builder M to catch any undocumented field modifications. Where cable lengths are marginal, a TB820V2 termination block extender can bridge the gap without splicing.

For installations where the S800 I/O rack communicates over PROFIBUS DP, the DP address of the replaced module must be confirmed in the GSD file and matched in the controller project before the new TU830V1 is powered. In System 800xA environments using Ethernet-based I/O, the CI854A adapter’s IP configuration should be verified against the network topology diagram to prevent address conflicts during hot-swap commissioning. HMI faceplates built in Operator Workplace that reference specific I/O channel tags will continue to function without modification, provided the channel mapping in the Control Builder M project is preserved during the configuration download.

Rack and backplane integrity should also be assessed during the retrofit window. Older S800 racks may show oxidation on the backplane bus connectors, which can cause intermittent communication faults after a module swap. Cleaning the backplane contacts and inspecting the rack’s DIN rail mounting before installing the TU830V1 reduces the risk of nuisance alarms in the first weeks of operation. If the rack itself is being replaced as part of a broader cabinet upgrade, the TB807 bus terminator must be repositioned to the last occupied slot to maintain signal integrity on the ModuleBus. In multi-rack configurations, the TK212A programming cable should remain connected to the AC800M controller throughout the swap sequence to allow real-time monitoring of the I/O health status in Control Builder M.

Downtime Control During System Migration

Minimizing production interruption during a termination unit replacement requires a structured sequence that protects both the control program and the field devices connected to the I/O channels. The recommended approach is to place the affected I/O module in manual override or force the relevant control loops to a safe hold state in the DCS before breaking any wiring connections. In System 800xA, this can be accomplished through the Operator Workplace by switching the affected function blocks to manual mode and confirming that downstream actuators — control valves, motor starters, or variable frequency drives — are in a stable, safe position.

Once the TU830V1 is physically installed and field wiring is reconnected, the I/O configuration should be downloaded from Control Builder M in online mode to avoid a full controller restart. ABB’s hot-configuration-download feature, available on AC800M firmware 6.0 and later, allows individual I/O module parameters to be updated without interrupting the execution of other control tasks. After the download completes, each channel should be verified by comparing live process values in the Operator Workplace against independent field readings — a step that typically takes 15 to 30 minutes per rack depending on the number of active channels.

For sites where a TK212A programming cable or USB-to-serial adapter is the only path to the controller, a laptop with Control Builder M must be on-site during commissioning. Remote access via the 800xA Remote Desktop or VPN-connected engineering station can substitute in facilities with secure remote connectivity, reducing the need for specialist travel and compressing the overall migration schedule. All configuration changes should be saved and backed up to the project archive immediately after successful commissioning to protect against data loss during subsequent maintenance windows. Pre-shipment functional verification is performed on every TU830V1 unit before dispatch, and each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Retrofit Support FAQ

Q: Is the TU830V1 3BSE013234R1 a direct replacement for the older TU830 3BSE013232R1?
A: Yes. The TU830V1 is the current production revision of the TU830 and is mechanically and electrically compatible. Terminal numbering and backplane connector positions are identical, allowing direct substitution without rewiring. Confirm the module address setting after installation if the original unit used hardware address switches.

Q: What commissioning steps are required after installing the TU830V1?
A: After physical installation and field wiring reconnection, download the I/O configuration from Control Builder M to the AC800M controller. Verify each channel’s live value against a known field reference. If the unit is part of a PROFIBUS DP segment, confirm the DP address matches the GSD configuration before enabling the segment.

Q: Can the TU830V1 be used with both AI810 and DI810 modules in the same rack?
A: The TU830V1 is a module-specific termination unit paired with a single I/O module per slot. Mixed racks using AI810, DI810, AO810V2, and DO810 modules each require their own dedicated termination unit per slot. Verify the correct termination unit variant for each module type before ordering to avoid installation delays.

Q: What warranty and pre-shipment testing does the TU830V1 carry?
A: Every TU830V1 unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units undergo functional verification and visual inspection prior to dispatch. Shipment originates from Xiamen with standard export packaging suitable for international freight.
