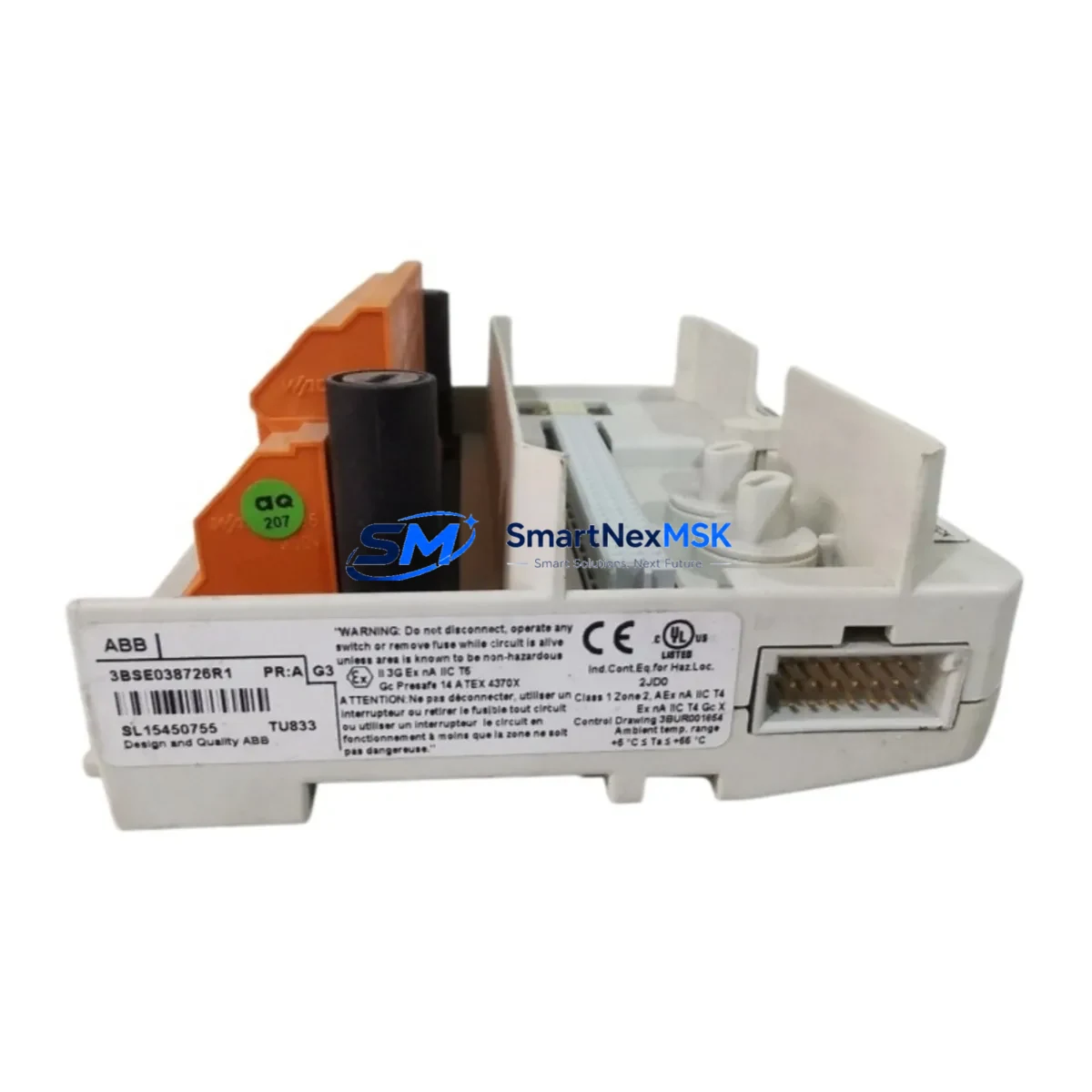

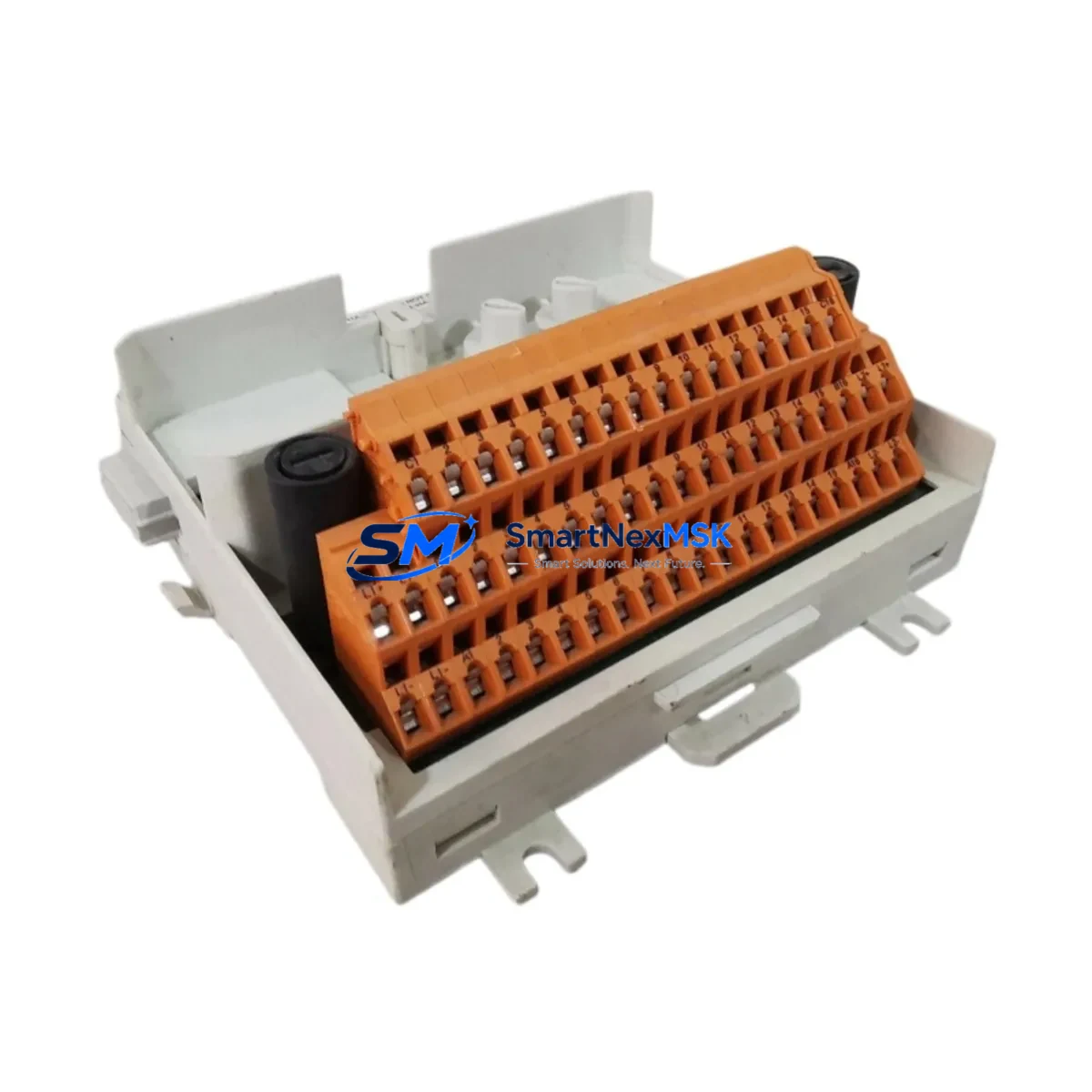

ABB TU833 3BSE038726R1 Retrofit-Ready Termination Unit for S800 I/O Control Systems
The ABB TU833 (part number 3BSE038726R1) is a field-proven termination unit designed for the ABB S800 I/O series, widely deployed across DCS and PLC-based process automation systems. As legacy S800 installations age and original termination hardware reaches end-of-life, the TU833 serves as a direct retrofit solution — enabling engineers to restore full I/O functionality without redesigning the control cabinet or rewriting application logic in AC 800M controllers.
This unit provides the physical and electrical interface between field wiring and S800 I/O modules such as the AI810, AO810V2, DI810, and DO810. Its screw-terminal block layout is compatible with standard 24 VDC field wiring, and the DIN rail mounting profile matches existing cabinet footprints, making it a practical drop-in replacement for worn or discontinued termination hardware. Engineers performing cabinet upgrades or partial system migrations can install the TU833 without disturbing adjacent modules or rerouting field cables.
For sites running mixed generations of S800 hardware — including older CI810B or CI830 communication interface modules — the TU833 maintains backward-compatible termination geometry. This is particularly valuable when upgrading communication infrastructure from PROFIBUS DP to FOUNDATION Fieldbus or Modbus TCP, where the I/O termination layer must remain stable while the communication stack is reconfigured. The TU833’s passive termination design means it does not require firmware updates or address reconfiguration during such migrations.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | TU833 / 3BSE038726R1 |
| Compatible I/O Series | ABB S800 I/O (AI810, AO810V2, DI810, DO810, DI811, DO811) |
| Mounting | DIN rail, 35 mm standard |
| Terminal Type | Screw terminals, field-side wiring |
| Communication Compatibility | Compatible with CI810B, CI830, CI854A communication interfaces |
| Replaces / Substitutes | TU830, TU831 (verify channel count before substitution) |
| Installation Requirement | No firmware update required; passive termination unit |
| Commissioning Note | Verify module address assignment in AC 800M Control Builder after swap |
| Warranty | 12 months from date of shipment |
| Origin | China (tested and inspected prior to dispatch) |
Retrofit Planning for Existing Automation Systems
A successful TU833 retrofit begins with a thorough audit of the existing control cabinet. Before removing the legacy termination unit, engineers should document all field wiring terminal assignments, verify the power supply capacity of the S800 bus coupler (typically TB820V2 or TB840A), and confirm that the backplane slot position is compatible with the replacement unit’s channel configuration.
In systems where the AC 800M controller communicates with S800 I/O via an MB300 Modulebus or optical fiber link, the TU833 swap does not interrupt the communication path — provided the CI810B or CI854A interface module remains in place. However, if the retrofit is part of a broader migration from an older S100 or MOD 300 platform, engineers must also account for I/O address remapping in the Control Builder project and update any associated SFC or FBD logic blocks that reference the affected channels.
Cabinet-level upgrades often involve replacing not just the termination unit but also adjacent components: power distribution modules such as the SD821 or SD822 may need capacity verification if additional I/O modules are being added. Similarly, if the retrofit includes expanding analog I/O, the AO810V2 output module and its corresponding TU830 or TU833 termination unit must be ordered together to ensure physical compatibility. For digital I/O expansion, the DI810 and DO810 modules pair directly with the TU833 in standard S800 rack configurations.
HMI integration should also be reviewed during retrofit planning. If the site uses ABB’s 800xA System or a third-party SCADA connected via OPC DA/UA, the I/O tag database must be updated to reflect any channel reassignments. Operators should verify that HMI faceplates referencing the affected I/O points display correctly after the swap, particularly for analog input scaling and digital output interlock logic.
For sites using programming cables such as the TK212A or USB-to-serial adapters for legacy communication, ensure that the Control Builder project backup is current before beginning any hardware swap. This protects the application program and allows rapid restoration if commissioning reveals unexpected compatibility issues.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern during any S800 I/O termination unit replacement. The recommended approach is to pre-wire the TU833 on a bench, verify terminal continuity, and stage the unit in the cabinet before the planned maintenance window. During the cutover, field cables can be transferred terminal-by-terminal from the old unit to the new one, using the documented wiring schedule to maintain signal integrity.
Where process conditions permit, a hot-standby approach using redundant I/O modules (such as the AI815 or DI821 in redundant configurations) allows the replacement to proceed without interrupting process control. For non-redundant installations, coordinating the swap during a scheduled process shutdown — even a brief one — is strongly recommended to avoid spurious output signals or loss of analog feedback during the transition.
After installation, the AC 800M controller should be placed in manual mode for the affected control loops before the new termination unit is energized. Once field wiring is confirmed and the module is seated correctly on the backplane, the controller can be returned to automatic mode loop by loop, with operators monitoring process variables at the HMI for any deviation from expected values. This staged recommissioning approach protects both the process and the control program logic.
Retrofit Support FAQ
Q: Is the TU833 a direct replacement for the TU830 or TU831?
A: The TU833 shares the same DIN rail footprint and screw-terminal layout as the TU830 and TU831, but channel count and wiring configuration may differ. Always verify the channel assignment of the existing termination unit against the TU833 datasheet before substitution. In most S800 analog I/O applications, the TU833 is a functional drop-in replacement.
Q: Does replacing the TU833 require changes to the AC 800M application program?
A: In most cases, no program changes are required if the TU833 is replacing a unit of the same type in the same backplane slot. However, if the slot position changes or the I/O module type is also being upgraded, the Control Builder project must be updated to reflect the new hardware configuration and I/O addresses.
Q: What pre-shipment testing is performed on the TU833?
A: Each unit undergoes visual inspection, terminal continuity verification, and functional testing prior to dispatch. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Test records are available upon request.
Q: Can the TU833 be used in high-vibration or harsh-environment installations?
A: The TU833 is rated for standard industrial environments consistent with ABB S800 I/O specifications. For installations subject to high vibration, extreme temperature, or corrosive atmospheres, additional mechanical securing of the DIN rail and terminal wiring is recommended. Consult the ABB S800 I/O hardware installation manual for environmental ratings and derating guidelines.
