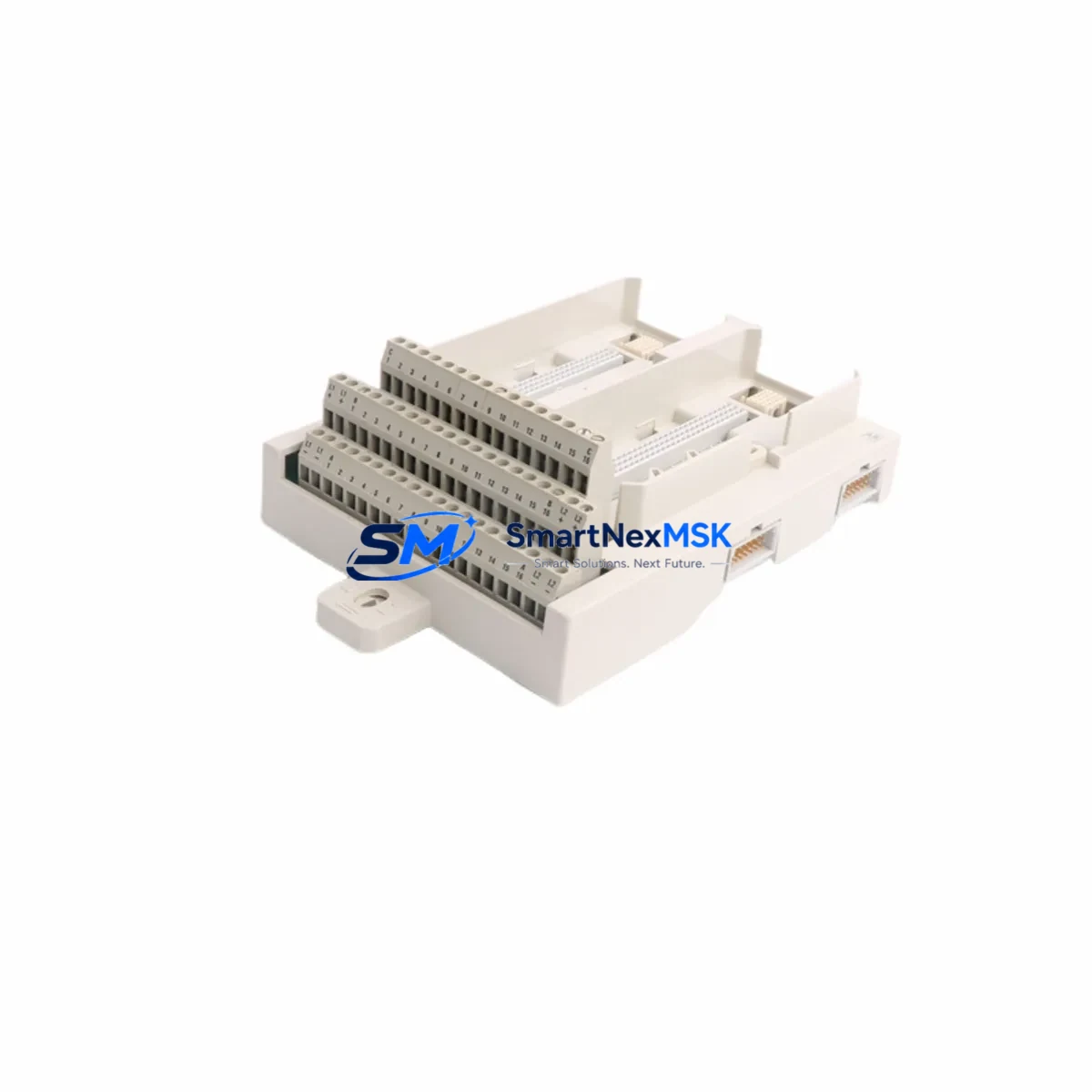

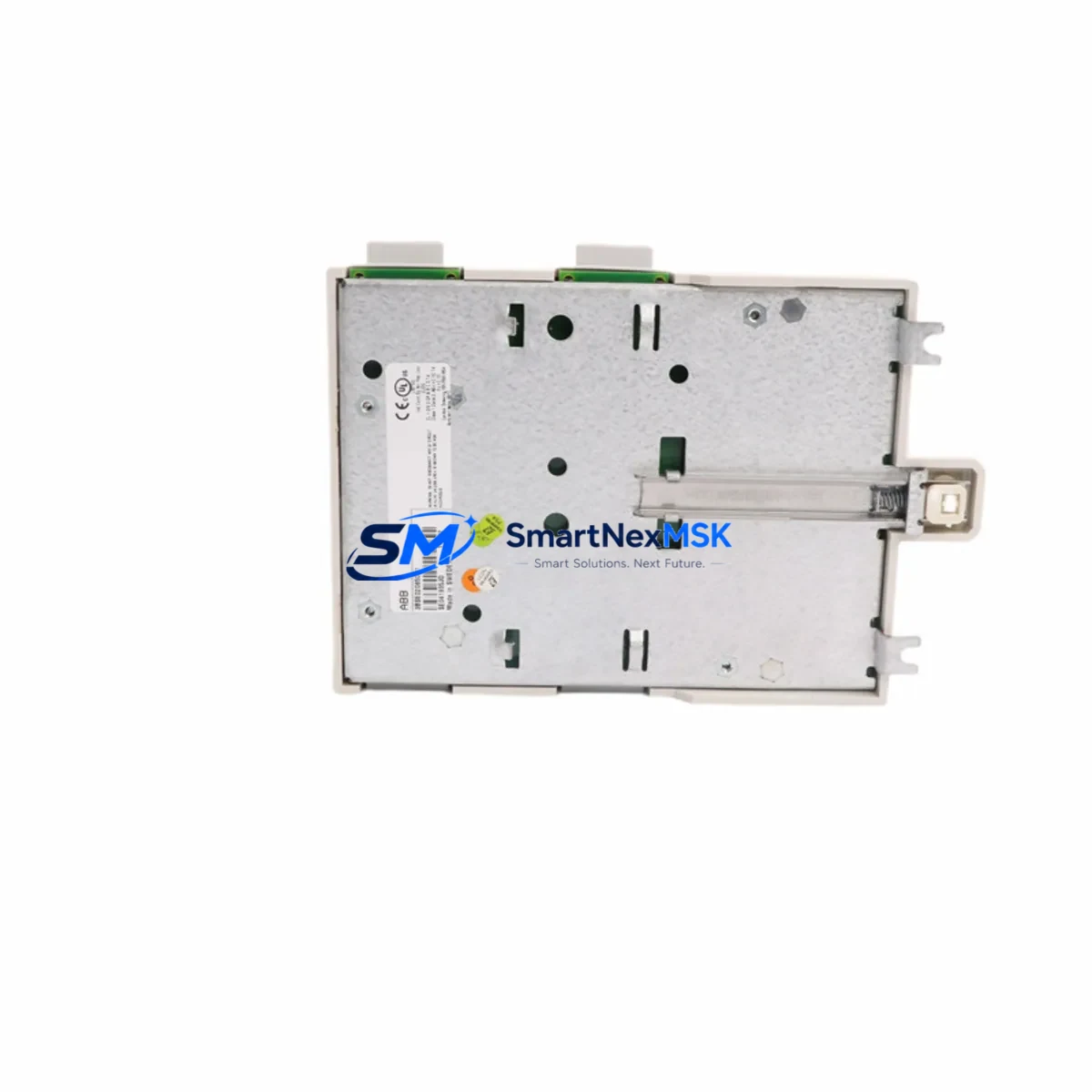

The ABB TU842 (3BSE020850R1) is an original Module Termination Unit designed for the ABB S800 I/O series — one of the most widely deployed distributed I/O platforms in process automation, power generation, and continuous manufacturing environments. When a TU842 fails or reaches end-of-service life, the downstream impact is immediate: I/O signals are lost, the DCS loses visibility into field instruments, and unplanned downtime begins accumulating costs. Sourcing a verified, tested replacement unit is the fastest path to restoring system integrity without compromising safety or process continuity.

This listing provides a maintenance-ready TU842 3BSE020850R1 spare — original ABB manufacture, origin Germany, pre-shipment tested, and backed by a 12-month warranty. Whether you are executing a planned turnaround, responding to an emergency fault, or building out your critical spare inventory, this unit ships promptly with full documentation support.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The TU842 termination unit sits at the intersection of the S800 I/O module and field wiring — making it a critical node in any DCS I/O loop. When planning a replacement or inspection, maintenance engineers should treat the TU842 as part of a broader I/O node health check rather than an isolated component swap.

Begin by verifying the condition of the AI810 or DI810 I/O modules seated on the TU842. These modules share the same ModuleBus backplane and are subject to the same thermal and vibration stresses. A degraded TU842 terminal block often correlates with worn module connectors on the AI810 analog input module or the DI810 digital input module — both of which should be inspected and function-tested during the same maintenance window.

Next, check the S800 I/O rail and ModuleBus cable connecting the I/O cluster to the CI854 or CI801 communication interface module. A loose or corroded ModuleBus connection upstream of the TU842 can cause intermittent signal loss that is misdiagnosed as a termination unit fault. Confirm that the CI854A PROFIBUS DP communication interface is reporting clean bus diagnostics before and after the TU842 swap.

On the field wiring side, inspect the screw terminal tightness on the TU842 itself and verify that cable ferrules are properly crimped. Loose field connections are a leading cause of premature termination unit wear. If the cabinet houses signal isolators or loop-powered transmitter barriers — such as those used with 4–20 mA analog loops — verify that isolation integrity is maintained after reconnection.

For cabinets running mixed I/O, also inspect the 24 VDC field power supply feeding the I/O rail. An under-voltage condition on the field supply can cause the S800 I/O modules to report faults that appear to originate from the termination unit. Check the PM860 or PM861 processor module event log in AC800M for any power-related fault codes logged prior to the TU842 failure.

Finally, if the control cabinet includes TB820 or TB825 ModuleBus modem units for extended I/O clusters, verify that the modem unit is functioning correctly and that the cluster address is correctly set after the TU842 is replaced. Incorrect cluster addressing after a termination unit swap is a common commissioning error that delays restart.

Recommended companion spares to stock alongside the TU842 3BSE020850R1: AI810 analog input module, DI810 digital input module, CI854A communication interface, TB820 ModuleBus modem, and the appropriate 24 VDC field power supply fuse set for your cabinet configuration.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the TU842, document all field wiring terminal assignments using the as-built cabinet drawings or a direct photograph of the terminal block. Confirm the I/O module type seated on the unit (AI810, DI810, AO810, etc.) and note the module address set on the rotary switch.

Step 2 — Safe Isolation: Place the affected I/O node in manual or bypass mode at the DCS operator station. De-energize the field wiring circuits connected to the TU842 terminals following your site LOTO procedure. Do not remove the I/O module from the TU842 while the ModuleBus is live unless your site procedure explicitly permits hot-swap for this module type.

Step 3 — Module and Wiring Removal: Disconnect the field wiring from the TU842 terminal block. Remove the I/O module by releasing the module latch. Slide the TU842 off the S800 I/O rail. Inspect the rail contacts and ModuleBus connector for corrosion or mechanical damage before installing the replacement unit.

Step 4 — Replacement Installation: Mount the new TU842 3BSE020850R1 onto the I/O rail. Verify the rotary address switch matches the original module address. Reconnect field wiring to the correct terminals per the documented assignment. Reseat the I/O module and confirm the module latch is fully engaged.

Step 5 — Commissioning and Verification: Re-energize the field circuits and restore the I/O node from bypass at the DCS. Confirm all channel signals are reading correctly at the operator station. Check the AC800M event log for any residual fault codes. Document the replacement in the maintenance management system with the new unit serial number and installation date.

This workflow minimizes restart time and ensures system compatibility is maintained without requiring controller reconfiguration or engineering station intervention for a like-for-like TU842 replacement.

Spare Parts Support FAQ

Q1: Is this TU842 3BSE020850R1 compatible with all S800 I/O modules?
The TU842 is designed for use with the ABB S800 I/O module family. It is compatible with standard S800 I/O modules including AI810, AO810, DI810, DO810, DI811, DI821, AI820, AI830, and AI835. Always verify the module type and terminal assignment against your cabinet documentation before installation. If you are replacing a TU842 in an older S800 cluster, confirm the ModuleBus revision compatibility with your CI communication interface module.

Q2: What pre-shipment testing is performed on this unit?
Each TU842 unit is functionally tested prior to shipment, including terminal block integrity verification, ModuleBus connector inspection, and visual inspection for mechanical damage. Units are packaged in anti-static protective packaging with original or equivalent documentation. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of delivery.

Q3: How should I manage TU842 spare inventory for long-term S800 system support?
For facilities operating more than 10 S800 I/O nodes, maintaining a minimum of 2–3 TU842 units in critical spare stock is recommended. The TU842 is a passive termination unit with no active electronics, giving it a long service life — but field wiring stress, vibration, and terminal wear can cause failures in high-cycle or harsh environments. Pair your TU842 stock with at least one spare of each I/O module type deployed in your system to ensure full node recovery capability without waiting for procurement.

Q4: Can this unit be used to extend the life of an older ABB S800 system?
Yes. The TU842 3BSE020850R1 is an original ABB component and is fully compatible with existing S800 I/O infrastructure. For facilities running legacy AC800M or Advant OCS-based control systems with S800 I/O, sourcing original spare termination units is the most cost-effective strategy for extending system life without migrating to a new I/O platform. Our long-term supply capability supports multi-year maintenance contracts and planned lifecycle extension programs.
