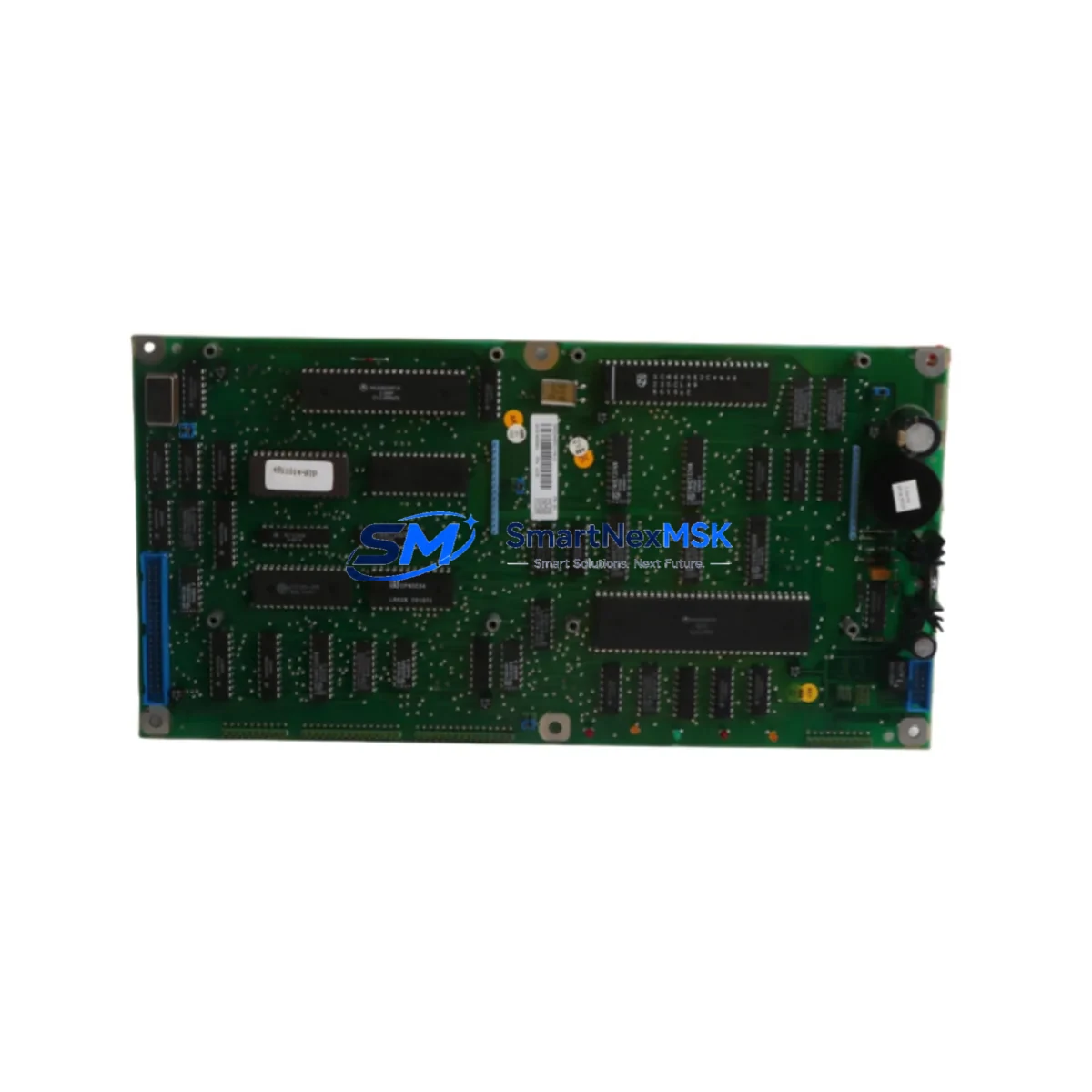

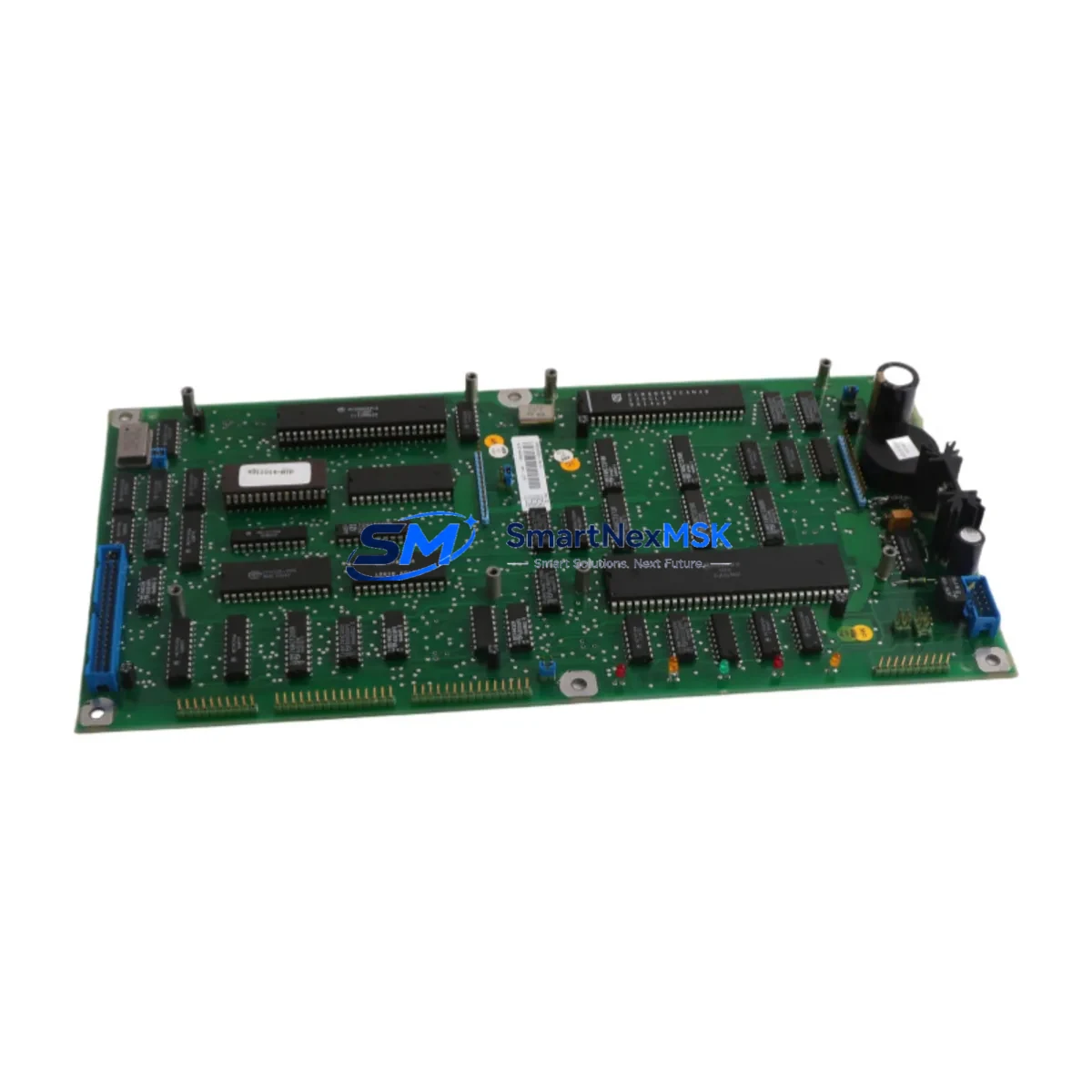

ABB YPK107E 3ASD489301A410 Retrofit-Ready DCS Communication Module for AC800M Control Systems
The ABB YPK107E (part number 3ASD489301A410) is a field-proven DCS communication module engineered for the AC800M controller platform. Designed to serve as a direct retrofit replacement for aging or discontinued communication cards within ABB’s Freelance and Symphony Plus distributed control architectures, this module enables plant engineers to modernize legacy control infrastructure without requiring a full system overhaul. Whether you are replacing a failed unit, upgrading a brownfield installation, or migrating from an older AC800F or AC800M R1 configuration, the YPK107E provides the electrical and protocol compatibility needed to restore and extend system operation with minimal disruption.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Controller | ABB AC800M (all revisions), AC800F (with adapter) |
| Backplane Interface | S800 I/O bus, standard rack slot — no mechanical modification required |
| Communication Protocol | PROFIBUS DP V1; compatible with existing DP master configurations |
| Power Supply Requirement | 24 VDC via backplane; verify PM856 or PM860 power module capacity before installation |
| Replacement Recommendation | Direct swap for YPK107E variants; verify firmware revision on PM processor module |
| Terminal Wiring | Existing field wiring retained; confirm DB9 PROFIBUS connector pinout matches site standard |
| Commissioning Note | Re-download application from Control Builder M after module swap; verify I/O mapping |
| Warranty | 12 months from date of shipment; covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
Successful integration of the YPK107E into an existing AC800M rack begins with a thorough pre-installation audit. Engineers should first confirm the available slot capacity on the TB820V2 or TB840A termination unit and verify that the PM856 or PM860 processor module firmware is at a revision level that supports the YPK107E’s communication stack. In multi-rack configurations using the CI854 PROFIBUS master module, the new module’s DP node address must be assigned before physical installation to avoid address conflicts on the live segment.
Field wiring connected to the S800 I/O modules — including AI810 analog input cards, DI810 digital input cards, and AO810 analog output cards — does not need to be disturbed during a communication module swap, provided the termination unit remains in place. This significantly reduces the risk of wiring errors and shortens the commissioning window. Where the existing installation uses an older CI840A DeviceNet interface alongside PROFIBUS, engineers should document the full network topology before beginning the retrofit to ensure both communication paths are restored correctly after the module exchange.
For sites running ABB Control Builder M, the application project should be backed up to a secure location before the swap. After installing the YPK107E, a full application download is required to re-establish the I/O variable bindings. HMI screens built on ABB’s 800xA System or a third-party SCADA platform connected via OPC DA/UA should be verified against the restored tag list to confirm that all process variables are reading correctly. Where the site uses an SD card on the PM860 for application storage, confirm that the card is formatted and the application version matches the engineering database before going live.
In control cabinet upgrades where the YPK107E is being installed alongside a new TP830 power supply or an additional CI873 PROFINET interface module, the total backplane current draw must be recalculated. ABB’s rack power budget tool should be used to confirm that the existing power module is not operating above 85% of its rated output. Programming cables such as the TK212A USB-to-serial adapter may be needed for on-site diagnostics if the engineering workstation is not connected to the plant network during commissioning.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern during any communication module replacement in a live production environment. The recommended approach is to pre-configure and bench-test the YPK107E against a spare PM856 processor module loaded with the site application before the scheduled maintenance window. This allows the engineering team to confirm that the module initializes correctly, that the PROFIBUS segment comes online, and that all I/O channels report expected values — all before the unit reaches the plant floor.
During the actual swap, the sequence should follow ABB’s documented hot-swap procedure where supported: isolate the affected rack segment, remove the failed module, insert the YPK107E, and restore power in a controlled sequence. The AC800M’s redundancy features, where a redundant PM860R processor pair is in use, allow the standby controller to maintain process control while the primary rack is serviced, effectively reducing the control interruption to zero for critical loops. For non-redundant installations, coordinating the swap with the operations team to align with a natural process break — such as a batch changeover or scheduled cleaning cycle — is strongly advised.
After restoration, the commissioning checklist should include verification of all PROFIBUS DP slave responses, confirmation of analog signal scaling on AI810 channels, and a functional test of any interlock logic that depends on digital inputs from DI810 modules. The 12-month warranty covering the YPK107E provides additional assurance that any latent manufacturing defect identified during the post-installation period will be addressed without additional cost to the end user.
Retrofit Support FAQ
Q: Is the YPK107E 3ASD489301A410 a direct replacement for all AC800M communication module variants?
A: The YPK107E is compatible with the standard AC800M rack and S800 I/O bus. Minor firmware differences between AC800M hardware revisions may require a Control Builder M application re-download after installation. Confirm the processor module revision before ordering.
Q: What wiring changes are required when installing the YPK107E?
A: In most retrofit scenarios, no field wiring changes are required. The existing PROFIBUS DB9 connector and termination unit wiring remain in place. Verify that the PROFIBUS cable shield is grounded at one end only and that the segment termination resistors are correctly positioned at both ends of the bus.
Q: How is the module tested before shipment?
A: Each YPK107E unit undergoes functional power-on testing and communication interface verification prior to dispatch. Units are shipped with original or equivalent packaging to prevent transit damage. A 12-month warranty is included from the date of shipment.
Q: Can this module be used in a Symphony Plus or Freelance 800F system?
A: The YPK107E is primarily designed for the AC800M platform. Use in AC800F or Symphony Plus configurations may require an adapter or additional configuration steps. Contact our technical team with your full system architecture details for a compatibility assessment before ordering.
