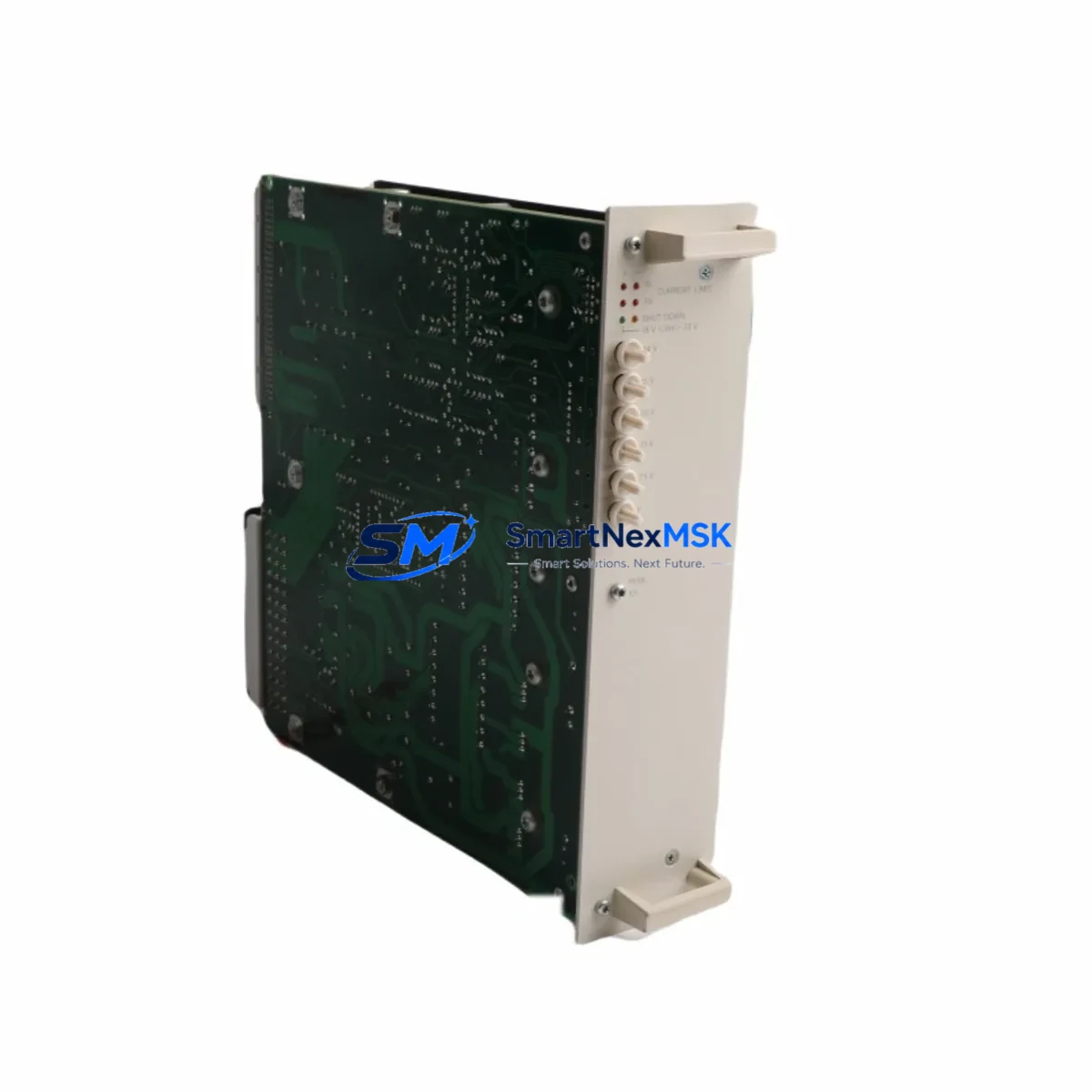

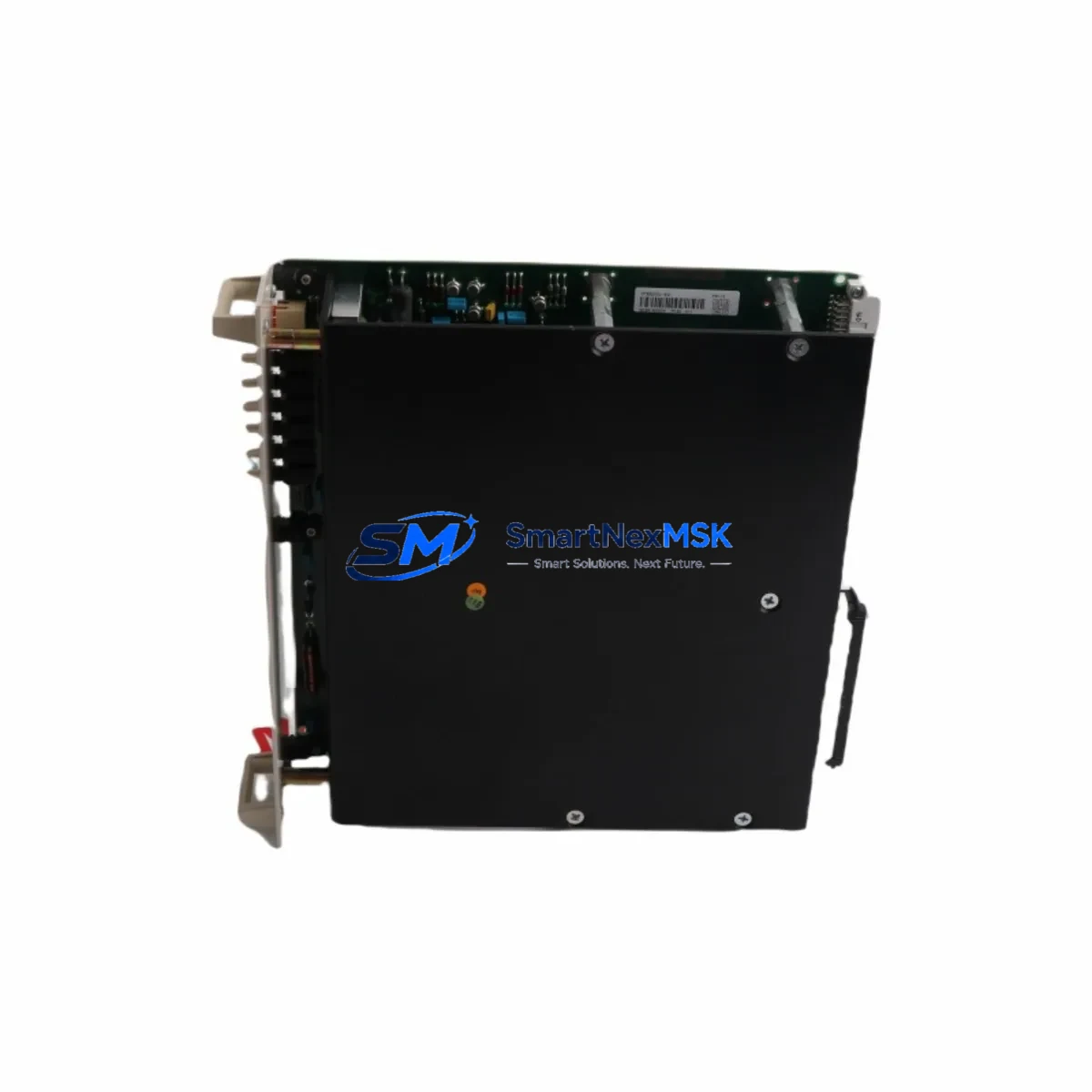

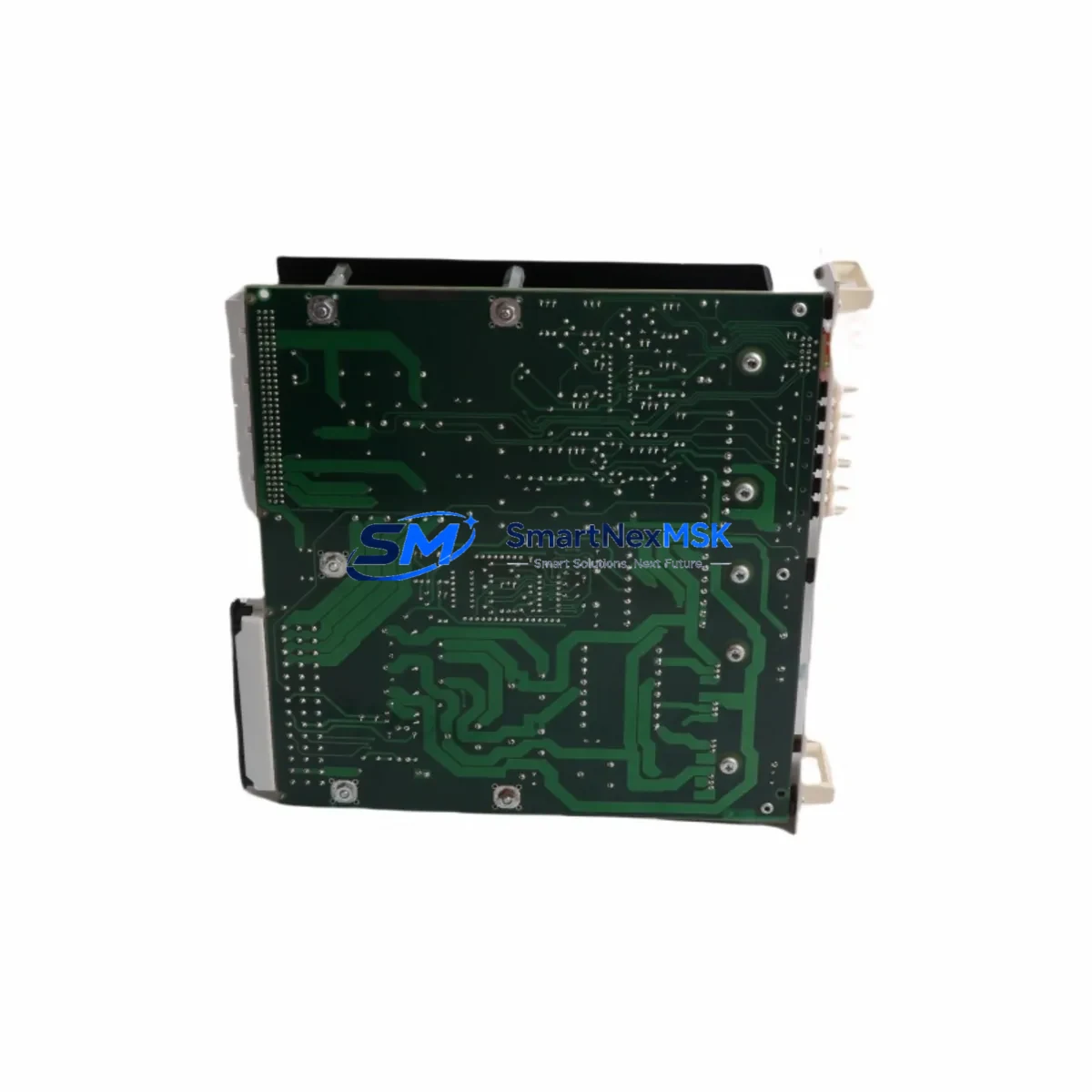

ABB YPP109A Retrofit-Ready DCS Power Module for Symphony Control Systems
The ABB YPP109A (YT204001-DL) is a field-proven DCS power module engineered for the ABB Symphony and Symphony Plus distributed control system platforms. As legacy Symphony Harmony and Melody installations reach end-of-life, plant engineers and system integrators increasingly rely on verified replacement units like the YPP109A to sustain operational continuity without committing to a full platform migration. This module serves as a direct retrofit solution for the discontinued YPN106A (YT204001-BD) and the EG2401S-AR power supply assembly, making it a critical component in brownfield upgrade projects across power generation, oil & gas, chemical processing, and pulp & paper industries.
Each unit supplied by SMARTNEXMSK is sourced from verified industrial stock, subjected to functional power-on testing, and backed by a 12-month warranty. Our inventory is maintained to support urgent replacement scenarios, including unplanned shutdowns and emergency spare-part procurement, with fast worldwide shipping from bonded warehouse stock.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Part Number | YPP109A / YT204001-DL |
| Replaces / Compatible With | YPN106A (YT204001-BD), EG2401S-AR |
| Platform | ABB Symphony, Symphony Plus (Harmony / Melody) |
| Module Function | DCS Power Supply / Power Distribution Module |
| Backplane Interface | Symphony standard backplane bus connector |
| Installation Type | Rack-mount, direct slot insertion — no mechanical adapter required |
| Communication Compatibility | Compatible with INFI-NET, INFI 90, and Symphony Plus communication architecture |
| Wiring / Terminal Adaptation | Terminal block wiring matches YPN106A pinout; verify field wiring polarity before energizing |
| Commissioning Notes | Confirm module address assignment via Conductor NT or System 800xA engineering station; validate power-OK signal to controller |
| Warranty | 12 months from date of shipment — covers functional failure under normal operating conditions |
Retrofit Planning for Existing Automation Systems
Replacing a power module in a live Symphony DCS environment requires careful pre-outage planning to protect both personnel and process integrity. Before scheduling the swap, engineers should audit the existing control cabinet to document the current power distribution topology. In a typical Symphony Harmony rack, the YPP109A shares the enclosure with modules such as the IMMPI01 multi-plant interface, IMFEC10 field enclosure controller, and IMASI23 analog input modules. Understanding how power is distributed across these modules — and which are on redundant feeds — determines whether a hot-swap is feasible or whether a controlled shutdown is required.
Terminal block wiring should be photographed and labeled before disconnection. The YPP109A uses the same terminal layout as the YPN106A, but field wiring insulation condition should be inspected during the replacement window, particularly in installations older than ten years. If the control cabinet also houses an IMCPM05 or IMCPM10 coprocessor module, verify that the coprocessor’s power draw is within the replacement module’s rated output capacity.
For sites running Symphony Plus with AC800M controllers or S800 I/O remote I/O clusters, confirm that the power module replacement does not interrupt the MasterBus 300 or PROFIBUS DP communication links. If the installation includes an INFI-NET highway, the network should be monitored during the replacement to detect any transient communication faults that may require node re-registration. HMI screens built on Conductor NT or System 800xA should be reviewed post-replacement to confirm that all power-status faceplates and alarm groups reflect the new module’s health signals correctly.
Where the retrofit involves migrating from an older Melody platform to Symphony Plus, the power module change is often accompanied by replacement of the IMRIO02 remote I/O interface and reconfiguration of the IMCIS02 communication interface module. SMARTNEXMSK maintains stock of these associated components to support complete retrofit kits, reducing the number of procurement events and simplifying project logistics.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any brownfield DCS power module replacement. The recommended approach is to pre-stage the YPP109A in the engineering workshop, perform a bench power-on test, and confirm the power-OK LED behavior before the unit is transported to the field. This eliminates the risk of discovering a configuration issue during the maintenance window.
Where process conditions permit, a redundant power feed should be activated before the primary module is removed. In Symphony racks equipped with dual power module slots, the standby module can carry the full load while the YPP109A is installed in the primary slot. Once seated, the module should be energized and its output voltage verified at the backplane test points before the standby feed is released.
Original control program logic stored in the IMCPM coprocessor or the AC800M controller is not affected by a power module swap, provided the controller remains powered throughout the procedure. If a full rack power-down is unavoidable, the engineering station should perform a full configuration upload prior to shutdown and a configuration download verification after restoration. Alarm inhibit lists should be activated in the DCS before work begins and cleared only after all modules have been confirmed healthy. This sequence protects the original program logic, preserves HMI alarm history, and maintains communication link continuity across the INFI-NET or PROFIBUS segments connected to the affected rack.
Retrofit Support FAQ
Q1: Is the YPP109A a direct drop-in replacement for the YPN106A and EG2401S-AR?
Yes. The YPP109A (YT204001-DL) is mechanically and electrically compatible with the YPN106A (YT204001-BD) and the EG2401S-AR power assembly within the ABB Symphony and Symphony Plus rack infrastructure. No mechanical adapters or wiring modifications are required in standard installations. Verify terminal polarity and backplane slot assignment before energizing.
Q2: What commissioning steps are required after installation?
After physical installation, use the Conductor NT or System 800xA engineering station to confirm the module is recognized on the backplane. Verify the power-OK status signal is propagated to the controller and that no power-fault alarms are active. Check output voltage at the backplane test points and confirm all downstream I/O modules — including any IMASI23 analog inputs or IMFEC10 field enclosure controllers — are operating normally before releasing the system to process control.
Q3: How is the unit tested before shipment?
Every YPP109A unit supplied by SMARTNEXMSK undergoes a functional power-on test to verify output voltage regulation, power-OK signal behavior, and absence of fault indicators. Units that fail any test parameter are quarantined and not shipped. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.
Q4: Can SMARTNEXMSK supply other Symphony DCS components needed for a complete retrofit?
Yes. SMARTNEXMSK maintains verified stock of associated Symphony and Symphony Plus components including communication interface modules, I/O modules, coprocessor modules, and backplane assemblies. Contact our technical sales team with your full BOM or module list to receive a consolidated quotation and lead-time confirmation.
