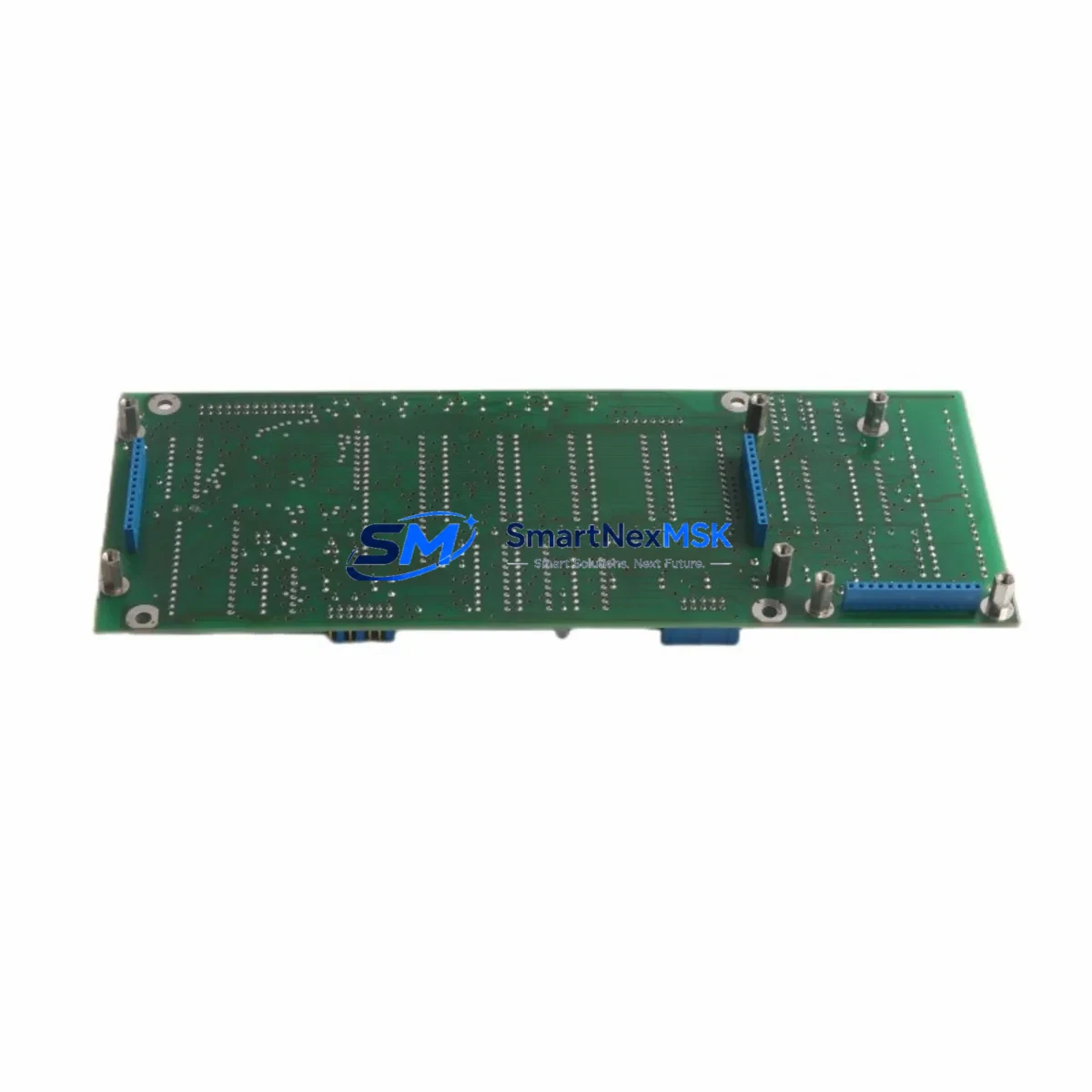

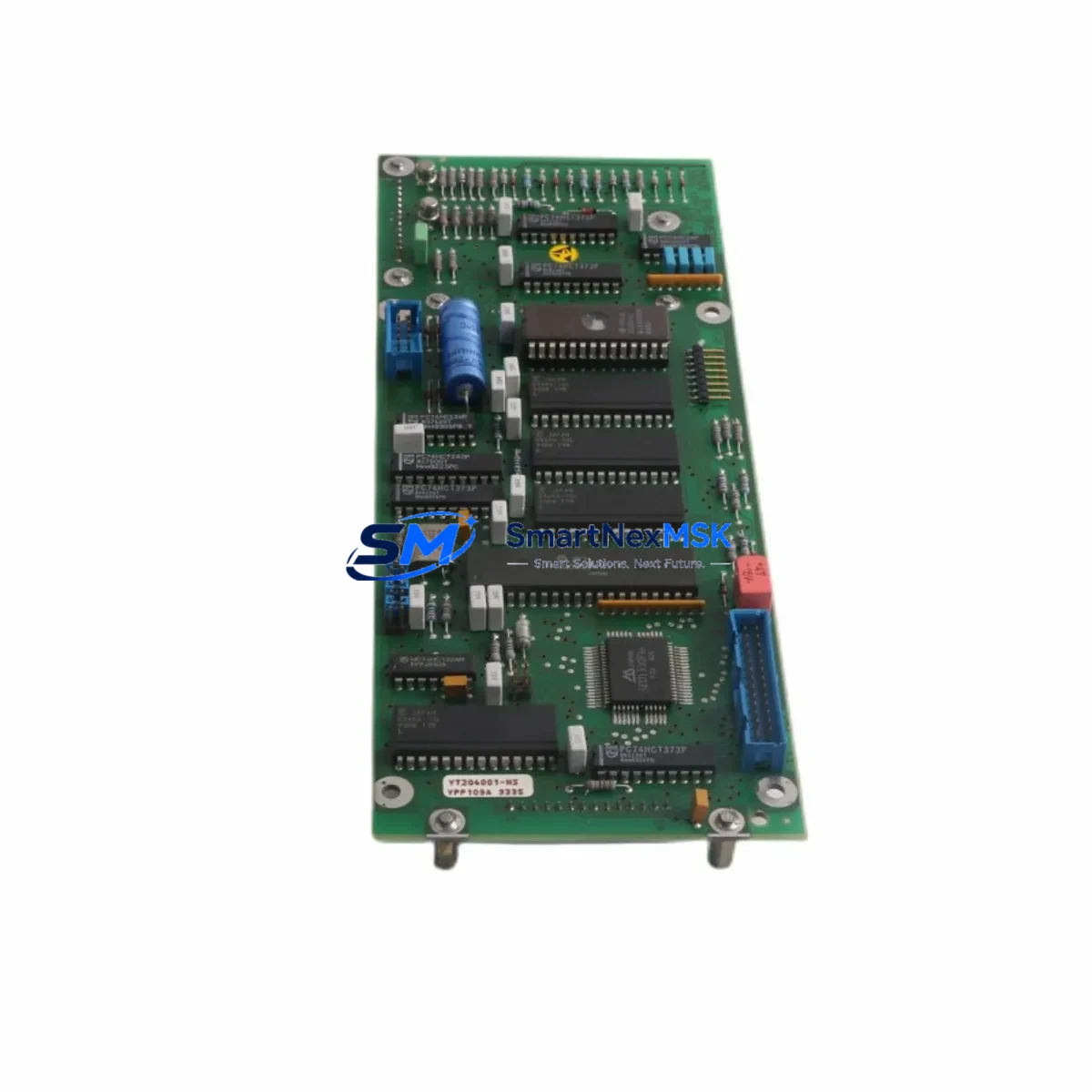

ABB YPP109A Retrofit-Ready Digital Input for DSQC IRC5

ABB YPP109A Retrofit-Ready Digital Input for DSQC IRC5 Control Systems

The ABB YPP109A is a retrofit-ready digital input module engineered for seamless integration into ABB IRC5 robot controller cabinets and DSQC-series control platforms. As legacy DSQC modules approach end-of-life and OEM spare parts become increasingly scarce, the YPP109A provides a verified drop-in replacement path that preserves existing wiring harnesses, backplane slot assignments, and PLC program logic — minimizing engineering rework and unplanned downtime during system migration.

Industrial facilities operating ABB IRB series robots, FlexArc welding cells, or multi-axis motion control lines frequently encounter obsolescence challenges with original DSQC I/O boards. The YPP109A addresses this directly by maintaining full electrical and mechanical compatibility with the IRC5 single cabinet and IRC5 compact controller architectures. Engineers can slot the module into the existing DSQC backplane without modifying terminal block wiring, I/O address mapping, or RobotWare configuration files.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful YPP109A retrofit begins well before the module arrives on-site. Maintenance engineers should first audit the IRC5 cabinet layout, documenting the current DSQC backplane slot position, the DeviceNet node address assigned to the failing module, and the terminal block wiring diagram. In multi-robot cells, the DSQC 652 communication board and DSQC 658 fieldbus adapter should be inspected simultaneously, as degraded communication links can mask I/O faults and complicate root-cause analysis.

Power supply integrity is a critical pre-check. The IRC5 internal 24 VDC DSQC 661 power distribution unit must deliver stable voltage within specification before the new YPP109A is installed. Voltage sag or ripple caused by an aging DSQC 661 can damage replacement modules and produce intermittent input faults that are difficult to diagnose in production. Confirm power rail health with a calibrated multimeter before proceeding.

For facilities running older IRC5 cabinets with the DSQC 639 computer unit, confirm that the RobotWare version supports the I/O configuration expected by the replacement module. In some cases, a RobotWare patch or system parameter update via the FlexPendant TP is required to re-recognize the module after hot-swap. The DSQC 643 axis computer and DSQC 668 I/O gateway should also be verified for firmware currency if the retrofit is part of a broader control system upgrade.

Terminal block re-termination is rarely required when replacing like-for-like DSQC digital input modules, but engineers should photograph the existing wiring before removal and verify continuity on all signal conductors post-installation. Where field wiring uses legacy 0.5 mm² conductors, inspect for insulation fatigue at the terminal entry points — a common failure mode in cabinets that have operated for more than ten years in high-vibration environments.

For lines integrating ABB robots with third-party PLCs via PROFIBUS or EtherNet/IP, the DSQC 688 fieldbus adapter configuration should be exported and backed up before any I/O module replacement. This ensures that network node parameters, baud rate settings, and I/O mapping tables can be restored immediately if the communication link drops during commissioning. The DSQC 377A servo drive interface board, if present in the same cabinet, should be powered down in sequence to avoid transient voltage spikes on the backplane during module removal.

Downtime Control During System Migration

Minimizing production downtime during a DSQC module replacement requires a structured pre-outage preparation protocol. Before scheduling the maintenance window, export the full system backup from the IRC5 controller using RobotStudio or the FlexPendant backup function. This preserves RAPID program modules, system parameters, I/O configuration, and safety controller settings — ensuring that a full system restore is possible within minutes if an unexpected fault occurs during the swap.

Plan the physical replacement during a scheduled production break or shift changeover. The YPP109A module swap itself typically takes under 15 minutes for a trained technician: power down the cabinet via the main disconnect, release the backplane locking tab, extract the failed module, seat the YPP109A, and restore power. The IRC5 controller will perform an automatic I/O scan on boot; verify that all digital input signals appear correctly in the FlexPendant I/O panel before releasing the robot for production.

For critical production lines where even a 30-minute outage carries significant cost, consider staging a pre-tested YPP109A module with the correct DeviceNet node address pre-configured. This eliminates address-setting steps during the live replacement window and reduces the risk of commissioning errors under time pressure. Maintain a documented rollback procedure — including the location of the system backup file and the steps to restore it — so that any technician on shift can execute recovery without specialist support.

All YPP109A units supplied by SMARTNEXMSK undergo functional verification testing prior to shipment, including digital input channel continuity checks and backplane interface validation. Each unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Retrofit Support FAQ

Q1: Is the YPP109A a direct replacement for my existing DSQC digital input module?
The YPP109A is designed as a retrofit-compatible replacement for DSQC-series digital input modules used in ABB IRC5 controller cabinets. Confirm your existing module’s slot position and DeviceNet node address before installation. In most IRC5 single cabinet and compact configurations, no wiring or address changes are required.

Q2: What commissioning steps are needed after installation?
After seating the YPP109A and restoring cabinet power, navigate to the I/O panel on the FlexPendant and verify that all digital input channels display the correct signal states. If the module is not recognized, check the DeviceNet node address setting and confirm that the RobotWare I/O configuration matches the module type. A system restart may be required in some RobotWare versions.

Q3: Can I install the YPP109A without modifying my existing terminal block wiring?
In the majority of IRC5 retrofit applications, the YPP109A maintains the same terminal block layout as the original DSQC digital input module, allowing direct re-use of existing field wiring. Photograph and document all wiring before removal as a precaution, and verify signal continuity on all channels after installation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal industrial operating conditions. Each unit is functionally tested before shipment. Warranty claims are supported directly by SMARTNEXMSK — contact sales@smartnexmsk.com with your order reference and a description of the fault for rapid resolution.
