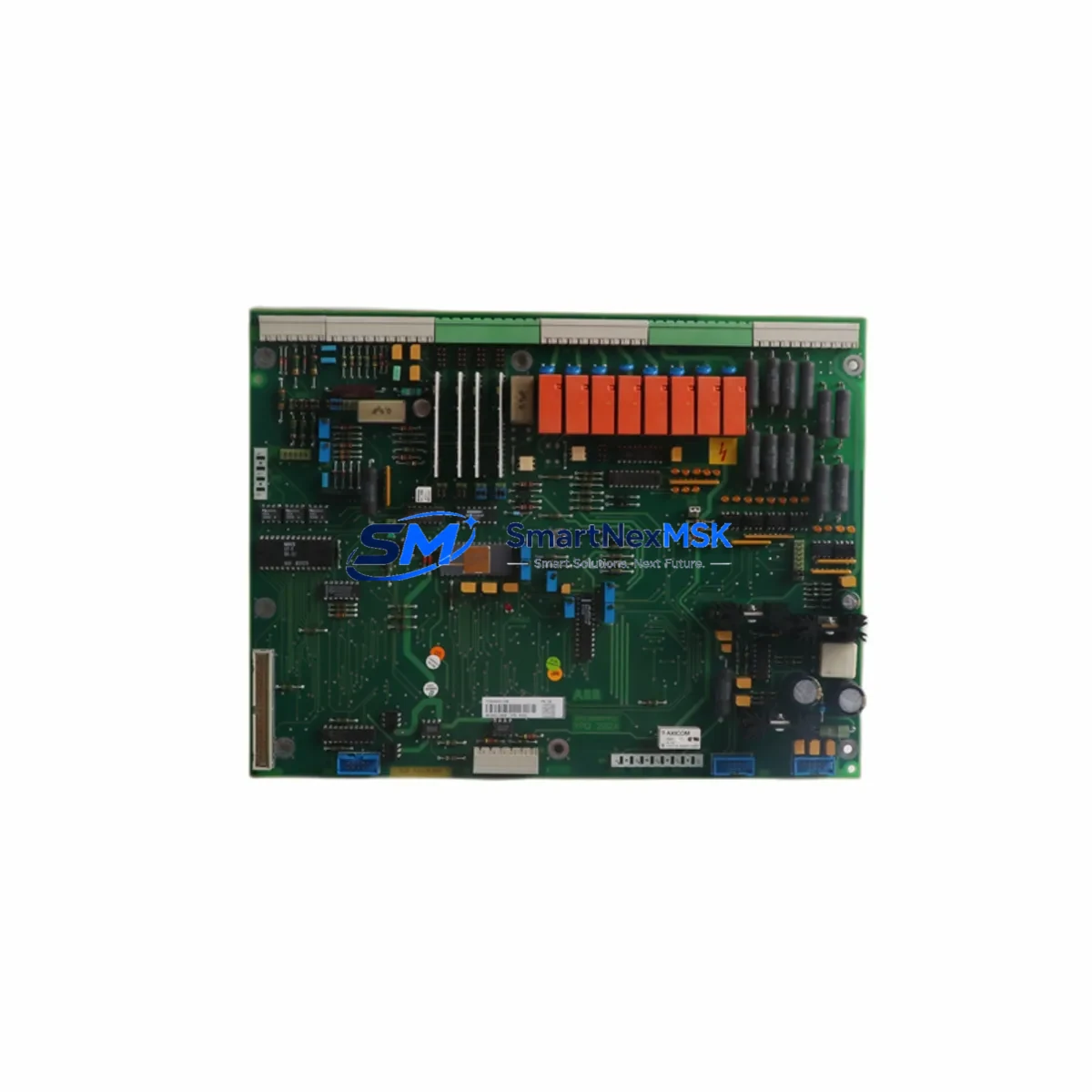

The ABB YPQ202A (assembly reference YT204001-KB) is a genuine digital I/O board designed for the ABB AC800M Distributed Control System platform — one of the most widely deployed DCS architectures in power generation, oil & gas, chemical processing, and pulp & paper industries. When this board fails or degrades, the consequences extend beyond a single I/O channel: the entire control loop dependent on that signal path is compromised, creating unplanned downtime risk that can cost thousands of dollars per hour in lost production.

Sourced directly from ABB-authorized supply chains and subjected to pre-shipment functional testing, this YPQ202A YT204001-KB spare is stocked to support maintenance engineers who need a verified, drop-in replacement — not a refurbished gamble. Every unit ships with a 12-month warranty covering manufacturing defects and functional performance under normal operating conditions.

For maintenance planners managing aging AC800M cabinets, holding at least one YPQ202A in your critical-spare inventory is a recognized best practice. The AC800M platform’s modular backplane architecture means a failed I/O board can be swapped without disturbing adjacent modules, but only if the replacement is on-site and pre-verified before the fault occurs.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a YPQ202A YT204001-KB in the field is rarely an isolated task. Experienced maintenance engineers treat an I/O board replacement as a trigger for a broader cabinet inspection. Before or during the swap, the following components in the same AC800M I/O station or control cabinet should be checked:

Power Supply Module (SD821 / SD822 / SD823): The S800 I/O station relies on a dedicated 24 V DC power supply module. A degraded SD821 or SD823 power supply can cause intermittent I/O faults that mimic a failed board — always measure rail voltage under load before condemning the YPQ202A.

S800 I/O Station Backplane (TB820 / TB840): The TB820 ModuleBus Modem or TB840 backplane connects I/O modules to the controller. Inspect backplane connectors for oxidation, mechanical damage, or loose seating. A faulty TB820 can cause multiple I/O modules to report errors simultaneously.

PM861 / PM864 / PM866 Controller Module: If the YPQ202A fault was accompanied by controller alarms, verify the PM8xx processor module’s firmware version and check for memory or communication errors. A controller nearing end-of-life can generate false I/O faults.

CI854 / CI857 Communication Interface: In AC800M systems using PROFIBUS DP or FOUNDATION Fieldbus, the CI854 or CI857 communication interface module handles field device connectivity. If the I/O fault is on a fieldbus-connected device, inspect the CI module and its cable termination before replacing the I/O board.

Terminal Units (TU830 / TU831 / TU835): The TU-series terminal units provide the field wiring connection point for S800 I/O modules. Loose terminal screws, corroded contacts, or damaged TU830/TU831 units are a common root cause of signal errors that appear as I/O board failures.

AI810 / AO810 Analog I/O Modules: In mixed I/O stations, analog modules such as the AI810 (8-channel analog input) or AO810 (analog output) share the same backplane power and bus. If the digital I/O fault is accompanied by analog signal drift, inspect these modules and their field wiring simultaneously.

DI810 / DO810 Digital I/O Modules: Adjacent DI810 digital input or DO810 digital output modules in the same I/O station should be visually inspected for LED fault indicators during the YPQ202A replacement window — a planned outage is the right time to address any marginal modules before they cause the next unplanned stop.

Fuse Terminals and Circuit Protection: Verify all fuse terminals protecting the 24 V DC field circuits connected to the I/O station. A blown fuse on a field circuit can cause a DO channel to appear failed when the board itself is healthy.

Fiber Optic or Copper ModuleBus Cables: In distributed AC800M architectures, ModuleBus extension cables connect remote I/O stations to the controller. Inspect cable connectors and check for bend-radius violations or physical damage that could cause intermittent communication errors.

Stocking the YPQ202A YT204001-KB alongside a spare SD821 power supply, a TB820 backplane modem, and at least one DI810/DO810 module gives maintenance teams the coverage needed to resolve the majority of AC800M I/O station faults within a single maintenance window.

Site Replacement Workflow

Step 1 — Fault Isolation: Use ABB Control Builder M or the AC800M diagnostic display to identify the specific I/O channel and module address reporting the fault. Confirm the fault is persistent and not a transient communication error before initiating a board replacement.

Step 2 — Pre-Replacement Verification: Confirm the replacement YPQ202A YT204001-KB assembly reference matches the installed unit. Check the hardware revision label on both the installed module and the spare. Mismatched hardware revisions are rare but can cause compatibility issues with older PM8xx firmware.

Step 3 — Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure for the affected I/O station. The AC800M S800 I/O system supports hot-swap on some module types, but always verify your specific system configuration and safety requirements before attempting a live swap.

Step 4 — Module Swap: Remove the faulty YPQ202A by releasing the module latch and sliding it out of the backplane slot. Insert the replacement unit, ensuring the backplane connector is fully seated. The module LED should transition from red fault to green normal within the controller’s I/O scan cycle.

Step 5 — Functional Test: Force-test each I/O channel through Control Builder M or your DCS operator station to confirm all channels are responding correctly. Verify field device signals match expected values before returning the loop to automatic control.

Step 6 — Documentation: Record the replacement in your CMMS (Computerized Maintenance Management System) with the module serial number, date, and technician ID. Update your spare parts inventory to trigger a reorder for the consumed YPQ202A unit.

This workflow minimizes mean time to repair (MTTR) and ensures the AC800M system is returned to full operational status with documented traceability — a requirement in ISO 55000-aligned asset management programs and many regulated process industries.

Spare Parts Support FAQ

Q: What is the shelf life of a stored YPQ202A YT204001-KB spare?
A: When stored in original anti-static packaging at controlled temperature (15–25 °C) and humidity (<60% RH), ABB S800 I/O modules typically maintain full functionality for 5–10 years. We recommend annual visual inspection of stored spares and a power-on functional test before deployment if the unit has been stored for more than 3 years.

Q: How do I verify compatibility with my specific AC800M system version?
A: The YPQ202A is compatible with AC800M systems running PM861, PM864, and PM866 controller modules. Check the hardware revision label on the installed module and compare with the spare before installation. If your system uses an older PM860 controller or a non-standard firmware version, contact our technical team with your system’s Control Builder M project version for confirmation.

Q: What pre-shipment testing is performed on each unit?
A: Every YPQ202A YT204001-KB unit undergoes a functional power-on test and I/O channel verification before dispatch. Units that fail any test parameter are quarantined and not shipped. A test report is available upon request for quality-critical applications.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional performance failure under normal operating conditions (within specified voltage, temperature, and environmental ratings). It does not cover damage caused by incorrect installation, overvoltage events, physical impact, or use outside the module’s rated specifications. Warranty claims are processed with return shipping and replacement dispatch within 5 business days of fault confirmation.
