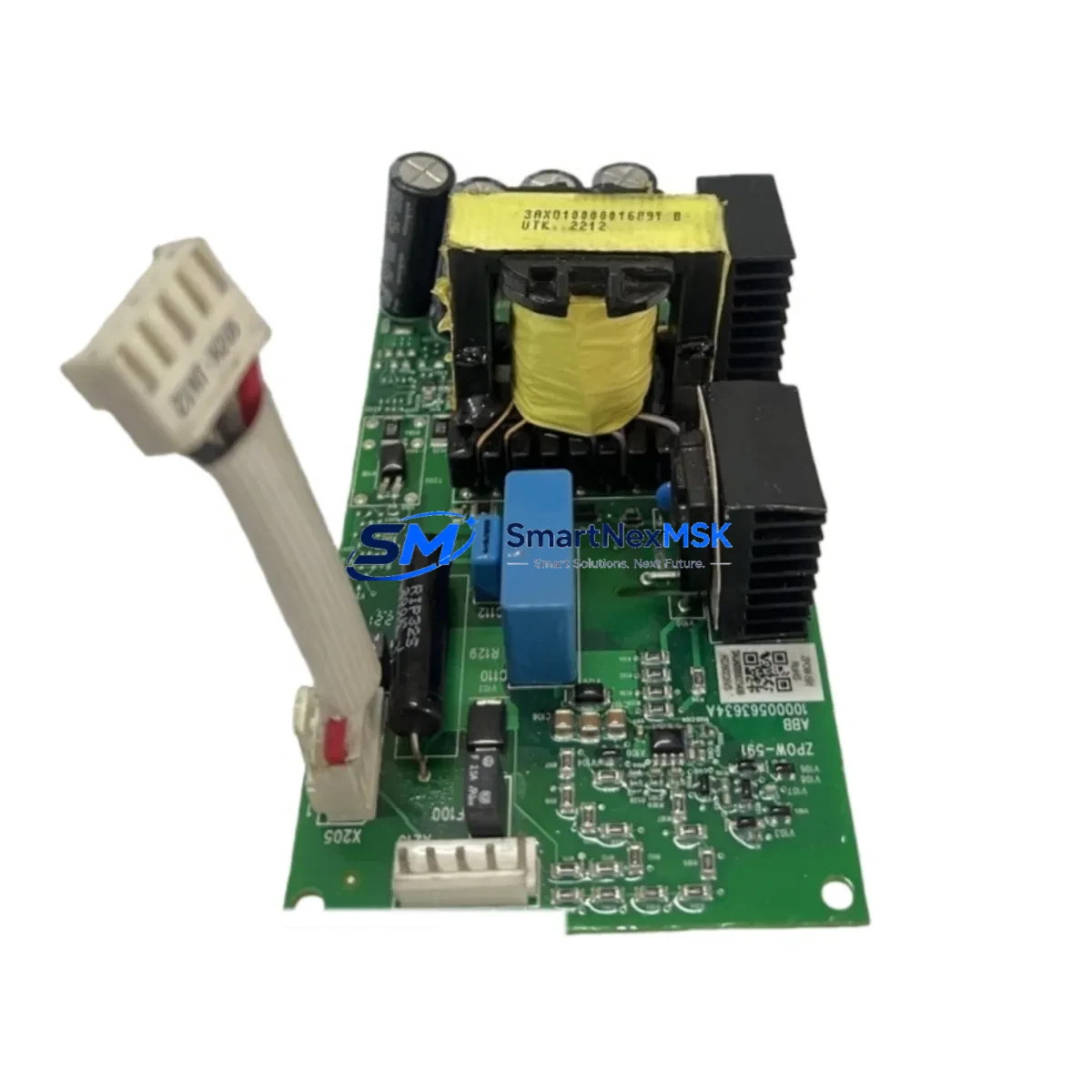

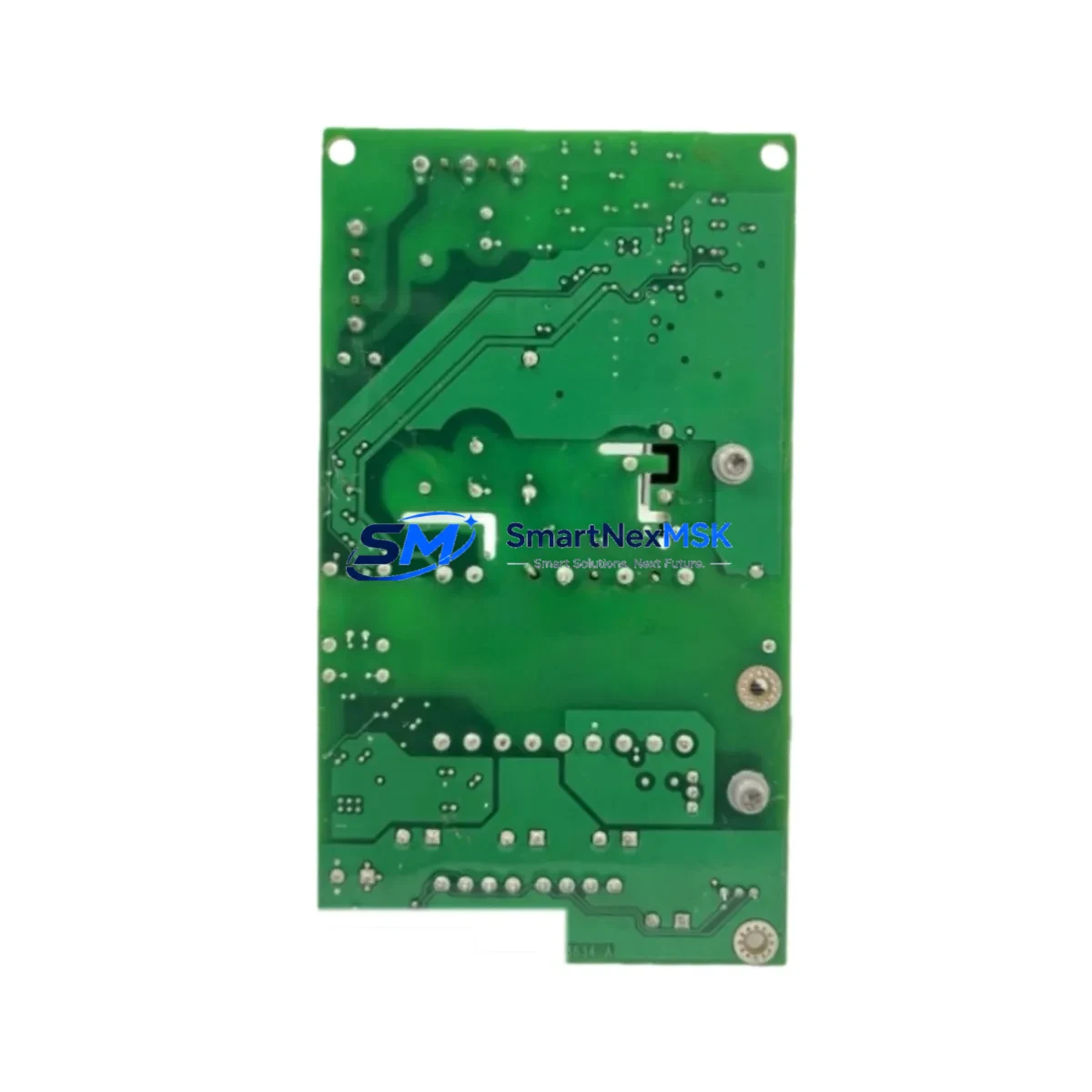

ABB ZPOW-591 Retrofit-Ready DCS Power Supply for Advant Control Systems
The ABB ZPOW-591 is a proven DCS power supply module engineered for seamless integration into ABB Advant OCS and Advant MCS control architectures. As legacy Advant installations approach end-of-life and original spare parts become increasingly scarce, the ZPOW-591 serves as a reliable retrofit-ready replacement that preserves existing wiring layouts, backplane interfaces, and system logic without requiring a full platform migration. For plant engineers managing aging control cabinets, this module offers a direct path to extended system life with minimal disruption to ongoing production.
Whether you are replacing a failed unit on an emergency basis or executing a planned upgrade across multiple control stations, the ZPOW-591 is designed to slot into existing Advant rack assemblies with no structural modification. Its output voltage and current ratings align with the original Advant power distribution architecture, making it compatible with the downstream I/O modules, communication processors, and field termination assemblies already installed in your cabinet.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Platform | ABB Advant OCS, Advant MCS |
| Module Type | DCS Power Supply Module |
| SKU | ZPOW-591 |
| Backplane Interface | Compatible with standard Advant rack backplane connectors |
| Installation Requirement | Direct slot-in replacement; no rack modification required |
| Wiring Compatibility | Terminal layout matches original Advant power wiring standard |
| Communication Compatibility | Supports existing Advant internal bus architecture |
| Replacement Recommendation | Suitable for 1:1 replacement of discontinued Advant power supply variants |
| Commissioning Focus | Verify output voltage under load; confirm backplane seating and terminal torque |
| Warranty | 12-Month Warranty — covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
A successful ZPOW-591 retrofit begins well before the module arrives on site. Engineers should start by auditing the existing Advant rack assembly to confirm the number of occupied slots, the current draw of installed I/O modules such as the DSDI-110 digital input boards and DSDO-115 digital output boards, and the total power budget consumed by communication processors like the DSMB-01 Masterbus module. Understanding the aggregate load is critical — the ZPOW-591 must be sized against the actual demand of all active modules in the rack, including any DSAX-110 analog input cards and DSAO-120 analog output cards that feed field instrumentation loops.
Terminal wiring should be documented before removal of the old power supply. Photograph or sketch the existing terminal block connections, noting wire gauge, ferrule type, and torque specifications. The ZPOW-591 terminal layout is consistent with the Advant wiring standard, but field cables should be inspected for insulation condition and re-terminated cleanly to avoid intermittent contact faults after commissioning. Pay particular attention to the 24 VDC distribution rail that feeds the DSCS-140 communication supervisor and any DSTC-170 termination units connected to field devices.
For systems that include an AC160 or AC450 controller node, confirm that the controller’s internal power sequencing logic is compatible with the ZPOW-591 startup ramp profile. In most Advant configurations, the controller will tolerate a brief power-on delay without triggering a fault state, but this should be verified against the site-specific system configuration documentation. If the installation includes a redundant power supply arrangement, the ZPOW-591 should be tested in standalone mode before being placed into the redundancy pair to confirm correct load-sharing behavior.
Module address settings, where applicable, should be recorded from the outgoing unit and replicated on the ZPOW-591 before installation. In Advant architectures that use hardware address switches on the backplane or module face, mismatched addressing can prevent the controller from recognizing the new power supply during the initialization sequence. After physical installation, a controlled power-up with the engineering workstation connected via the DSTK-01 programming cable or equivalent interface allows real-time monitoring of the power supply status registers before returning the system to automatic control.
Downtime Control During System Migration
Minimizing unplanned downtime during a ZPOW-591 swap requires a structured pre-outage checklist. Before de-energizing the rack, export the current controller program from the AC160 or AC450 node to a backup medium and verify the checksum against the last known-good version. This protects against accidental program loss if the controller loses its retain memory during the power interruption. If the system supports online program backup via the Advant Operator Station, initiate a full configuration save before beginning physical work.
Schedule the replacement during a planned maintenance window aligned with the production calendar. Coordinate with the operations team to confirm that all field devices connected through the Advant I/O network are in a safe state — valves at fail-safe positions, drives at zero speed, and interlocks acknowledged. The ZPOW-591 installation itself typically takes under 30 minutes for an experienced technician, but allow additional time for post-installation verification, including output voltage measurement at the backplane test points, visual inspection of all module status LEDs, and a controlled restart of the controller node.
After power restoration, monitor the system for at least one full process cycle before returning to automatic mode. Confirm that all I/O channels are reading correctly, that the DSMB-01 Masterbus communication link has re-established, and that the HMI displays on the Advant Operator Station are reflecting live process values without alarm floods. Document the replacement in the site maintenance log with the ZPOW-591 serial number, installation date, and technician sign-off to support future warranty claims and audit requirements.
Retrofit Support FAQ
Q: Is the ZPOW-591 a direct drop-in replacement for the original Advant power supply?
A: Yes. The ZPOW-591 is designed to match the mechanical form factor, backplane connector pinout, and output specifications of the original Advant power supply module. In most installations, no rack modification or wiring change is required. We recommend verifying the output voltage rating against your system documentation before installation.
Q: What commissioning steps are required after installing the ZPOW-591?
A: After physical installation, measure the output voltage at the backplane test points under full load. Confirm that all module status LEDs indicate normal operation. Reconnect the engineering workstation and verify that the controller node initializes correctly and that all I/O modules are recognized. Allow one full process cycle before returning to automatic control.
Q: How do I verify wiring compatibility before removing the old power supply?
A: Document all terminal connections on the existing unit, including wire labels, gauge, and torque values. The ZPOW-591 terminal layout follows the Advant wiring standard, so existing field cables should connect directly. Inspect cable insulation and re-terminate any wires showing wear or oxidation before powering up the new module.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each ZPOW-591 unit undergoes pre-shipment functional testing before dispatch. Warranty claims are supported with documentation of the installation date, site conditions, and fault description. Contact our technical team for RMA processing and replacement coordination.
