The Allen-Bradley 1203-GD1 is a Remote I/O Communications Module designed for integration within the 1203 Series automation architecture, providing reliable data exchange between PLC-5 and SLC 500 control systems and remote I/O adapter networks. For maintenance engineers managing aging control infrastructure, the 1203-GD1 represents a critical link in the communication chain — its failure can halt an entire production line within seconds. Sourcing a verified original spare and keeping it staged in your control cabinet is the single most effective strategy for minimizing unplanned downtime.

At SMARTNEXMSK, every 1203-GD1 unit is sourced from authorized supply channels, inspected against factory electrical specifications, and tested prior to dispatch. We supply original Allen-Bradley components — not refurbished or counterfeit substitutes — backed by a 12-month warranty and long-term availability commitment. Whether you are building a preventive maintenance stock, responding to an emergency fault, or extending the operational life of a legacy PLC-5 or SLC 500 system, the 1203-GD1 is dispatched ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1203-GD1 Remote I/O Communications Module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that the module itself is rarely the only component requiring attention. A thorough site assessment should extend to the entire communication loop and associated power infrastructure.

Begin by verifying the integrity of the 1770-CD Remote I/O cable and its termination resistors — degraded cable shielding or loose Belden connectors are a leading cause of intermittent RIO faults that are often misdiagnosed as module failure. Inspect the 1746-P4 or 1746-P7 power supply module supplying the SLC 500 rack; an aging power supply with marginal output voltage will cause erratic communication behavior even after a new 1203-GD1 is installed. Check the 1747-SN Scanner Module in the SLC 500 rack for firmware version compatibility and verify that rack addressing matches the replacement module’s DIP switch configuration.

For PLC-5 based systems, confirm the 1771-ASB Remote I/O Adapter at the remote rack is functioning correctly and that its baud rate setting aligns with the 1203-GD1 configuration. Review the 1771-OBD or 1771-IBD I/O modules in the remote rack for any latched fault conditions that may have been triggered by the communication interruption. If the system includes a 1203-SM1 SCANport Module or 1203-GK5 DeviceNet Communications Module on a connected drive, verify those communication links are re-established after the RIO module swap.

Do not overlook the 1492-J terminal blocks and wiring ferrules at the remote I/O panel — loose terminations under vibration are a chronic source of intermittent faults in older installations. If the control cabinet houses a 2711P PanelView Plus HMI, confirm that the HMI communication path is restored and that any RIO-linked data table addresses are correctly mapped after the replacement. For sites running extended cable runs, a 1770-KF2 or 1785-KA5 communication interface may also warrant inspection to rule out upstream network degradation.

Stocking a 1203-GD1 alongside these associated components — particularly the RIO cable assembly, power supply module, and scanner module — forms the foundation of a resilient spare parts strategy for legacy Allen-Bradley RIO architectures.

Site Replacement Workflow

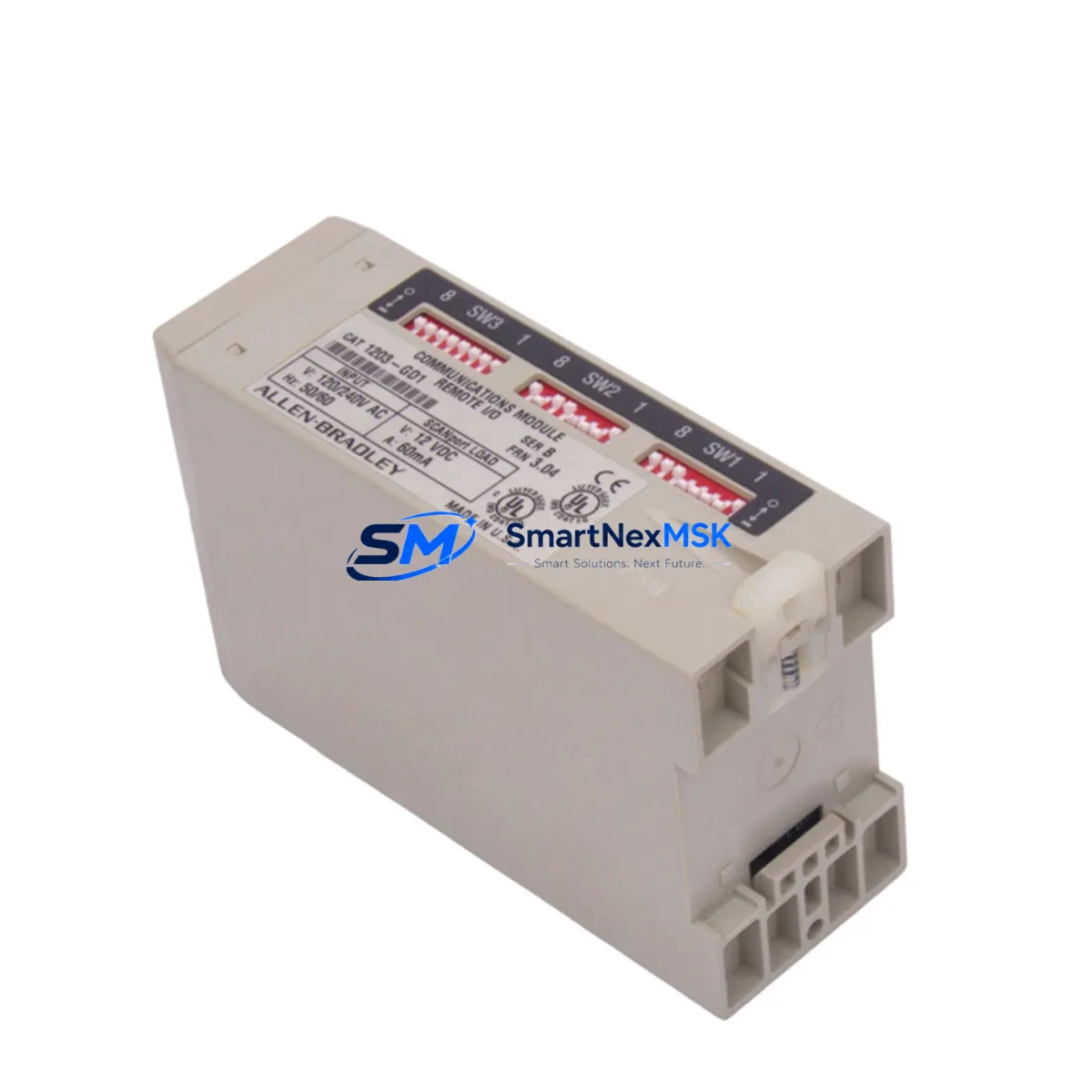

Step 1 — Pre-replacement verification: Document the existing 1203-GD1 DIP switch settings (rack address, baud rate, last rack/group configuration) before powering down. Photograph the wiring layout and label all RIO cable connections.

Step 2 — Safe isolation: Follow your site LOTO (Lockout/Tagout) procedure. De-energize the remote I/O rack and confirm zero voltage at the module terminals before removal.

Step 3 — Module swap: Remove the faulty 1203-GD1 and install the replacement unit. Replicate the DIP switch configuration exactly from your documentation. Reconnect the RIO cable with correct polarity and ensure the termination resistor is in place at the end of the RIO trunk.

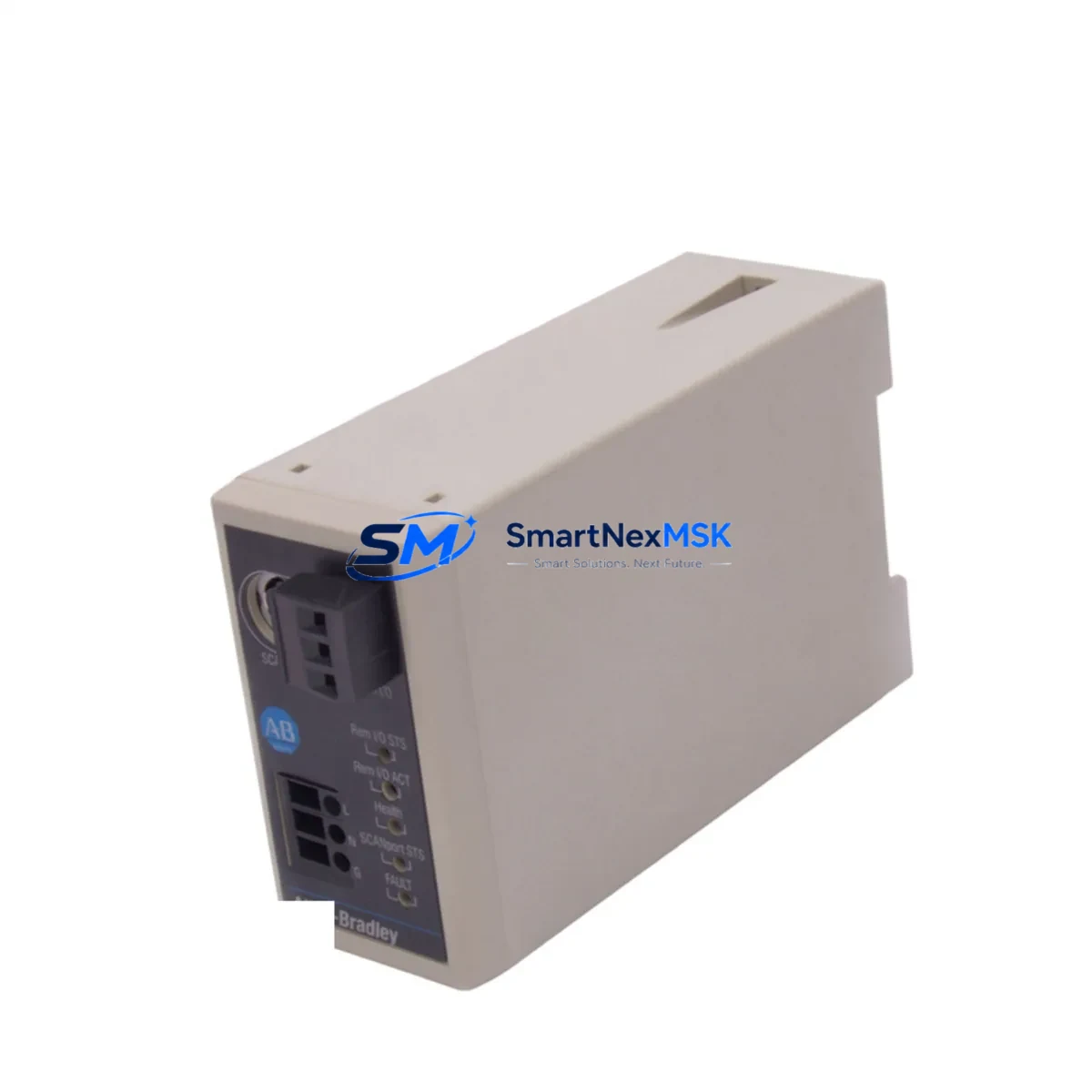

Step 4 — Power-up and diagnostics: Restore power and observe the module status LEDs. A solid green RUN indicator confirms successful communication establishment. Use RSLogix 5 or RSLogix 500 to verify that all I/O points in the remote rack are online and that no fault codes are present in the processor fault table.

Step 5 — Functional test: Cycle the controlled equipment through a manual test sequence to confirm all I/O signals are correctly mapped and responding. Log the replacement in your maintenance management system (CMMS) with the new module serial number and date.

This workflow is compatible with direct replacement of legacy 1203-GD1 units in existing 1203 Series installations without requiring PLC program modifications, provided the rack address and baud rate configuration are preserved. Downtime from fault detection to system restoration typically ranges from 30 to 90 minutes when a pre-staged spare is available on site.

Spare Parts Support FAQ

Q1: Is the 1203-GD1 supplied by SMARTNEXMSK a new original or a refurbished unit?
All 1203-GD1 units are sourced as original Allen-Bradley components — either factory new or surplus new (unused, in original or equivalent packaging). We do not supply refurbished, repaired, or third-party clone modules. Each unit is inspected and electrically tested before shipment.

Q2: What is the warranty coverage and what does it include?
Every 1203-GD1 is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we will arrange replacement or credit at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit.

Q3: How do I confirm compatibility before ordering if my system uses an older firmware revision?
Provide your PLC-5 or SLC 500 processor catalog number, firmware revision, and the existing 1203-GD1 series letter (if visible on the module label) when contacting our technical team. We will cross-reference against the Allen-Bradley compatibility matrix and confirm the correct replacement before dispatch. Contact us at sales@smartnexmsk.com or +86 18259474341.

Q4: Can SMARTNEXMSK support long-term supply for ongoing maintenance programs?
Yes. We maintain standing inventory of 1203-GD1 and related 1203 Series components to support planned maintenance schedules, annual shutdown kits, and emergency call-off orders. Long-term supply agreements with reserved stock allocation are available for industrial facilities with recurring demand. Inquire about volume pricing and dedicated inventory reservation at sales@smartnexmsk.com.
