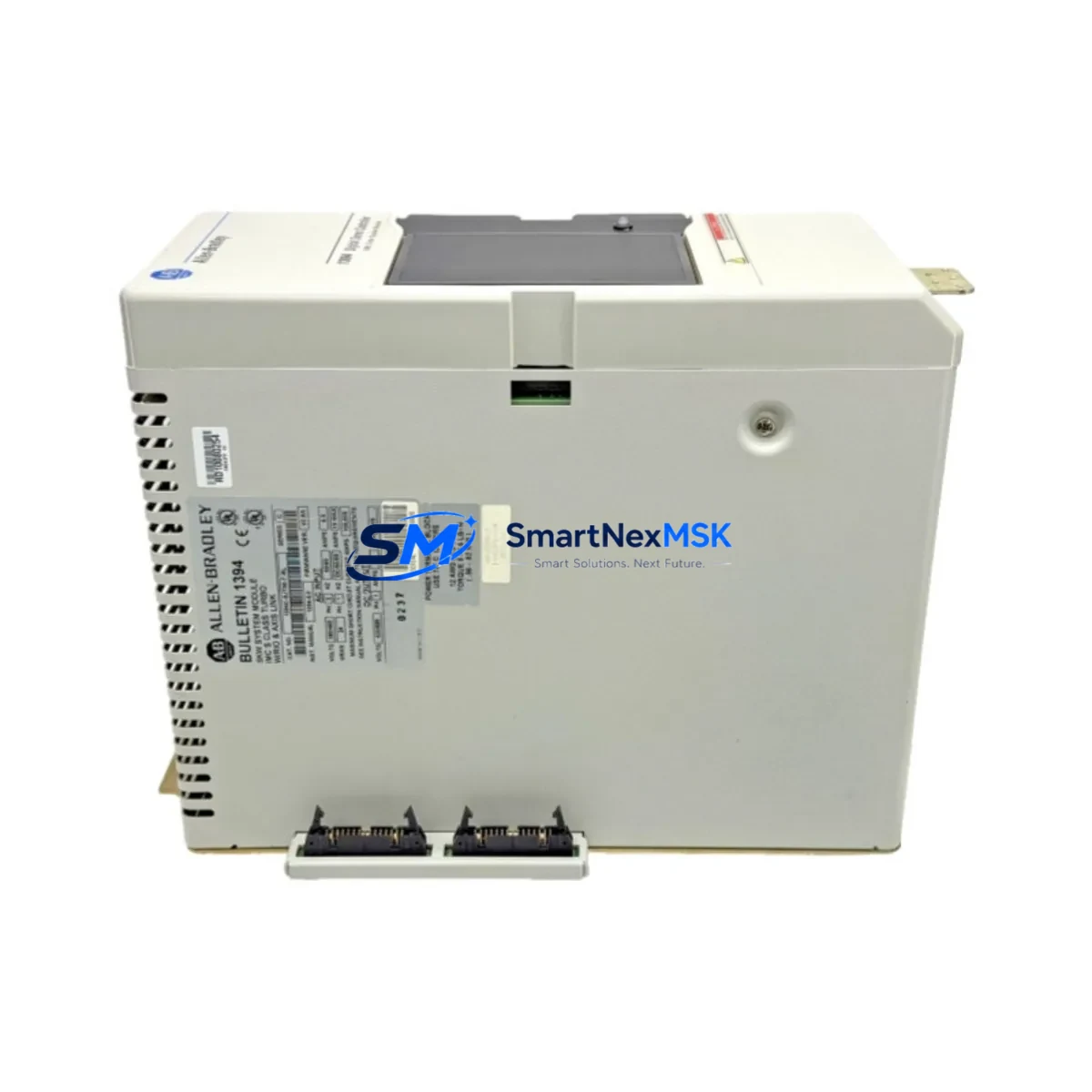

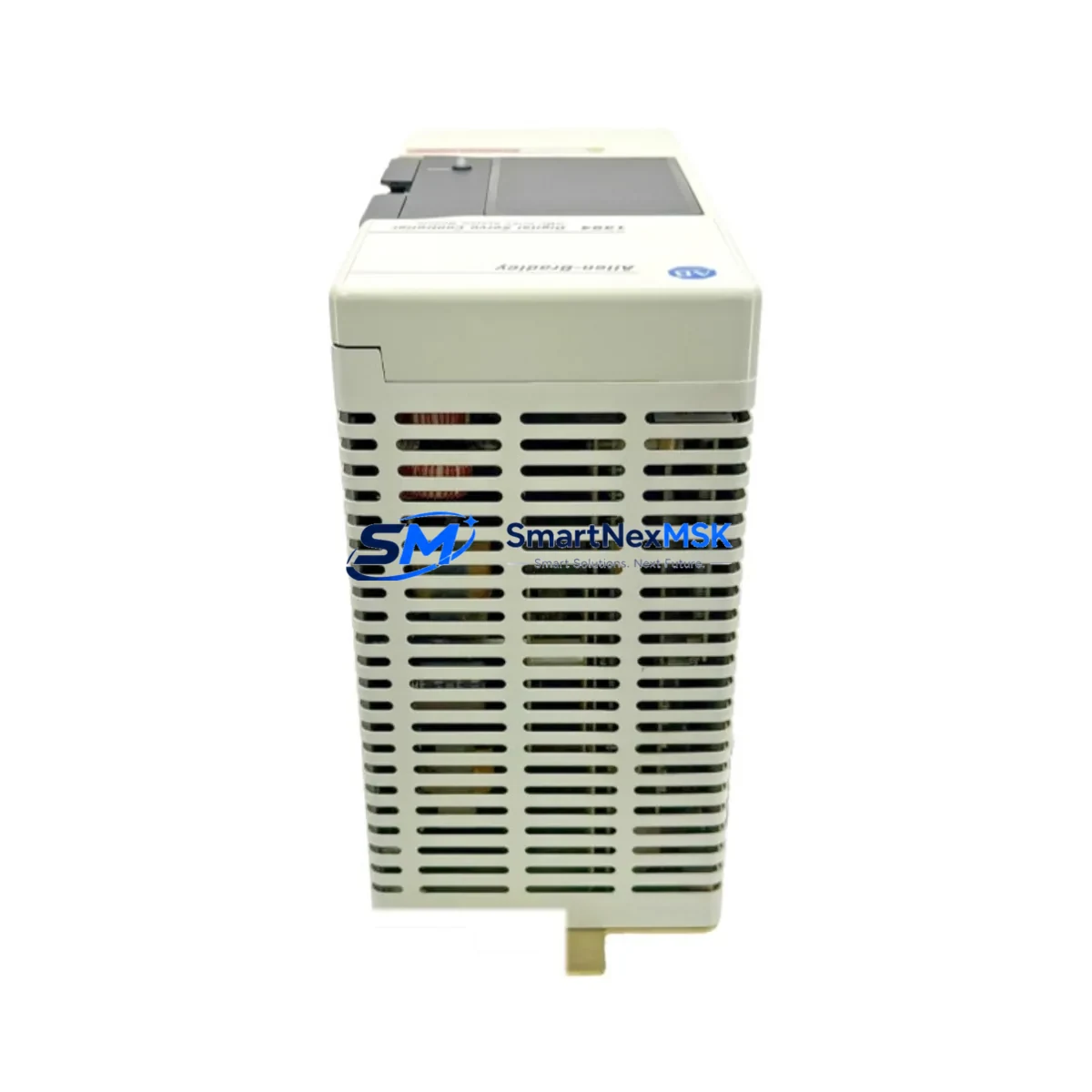

Allen-Bradley 1394C-SJT05-T-RL Safety Servo Controller

Allen-Bradley 1394C-SJT05-T-RL Safety-Enhanced Servo Controller for Harsh Industrial Sites

The Allen-Bradley 1394C-SJT05-T-RL is a 5kW, 4-axis RIO-networked servo drive controller engineered for continuous, safety-critical motion control in the most demanding industrial environments. Designed as part of Rockwell Automation’s 1394 GMC Turbo Series, this unit delivers deterministic axis synchronization, robust surge immunity, and fault-tolerant operation — making it the preferred choice for control engineers who cannot afford unplanned downtime in petrochemical plants, power generation facilities, metal processing lines, mining conveyors, and port crane systems.

In high-load, high-interference production environments, servo controller reliability is not optional — it is a safety imperative. The 1394C-SJT05-T-RL addresses this directly through its hardened backplane architecture, integrated RIO communication channel, and multi-axis coordinated fault response. When a single axis encounters an overcurrent condition or encoder signal anomaly, the controller’s coordinated shutdown logic prevents cascading mechanical failures across the entire motion train — a critical protection feature in continuous manufacturing and hazardous area control cabinets.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1394C-SJT05-T-RL within a safety-engineered control cabinet requires a layered protection strategy. The servo controller operates in close coordination with the Allen-Bradley 1394-AM75 axis module, which handles individual motor drive output and current regulation for each servo axis. Power integrity is maintained upstream by a 1394-SR9.0 shared bus power supply, which provides regulated DC bus voltage and absorbs regenerative energy spikes that would otherwise stress the controller’s internal capacitor bank.

For communication reliability on the RIO network, the 1394C-SJT05-T-RL interfaces directly with Allen-Bradley 1747-SN Remote I/O Scanner modules installed in the SLC 500 or ControlLogix chassis. In larger installations, a 1756-DHRIO Data Highway Plus / Remote I/O bridge module is used to extend the RIO network across multiple control zones without signal degradation. Proper cable shielding and grounding at the 1394-TB terminal block assembly is essential to prevent common-mode noise from corrupting encoder feedback signals — a leading cause of nuisance faults in high-frequency drive environments.

Surge protection at the cabinet entry point is provided by coordinated SPD (Surge Protective Device) assemblies, and the servo system’s 24VDC logic supply is typically sourced from an Allen-Bradley 1606-XLP power supply, which offers wide-range input tolerance and active power factor correction. For safety interlock circuits, the 1394C-SJT05-T-RL’s enable input is wired through a Allen-Bradley 440R safety relay module, ensuring that any E-stop or guard door event results in a controlled, coordinated axis disable rather than an abrupt power cut that could damage mechanical couplings or cause load drop in vertical axis applications.

In installations requiring SIL-rated safety functions, the servo system is often paired with a Rockwell Automation GuardLogix 1756-L7xS safety controller, which monitors the 1394 system’s status via the RIO network and executes safety-rated motion stop functions in compliance with IEC 62061 and ISO 13849. Encoder feedback integrity is further validated by 1394-SJT series encoder interface cards, which provide differential signal conditioning and short-circuit protection on all feedback channels.

Critical Industrial Safety Applications

The Allen-Bradley 1394C-SJT05-T-RL is deployed across a wide range of safety-critical industrial sectors where servo motion control reliability directly impacts personnel safety and production continuity.

In petrochemical and refinery facilities, the controller manages multi-axis valve actuator positioning systems in continuous distillation and blending processes. Its coordinated fault response ensures that a single axis fault does not cause uncontrolled valve movement that could result in process upsets or hazardous material release. The RIO network’s deterministic scan time guarantees that position commands are executed within defined safety time windows.

In power generation plants — including coal, gas turbine, and hydroelectric facilities — the 1394C-SJT05-T-RL controls turbine blade pitch actuators, fuel feed servo systems, and generator excitation positioning mechanisms. The controller’s thermal overload protection and coordinated shutdown logic are essential in these environments, where an uncontrolled servo runaway could trigger turbine trip events with significant safety and financial consequences.

In underground and open-pit mining operations, the controller is used in conveyor drive synchronization, crusher feed rate control, and hoist positioning systems. Its wide operating temperature range and surge immunity make it suitable for the electrical noise-rich environments typical of mining switchgear rooms and surface control buildings.

In water and wastewater treatment plants, the 1394C-SJT05-T-RL manages multi-axis pump and mixer drive systems where precise flow control is required to maintain treatment process integrity. Its ability to maintain coordinated axis operation during partial power disturbances prevents treatment process interruptions that could result in regulatory non-compliance.

In port and terminal crane systems, the controller provides synchronized hoist, trolley, and gantry axis control. The coordinated multi-axis fault response is critical in these applications — an uncoordinated axis stop during a lift cycle could result in load swing or structural overload on the crane’s mechanical frame.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 1394C-SJT05-T-RL?
All units supplied by SMARTNEXMSK carry a 12-month full functional warranty from the date of shipment. Each unit undergoes outgoing inspection including power-on functional verification, communication interface testing, and visual inspection for physical integrity before dispatch. Warranty claims are processed with priority response and replacement or repair support.

Q2: How is the unit tested before shipment?
Every 1394C-SJT05-T-RL unit is subject to a pre-shipment inspection protocol that includes visual examination, label and nameplate verification, connector and backplane interface inspection, and where applicable, power-on functional testing. Units that do not pass inspection are quarantined and not shipped. Test records are available upon request for critical infrastructure procurement.

Q3: Is the 1394C-SJT05-T-RL compatible with existing SLC 500 and ControlLogix systems?
Yes. The 1394C-SJT05-T-RL communicates via the Remote I/O (RIO) protocol, which is natively supported by SLC 500 processors with RIO scanner capability and by ControlLogix systems equipped with a 1756-DHRIO bridge module. It is a direct form-fit-function replacement for other 1394 GMC Turbo Series controllers of equivalent power rating and axis count, minimizing re-engineering effort during spare parts replacement.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of Allen-Bradley 1394 series components, including the 1394C-SJT05-T-RL and associated axis modules, power supplies, and interface cards. As this product line has reached end-of-production status from the OEM, our stock is sourced from verified industrial surplus channels and subject to incoming quality inspection. We support long-term MRO (Maintenance, Repair, and Operations) procurement programs for facilities requiring guaranteed spare parts availability over multi-year maintenance cycles.
