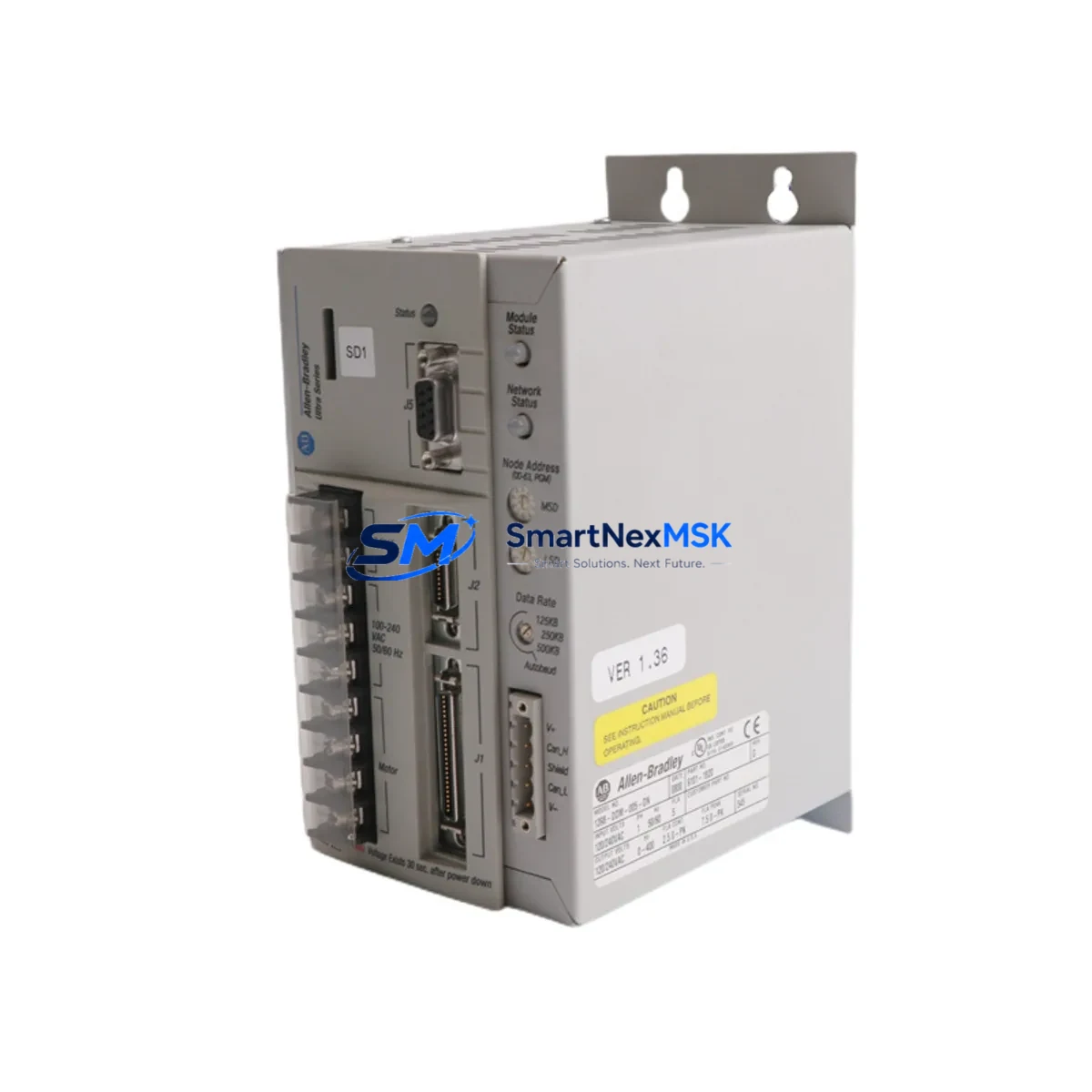

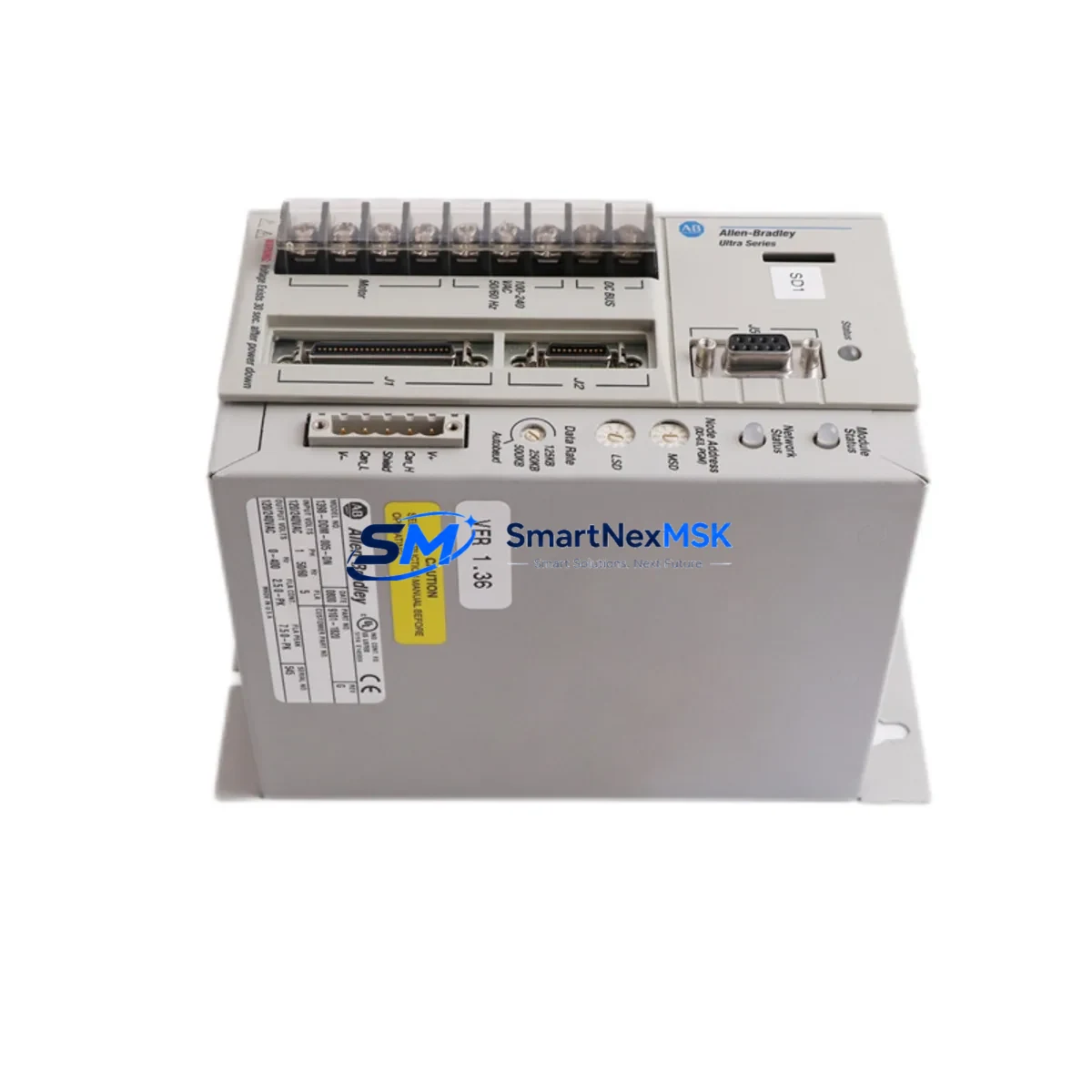

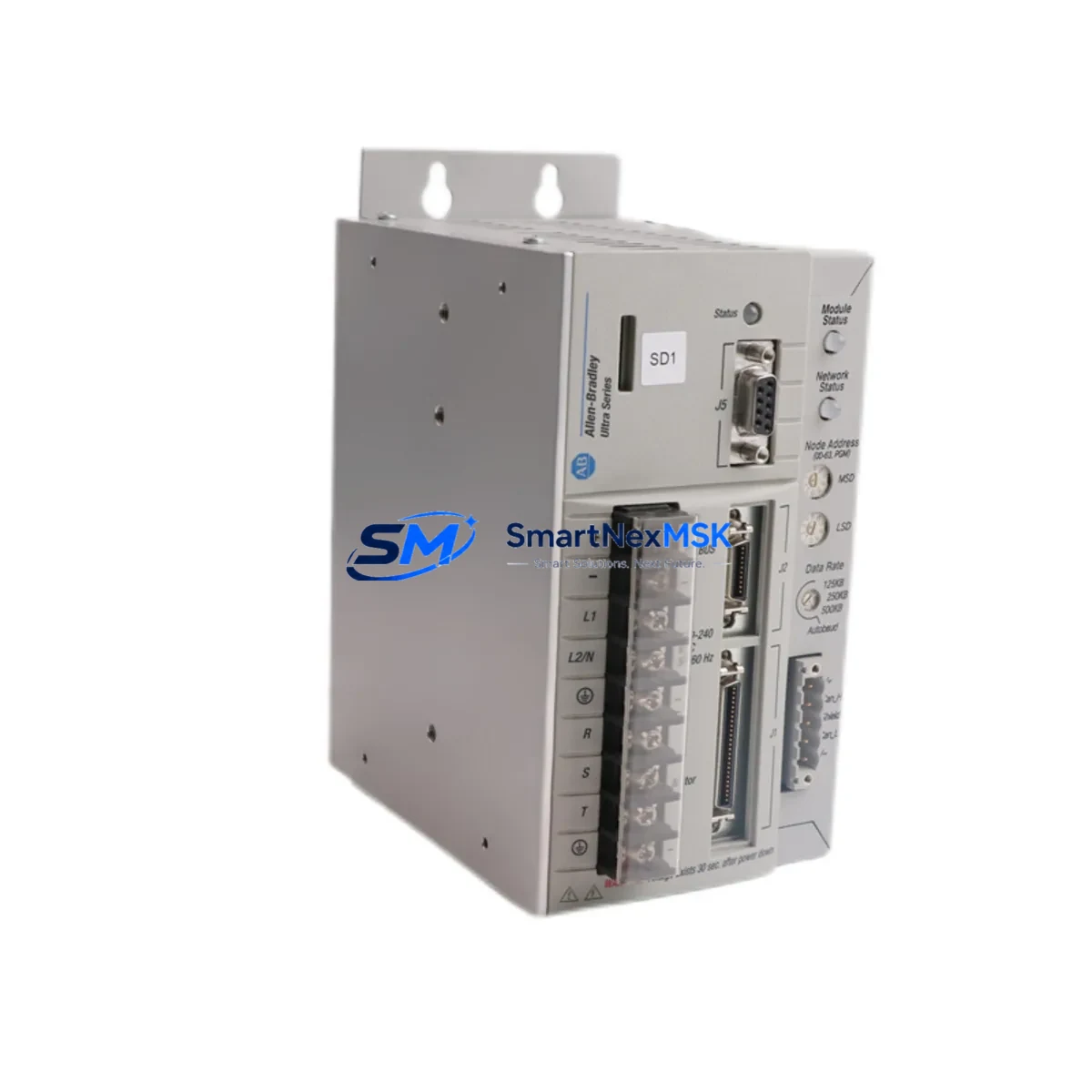

Allen-Bradley 1398-DDM-005-DN Safety-Enhanced Servo Drive

Allen-Bradley 1398-DDM-005-DN Safety-Enhanced Servo Drive for Harsh Industrial Sites

The Allen-Bradley 1398-DDM-005-DN is a high-performance ULTRA Series DeviceNet Servo Drive engineered for demanding industrial environments where control loop integrity, personnel safety, and continuous uptime are non-negotiable. Rated at 5A AC/DC output, this drive is purpose-built for precision motion control in heavy-duty automation systems — from petrochemical processing lines and power generation facilities to mining conveyors, metallurgical rolling mills, and port crane control cabinets.

In high-load, high-interference production environments, servo drive reliability is a critical safety variable. The 1398-DDM-005-DN addresses this directly through its robust EMI shielding architecture, which suppresses signal drift caused by variable-frequency drive harmonics, high-current bus noise, and inductive switching transients common in large motor control centers. Its DeviceNet communication interface ensures deterministic, fault-tolerant data exchange with upstream PLCs — including the Allen-Bradley ControlLogix L61 and CompactLogix L33ER — eliminating the communication anomalies that can trigger unplanned shutdowns or unsafe axis motion in coordinated multi-drive systems.

The drive’s internal surge protection circuitry guards against voltage spikes and power fluctuations that frequently occur during grid switching events or generator changeovers in remote industrial sites. When paired with a 1606-XLP power supply or a 1783-US5T EtherNet/IP switch in the same control cabinet, the 1398-DDM-005-DN operates within a fully protected, low-latency control architecture that minimizes the risk of module malfunction under transient load conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1398-DDM-005-DN within a well-engineered control cabinet is essential to achieving maximum safety and operational continuity. In a typical heavy-industry servo control cabinet, this drive operates alongside a 1756-M02AE servo motion module or a 1756-L71 ControlLogix processor, which coordinates axis commands across multiple drives via the DeviceNet 1756-DNB scanner module. Proper cabinet layout — including segregated power and signal wiring, ferrite core suppression on motor feedback cables, and dedicated grounding rails — is critical to preventing the cross-coupling interference that can cause encoder signal corruption or drive fault trips.

For power conditioning, the 1398-DDM-005-DN should be supplied through a line reactor or an isolation transformer to attenuate upstream harmonic distortion. In facilities where power quality is variable — such as sites sharing a bus with large induction motors or welding equipment — a 1321-3R line reactor provides effective impedance buffering. Supplementing this with a 1606-XLP480E redundant power supply for the 24VDC control circuit ensures that the drive’s logic and communication functions remain active even during brief AC input interruptions.

For safety interlock circuits, the drive’s enable input can be wired through a 440C-CR30 safety relay or integrated into a GuardLogix safety controller architecture, enabling SIL 2-compliant safe torque-off (STO) functionality. This is particularly important in applications where personnel may access the machine work envelope during maintenance windows. The 1398-DDM-005-DN’s digital I/O interface also supports integration with 800F series pushbutton stations and 855T stack lights for local status indication and emergency stop circuits.

Communication integrity is maintained through proper DeviceNet trunk and drop cable management. Using Allen-Bradley 1485C-P1-C100 DeviceNet cable with correct termination resistors at both ends of the trunk prevents reflections and bus errors that could cause drive command dropouts. In larger networks, a 1788-CN2DN ControlNet-to-DeviceNet linking device can bridge the servo drive into a higher-level ControlNet backbone for plant-wide supervisory control.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units or compressor trains, the 1398-DDM-005-DN drives precision positioning of control valves and pump actuators. Its deterministic DeviceNet communication ensures that valve position commands from the DCS are executed without latency, reducing the risk of process upsets caused by control loop delays. The drive’s surge protection is essential in facilities where lightning strikes or capacitor bank switching can introduce destructive voltage transients into the motor control bus.

Electric Power Generation: In coal-fired or hydroelectric power plants, servo drives control the positioning of fuel feed mechanisms, governor actuators, and cooling system dampers. The 1398-DDM-005-DN’s robust EMI immunity allows it to operate reliably in proximity to high-voltage switchgear and large generator excitation systems, where electromagnetic interference levels can exceed those found in standard manufacturing environments.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. While the 1398-DDM-005-DN requires cabinet installation for environmental protection, its internal design tolerates the mechanical shock and thermal cycling common in mining conveyor drives, crusher feed systems, and hoisting equipment. Pairing it with a properly sealed MCC cabinet and a 1492-SP series circuit breaker for branch circuit protection ensures compliant, safe installation.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise pump and blower speed control for process efficiency and regulatory compliance. The 1398-DDM-005-DN enables accurate flow control in aeration systems and chemical dosing pumps, where erratic drive behavior could result in under-treatment of effluent — a direct safety and environmental risk.

Metallurgy & Steel Rolling Mills: In hot and cold rolling mill applications, servo drives must maintain precise tension and speed synchronization across multiple stands. The 1398-DDM-005-DN’s fast current loop response and DeviceNet integration with ControlLogix motion controllers supports the tight inter-drive coordination required to prevent strip breaks, cobbles, or equipment damage in high-speed rolling operations.

Port & Material Handling: Container crane and ship loader applications demand servo drives that can handle high inertia loads, frequent acceleration/deceleration cycles, and outdoor electrical environments. The 1398-DDM-005-DN, installed in a climate-controlled drive room or MCC, provides the reliable torque control needed for safe, precise load positioning in port logistics operations.

Safety and Quality FAQ

Q1: What warranty coverage does SMARTNEXMSK provide for the 1398-DDM-005-DN?
All Allen-Bradley 1398-DDM-005-DN units supplied by SMARTNEXMSK carry a 12-month functional warranty from the date of shipment. If the unit fails to perform to its published specifications under normal operating conditions within the warranty period, we will repair or replace it at no charge. Warranty claims are processed promptly with dedicated technical support.

Q2: What pre-shipment testing is performed on each unit?
Every 1398-DDM-005-DN undergoes a multi-point outgoing inspection before dispatch, including visual inspection for physical damage, verification of firmware version and hardware revision, functional power-on testing, and communication interface verification. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is the 1398-DDM-005-DN compatible with my existing ControlLogix or CompactLogix system?
Yes. The 1398-DDM-005-DN communicates via DeviceNet and is fully compatible with Allen-Bradley ControlLogix and CompactLogix platforms when used with a DeviceNet scanner module such as the 1756-DNB or 1769-SDN. It is also compatible with SLC 500 systems equipped with a 1747-SDN scanner. SMARTNEXMSK technical staff can assist with EDS file configuration and network commissioning guidance.

Q4: Can SMARTNEXMSK guarantee long-term supply and replacement support for this model?
Yes. SMARTNEXMSK maintains dedicated inventory of Allen-Bradley ULTRA Series servo drives, including the 1398-DDM-005-DN, to support ongoing maintenance, spare parts programs, and emergency replacement requirements. We understand that production-critical equipment cannot wait weeks for delivery — our stock management and global logistics network are designed to support rapid dispatch for urgent industrial requirements. Contact our team to discuss blanket order arrangements or consignment stock programs for high-volume users.
