Allen-Bradley 1492-IFM20F-F120A-2 Maintenance Spare IFM Series

Allen-Bradley 1492-IFM20F-F120A-2 Maintenance-Ready Spare for IFM Series Automation

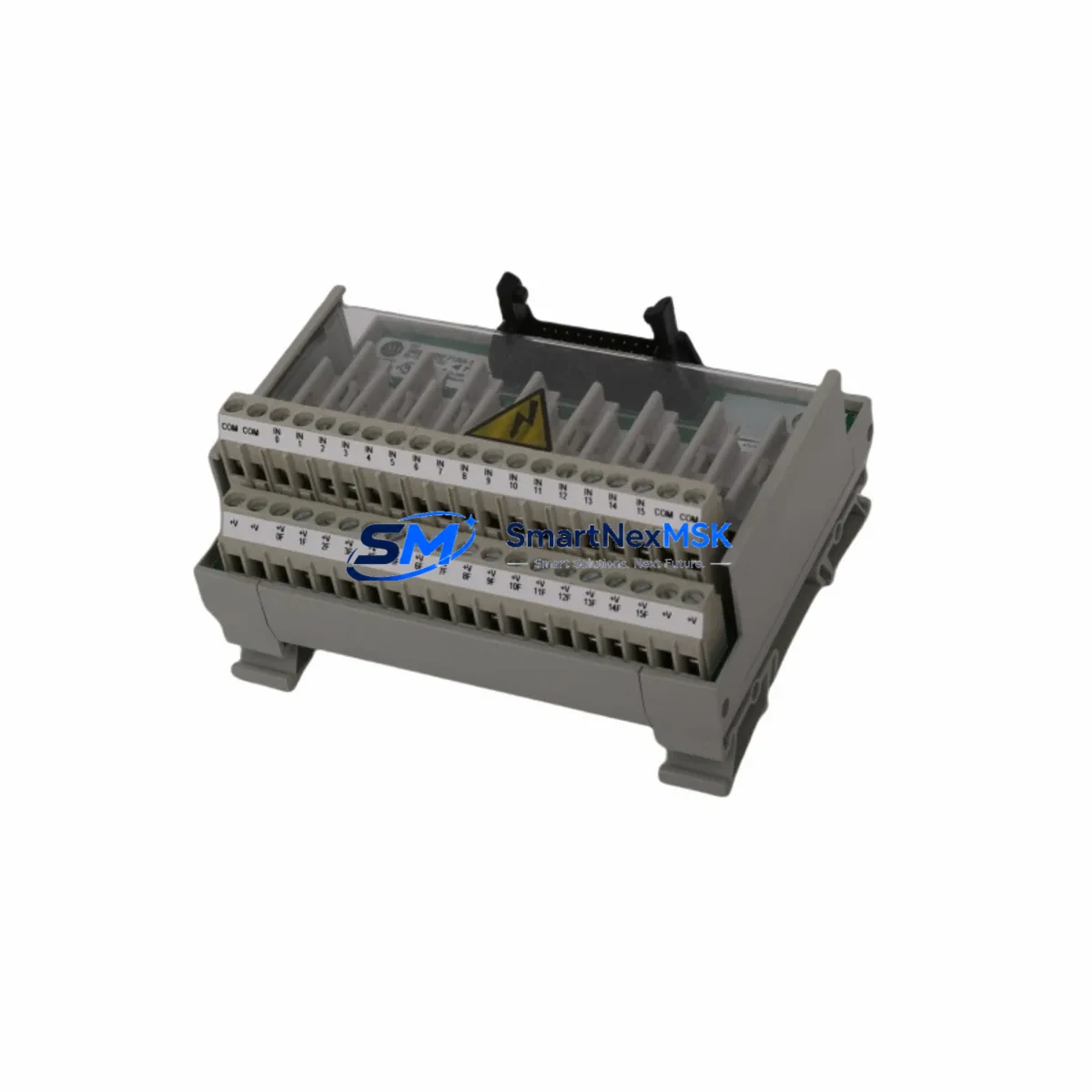

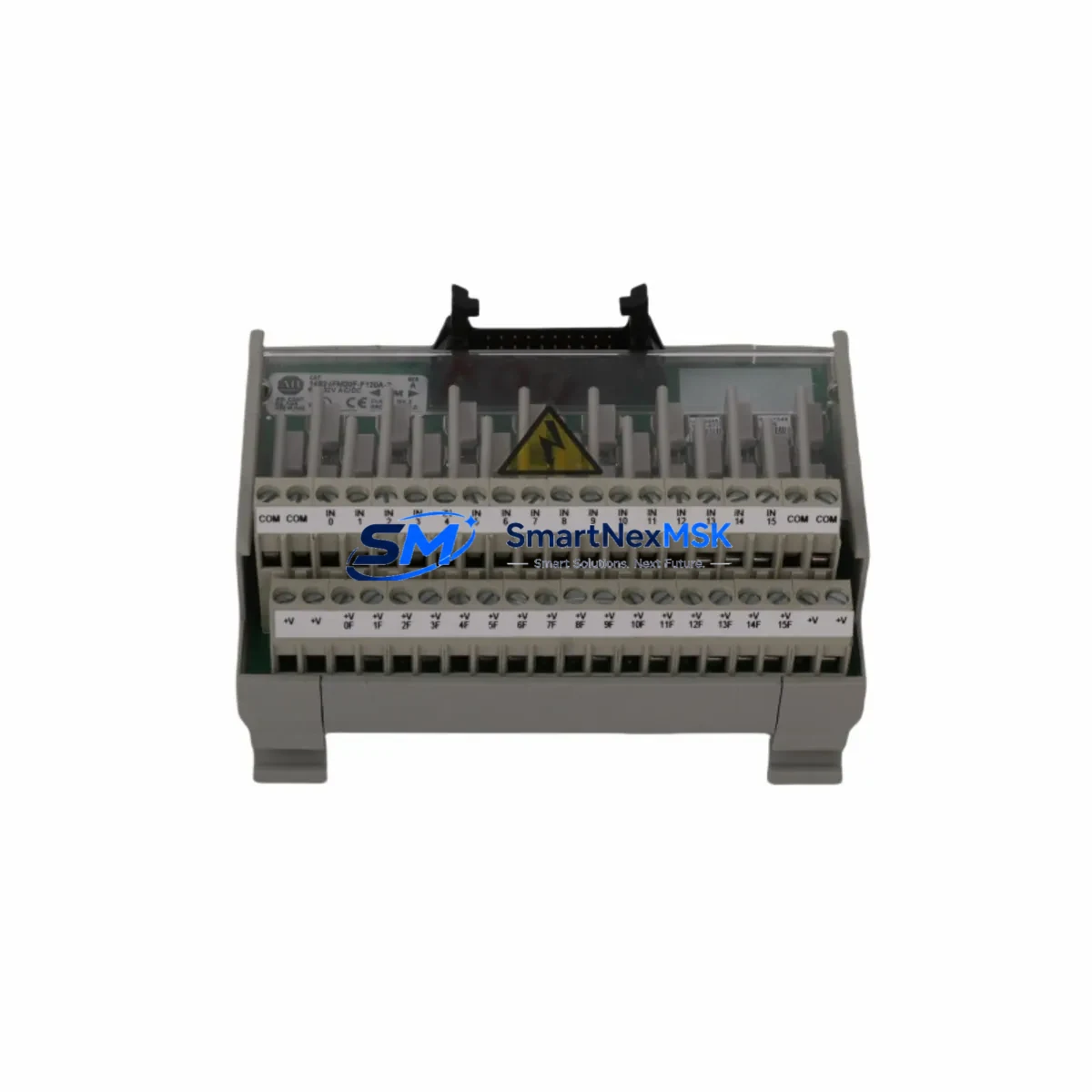

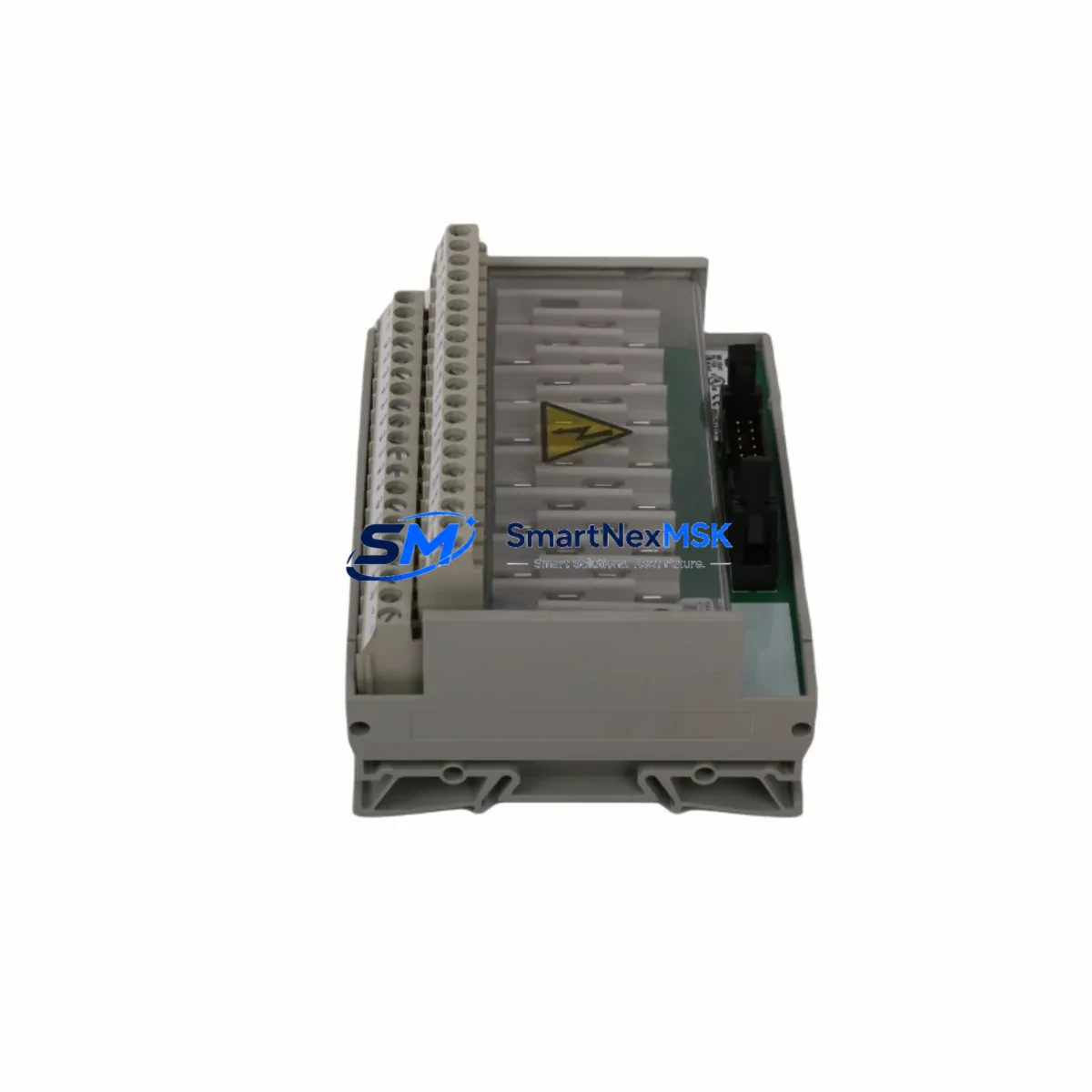

The Allen-Bradley 1492-IFM20F-F120A-2 is a 20-circuit fusible interface module (IFM) designed for seamless integration with Allen-Bradley MicroLogix, SLC 500, and ControlLogix I/O systems. As a maintenance-ready spare, this module is a critical component in any industrial control cabinet inventory strategy — enabling rapid field replacement, minimizing unplanned downtime, and preserving system compatibility across aging and active automation platforms.

For maintenance engineers managing continuous production lines, the 1492-IFM20F-F120A-2 provides 120V AC fused protection across 20 discrete I/O circuits, offering both overcurrent protection and individual circuit isolation. Its DIN-rail mounting design allows for tool-assisted swap-out in under 15 minutes, making it an ideal candidate for planned maintenance windows and emergency breakdown recovery alike.

Procurement engineers sourcing this module as a long-term spare should note that the 1492-IFM20F-F120A-2 is compatible with Allen-Bradley 1746 SLC I/O modules and 1492-CABLE wiring systems. Stocking this part alongside complementary components — such as the 1492-CABLE020X series pre-wired cables, 1746-OW16 relay output modules, and 1746-IB16 DC input modules — ensures a complete I/O circuit replacement kit is available at the point of maintenance.

Every unit shipped by SMARTNEXMSK is individually tested for continuity, fuse integrity, and terminal contact resistance prior to dispatch. All units carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1492-IFM20F-F120A-2 in the field, a thorough maintenance engineer will treat the swap as an opportunity to audit the surrounding electrical circuit. Begin by verifying the upstream 120V AC power supply — typically a 1606-XLP or equivalent Rockwell power supply module — for voltage stability and ripple. A degraded power supply is a common root cause of repeated IFM fuse failures and should be inspected before the new module is commissioned.

Next, inspect the 1492-CABLE020X pre-wired cable harness connecting the IFM to the I/O rack. Cable insulation fatigue, connector oxidation, and pin back-out are frequent failure contributors in high-vibration environments. If the cable shows wear, replace it concurrently with the IFM to avoid a repeat callout.

On the I/O side, verify the associated 1746-IB16 or 1746-IB32 input modules for channel-level diagnostics. A blown fuse on the IFM often indicates a field wiring short or load overcurrent — check the corresponding field device (sensor, solenoid, or actuator) before restoring power. For output circuits, inspect the 1746-OW16 relay output module for contact wear or coil failure, particularly on high-cycle applications.

In control cabinets where the 1492-IFM20F-F120A-2 is used alongside 1492-J terminal blocks and 1492-N fuse holders, inspect the terminal torque and fuse continuity across the entire row. Loose terminals are a leading cause of intermittent I/O faults that are difficult to diagnose remotely. A torque check during planned maintenance prevents nuisance trips during production.

For systems using a 1747-L553 SLC 5/05 processor or a 1756-L71 ControlLogix processor, cross-reference the I/O fault log in RSLogix 500 or Studio 5000 to identify any channels that have been masked or forced — these may indicate prior workarounds that should be resolved during the IFM replacement window. If the system includes a 2711P PanelView Plus HMI, verify that alarm acknowledgment screens reflect the restored I/O status after replacement.

Where signal isolation is required — particularly in mixed AC/DC environments or where field devices introduce ground loops — consider installing a 1492-IFM20F alongside a dedicated signal isolator or barrier module to protect sensitive analog inputs on the same rack.

Site Replacement Workflow

Step 1 — Isolation: De-energize the 120V AC supply to the IFM circuit. Use a lockout/tagout (LOTO) procedure compliant with local electrical safety standards. Confirm zero energy state with a calibrated voltage tester.

Step 2 — Documentation: Photograph the existing wiring and terminal assignments before disconnection. Cross-reference with the panel drawing or I/O address map in the PLC program to confirm circuit-to-address mapping.

Step 3 — Removal: Disconnect the 1492-CABLE harness from the IFM. Release the DIN rail locking tab and slide the module free. Inspect the rail and adjacent modules for signs of heat damage or contamination.

Step 4 — Installation: Clip the replacement 1492-IFM20F-F120A-2 onto the DIN rail. Reconnect the cable harness, ensuring all connector pins are fully seated. Verify fuse ratings match the original circuit design — do not substitute with higher-rated fuses.

Step 5 — Commissioning: Re-energize the circuit and monitor the PLC I/O status in the programming software. Confirm all 20 channels report correct states. Clear any latched faults in the processor. Update the maintenance log with the replacement date, module serial number, and technician ID.

This workflow is applicable to both like-for-like replacements of the 1492-IFM20F-F120A-2 and cross-compatible substitutions from the broader 1492-IFM series. The modular design of the IFM platform ensures that field technicians can complete the replacement without specialist tooling, reducing mean time to repair (MTTR) and supporting rapid return to production.

Spare Parts Support FAQ

Q1: Is the 1492-IFM20F-F120A-2 still available as a new original part?
A: Yes. SMARTNEXMSK maintains stock of original Allen-Bradley 1492-IFM20F-F120A-2 modules sourced from authorized distribution channels and verified surplus inventory. Each unit is inspected and tested before shipment. For long-term projects or system life extension programs, we recommend purchasing a minimum of 2–3 units as on-site spares to cover both planned and emergency replacement scenarios.

Q2: How do I verify compatibility with my existing SLC 500 or ControlLogix system?
A: The 1492-IFM20F-F120A-2 is designed for use with Allen-Bradley 1746 SLC I/O modules and is compatible with the 1492-CABLE020X wiring system. Confirm your I/O module part number and cable assembly type before ordering. If you are unsure, provide your panel drawing or I/O list to our technical team at sales@smartnexmsk.com and we will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, functional failure under normal operating conditions, and any faults attributable to the module itself (excluding damage caused by incorrect installation, overvoltage, or external short circuits). Warranty claims are processed within 5 business days of receipt of the returned unit. Replacement or full refund is provided at the customer’s discretion.

Q4: Can SMARTNEXMSK supply this module with a test report or certificate of conformance?
A: Yes. A functional test report confirming continuity, fuse integrity, and terminal resistance is available upon request for all units. Certificate of conformance documentation can be provided for quality-critical procurement processes. Contact sales@smartnexmsk.com to request documentation at the time of order.
