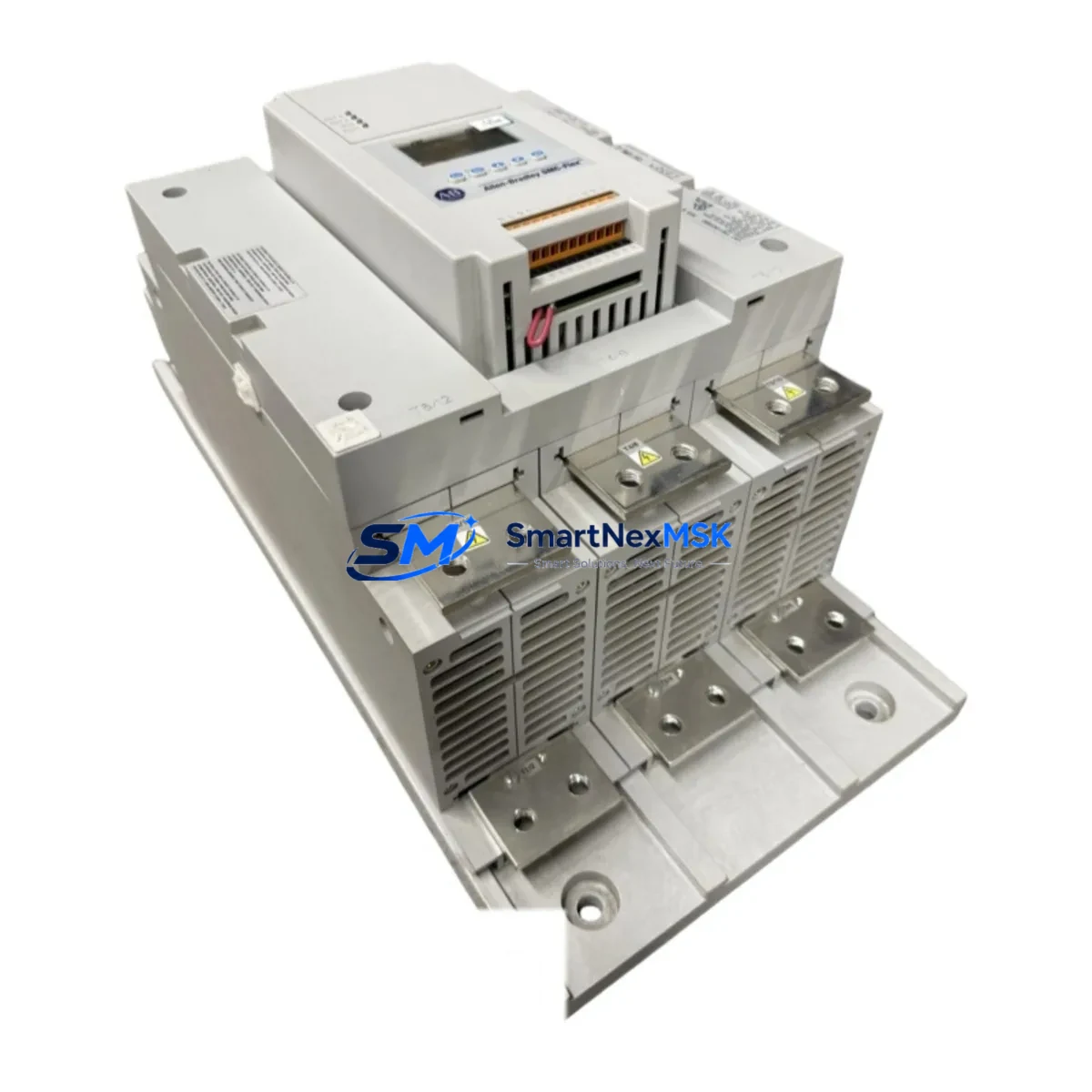

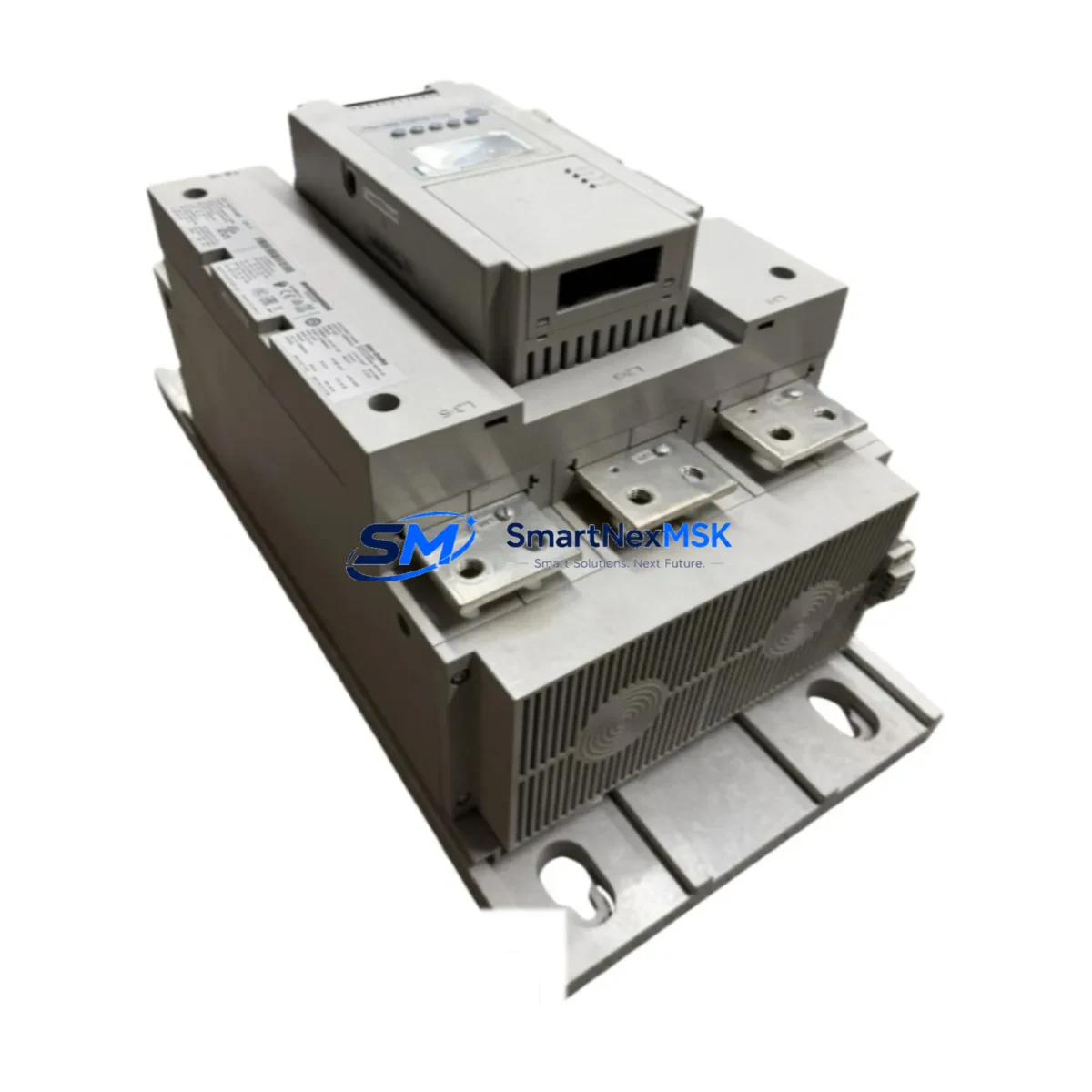

Allen-Bradley 150-F361NBDD Safety-Enhanced Soft Starter

Allen-Bradley 150-F361NBDD Safety-Enhanced Soft Starter for Harsh Industrial Sites

The Allen-Bradley 150-F361NBDD is a high-performance SMC-Flex series 361A soft starter with integrated DeviceNet bypass capability, engineered for mission-critical motor control in demanding industrial environments. Designed to eliminate voltage surge damage, reduce mechanical stress on motor windings, and suppress inrush current during startup, the 150-F361NBDD delivers consistent, safety-rated performance across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, port logistics systems, and continuous manufacturing sites where unplanned downtime is never acceptable.

In high-load, high-interference control cabinets where multiple drives, PLCs, and I/O modules share a common power bus, the 150-F361NBDD acts as a critical protective layer. Its built-in DeviceNet communication interface enables real-time diagnostics and fault reporting directly to the control system — allowing operators to detect motor overload conditions, phase loss events, and thermal anomalies before they escalate into full process shutdowns. The bypass contactor architecture ensures that once the motor reaches full speed, the soft starter disengages from the power path, eliminating heat buildup and extending the service life of both the starter and the connected motor.

When deployed alongside a Allen-Bradley 1756-L73 ControlLogix PLC or a 1769-L30ER CompactLogix controller, the 150-F361NBDD integrates seamlessly into the plant-wide safety interlock architecture via DeviceNet. The 1788-DN DeviceNet Scanner module enables cyclic polling of motor status data, ensuring that the safety PLC receives real-time feedback on starter state, fault codes, and thermal capacity utilization. In critical interlock loops — such as emergency shutdown (ESD) circuits in oil and gas facilities — this communication integrity is non-negotiable.

Power quality in heavy industrial environments is rarely stable. Voltage sags, harmonic distortion from variable frequency drives, and capacitor bank switching transients can all trigger nuisance trips or, worse, silent degradation of motor insulation. The 150-F361NBDD’s robust power electronics are rated to withstand these conditions, and when paired with a Allen-Bradley 1321-3R Series line reactor or a 1321-RA harmonic filter upstream, the entire motor starting circuit gains an additional layer of surge immunity. For installations where power supply reliability is paramount, adding a 1606-XLP power supply to the control circuit ensures that the DeviceNet communication card and auxiliary control relays remain energized even during brief mains interruptions.

In control cabinet designs for continuous process industries, the 150-F361NBDD is typically installed in coordination with Allen-Bradley 100-C series IEC contactors for bypass switching, 193-EC series electronic overload relays for secondary motor protection, and 140M motor protection circuit breakers for upstream short-circuit protection. This layered protection strategy — soft starter, overload relay, and circuit breaker — forms the backbone of a compliant motor control center (MCC) design that meets IEC 60947 and NFPA 79 safety standards.

For facilities operating under IEC 61511 functional safety requirements or SIL-rated interlock systems, the 150-F361NBDD’s fault detection and DeviceNet reporting capabilities support integration into safety instrumented systems (SIS). When combined with a Allen-Bradley GuardLogix 5570 safety controller and 1791DS-IB4XOB4 safety I/O modules, the motor control loop can be validated as part of a documented safety function, reducing the probability of dangerous failure on demand (PFD) across the entire drive train.

Every 150-F361NBDD unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing including insulation resistance verification, DeviceNet communication handshake confirmation, overload trip point calibration, and bypass contactor operation check. Units are shipped in original or equivalent protective packaging with full parameter documentation. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency replacement scenarios in critical production environments.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust motor control cabinet built around the 150-F361NBDD integrates multiple protective and communicative layers. The soft starter itself handles controlled ramp-up and ramp-down of motor voltage, eliminating the mechanical shock that destroys pump couplings and conveyor gearboxes in heavy-cycle applications. Upstream, a 140M-C2E-B40 motor protection circuit breaker provides instantaneous short-circuit interruption rated to the prospective fault current of the installation. Downstream, a 193-EC1AB overload relay monitors thermal capacity in real time, tripping the control circuit before winding insulation reaches its thermal limit.

The DeviceNet network connecting the 150-F361NBDD to the plant control system relies on a stable, noise-free communication bus. In environments with high-frequency interference from variable speed drives or welding equipment, a 1788-DNBO DeviceNet bus-off recovery module and proper cable shielding practices are essential. The 1606-XLP95E power supply feeding the DeviceNet segment must maintain output voltage within ±1% to prevent node dropouts. For cabinet thermal management, Allen-Bradley 1492-SP series supplementary protectors protect individual control circuit branches, while a dedicated cabinet cooling unit maintains ambient temperature below the 50°C operating limit of the soft starter’s power stack.

In safety interlock applications, the 150-F361NBDD’s fault output relay is wired into the safety PLC’s digital input card — typically a 1734-IB8S POINT Guard I/O safety input module — so that any starter fault immediately triggers a safe-state evaluation in the GuardLogix controller. This architecture ensures that a motor fault in one section of the process does not propagate into an uncontrolled shutdown of adjacent equipment, maintaining process integrity while protecting personnel.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 150-F361NBDD controls large cooling water pumps, compressor pre-lube oil pumps, and boiler feed water pumps where sudden motor starts would cause water hammer events capable of rupturing pipework. The soft start ramp eliminates this risk entirely. In power generation facilities, it manages induced draft fan motors and circulating water pump drives, where the DeviceNet interface feeds motor status data directly into the plant DCS for continuous condition monitoring.

In underground mining operations, the 150-F361NBDD drives conveyor belt motors and ventilation fan systems in environments with high dust concentrations and frequent voltage fluctuations from diesel generator sets. Its robust bypass contactor design ensures that once running, the motor is isolated from the soft starter’s power electronics, eliminating a potential heat source in a potentially explosive atmosphere zone. In water and wastewater treatment plants, it controls submersible pump motors and aeration blowers, where the programmable current limit function prevents nuisance tripping during high-viscosity startup conditions in cold weather.

In metallurgical and steel mill applications, the 150-F361NBDD manages rolling mill auxiliary drives, fume extraction fans, and hydraulic power unit motors in environments with extreme electromagnetic interference from arc furnaces and induction heaters. Its shielded DeviceNet communication maintains data integrity even in these high-EMI conditions. In port and terminal logistics, it controls crane hoist motors and ship-to-shore conveyor drives, where the adjustable kick-start current feature overcomes static friction in heavily loaded mechanical systems without exceeding the thermal rating of the motor or the upstream transformer.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 150-F361NBDD?
The 12-month warranty covers all manufacturing defects, component failures under normal operating conditions, and DeviceNet communication faults attributable to the unit itself. Warranty period begins from the date of shipment. SMARTNEXMSK provides replacement or repair support, and our technical team can assist with fault diagnosis remotely to minimize downtime during the warranty claim process.

Q2: What pre-shipment testing is performed on each unit?
Every 150-F361NBDD undergoes a multi-point inspection before dispatch: insulation resistance test on power terminals, DeviceNet node address assignment and communication handshake verification, bypass contactor mechanical operation check, overload trip calibration at rated current, and visual inspection of all terminal blocks, bus bars, and control wiring. A test report is available upon request for critical installations.

Q3: Is the 150-F361NBDD compatible with existing ControlLogix and CompactLogix systems?
Yes. The 150-F361NBDD communicates via DeviceNet, which is natively supported by Allen-Bradley ControlLogix (via 1756-DNB scanner) and CompactLogix (via 1769-SDN scanner) platforms. The unit’s EDS file is available for import into Studio 5000 Logix Designer, enabling full parameter configuration and real-time monitoring from the engineering workstation without additional hardware.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement for the 150-F361NBDD?
Yes. SMARTNEXMSK maintains stock of the 150-F361NBDD and related SMC-Flex series components to support both scheduled maintenance programs and emergency breakdown replacements. We supply to industrial end users, MRO distributors, and EPC contractors globally. For critical facilities requiring guaranteed response times, we recommend establishing a standing purchase agreement to ensure priority allocation from available inventory.
