Allen-Bradley 150-F60NBD Safety Soft Starter Harsh Sites

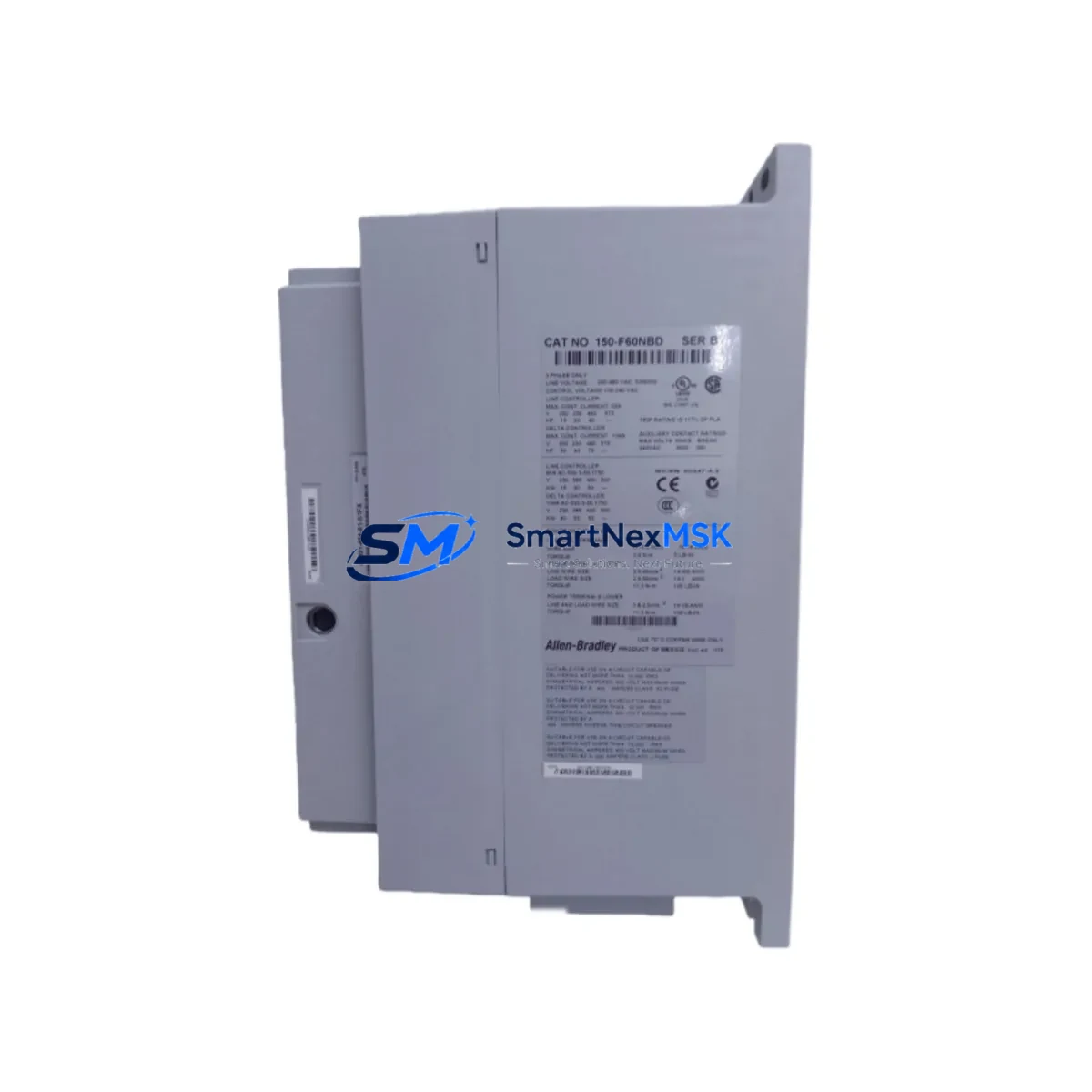

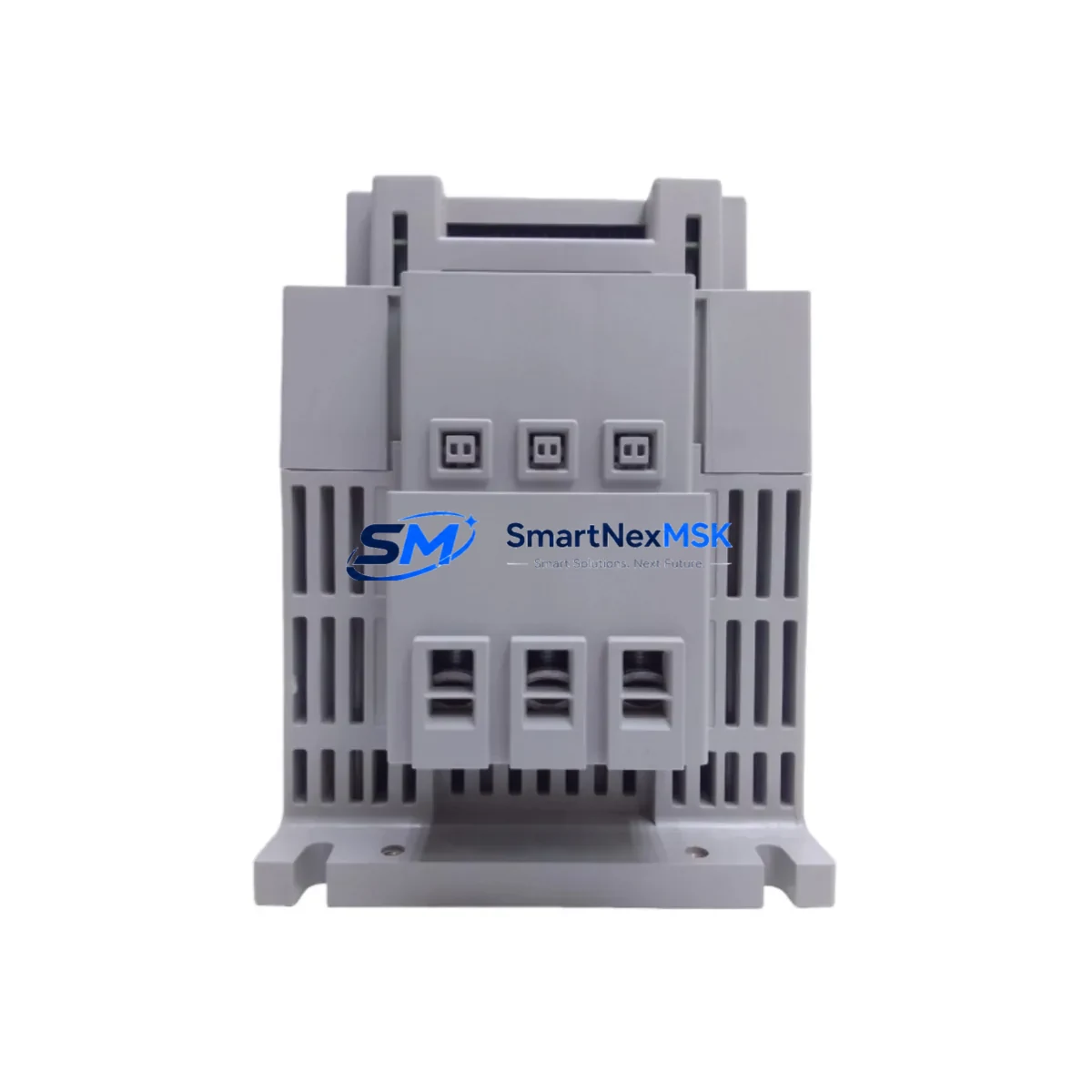

Allen-Bradley 150-F60NBD Safety Soft Starter for Harsh Industrial Sites

The Allen-Bradley 150-F60NBD is a 60A SMC Flex soft starter engineered for demanding industrial environments where motor control reliability and personnel safety are non-negotiable. Designed to eliminate the mechanical shock and electrical surge associated with across-the-line starting, this unit provides smooth, controlled motor acceleration and deceleration — protecting both the driven load and the upstream power infrastructure. In high-load, high-interference facilities such as petrochemical plants, mining operations, steel mills, water treatment stations, and continuous-process manufacturing lines, the 150-F60NBD delivers the kind of deterministic, fault-tolerant performance that keeps critical processes running without unplanned interruption.

At its core, the 150-F60NBD integrates a built-in bypass contactor that reduces heat dissipation during full-speed operation, extending the service life of the unit and reducing thermal stress inside the control cabinet. This is particularly important in enclosed MCC (Motor Control Center) panels where ambient temperatures can rise significantly during peak production cycles. The unit’s solid-state thyristor output stage eliminates the arcing and contact wear associated with conventional electromechanical starters, reducing maintenance intervals and the risk of nuisance tripping in safety-critical interlocking circuits.

In control cabinet protection strategies, the 150-F60NBD is typically deployed alongside complementary Allen-Bradley components to form a complete, coordinated motor protection architecture. A 1492-SP1C100 supplementary protector or 140M motor protection circuit breaker upstream of the soft starter provides short-circuit and overload protection, ensuring that fault currents are interrupted before they can damage the SCR output stage. On the load side, a 1321-3R series line reactor or 1321-M series isolation transformer can be added to attenuate voltage spikes and harmonic distortion generated by variable-frequency drives or other non-linear loads sharing the same bus. For applications requiring emergency stop or safety relay integration, the 150-F60NBD’s control terminals are fully compatible with 440R Guardmaster safety relays, enabling SIL 2-rated safe-stop functions without additional interface modules.

Communication and diagnostics are handled via the unit’s DeviceNet or optional EtherNet/IP interface, allowing seamless integration with Allen-Bradley CompactLogix L3x or ControlLogix L7x PLCs running Studio 5000 Logix Designer. This connectivity enables real-time monitoring of motor current, thermal capacity utilization, and fault history — data that is invaluable for predictive maintenance programs in facilities operating under ISO 55001 asset management frameworks. When paired with a 1734 POINT I/O or 1756 ControlLogix I/O chassis, the soft starter’s status bits can be mapped directly into the safety PLC’s logic, supporting automated interlock responses to motor overtemperature, phase loss, or ground fault conditions.

For power quality and surge protection, the installation of a 1410-F series power monitor upstream of the MCC bus provides continuous voltage and current quality data, enabling early detection of supply anomalies that could trigger nuisance faults in the 150-F60NBD. In facilities with frequent lightning strikes or utility switching transients — common in open-pit mining, port crane operations, and offshore platforms — a 1783-series surge protective device at the panel entry point is strongly recommended to protect the soft starter’s sensitive electronics from impulse voltages exceeding the unit’s rated withstand capability.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust motor control cabinet built around the 150-F60NBD typically incorporates multiple layers of protection. Upstream branch circuit protection is provided by a 140M-C2E-B40 motor protection circuit breaker, which offers adjustable overload and magnetic trip settings matched to the motor’s FLA. Between the branch protector and the soft starter, a 1321-3R3-B line reactor limits the rate of current rise during starting, reducing stress on the SCR stack and extending its operational life in high-cycling applications such as compressor or pump duty. The built-in bypass contactor of the 150-F60NBD eliminates the need for an external bypass panel, simplifying the cabinet layout and reducing the number of potential failure points in the control circuit.

For safety interlock circuits, the soft starter’s fault relay output is wired in series with a 440R-N23132 Guardmaster dual-channel safety relay, ensuring that any detected motor fault triggers a category 0 or category 1 stop in accordance with IEC 60204-1. In facilities requiring SIL 2 or PLd safety integrity, this architecture provides the necessary redundancy and diagnostic coverage without requiring a dedicated safety soft starter variant. The control circuit is powered by a 1606-XLP power supply, which provides regulated 24V DC with active power factor correction and hold-up time sufficient to ride through brief supply interruptions without causing spurious safety relay de-energization.

Critical Industrial Safety Applications

The 150-F60NBD is deployed across a wide range of safety-critical industrial sectors. In petrochemical and refinery environments, it controls cooling water pumps, air compressors, and agitator drives in classified hazardous areas, where uncontrolled motor starts could generate mechanical sparks or pressure surges in piping systems. In electric power generation and transmission facilities, it manages auxiliary motor loads such as forced-draft fans, cooling tower pumps, and lube oil pumps, where a motor trip during peak generation could cascade into a unit-level outage. In underground and open-pit mining operations, the soft starter’s phase-loss detection and ground fault protection are essential for protecting conveyor belt drives and dewatering pump motors operating in wet, corrosive, and vibration-intensive conditions.

In water and wastewater treatment plants, the 150-F60NBD is used on raw water intake pumps, aeration blowers, and sludge transfer pumps, where smooth starting reduces water hammer in long pipeline runs and extends the service life of mechanical seals and impellers. In metallurgical and steel mill applications, it controls rolling mill auxiliary drives, fume extraction fans, and hydraulic power unit motors, where the combination of high ambient temperature, heavy electrical interference, and continuous duty cycles demands a soft starter with proven thermal management and robust EMC performance. In port and bulk material handling facilities, the unit manages grab crane hoist motors, conveyor drives, and ship loader systems, where precise torque control during starting and stopping is critical for load safety and structural integrity.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 150-F60NBD?
All units are covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, premature component failure, and any functional non-conformance identified during incoming inspection at the customer’s facility. Warranty claims are processed with priority turnaround to minimize production downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 150-F60NBD undergoes a multi-point functional test prior to dispatch, including power-on self-test verification, control terminal continuity check, bypass contactor operation confirmation, and communication port response validation. Units are shipped in original or equivalent protective packaging with desiccant to prevent moisture ingress during transit.

Q3: Is the 150-F60NBD compatible with existing Allen-Bradley SMC Flex installations?
Yes. The 150-F60NBD is a direct form-fit-function replacement for other SMC Flex 60A variants in the 150-F series. It is compatible with existing DeviceNet network segments, 1203-series communication modules, and standard Allen-Bradley MCC bucket configurations. No firmware changes to the upstream PLC are required for a like-for-like replacement.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain dedicated safety stock of the 150-F60NBD and related SMC Flex components to support planned maintenance shutdowns, emergency breakdowns, and annual spare parts replenishment programs. Customers operating under critical infrastructure or continuous-process mandates are encouraged to contact our team to establish a blanket order or consignment stock arrangement for guaranteed availability.
