Allen-Bradley 1734-OE2CK Safety-Enhanced Analog Output

Allen-Bradley 1734-OE2CK Safety-Enhanced Analog Output: Reliable Control for Harsh Industrial Sites

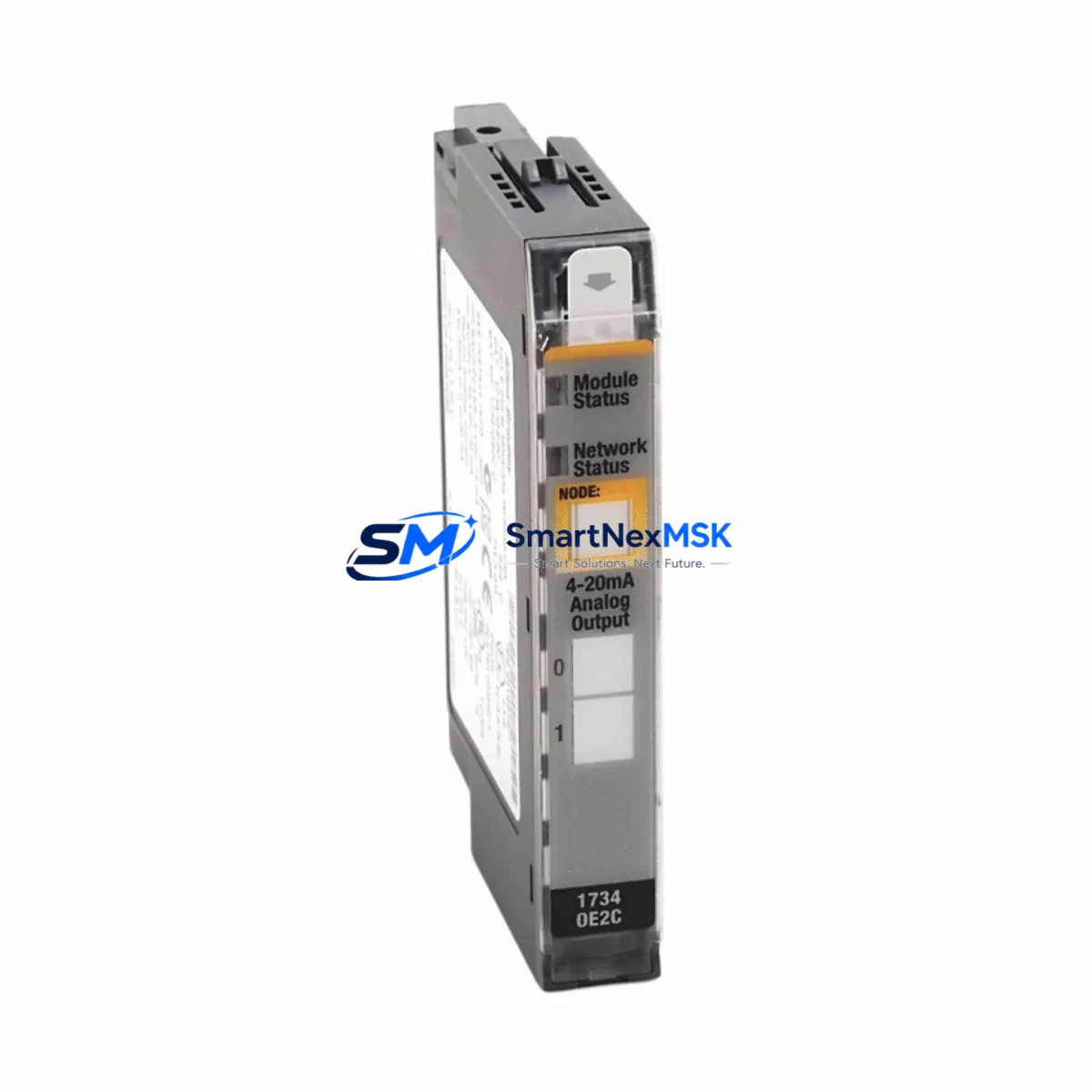

The Allen-Bradley 1734-OE2CK is a 2-channel analog output module from the Rockwell Automation POINT I/O platform, engineered for continuous, high-reliability operation in demanding industrial environments. Designed to deliver stable 4–20 mA or 0–10 V analog signals to field devices such as control valves, variable frequency drives, and positioners, the 1734-OE2CK is a critical component in control loops where signal integrity directly determines process safety and uptime. Whether deployed in a petrochemical DCS cabinet, a power plant distributed I/O rack, or a mining conveyor control system, this module provides the precision and resilience that safety-critical applications demand.

In high-load, high-interference industrial environments, analog output accuracy is non-negotiable. The 1734-OE2CK features robust EMI/RFI shielding and galvanic isolation between channels and the backplane, effectively suppressing signal drift caused by electromagnetic interference from variable speed drives, high-current switchgear, and inductive loads common in heavy industry. This isolation architecture prevents ground loops and cross-channel contamination — two of the most frequent causes of control loop instability and unplanned shutdowns in continuous process plants.

The module integrates seamlessly into the 1734 POINT I/O system via the 1734-AENT or 1734-AENTR EtherNet/IP adapter, enabling real-time diagnostics and remote configuration through Studio 5000 Logix Designer. This communication architecture supports transparent fault detection: open-wire conditions, out-of-range outputs, and power supply anomalies are reported immediately to the controller, allowing the Allen-Bradley ControlLogix 1756-L85E or CompactLogix 5380 processor to execute safe-state logic before a process deviation escalates into a safety event. When paired with the 1734-IE2C analog input module in a closed-loop configuration, the 1734-OE2CK enables tight PID control with sub-millisecond response, essential for pressure regulation in gas pipelines and temperature control in chemical reactors.

Power integrity is foundational to analog output stability. The 1734-OE2CK operates from the POINT I/O system bus supplied by the 1734-EP24DC expansion power supply, which provides regulated 24 VDC with surge protection and brownout immunity. In installations where power quality is a concern — such as sites sharing bus infrastructure with large motor starters or welding equipment — the addition of a 1606-XLP power supply upstream ensures the analog output rails remain within specification even during transient voltage events. This layered power protection strategy is a standard practice in IEC 61511 functional safety implementations.

For installations requiring intrinsic safety or hazardous area compliance, the 1734-OE2CK can be deployed behind certified MTL or Pepperl+Fuchs Zener barriers or galvanic isolators, extending its reach into Zone 1 and Zone 2 classified areas without compromising signal fidelity. In such configurations, the module’s low output impedance and stable current sourcing capability ensure that the full 4–20 mA span is maintained across the barrier resistance, preserving control accuracy at the field device. This makes the 1734-OE2CK a preferred choice for safety instrumented system (SIS) auxiliary outputs in oil and gas terminals and offshore platforms.

Maintenance and spare parts availability are critical considerations for long-term plant reliability. The 1734-OE2CK is a standard catalog item with broad global availability, and its hot-swap capability within the POINT I/O platform allows module replacement without powering down the rack — minimizing mean time to repair (MTTR) in 24/7 continuous production facilities. Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including analog output linearity testing across the full 4–20 mA range, channel isolation resistance measurement, and backplane communication handshake confirmation. This ensures that every module arrives ready for immediate installation and commissioning.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet architecture surrounding the 1734-OE2CK begins with a properly rated 1734-AENTR redundant EtherNet/IP adapter, which ensures communication continuity to the controller even during a single network path failure — a requirement in SIL 2 and SIL 3 safety loops. The analog output signals are routed through Phoenix Contact TRABTECH surge protection terminals before reaching field wiring terminals, protecting the module’s output stage from lightning-induced transients and switching surges that are prevalent in outdoor substations and open-pit mining installations.

On the power distribution side, the 1734-EP24DC expansion power supply feeds the I/O bus, while a Rockwell 1606-XLP480E primary power supply with active power factor correction ensures stable 24 VDC delivery under fluctuating grid conditions. A 1734-TOPS or equivalent terminal base with integrated wiring arm simplifies field wiring and reduces the risk of miswiring during maintenance — a common source of analog signal errors in high-density I/O cabinets.

For process interlocks, the 1734-OE2CK output is often used in conjunction with a Allen-Bradley 1734-IB8S safety digital input module and a GuardLogix 5580 safety controller to form a certified safety instrumented function (SIF). In this architecture, the analog output drives a smart positioner on a shutdown valve, while the safety controller monitors position feedback and executes the safe-state command — closing the valve — within the required response time defined by the SIL assessment. The 1734-OB8S safety digital output module may also be included in the same rack to handle discrete ESD commands in parallel with the analog control path.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 1734-OE2CK drives control valve positioners in distillation column pressure control loops, where a signal drift of even 0.5% can result in off-spec product or a pressure safety valve lift. Its 16-bit resolution and ±0.1% accuracy ensure that the setpoint is maintained within the process control band, reducing the frequency of safety system activations and associated production losses.

In electric power generation and transmission facilities, the module is deployed in excitation control and automatic voltage regulation (AVR) auxiliary circuits, where analog output stability directly affects grid synchronization quality. The module’s immunity to the strong electromagnetic fields generated by high-voltage switchgear and power transformers makes it a reliable choice for these electrically noisy environments.

In underground and open-pit mining operations, the 1734-OE2CK controls variable speed drives on conveyor systems and ventilation fans. The module’s wide operating temperature range and vibration tolerance allow it to function reliably in mobile equipment control panels and surface control rooms subject to mechanical shock from blasting operations.

In water and wastewater treatment plants, the module provides precise dosing control for chemical feed pumps and flow control valves in filtration and disinfection processes. Accurate analog output is essential to maintain regulatory compliance for effluent quality, and the module’s diagnostic capabilities allow operators to detect and respond to output faults before they affect treatment performance.

In metallurgical and steel production facilities, the 1734-OE2CK is used in furnace temperature control and rolling mill speed regulation, where continuous operation at elevated ambient temperatures and high electromagnetic interference levels demands the full isolation and shielding capabilities the module provides.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1734-OE2CK?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from the published Allen-Bradley specifications. If the module fails to perform within its rated analog output accuracy, isolation resistance, or communication parameters during the warranty period, SMARTNEXMSK will provide a replacement unit at no charge. Warranty claims are processed within 5 business days of fault confirmation.

Q2: What pre-shipment testing is performed on each 1734-OE2CK unit?
Every unit undergoes a multi-point functional test prior to shipment: analog output linearity is verified across the full 4–20 mA and 0–10 V ranges at multiple setpoints, channel-to-channel isolation resistance is measured to confirm galvanic separation, and EtherNet/IP communication is validated via a live adapter handshake. Units that do not pass all test criteria are quarantined and not shipped.

Q3: Is the 1734-OE2CK compatible with existing POINT I/O racks and adapters?
Yes. The 1734-OE2CK is fully compatible with all standard 1734 POINT I/O terminal bases and adapters, including the 1734-AENT, 1734-AENTR, 1734-ADN (DeviceNet), and 1734-APB (PROFIBUS) adapters. It is also compatible with ControlLogix, CompactLogix, and GuardLogix controllers via the standard Add-On Profile (AOP) in Studio 5000. No hardware modifications are required for integration into existing POINT I/O installations.

Q4: Can long-term supply and replacement support be guaranteed for critical plant spares programs?
SMARTNEXMSK maintains standing inventory of the 1734-OE2CK to support plant spare parts programs and emergency replacement requirements. For customers with critical infrastructure dependencies, we offer reserved stock arrangements and priority fulfillment agreements. The 1734 POINT I/O platform is an active Rockwell Automation product line with a published long-term availability commitment, ensuring continued access to replacement modules for the foreseeable future.
