Allen-Bradley 1746-BAS Spare for SLC 500 Automation: Spare Replacement & Downtime Risk Control

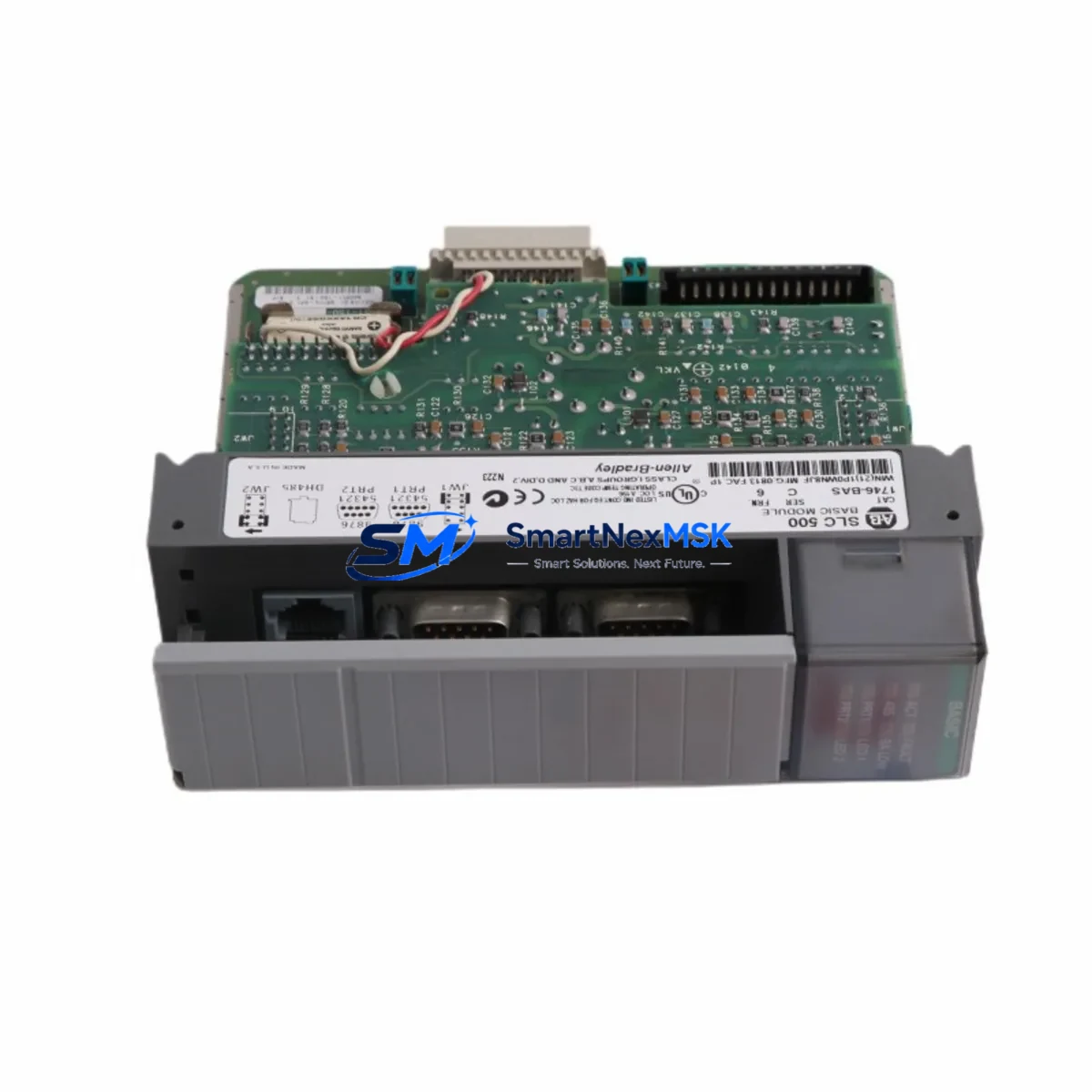

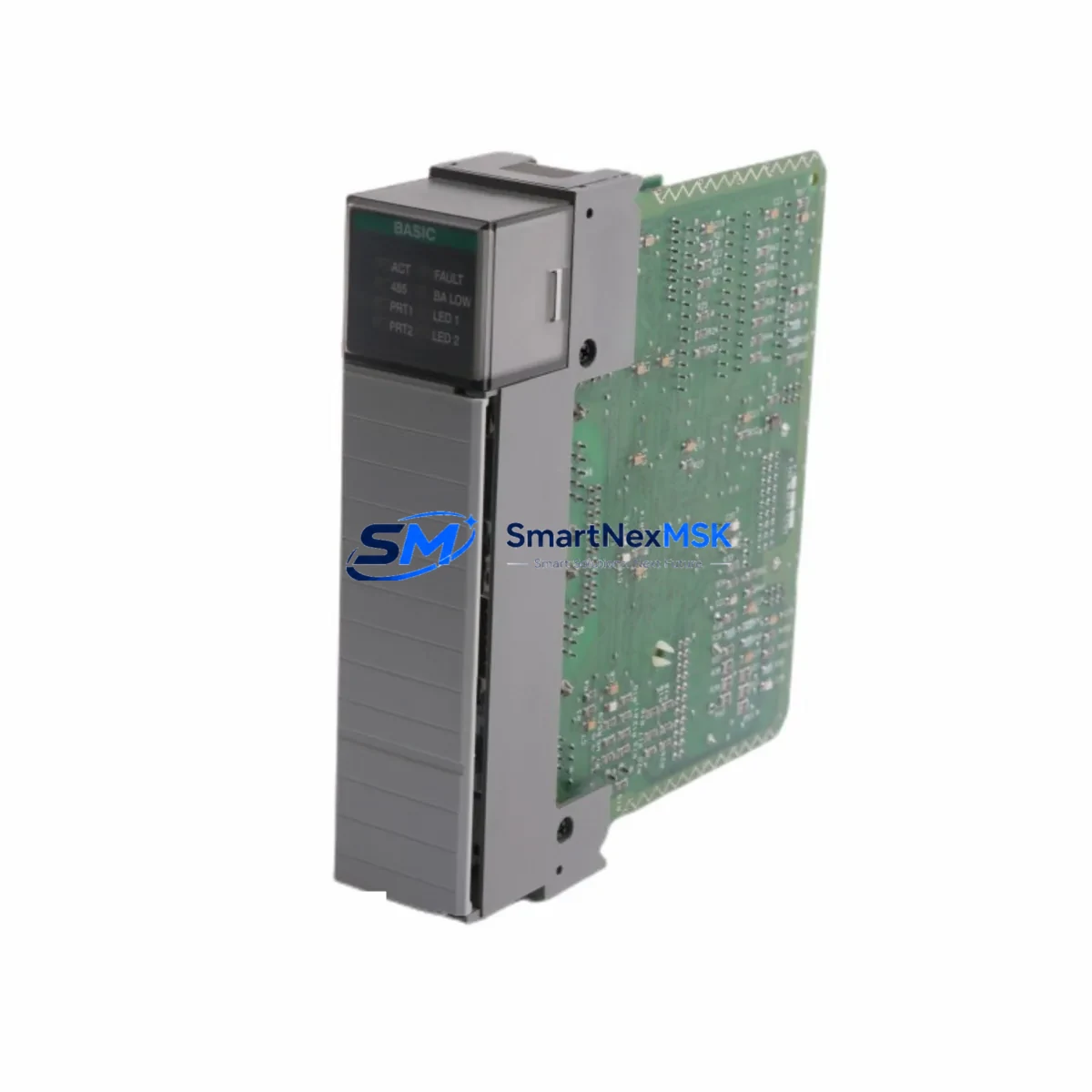

The Allen-Bradley 1746-BAS is a BASIC Language Co-Processor Module engineered for the SLC 500 modular controller platform — one of the most extensively deployed small-to-mid-range PLC families across discrete manufacturing, material handling, conveyor systems, and process control environments worldwide. As SLC 500 installations continue operating well beyond their original design life, maintaining a verified, pre-tested spare of the 1746-BAS is a non-negotiable element of any proactive maintenance strategy. Unplanned failure of this module can halt BASIC co-processor routines, disrupt custom data acquisition logic, and trigger cascading faults across the control cabinet — resulting in unplanned downtime costs that far exceed the investment in a stocked spare.

This listing provides an original, maintenance-ready 1746-BAS spare module, fully tested prior to shipment and backed by a 12-month warranty. Whether you are managing a planned shutdown replacement, responding to an emergency fault, or building out your critical spare parts inventory, this module ships promptly with full documentation support from SMARTNEXMSK.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement or inspection of the 1746-BAS, maintenance engineers should treat it as part of a broader SLC 500 cabinet health review. The module does not operate in isolation — its BASIC routines interact with other components in the same chassis, and a replacement event is the ideal opportunity to inspect adjacent hardware for wear, corrosion, or impending failure.

Start with the SLC 500 processor module (such as the 1747-L532 or 1747-L543) to confirm firmware compatibility and verify that the processor’s battery-backed RAM is intact. A depleted 1747-BA processor battery can cause program loss during the replacement window — always carry a spare battery to the job site. Next, inspect the 1746-P4 or 1746-P7 power supply module for output voltage stability; an aging power supply with marginal regulation can cause intermittent resets of the 1746-BAS and corrupt BASIC program execution mid-cycle.

Check all 1746-series digital I/O modules — including 1746-IB16 input modules and 1746-OB16 output modules — for blown fuses, damaged terminal blocks, and loose field wiring. These are common failure points in high-cycle applications. If the 1746-BAS is used for ASCII communication with barcode readers, label printers, or weighing systems, verify RS-232 cable integrity and confirm that the connected device’s communication parameters match the BASIC program’s OPEN COM settings.

For cabinets that include 1746-NI4 or 1746-NIO4I analog input modules, confirm that signal wiring is properly shielded and that shield grounds are correctly terminated — ground loops can introduce noise that disrupts BASIC data acquisition routines. If the system includes a 1747-SDN DeviceNet Scanner or 1747-SCNR Remote I/O Scanner, verify node addressing and scan list integrity as part of the same maintenance window.

Cabinet-level inspection should also cover 1492-series terminal blocks for tightness and corrosion, any installed signal isolators or surge suppressors on analog loops, and the condition of the chassis backplane connectors. For systems with an HMI panel — such as a PanelView 550 or PanelView 600 — communicating via DH-485 or RS-232, confirm that communication cable integrity and port settings remain aligned with the 1746-BAS configuration after module swap.

The recommended minimum spare parts kit for any facility running SLC 500 systems in production-critical roles includes: one spare 1746-BAS, one spare processor battery (1747-BA), one spare power supply module, and at least one spare I/O module per critical I/O type. This kit approach eliminates multi-component lead time risk during emergency fault response.

Site Replacement Workflow

Replacing the 1746-BAS in the field is a straightforward procedure when properly planned. Before beginning, back up the existing BASIC program using RSLogix 500 or a direct terminal session via the RS-232 port — the onboard BASIC program is stored in battery-backed RAM and may be lost if the module has been powered down for an extended period or if the onboard battery is depleted.

Power down the SLC 500 chassis following your site’s lockout/tagout (LOTO) procedure. Remove the existing 1746-BAS by releasing the top and bottom retaining clips and sliding the module out of its chassis slot. Inspect the backplane connector on the replacement module for bent or damaged pins before insertion. Seat the new 1746-BAS firmly until both retaining clips engage, then restore power to the chassis.

After power-up, use a terminal emulator or RSLogix 500 to verify that the BASIC program has been successfully restored. Confirm RS-232 communication with any connected ASCII devices by running a loopback test or initiating a known-good communication sequence. Verify that the SLC 500 processor recognizes the module in the correct chassis slot and that no I/O fault codes are present in the processor fault table.

This replacement workflow minimizes downtime to under 30 minutes for a prepared maintenance team. Having a pre-tested, warranted spare on the shelf eliminates lead time risk entirely — particularly critical for facilities where SLC 500 systems are no longer covered by OEM support contracts and where sourcing replacement modules from the open market can take days or weeks.

Spare Parts Support FAQ

Q1: Is this 1746-BAS module tested before shipment?
Yes. Every unit undergoes functional verification prior to dispatch. Electrical continuity, backplane connector integrity, and module identification are confirmed. A 12-month warranty is included from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q2: How do I verify compatibility with my existing SLC 500 chassis?
The 1746-BAS is compatible with all SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and all SLC 500 processor variants (5/01 through 5/05). It occupies one I/O slot and draws power from the chassis backplane. No special firmware version is required on the processor. If you are unsure of your chassis configuration, provide your chassis catalog number and we can confirm compatibility before shipment.

Q3: What is the recommended inventory strategy for 1746-BAS in a multi-line facility?
For facilities operating three or more SLC 500 systems with 1746-BAS modules installed, we recommend maintaining a minimum of one spare per facility, with two spares for sites where the BASIC module performs a production-critical function such as barcode verification or batch data logging. Given the end-of-life status of the SLC 500 platform, sourcing spares proactively is strongly advised as market availability continues to tighten.

Q4: Can this module replace older or alternate-revision 1746-BAS units?
Yes. The 1746-BAS has maintained form, fit, and function consistency across its production history. Replacement units are cross-compatible with earlier revisions in the same chassis slot. After installation, restore your BASIC program from backup and verify RS-232 communication parameters — no hardware reconfiguration of the chassis or processor is required.
