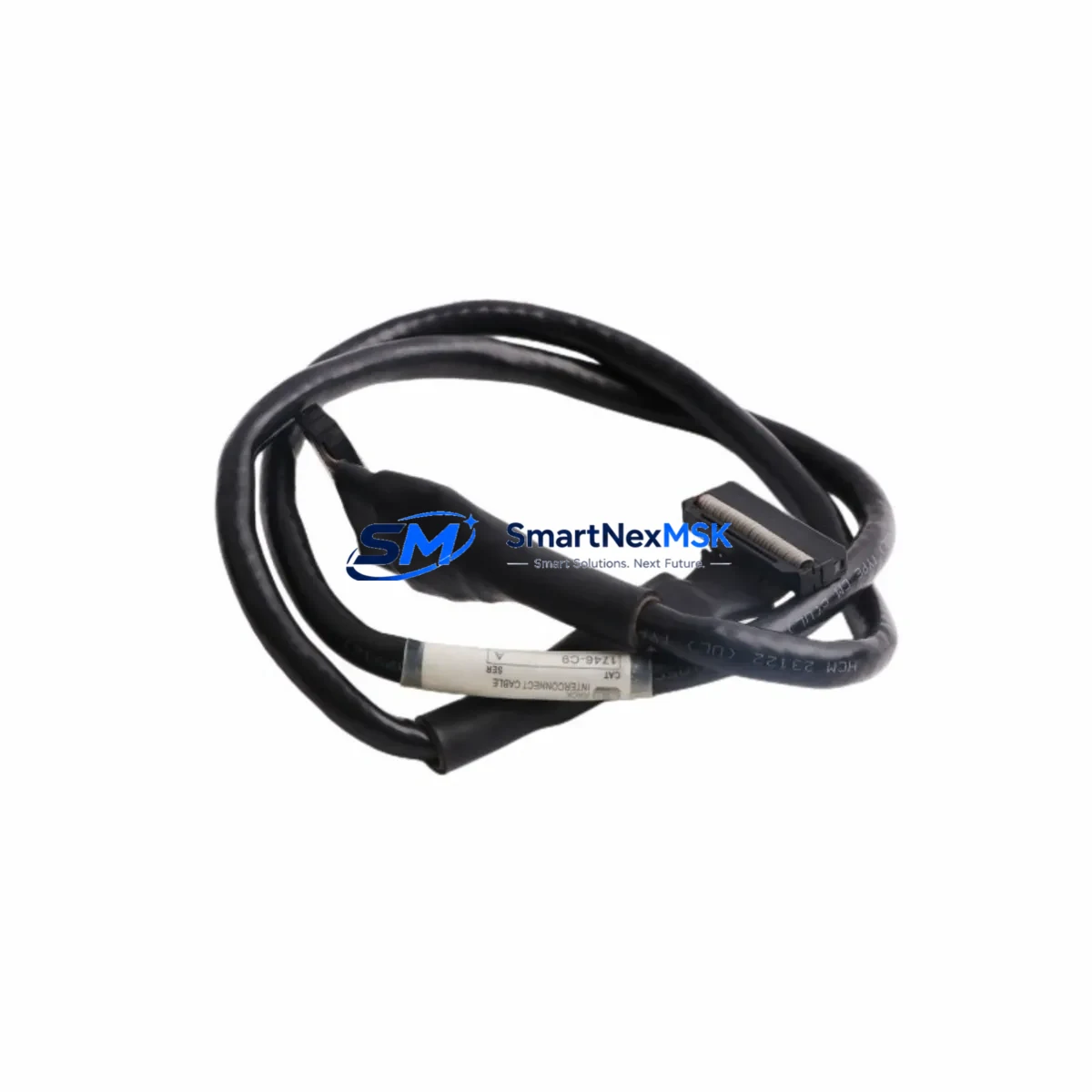

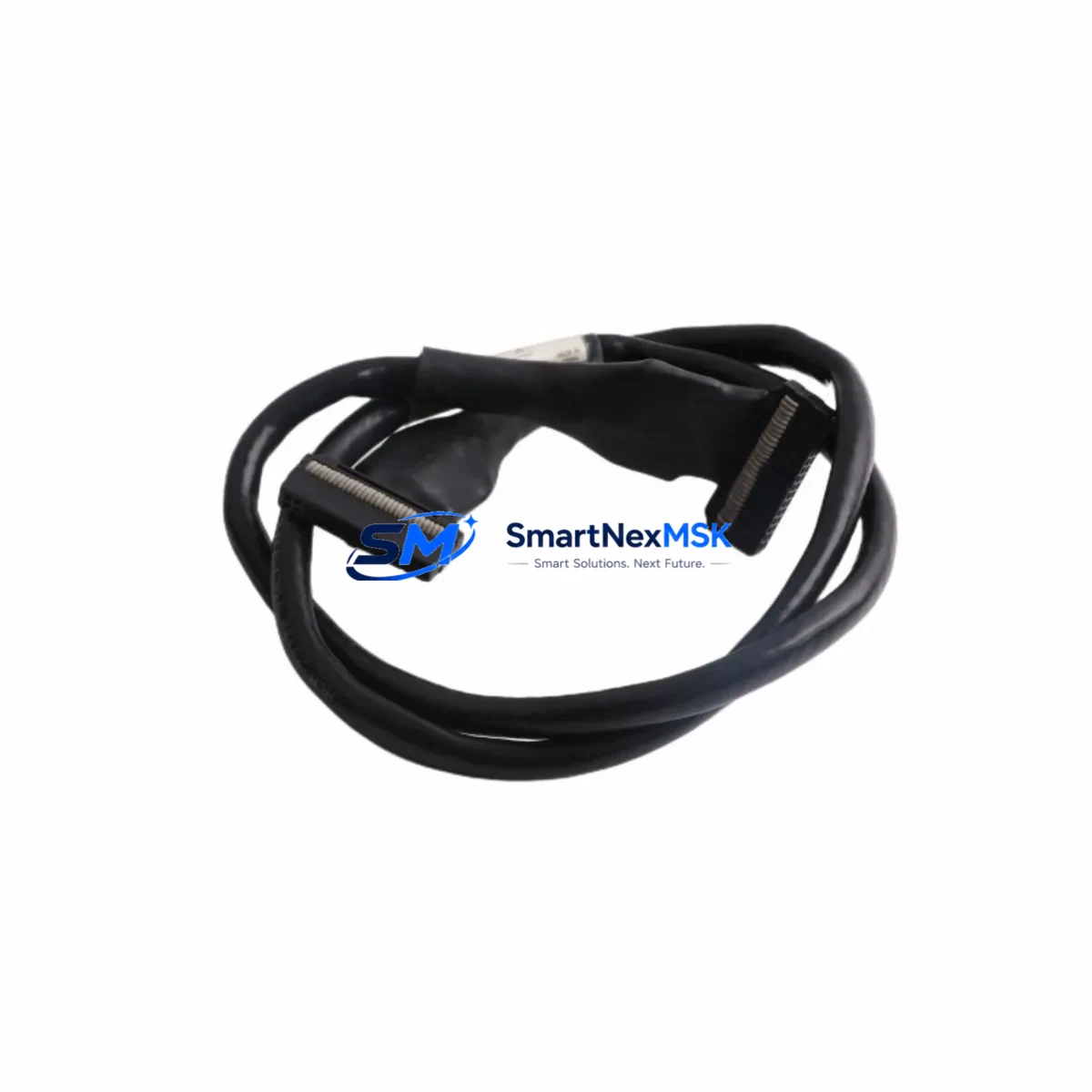

Allen-Bradley 1746-C9 Safety-Enhanced SLC 500 Interconnect Cable

Allen-Bradley 1746-C9 Safety-Enhanced SLC 500 Interconnect Cable: Reliable Control in Harsh Industrial Sites

The Allen-Bradley 1746-C9 is a ruggedized chassis interconnect cable engineered for the SLC 500 modular control platform, designed to maintain uninterrupted signal integrity in high-noise, high-vibration, and thermally demanding industrial environments. In critical control architectures where a single cable failure can cascade into a full production shutdown, the 1746-C9 delivers the mechanical robustness and electrical shielding necessary to keep your safety and control loops operational around the clock.

Industrial facilities operating continuous processes — including petrochemical plants, power generation stations, mining operations, water treatment facilities, metallurgical smelters, and port logistics systems — demand interconnect components that perform without compromise. The 1746-C9 is purpose-built for these conditions, providing a low-impedance, shielded data path between SLC 500 chassis segments that resists electromagnetic interference (EMI), radio-frequency interference (RFI), and transient voltage surges that are endemic to heavy industrial switchgear environments.

When deployed alongside the Allen-Bradley 1746-P4 power supply module, the 1746-C9 ensures that backplane communication remains stable even during power fluctuation events. In multi-chassis SLC 500 configurations, it connects the primary chassis to expansion chassis such as the 1746-A13 or 1746-A10, maintaining deterministic scan-cycle timing that safety interlocks and process control loops depend upon. Signal drift and communication timeouts — common failure modes in unshielded or degraded cabling — are effectively suppressed by the cable’s braided shield construction and secure locking connectors.

In control cabinet protection strategies, the 1746-C9 works in concert with surge protection devices, isolation transformers, and properly grounded cable trays to form a complete EMI defense layer. When paired with Allen-Bradley 1746-IB16 digital input modules and 1746-OB16 digital output modules, the cable’s signal fidelity directly supports the accuracy of field device feedback — preventing spurious trips, false actuations, and missed safety events. For analog-intensive applications, its shielding is equally critical when interfacing with 1746-NI4 analog input modules monitoring temperature, pressure, or flow transmitters in hazardous zones.

The 1746-C9 is also a key component in systems utilizing the Allen-Bradley 1747-L553 or 1747-L543 SLC 5/05 and SLC 5/04 processors, where Ethernet/IP or DH+ network communication must remain synchronized with local I/O chassis data. Any degradation in the backplane interconnect path introduces latency and scan-time variability that can compromise PID loop stability and safety response times. Facilities running critical interlock circuits — such as emergency shutdown (ESD) systems, burner management systems (BMS), or high-integrity pressure protection systems (HIPPS) — cannot afford this variability.

From a maintenance and spare-parts perspective, stocking the 1746-C9 as a certified replacement cable reduces mean time to repair (MTTR) during unplanned outages. Its standardized connector format ensures drop-in compatibility with all SLC 500 modular chassis without requiring reconfiguration of the processor or I/O modules. Each unit shipped by SMARTNEXMSK undergoes pre-shipment functional verification to confirm connector integrity, shield continuity, and dimensional compliance with Rockwell Automation specifications.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust SLC 500 control cabinet is more than its processor — it is an integrated system of interdependent components, each of which must perform reliably under load. The 1746-C9 interconnect cable anchors the backplane communication path, but its effectiveness is amplified when the surrounding cabinet infrastructure is properly specified. The Allen-Bradley 1746-P4 power supply provides regulated 24 VDC backplane power, and its stable output is a prerequisite for clean data transmission across the 1746-C9. Upstream, a line-conditioning unit or isolation transformer protects against utility-side voltage sags and harmonic distortion common in facilities with large motor drives or arc furnaces.

On the I/O side, 1746-IB16 and 1746-OB16 modules handle discrete field signals, while 1746-NI4 and 1746-NO4I analog modules manage process variable feedback. All of these modules rely on the 1746-C9 to relay their data to the processor chassis without corruption. In cabinets where variable frequency drives (VFDs) or soft starters are co-located, additional ferrite cores on signal cables and proper cable segregation (power vs. signal) further reduce the EMI burden on the interconnect path. Surge protection devices installed at the cabinet’s incoming power terminals — such as DIN-rail mounted SPDs rated for the facility’s fault current level — provide the first line of defense, with the 1746-C9’s shielding serving as the second layer within the cabinet itself.

For communication-intensive architectures using the 1747-SCNR ControlNet scanner or 1747-SDN DeviceNet scanner modules, maintaining backplane integrity via the 1746-C9 is essential to prevent network timeouts that can trigger safety faults in connected field devices. Redundant power supply configurations using the 1746-P7 module in parallel with the 1746-P4 further eliminate single points of failure in the power distribution chain.

Critical Industrial Safety Applications

The Allen-Bradley 1746-C9 is deployed across a wide spectrum of safety-critical and continuous-process industries. In petrochemical and refinery operations, it supports SLC 500-based emergency shutdown (ESD) panels where backplane communication failures cannot be tolerated — a single missed I/O scan during a high-pressure event can delay valve closure by critical milliseconds. In power generation facilities, it connects I/O chassis monitoring turbine protection systems, generator excitation controls, and switchgear interlock circuits, where signal integrity is directly tied to grid stability and personnel safety.

In mining and mineral processing environments, the cable’s ruggedized construction withstands the high-vibration, dust-laden conditions of conveyor control panels and crusher automation systems. Water and wastewater treatment plants rely on SLC 500 systems for pump sequencing, chemical dosing control, and SCADA integration — all of which depend on reliable chassis communication to maintain regulatory compliance and prevent environmental incidents. In metallurgical and steel mill applications, the 1746-C9 operates in cabinets exposed to radiated heat, electromagnetic noise from induction furnaces, and mechanical shock from rolling mill operations. Port and terminal automation systems use SLC 500 platforms for crane control, conveyor interlocking, and hazardous area monitoring, where the cable’s shielding prevents interference from high-power motor drives and radio communications equipment.

Safety and Quality FAQ

Q1: What warranty coverage does the 1746-C9 carry?
Every 1746-C9 shipped by SMARTNEXMSK is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, connector failure, and shield integrity issues under normal industrial operating conditions. Warranty claims are processed with priority to minimize your downtime.

Q2: What pre-shipment testing is performed on each unit?
Each 1746-C9 undergoes a multi-point inspection before dispatch: connector seating and locking mechanism verification, braided shield continuity measurement, cable length and dimensional conformance check, and visual inspection for jacket integrity. This ensures that every unit arrives ready for immediate installation without requiring field testing.

Q3: Is the 1746-C9 compatible with all SLC 500 modular chassis configurations?
Yes. The 1746-C9 is compatible with all SLC 500 modular chassis variants, including the 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot). It is designed for use with all SLC 5/01 through SLC 5/05 processors. If your application involves a non-standard chassis configuration or a legacy system, contact our technical team for compatibility confirmation before ordering.

Q4: Can SMARTNEXMSK support long-term and emergency spare-parts supply for the 1746-C9?
Yes. SMARTNEXMSK maintains dedicated inventory of the 1746-C9 and related SLC 500 components to support both planned maintenance programs and emergency breakdown situations. We offer same-day quotation, rapid dispatch, and export documentation for international shipments. Our supply chain is structured to support customers requiring ongoing spare-parts contracts for aging SLC 500 installations that are not yet scheduled for migration to newer platforms.
