Allen-Bradley 1746-IO12 Spare for SLC 500 Automation

Allen-Bradley 1746-IO12 Spare for SLC 500 Automation: Spare Replacement & Downtime Risk Control

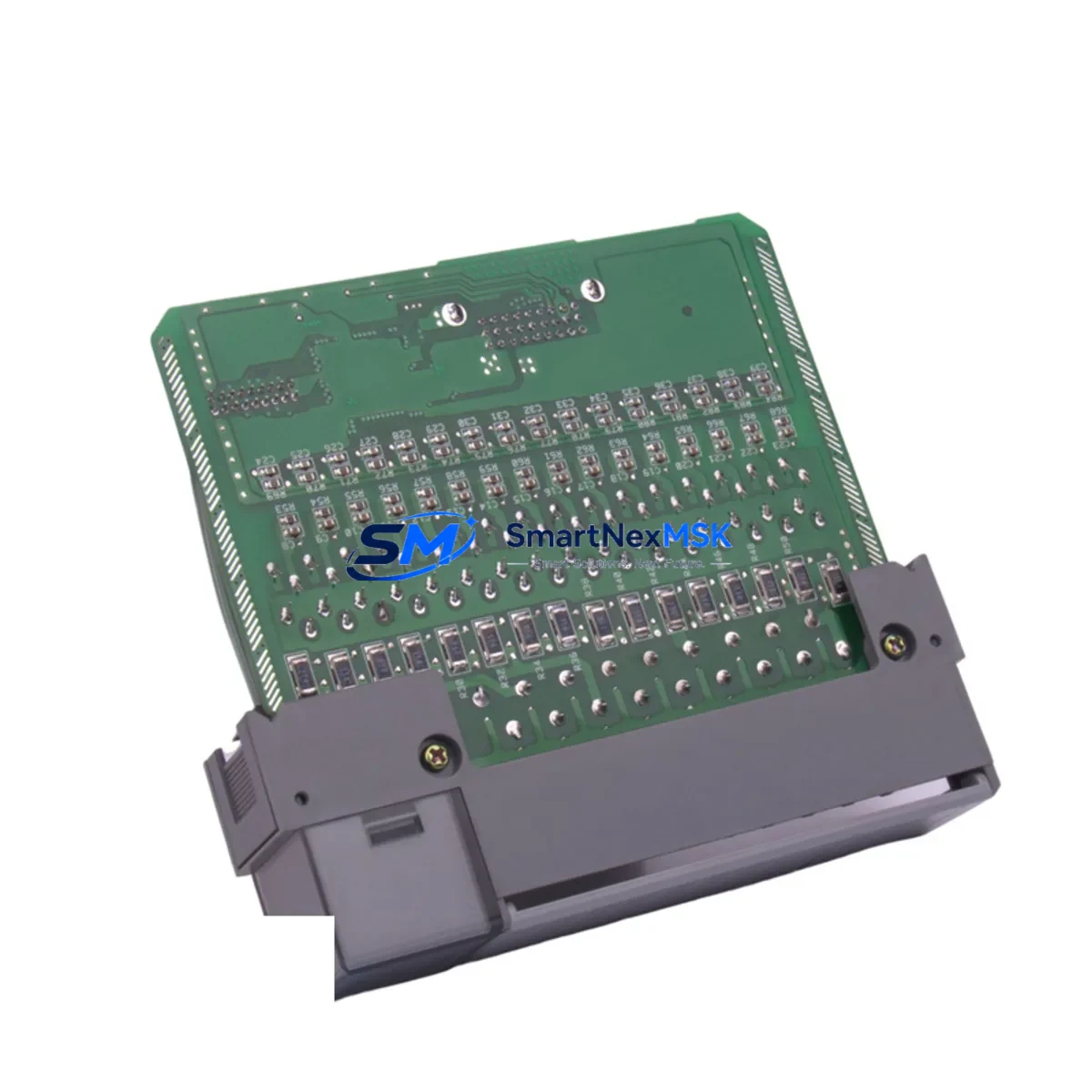

The Allen-Bradley 1746-IO12 is a combination discrete I/O module designed for the SLC 500 modular chassis platform. Featuring 6 AC inputs and 6 AC outputs rated at 120V AC, this module serves as a critical field interface component in factory automation, process control, and machine safety applications. When a 1746-IO12 fails or degrades in service, the result is immediate loss of I/O communication between the SLC 5/03, SLC 5/04, or SLC 5/05 processor and field devices — conveyors, actuators, sensors, and interlocks all go offline. Maintaining a verified spare on the shelf is the single most effective strategy for minimizing unplanned downtime in SLC 500-based control systems.

Our 1746-IO12 units are sourced as original Allen-Bradley components, individually inspected, and function-tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial service conditions. We support maintenance engineers and procurement teams across manufacturing, automotive, food & beverage, water treatment, and material handling industries.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1746-IO12 is flagged during routine control cabinet inspection or fails during a production shift, the replacement workflow should extend beyond the module itself. A thorough maintenance review of the surrounding SLC 500 rack is essential to prevent repeat failures and ensure system integrity after the swap.

Begin by verifying the 1746-P4 or 1746-P7 power supply module — an aging or undersized power supply is a leading cause of I/O module instability and premature failure. Check output voltage under load and inspect for capacitor bulge or thermal discoloration. Next, inspect the 1746-A10 or 1746-A13 chassis backplane for bent connector pins, corrosion, or physical damage that could cause intermittent slot communication errors.

Review adjacent I/O modules in the rack. If the system uses 1746-IB16 DC input modules or 1746-OB16 DC output modules alongside the IO12, check their LED status indicators and verify field wiring continuity. Loose terminal connections on 1746-RT25 or 1746-RT32 wiring arm assemblies are a common source of ghost faults that are misdiagnosed as module failures.

For systems with communication requirements, inspect the 1747-SDN DeviceNet Scanner or 1747-KE RS-232 interface module if installed in the same chassis. Communication module faults can cascade into I/O scan errors that appear as module failures. If the system uses a 1747-L553 SLC 5/05 processor with Ethernet/IP connectivity, verify the processor firmware version is compatible with the replacement module’s I/O configuration.

On the field wiring side, inspect terminal blocks and check for insulation breakdown on 120V AC field cables — particularly in high-vibration or high-temperature environments. Verify that signal isolators or interposing relays used between the 1746-IO12 outputs and high-inductive loads (motors, solenoids, contactors) are within their rated service life. Surge suppression devices across inductive loads protect the triac outputs from voltage spikes that cause premature output failure.

For facilities running legacy SLC 500 systems beyond their original design life, we recommend maintaining a minimum spare inventory that includes: one 1746-IO12, one compatible power supply module, and one processor module. This three-component spare kit covers the majority of unplanned downtime scenarios and supports a sub-30-minute recovery target for most SLC 500 panel configurations.

Site Replacement Workflow

Step 1 — Isolate and de-energize: Place the SLC 500 processor in Program mode via the keyswitch or RSLogix 500 software. De-energize the chassis power supply and lock out / tag out (LOTO) per site safety procedures. Verify zero voltage on the 120V AC field terminals of the 1746-IO12 before proceeding.

Step 2 — Document wiring: Photograph or sketch the field wiring connections on the existing module’s wiring arm (1746-RT25 or equivalent). Note terminal numbers and wire labels. Remove the wiring arm assembly as a unit — this preserves field wiring integrity and reduces reconnection errors.

Step 3 — Remove the failed module: Press the module release tab and slide the 1746-IO12 out of the chassis slot. Inspect the backplane connector for damage before inserting the replacement unit.

Step 4 — Install the replacement: Slide the new 1746-IO12 into the same slot until the backplane connector seats fully and the release tab clicks. Reattach the wiring arm assembly. The 1746-IO12 is slot-addressed — no DIP switch or jumper configuration is required; the processor reads the module type automatically on power-up.

Step 5 — Restore and verify: Re-energize the power supply and place the processor back in Run mode. Monitor the I/O status LEDs on the replacement module and verify all input and output points in RSLogix 500 or the HMI display. Confirm field device operation through a functional test cycle before returning the system to production.

This workflow applies equally to planned maintenance replacements and emergency swap-outs. The 1746-IO12’s plug-and-play slot compatibility with the SLC 500 chassis means no firmware upload or module configuration is required, making it one of the fastest field replacements in the SLC 500 product family.

Spare Parts Support FAQ

Q1: Is this 1746-IO12 compatible with all SLC 500 chassis sizes?
Yes. The 1746-IO12 is compatible with all standard SLC 500 modular chassis variants — 1746-A4 (4-slot), 1746-A7 (7-slot), 1746-A10 (10-slot), and 1746-A13 (13-slot) — as well as all SLC 500 processor families (5/01 through 5/05). No hardware modification is required for slot substitution within the same chassis.

Q2: What pre-shipment testing is performed on each unit?
Each 1746-IO12 undergoes visual inspection for physical damage, backplane connector integrity check, and functional I/O point verification before packaging. Units that do not pass all test criteria are not shipped. A test report summary is available upon request for critical spare applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial service conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority turnaround to minimize your system downtime.

Q4: Can you support long-term or blanket spare parts orders for SLC 500 systems?
Yes. We support scheduled spare parts programs for facilities managing multiple SLC 500 panels or planning extended system life beyond Rockwell Automation’s end-of-life timeline. Contact our team to discuss volume pricing, reserved stock agreements, and lead time commitments for 1746-IO12 and related SLC 500 components.
