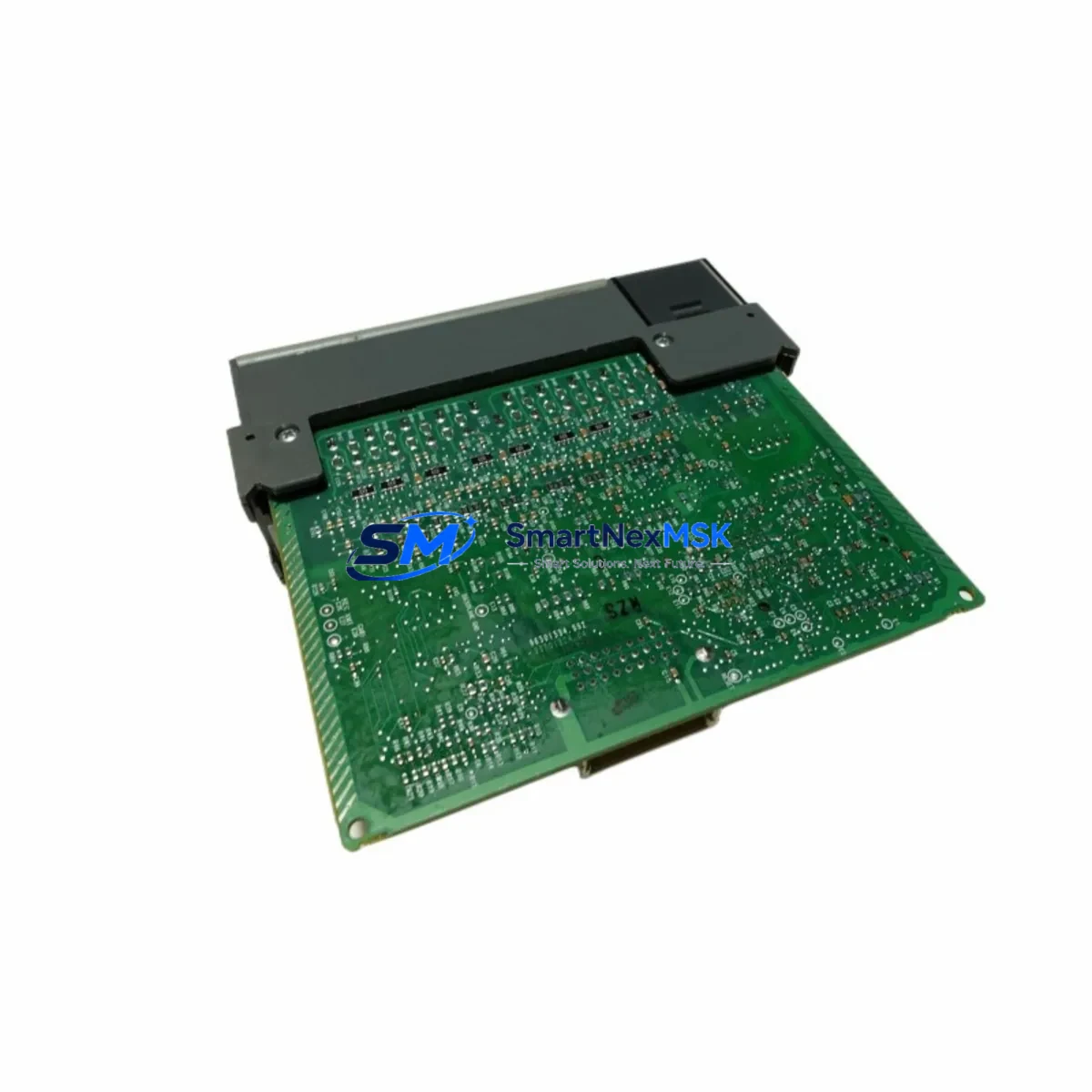

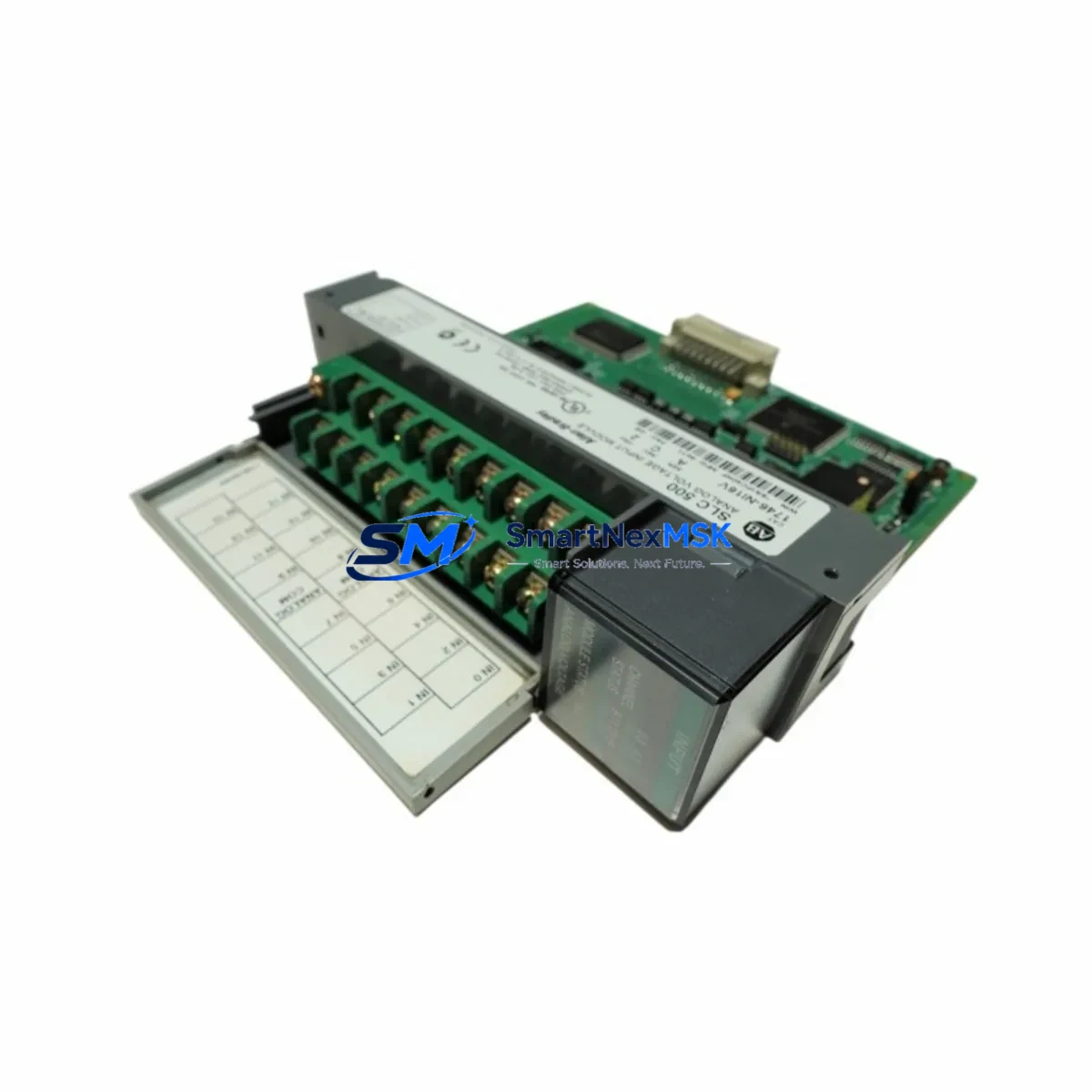

Allen-Bradley 1746-NI16V Safety-Enhanced Analog Input for Harsh Sites

Allen-Bradley 1746-NI16V Safety-Enhanced Analog Input for Harsh Industrial Sites

The Allen-Bradley 1746-NI16V is a 16-channel analog voltage input module engineered for the SLC 500 programmable controller platform, purpose-built to deliver uninterrupted signal acquisition in the most demanding industrial environments. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or continuous manufacturing, this module is designed to maintain measurement integrity where signal fidelity is a safety-critical requirement.

In high-load control architectures, analog input accuracy is the foundation of every closed-loop safety response. The 1746-NI16V accepts ±10 VDC, 0–5 VDC, and 1–5 VDC input ranges across all 16 channels, providing the flexibility to interface with a wide variety of field transmitters, pressure sensors, temperature transducers, and flow measurement devices. Its differential input configuration actively rejects common-mode noise — a critical advantage in environments where variable-frequency drives, high-current bus bars, and inductive motor loads generate persistent electromagnetic interference that can corrupt analog signals and trigger false process alarms or spurious safety shutdowns.

Signal drift is one of the most insidious failure modes in industrial analog systems. The 1746-NI16V addresses this through a high-resolution 12-bit A/D conversion architecture with on-board calibration support, ensuring that process values remain stable over extended production cycles without requiring frequent field recalibration. In critical interlock loops — such as high-pressure relief monitoring in chemical reactors or overfill protection in storage tank farms — even minor signal drift can cascade into unsafe process states. This module’s stable conversion performance directly reduces that risk.

Within a fully integrated SLC 500 control cabinet, the 1746-NI16V operates alongside complementary modules to form a complete, safety-aware I/O architecture. The 1746-OB16 digital output module handles discrete actuator commands, while the 1746-IB16 digital input module captures field device status signals. For process control loops requiring analog output, the 1746-NO4I current output module pairs directly with the NI16V to close the control loop. Power integrity for the entire chassis is maintained by the 1746-P4 power supply, which provides regulated 24 VDC backplane power with built-in surge protection — essential for protecting sensitive analog circuitry from power line transients common in heavy industrial facilities.

Communication reliability is equally critical. The SLC 5/05 processor module (1747-L553) provides Ethernet/IP connectivity, enabling the 1746-NI16V’s process data to be transmitted to SCADA systems, historian servers, and safety PLCs with deterministic latency. In architectures where the SLC 500 rack interfaces with a ControlLogix safety system via a 1756-ENBT EtherNet/IP bridge module, the analog input data from the NI16V can be consumed by safety-rated logic for SIL-assessed interlock functions. Surge protection on field wiring terminals — typically implemented with DIN-rail mounted surge arrestors rated for the signal voltage range — further shields the module from lightning-induced transients and ground potential differences in large plant installations.

For facilities operating under continuous production mandates, unplanned downtime caused by module failure is unacceptable. SMARTNEXMSK maintains verified stock of the 1746-NI16V to support rapid spare-parts replacement programs. Every unit shipped undergoes functional testing prior to dispatch, verifying channel-by-channel input response, backplane communication integrity, and LED status indication. This pre-shipment verification process ensures that replacement modules can be installed and commissioned without the diagnostic delays that accompany untested surplus inventory.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust SLC 500 control cabinet built around the 1746-NI16V requires a layered protection strategy that addresses power quality, signal integrity, and communication reliability simultaneously. At the power layer, the 1746-P4 power supply provides the regulated backplane voltage that the NI16V’s analog circuitry depends on; pairing it with an external UPS or line conditioner eliminates the voltage sag events that can cause mid-scan data corruption in analog modules. The 1746-A13 13-slot chassis provides adequate physical spacing between the NI16V and high-current digital output modules such as the 1746-OB32, reducing capacitive coupling that can introduce noise on adjacent analog input channels.

At the field wiring layer, shielded twisted-pair cables terminated with proper drain wire grounding at the panel end — and left floating at the field device end — are essential for maintaining the NI16V’s common-mode rejection performance. Where field runs exceed 30 meters or pass through areas with heavy motor cabling, DIN-rail surge protection modules rated for the signal voltage range provide the last line of defense against transient overvoltage events. For safety interlock circuits, the 1746-NO4I analog output module can be used to drive control valves or variable-speed drive references, with the NI16V providing the feedback measurement that closes the safety loop.

Communication-layer protection is addressed through the SLC 5/05 processor’s built-in EtherNet/IP port, which supports managed switch connectivity with VLAN segmentation to isolate control traffic from corporate IT networks. In architectures that include a 1756-ControlLogix safety PLC consuming data from the SLC 500 rack via a 1756-ENBT bridge, the NI16V’s analog data can feed safety-rated function blocks without requiring additional signal conditioning hardware. The 1747-SDN DeviceNet scanner module can extend the cabinet’s I/O reach to remote field devices, maintaining a unified control architecture across large plant footprints.

Critical Industrial Safety Applications

In petrochemical and refinery operations, the 1746-NI16V monitors pressure transmitter outputs across reactor feed systems, distillation column overhead condensers, and compressor suction/discharge circuits. Its 16-channel capacity allows a single module to consolidate the analog inputs from an entire process unit, reducing the number of I/O chassis slots consumed and simplifying cabinet layout in hazardous-area control rooms.

In electric power generation and substation control, the module interfaces with current transformer secondary circuits (via appropriate signal conditioning) and voltage transducers to provide real-time electrical parameter monitoring. Its optical isolation between field inputs and the backplane prevents ground loop currents — a common source of measurement error in high-voltage environments — from corrupting process data.

In underground and surface mining operations, where conveyor belt load monitoring, crusher motor current feedback, and ventilation airflow measurement are safety-critical functions, the NI16V’s wide operating temperature range and vibration tolerance make it suitable for installation in mobile equipment control panels and fixed plant control rooms alike.

In water and wastewater treatment facilities, the module supports continuous monitoring of pH, dissolved oxygen, turbidity, and flow rate transmitters across multiple treatment stages. Its ability to handle 1–5 VDC NAMUR-compatible signals ensures compatibility with the majority of process analyzers used in water quality control applications.

In metallurgical and steel production environments, where furnace temperature profiles, cooling water flow rates, and rolling mill tension measurements must be captured with high accuracy under severe electromagnetic interference from induction heating equipment, the NI16V’s differential input architecture and high common-mode rejection ratio provide the signal quality required for stable process control.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1746-NI16V?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified analog input functions within the warranty period, SMARTNEXMSK will provide a replacement unit at no additional cost. The warranty period begins from the date of shipment and applies to all units regardless of whether they are installed immediately or held as spare inventory.

Q2: What pre-shipment testing is performed on each 1746-NI16V unit?
Every 1746-NI16V unit undergoes a full functional test prior to dispatch. This includes channel-by-channel input response verification across all 16 analog channels, backplane communication integrity testing with an SLC 500 processor, LED status indicator verification, and visual inspection for physical damage. Test results confirm that the module meets Allen-Bradley’s original performance specifications before it leaves our facility.

Q3: Is the 1746-NI16V compatible with all SLC 500 processors and chassis configurations?
Yes. The 1746-NI16V is compatible with all SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processor families and can be installed in any 1746-series chassis (4-slot through 13-slot configurations). It is also compatible with the 1747-SN remote I/O scanner for distributed rack architectures. No firmware upgrades or special configuration files are required beyond standard RSLogix 500 I/O configuration.

Q4: Can SMARTNEXMSK support long-term supply and emergency replacement for the 1746-NI16V?
Yes. SMARTNEXMSK maintains ongoing inventory of the 1746-NI16V to support both planned spare-parts programs and emergency replacement requirements. Given that the SLC 500 platform is widely installed across global industrial facilities with long operational lifespans, we prioritize stock availability for this module family. Customers operating critical continuous processes can contact our team to discuss consignment stock arrangements or priority supply agreements to ensure zero-downtime replacement capability.
