Allen-Bradley 1746-NI4/B Safety-Enhanced Analog Input Module

Allen-Bradley 1746-NI4/B Safety-Enhanced Analog Input Module: Reliable Control in Harsh Industrial Sites

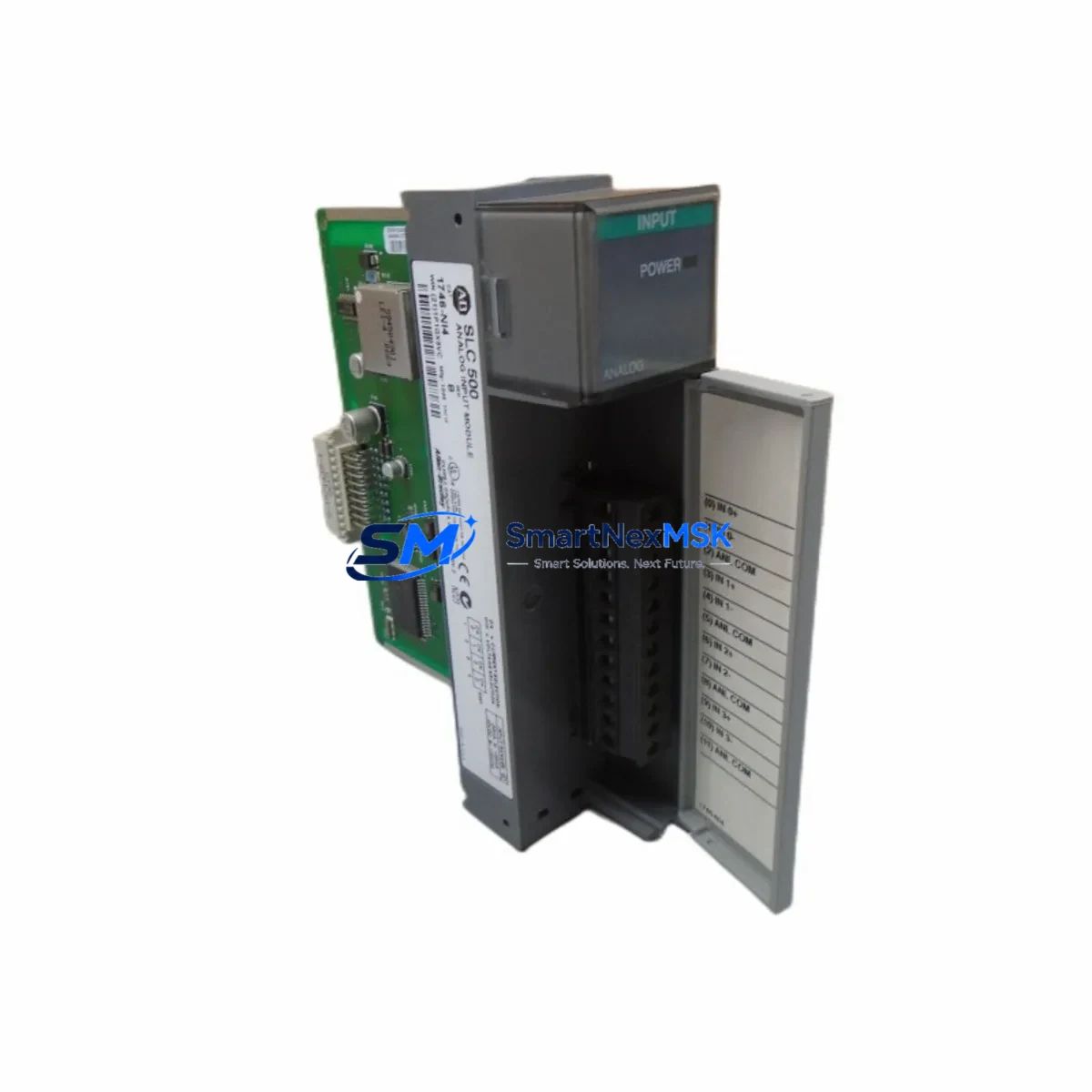

The Allen-Bradley 1746-NI4/B is a 4-channel, 16-bit analog input module engineered for the SLC 500 programmable controller platform. Designed to operate reliably in high-interference, high-load, and continuous-production environments, this module delivers the signal accuracy and electrical resilience demanded by critical industrial control loops. Whether deployed in petrochemical processing, power generation, mining automation, water treatment, metallurgical plants, or heavy port logistics, the 1746-NI4/B provides the measurement stability and fault tolerance that safety-critical applications require.

In industrial control cabinets where signal integrity is non-negotiable, the 1746-NI4/B accepts voltage and current inputs across multiple configurable ranges, converting analog field signals into precise digital values for the SLC 500 CPU. Its 16-bit resolution ensures that even small process deviations — temperature drift, pressure fluctuation, or flow variation — are captured with the fidelity needed to trigger protective interlocks before conditions escalate. This makes it a trusted component in safety instrumented systems (SIS) and emergency shutdown (ESD) architectures where measurement error can translate directly into process hazard.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered SLC 500 control cabinet, the 1746-NI4/B does not operate in isolation — it functions as part of a coordinated protection architecture. The module slots into a 1746 series modular chassis alongside the SLC 5/04 or SLC 5/05 CPU, sharing a common backplane with digital I/O modules such as the 1746-IB16 (16-channel DC input) and 1746-OB16 (16-channel DC output). Together, these modules form the sensing and actuation backbone of the control loop.

Power integrity is foundational to analog measurement accuracy. The 1746-NI4/B relies on a stable, low-ripple 5 VDC backplane supply, typically sourced from a 1746-P4 or 1746-P7 power supply unit. Voltage sag or ripple on the backplane rail directly degrades analog conversion accuracy, which is why pairing this module with a properly rated power supply is a non-negotiable element of cabinet design. In facilities with unstable mains, an external 24 VDC DIN-rail power supply with active power factor correction provides an additional buffer against upstream disturbances.

For field-side signal protection, surge suppressors and signal conditioners installed between field transmitters and the 1746-NI4/B input terminals prevent transient energy from reaching the module’s input circuitry. In environments with long cable runs — common in mining and petrochemical sites — shielded twisted-pair wiring and proper grounding of cable shields at a single point eliminate ground loop interference that would otherwise corrupt 4–20 mA signals.

Communication reliability is equally critical. In SLC 500 systems using DH+ or DH-485 networks, the 1747-KE or 1747-AIC link coupler modules manage network isolation and signal conditioning, protecting the communication bus from ground faults and cable-induced noise. Where Ethernet connectivity is required, the 1761-NET-ENI or 1747-AENTR adapter bridges the SLC 500 to EtherNet/IP, enabling remote monitoring of analog values without disrupting the control loop. Maintaining communication integrity ensures that SCADA systems and historian platforms receive accurate, uninterrupted process data — a prerequisite for safety alarm management and regulatory compliance.

In safety interlock circuits, the analog values read by the 1746-NI4/B are compared against high and low alarm setpoints within the SLC 500 ladder logic. When a measured value crosses a safety threshold — for example, a tank level approaching overflow or a motor winding temperature nearing its thermal limit — the CPU triggers output modules to activate protective relays, solenoid valves, or audible alarms. The 1746-OW16 relay output module is commonly used in these interlock circuits due to its dry-contact outputs, which are compatible with a wide range of field devices and safety relay systems.

Critical Industrial Safety Applications

Petrochemical and Refinery Operations: In continuous process plants, the 1746-NI4/B monitors pressure transmitters, temperature sensors, and flow meters across distillation columns, heat exchangers, and reactor vessels. Its 16-bit resolution captures subtle process deviations that precede abnormal operating conditions, enabling the SLC 500 to initiate corrective action before a safety threshold is breached. The module’s EMI resistance is particularly valuable in environments where variable-frequency drives and high-current switching equipment generate significant electrical noise.

Power Generation and Substation Control: In power plant auxiliary systems — boiler feedwater control, turbine lube oil monitoring, and generator cooling — the 1746-NI4/B provides the analog measurement accuracy required for both normal control and protective relay coordination. Its optical isolation between field inputs and the backplane prevents ground potential differences from corrupting measurements or damaging the CPU.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to vibration, dust, humidity, and wide temperature swings. The 1746-NI4/B’s robust construction and wide operating temperature range make it suitable for conveyor belt load monitoring, crusher motor current measurement, and slurry pump flow control — applications where module failure causes immediate production stoppage and potential safety incidents.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog measurement of pH, dissolved oxygen, turbidity, and chemical dosing rates. The 1746-NI4/B integrates seamlessly with 4–20 mA transmitters from leading sensor manufacturers, providing the SLC 500 with the data needed to maintain treatment efficacy and regulatory compliance.

Metallurgical and Steel Production: In electric arc furnace control, rolling mill automation, and continuous casting lines, analog input accuracy directly affects product quality and equipment longevity. The 1746-NI4/B handles the demanding electrical environment of heavy industrial facilities, where large motor starts and arc furnace switching generate severe voltage transients on the facility power system.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1746-NI4/B?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period, we will repair or replace it at no charge. The warranty applies to the module’s analog conversion accuracy, channel isolation integrity, backplane communication, and all internal components.

Q2: What pre-shipment testing is performed on each 1746-NI4/B unit?
Every unit undergoes a full functional verification before dispatch. Testing includes channel-by-channel signal accuracy checks across all supported input ranges, backplane communication verification, isolation resistance measurement, and visual inspection for physical damage. Units that do not meet specification are quarantined and not shipped. A test record is available upon request for customers with traceability requirements.

Q3: Is the 1746-NI4/B compatible with all SLC 500 chassis and CPU versions?
The 1746-NI4/B is compatible with all 1746 series modular chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13. It operates with all SLC 500 CPU variants — SLC 5/01 through SLC 5/05 — and is configured via RSLogix 500 or RSLogix Micro software. The /B revision designation indicates a specific hardware revision; customers should verify compatibility with their existing chassis firmware and I/O configuration files before installation.

Q4: Can long-term supply and replacement support be guaranteed for this module?
Yes. We maintain dedicated inventory of the 1746-NI4/B and related SLC 500 I/O modules to support customers with long-lifecycle installed bases. For facilities that cannot migrate to newer platforms due to process criticality or capital constraints, we provide ongoing spare parts supply, exchange programs, and technical support for replacement and commissioning. Lead times and stock levels are confirmed at the time of inquiry.
