Allen-Bradley 1746-NIO4I Safety-Enhanced Analog I/O for Harsh Sites

Allen-Bradley 1746-NIO4I Safety-Enhanced Analog I/O for Harsh Industrial Sites

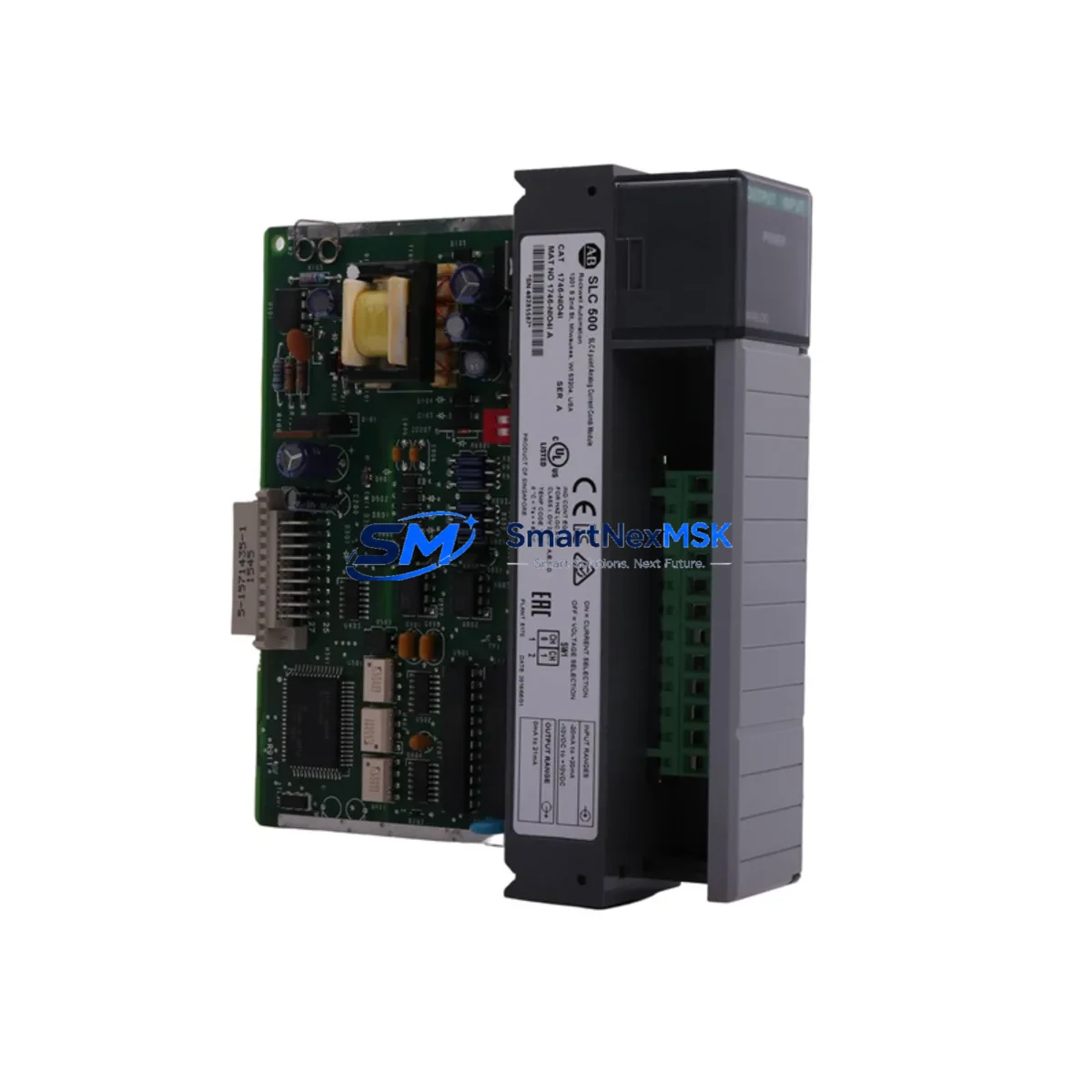

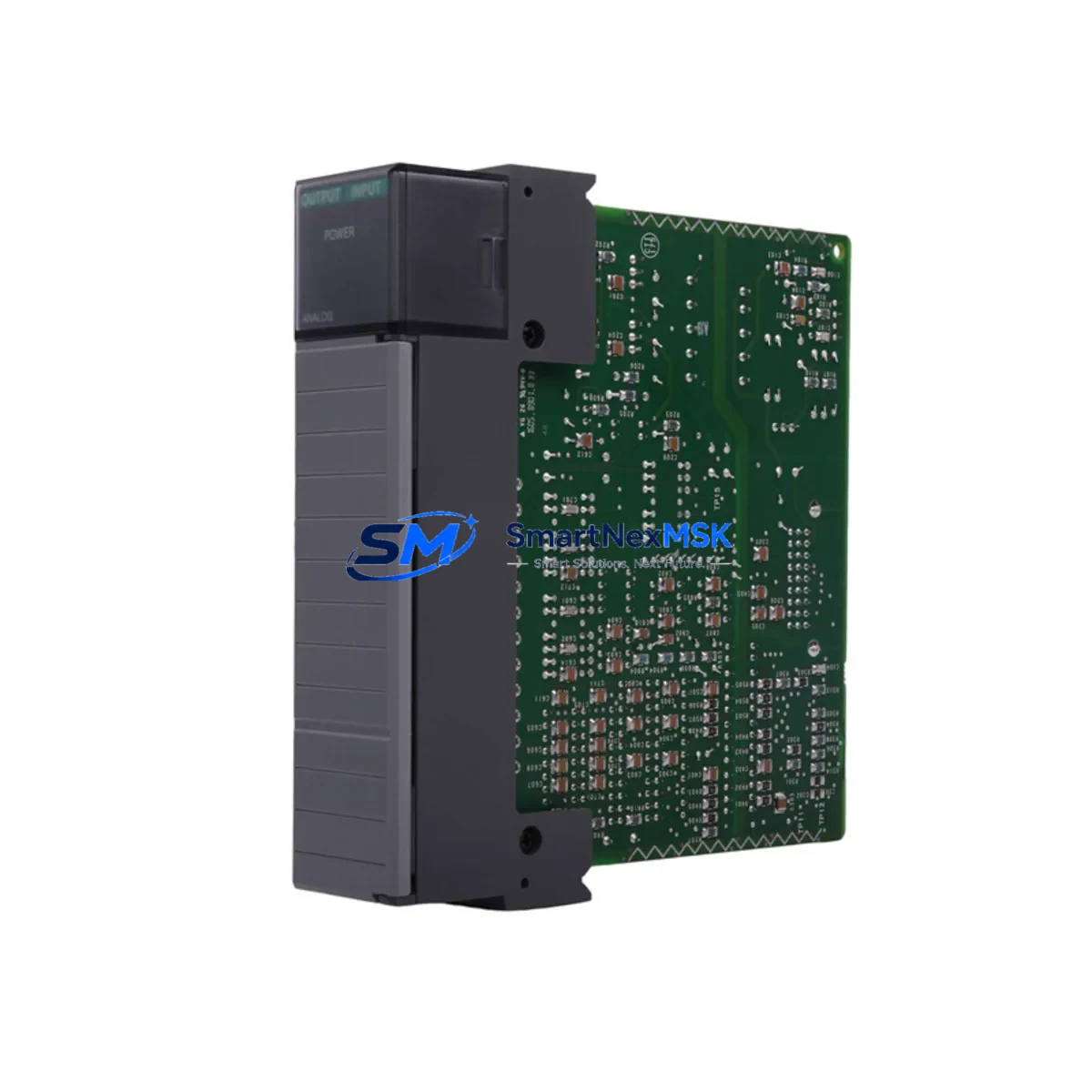

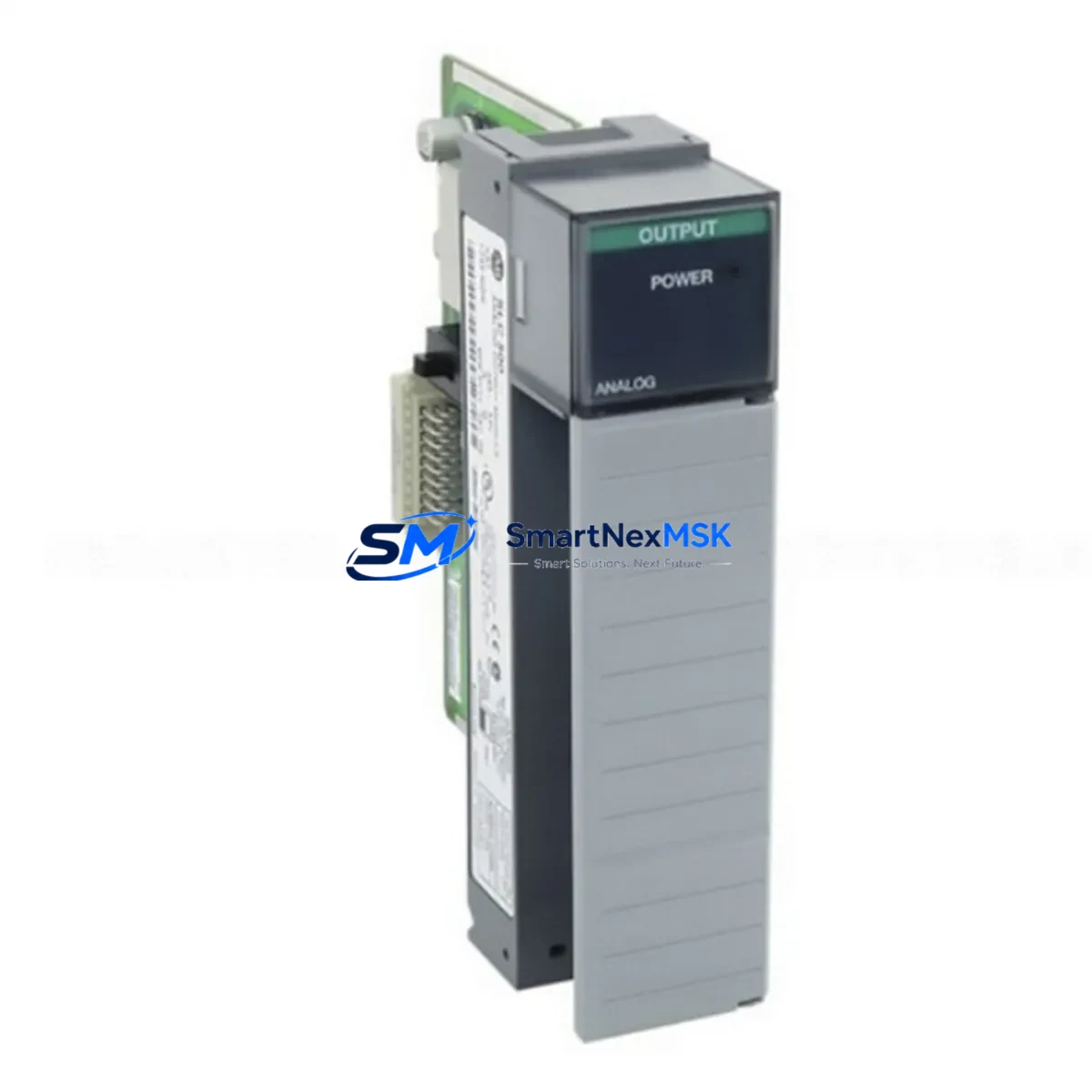

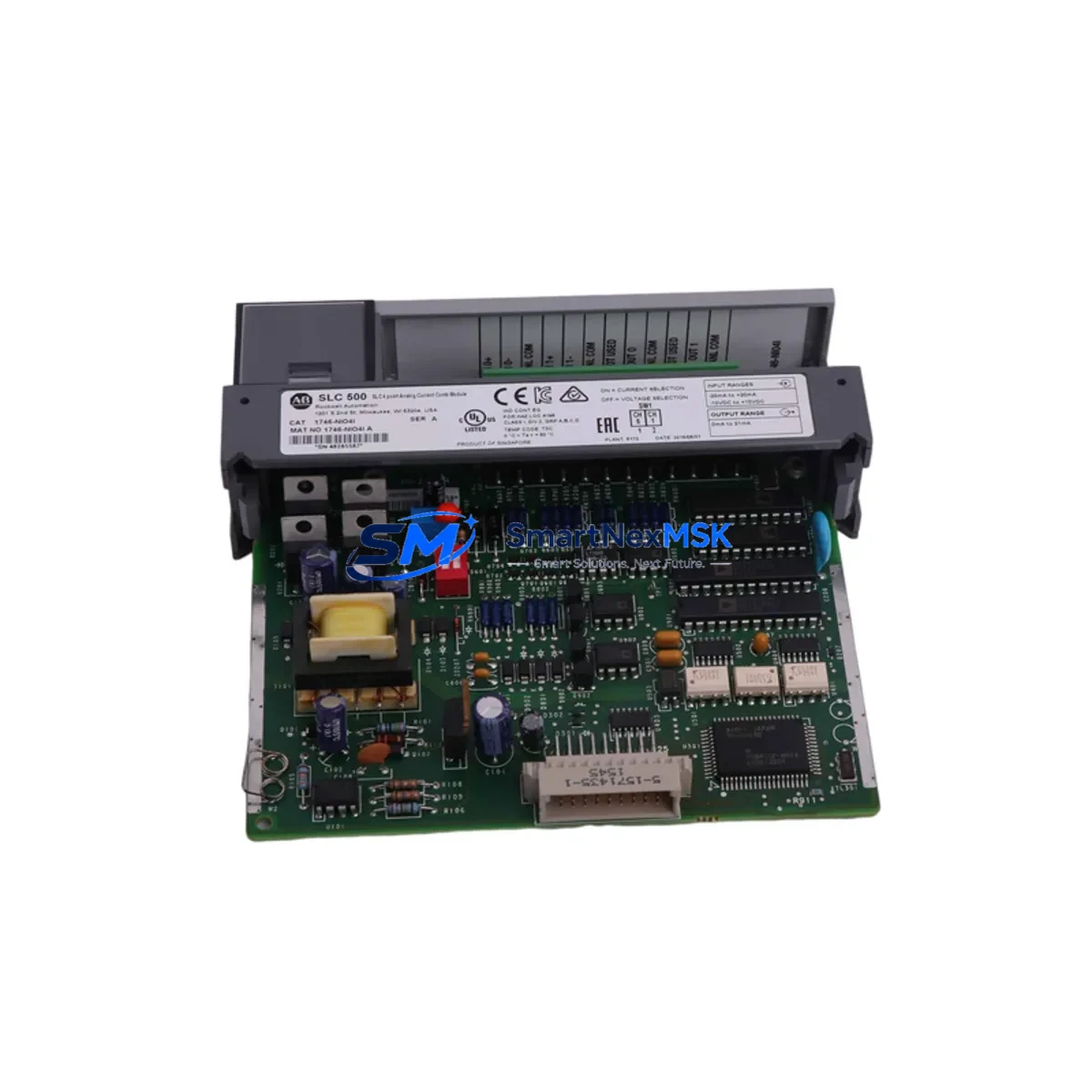

The Allen-Bradley 1746-NIO4I is a 4-channel isolated analog combination input/output module engineered for the SLC 500 programmable controller platform. Designed to operate reliably in high-noise, high-vibration, and thermally demanding industrial environments, the 1746-NIO4I delivers the signal integrity and channel isolation that safety-critical control loops demand. Whether deployed in petrochemical processing, power generation, mining extraction, water treatment, metallurgical smelting, port logistics, or continuous manufacturing, this module provides the measurement accuracy and fault tolerance that keeps production running and personnel safe.

Each channel features galvanic isolation, protecting the SLC 500 backplane — and the broader control cabinet — from ground loops, common-mode voltage transients, and surge events that routinely occur in heavy industrial switchgear rooms and field junction boxes. When paired with a 1746-P4 or 1746-P7 power supply module, the system maintains stable 24 VDC rail voltage even during upstream grid fluctuations, preventing the module mis-operation and spurious output changes that can trigger unplanned shutdowns or safety interlock faults.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust SLC 500 control cabinet built around the 1746-NIO4I relies on a coordinated ecosystem of protective and communicative components. The 1746-A13 13-slot chassis provides the physical backbone, while the 1747-L553 or 1747-L563 SLC 5/05 processor handles ladder logic execution and Ethernet/IP communication to the supervisory SCADA layer. For field-side surge protection, DIN-rail mounted surge protective devices (SPDs) on every analog loop — particularly in outdoor substations or exposed field panels — prevent the 1746-NIO4I’s input circuitry from absorbing lightning-induced transients that can permanently damage unprotected analog front ends.

Power quality is equally critical. The 1746-P4 power supply module, rated at 10 A at 5 VDC backplane output, ensures that all installed I/O modules including the 1746-NIO4I receive clean, regulated power even when the facility’s 120/240 VAC feed experiences sags or momentary interruptions. In applications where continuous uptime is non-negotiable — such as chemical reactor temperature control or turbine governor feedback — an uninterruptible power supply (UPS) module upstream of the 1746-P4 eliminates the risk of control-loop dropout during grid events.

For communication integrity, the 1747-SDN DeviceNet scanner module or 1747-SCNR Remote I/O scanner can extend the SLC 500 rack’s reach to distributed field panels, reducing the length of analog signal runs and the associated susceptibility to signal drift and noise pickup. Shorter analog cable runs directly improve the measurement accuracy of the 1746-NIO4I’s 4–20 mA channels, which is especially important in precision flow control and pressure regulation loops. Complementing this, the 1492-AIFM analog interface module wiring system provides a clean, labeled terminal block interface between field wiring and the 1746-NIO4I, reducing wiring errors during commissioning and simplifying maintenance during live-plant troubleshooting.

In safety interlock architectures, the 1746-NIO4I analog outputs are often used to drive I/P transducers and control valves in emergency shutdown (ESD) loops. Pairing the module with a 1746-OB16 digital output module for discrete ESD commands and a 1746-IB16 digital input module for position feedback creates a complete, tightly integrated safety loop within a single SLC 500 chassis — minimizing scan-time latency and reducing the risk of communication-induced interlock delays.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 1746-NIO4I is widely deployed in distillation column temperature profiling and reactor pressure control, where signal drift or module failure can escalate to overpressure events. Its channel isolation prevents ground-loop interference from large rotating machinery — pumps, compressors, and agitators — from corrupting the analog measurements that feed safety instrumented system (SIS) logic solvers.

Power Generation: In coal-fired and gas turbine power plants, the module monitors boiler drum level, feedwater flow, and steam pressure in closed-loop PID control. The 12-bit resolution and ±0.1% accuracy ensure that the SLC 500 processor receives faithful representations of process variables, enabling tight control margins that protect boiler integrity and grid stability.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 1746-NIO4I’s robust construction and wide operating temperature range make it a dependable choice for conveyor belt load monitoring, crusher motor current feedback, and flotation cell level control in environments where module replacement is costly and logistically complex.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the module for pH, dissolved oxygen, turbidity, and flow measurement in continuous treatment processes. The galvanic isolation is particularly valuable in wet environments where ground potential differences between field instruments and the control room panel can introduce measurement errors that compromise dosing accuracy and regulatory compliance.

Metallurgy & Steel: Electric arc furnace (EAF) and continuous casting operations generate severe electromagnetic interference from high-current bus bars and induction heating systems. The 1746-NIO4I’s EMI immunity — meeting IEC 61000-4 series requirements — ensures that analog signals from thermocouples, load cells, and position transducers remain accurate even in the immediate vicinity of high-power electrical equipment.

Port & Heavy Logistics: Ship-to-shore cranes, rubber-tyred gantry (RTG) cranes, and automated stacking systems use the 1746-NIO4I for load cell feedback and hydraulic pressure monitoring. Reliable analog I/O in these applications directly supports safe load handling and prevents overload conditions that could damage equipment or endanger personnel.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1746-NIO4I?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform to its published specifications within the warranty period, we provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every 1746-NIO4I undergoes a pre-shipment functional verification that includes power-on self-test, channel-by-channel analog input and output accuracy checks across the full signal range (voltage and current modes), isolation resistance measurement, and backplane communication verification using a reference SLC 500 chassis. Units that do not meet specification are quarantined and not shipped.

Q3: Is the 1746-NIO4I compatible with all SLC 500 chassis and processors?
Yes. The 1746-NIO4I is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processor families (SLC 5/01 through SLC 5/05). It occupies one slot and is configured via RSLogix 500 or Studio 5000 Logix Designer in compatibility mode. No firmware updates to the processor are required for standard operation.

Q4: Can you guarantee long-term supply and spare-part availability?
Yes. We maintain dedicated safety stock of the 1746-NIO4I to support planned maintenance cycles, emergency replacements, and MRO procurement programs. For customers operating large SLC 500 fleets, we offer blanket order arrangements and reserved inventory allocation to ensure continuity of supply regardless of broader market availability fluctuations. Contact our team to discuss your long-term spare-part strategy.
