Allen-Bradley 1746-NT8 Safety-Enhanced Thermocouple Input

Allen-Bradley 1746-NT8 Safety-Enhanced Thermocouple Input for Harsh Industrial Sites

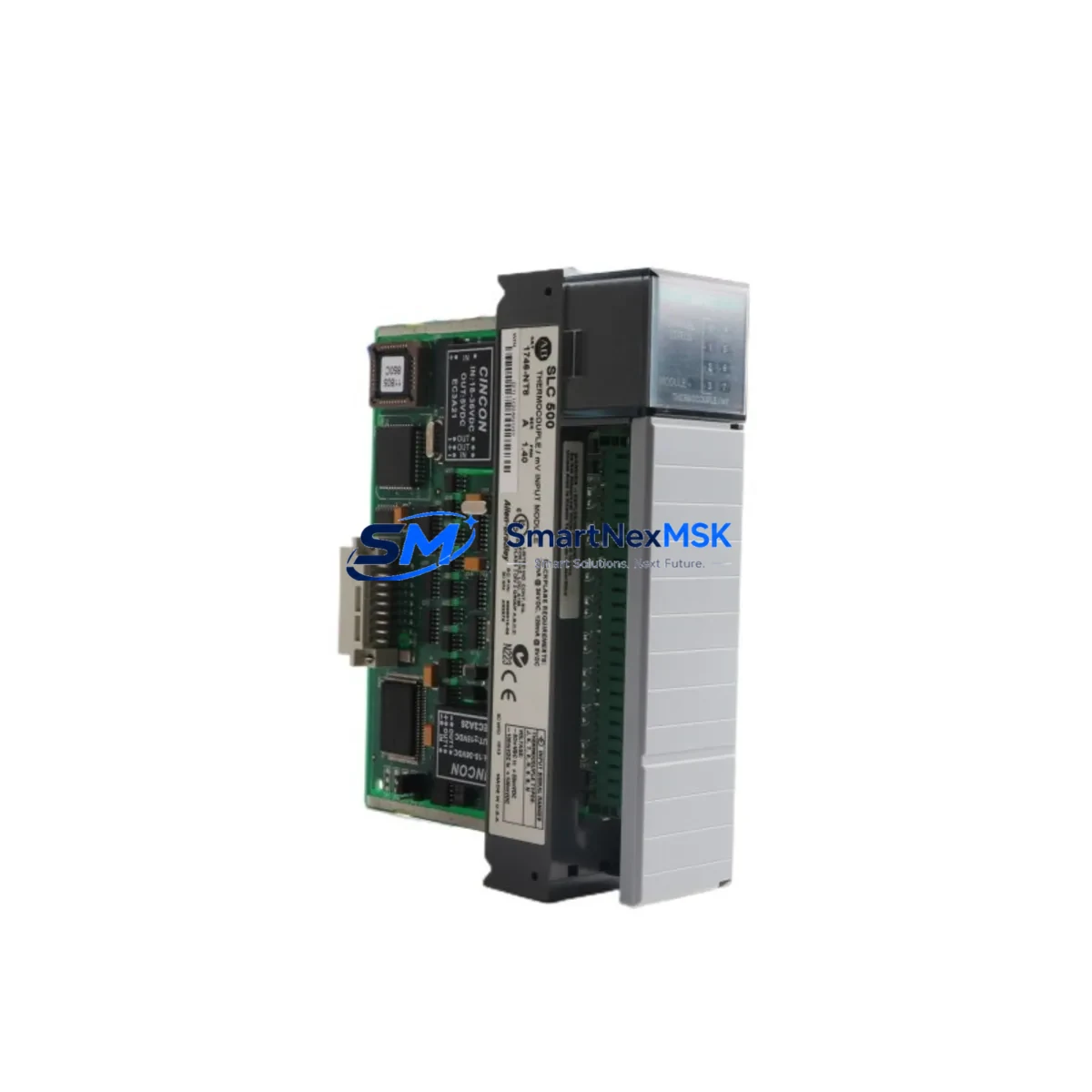

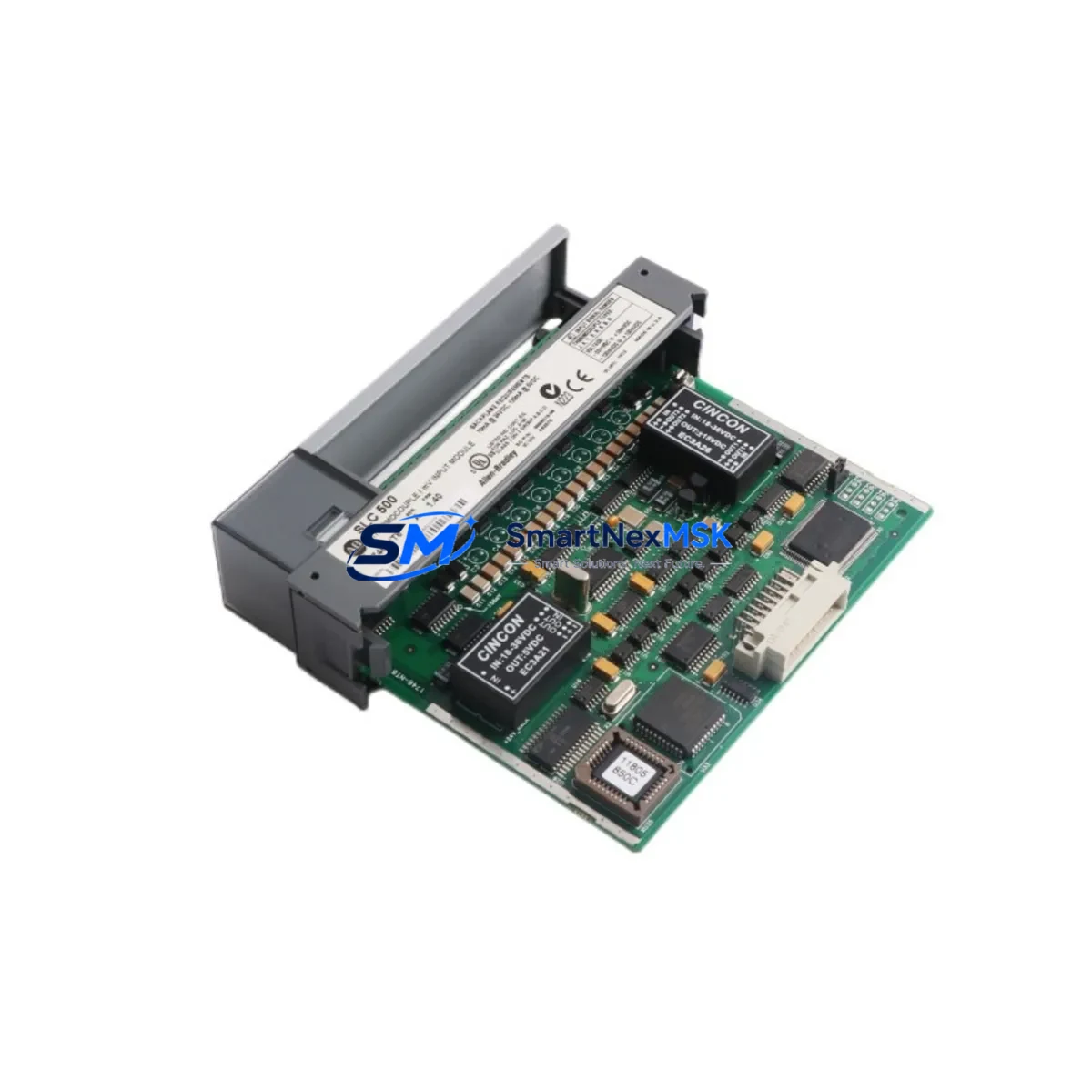

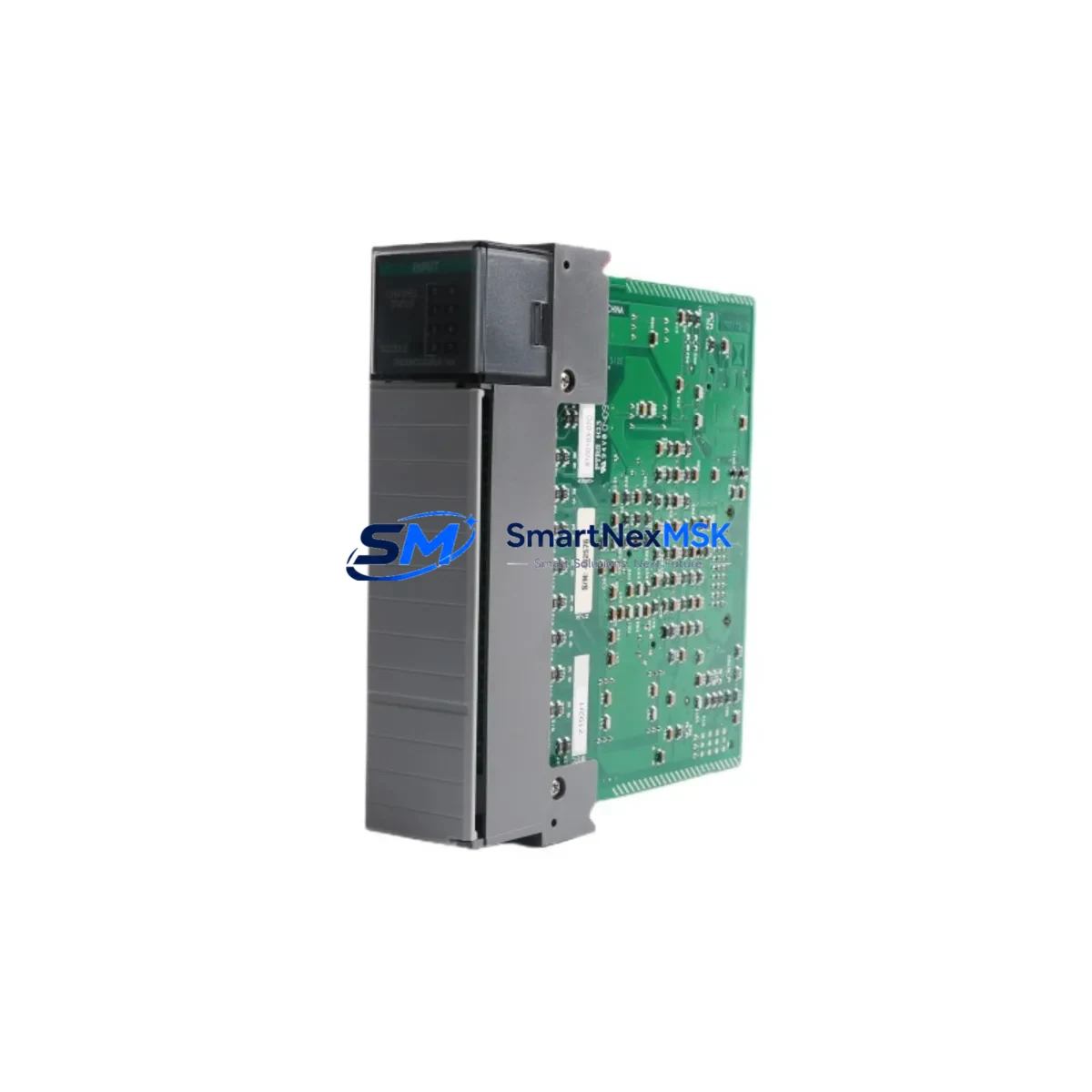

The Allen-Bradley 1746-NT8 is an 8-channel thermocouple analog input module designed for the SLC 500 programmable controller platform. In high-load continuous production environments — petrochemical reactors, power generation turbines, metallurgical furnaces, and mining extraction systems — precise and uninterrupted temperature measurement is not a convenience; it is a safety imperative. The 1746-NT8 delivers the signal integrity, noise immunity, and environmental resilience required to keep critical control loops stable under the most demanding field conditions.

Deployed within SLC 500 fixed or modular chassis alongside the 1746-A4, 1746-A7, or 1746-A13 backplane assemblies, the 1746-NT8 communicates over the SLC 500 I/O bus with deterministic scan-cycle timing. This architecture eliminates the latency variability that can cause temperature-based safety interlocks to respond too slowly during thermal runaway events. When paired with a 1747-L543 or 1747-L553 SLC 5/04 or 5/05 processor, the module supports ladder-logic-driven alarm thresholds that can trigger emergency shutdowns, activate cooling circuits, or isolate hazardous zones before process temperatures exceed safe operating limits.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust SLC 500 control cabinet built around the 1746-NT8 demands a layered protection architecture. Upstream power quality is foundational: the 1606-XLP72E or equivalent SLC-rated 24 V DC power supply with active power factor correction ensures the backplane voltage remains stable even during grid disturbances common in heavy industrial facilities. Surge transients entering through thermocouple field wiring — a frequent occurrence in arc furnace environments or near high-voltage switchgear — are suppressed by installing MTL 7700 series or Phoenix Contact TRABTECH surge protection devices at the cabinet entry point, protecting the 1746-NT8 input channels from damage and preventing spurious temperature readings that could mask real process anomalies.

For digital interlock coordination, the 1746-OB16 or 1746-OW16 output modules translate the 1746-NT8’s over-temperature alarms into hardwired relay commands that can de-energize contactors, activate audible alarms, or open safety valves — all within a single SLC 500 scan cycle. Where the control system must communicate temperature data upstream to a supervisory SCADA layer, the 1747-SDN DeviceNet Scanner or 1747-KE RS-232/DH-485 Interface Module provides the communication bridge without introducing additional latency into the safety loop. In installations requiring redundant temperature verification, a secondary 1746-NI8 analog input module configured for 4–20 mA transmitter inputs can cross-validate thermocouple readings, flagging sensor drift before it propagates into a control decision.

Cabinet thermal management is equally critical: the 1746-NT8’s own operating range tops out at 60 °C, so pairing the chassis with a Rittal SK 3105 or equivalent cabinet air conditioner or heat exchanger maintains module longevity in high-ambient-temperature plant rooms. Proper grounding of the SLC 500 chassis to a dedicated instrument earth — separate from the power earth — further reduces common-mode noise on thermocouple channels, preserving the module’s ≥ 120 dB common mode rejection specification in practice, not just on paper.

Critical Industrial Safety Applications

Petrochemical & Refinery: In catalytic cracking units and distillation columns, the 1746-NT8 monitors reactor bed temperatures across multiple zones simultaneously. Its open-circuit detection capability ensures that a broken thermocouple wire — a common failure mode in high-vibration piping environments — immediately triggers a fault flag in the SLC 500 processor rather than silently reporting a false low temperature that could allow a runaway exothermic reaction to go undetected.

Power Generation: Steam turbine bearing temperature monitoring and boiler drum temperature control are applications where signal drift of even a few degrees can indicate developing mechanical failure. The 1746-NT8’s 16-bit resolution and automatic cold junction compensation provide the measurement accuracy needed to distinguish genuine thermal trends from instrumentation noise, supporting predictive maintenance programs that reduce unplanned outages.

Metallurgy & Foundry: Electric arc furnaces, induction heaters, and continuous casting lines generate extreme electromagnetic interference. The 1746-NT8’s ≥ 60 dB normal mode rejection and 500 V AC field-to-logic isolation prevent furnace switching transients from corrupting temperature data, ensuring that melt temperature control remains accurate throughout the heat cycle.

Mining & Mineral Processing: Conveyor drive motor winding temperatures, crusher bearing temperatures, and flotation cell process temperatures are monitored in environments with heavy dust, vibration, and wide ambient temperature swings. The module’s IEC 68-2-6 vibration compliance and wide storage temperature range make it suitable for installation in field junction boxes closer to the measurement point, reducing thermocouple extension wire runs and the associated signal degradation.

Water & Wastewater Treatment: Sludge incinerator temperature control and UV disinfection system monitoring require continuous, reliable temperature feedback. The 1746-NT8 supports uninterrupted operation in these 24/7 facilities, and its compatibility with the broader SLC 500 ecosystem means spare modules are readily available for rapid replacement without reprogramming the control system.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers any functional failure of the 1746-NT8 under normal operating conditions from the date of shipment. If a module fails within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund after fault verification. Customers are asked to contact sales@smartnexmsk.com with the order reference and a description of the fault. Replacement units are dispatched from in-stock inventory to minimize control system downtime.

Q2: How is each unit tested before shipment?
Every 1746-NT8 unit undergoes a full functional test prior to dispatch. This includes backplane communication verification, per-channel analog input accuracy check across multiple thermocouple types, open-circuit detection confirmation, and isolation integrity verification. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the 1746-NT8 compatible with all SLC 500 chassis and processors?
The 1746-NT8 is compatible with all SLC 500 modular chassis (1746-A4, A7, A10, A13) and all SLC 500 processors including the SLC 5/01 (1747-L511), SLC 5/02 (1747-L524), SLC 5/03 (1747-L531/L532/L533), SLC 5/04 (1747-L541/L542/L543), and SLC 5/05 (1747-L551/L552/L553). Configuration is performed via RSLogix 500 software. If you are integrating into an existing system, please share your chassis and processor model when ordering so we can confirm slot compatibility.

Q4: Can long-term supply be guaranteed for ongoing maintenance and spare parts programs?
Yes. SMARTNEXMSK maintains dedicated inventory of legacy SLC 500 modules including the 1746-NT8 to support customers with long-lifecycle industrial systems. We understand that many SLC 500 installations will remain in service for 10–20 years, and we are committed to providing reliable spare parts supply, pre-shipment testing, and technical support for the duration of your system’s operational life. Bulk orders and scheduled delivery programs are available — contact sales@smartnexmsk.com or call +86 18259474341 to discuss your requirements.
