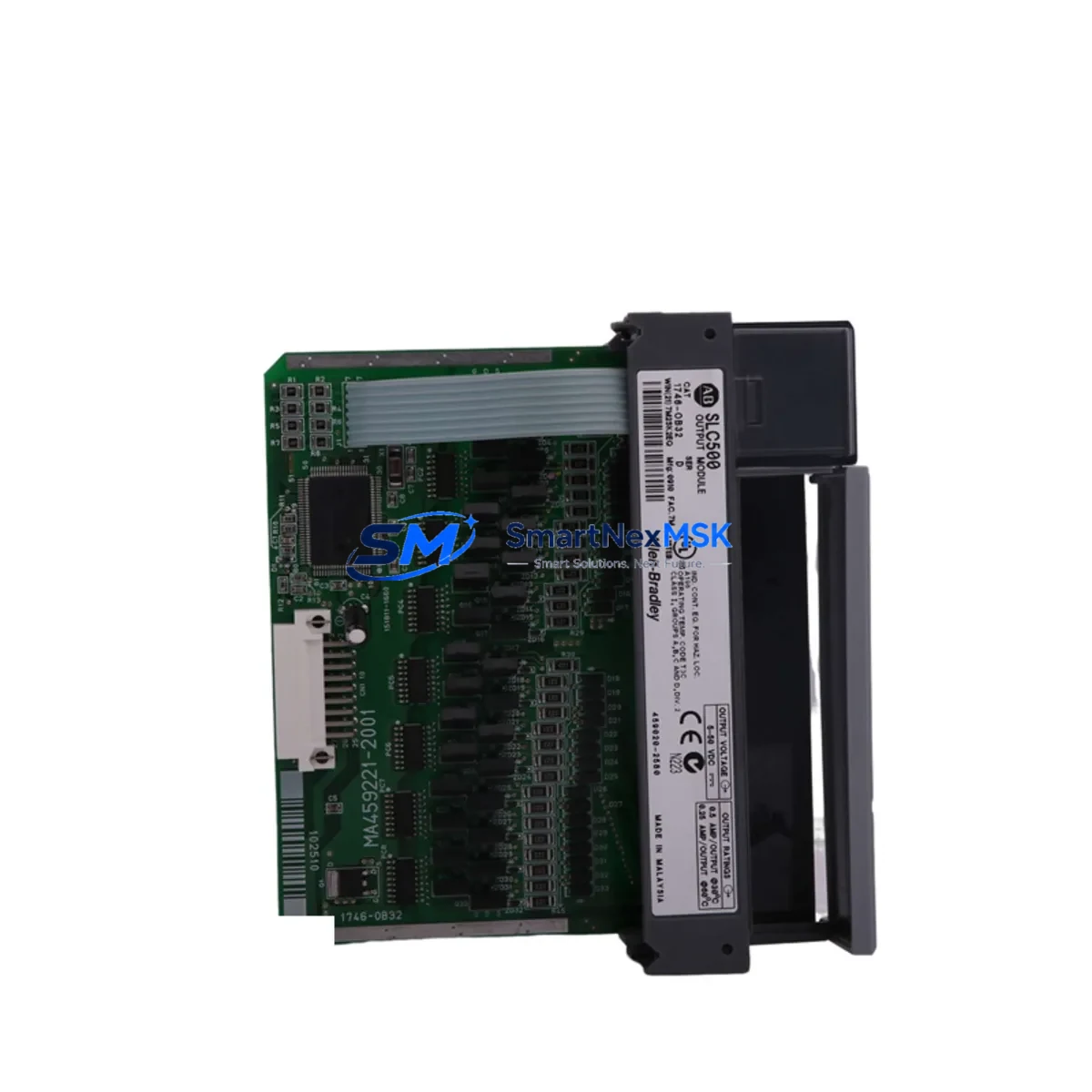

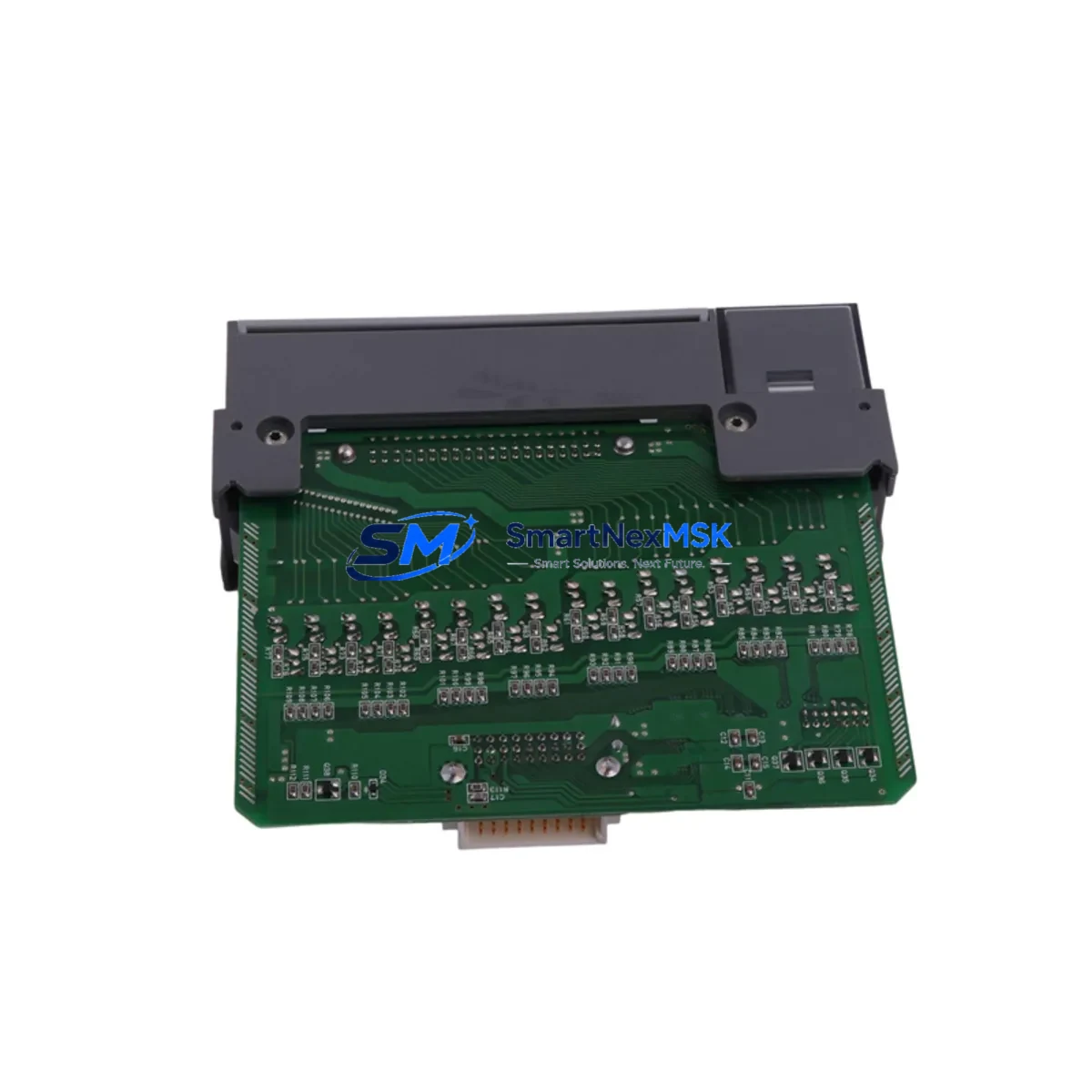

Allen-Bradley 1746-OB32 Maintenance-Ready Spare for SLC 500 Automation
The Allen-Bradley 1746-OB32 is a 32-point sourcing DC output module designed for the SLC 500 modular chassis platform. As a critical field-replaceable unit in SLC 500 control systems, this module directly governs discrete output signals to actuators, solenoids, motor starters, and indicator circuits across a wide range of industrial automation environments. Maintaining a verified spare of the 1746-OB32 in your parts inventory is a proven strategy for minimizing unplanned downtime and accelerating fault recovery in production-critical applications.
For maintenance engineers managing aging SLC 500 installations, the 1746-OB32 represents one of the highest-priority line items on any spare parts checklist. Its 32-channel sourcing output architecture supports 10–50 VDC field devices at up to 1A per point, making it suitable for a broad spectrum of discrete control tasks. Whether you are executing a planned shutdown inspection, responding to an emergency output fault, or building a strategic buffer stock for a multi-line facility, sourcing an original, tested 1746-OB32 from a reliable supplier is essential to maintaining system integrity.
Each unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification and is backed by a 12-month warranty, ensuring that the module you receive is ready for immediate installation without additional bench testing delays.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 1746-OB32 |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | SLC 500 |
| Module Type | 32-Point Sourcing DC Output |
| Output Voltage Range | 10–50 VDC |
| Output Current per Point | 1.0 A max |
| Total Module Current | 8 A max (all outputs on) |
| Output Type | Transistor (Sourcing / PNP) |
| Backplane Current Draw (5 VDC) | 185 mA |
| Operating Temperature | 0°C to 60°C |
| Compatibility | SLC 500 modular chassis (1746 series): 4-, 7-, 10-, 13-slot |
| Wiring Style | Removable terminal block (RTB) |
| Isolation | Optical isolation between field and backplane |
| Indicators | Per-point output status LEDs |
| Application Environment | Industrial automation, discrete manufacturing, process control |
| Condition | Original / Genuine — Pre-shipment tested |
| Warranty | 12 Months |
| Origin | USA |
Maintenance Planning for Continuous Operation
When a 1746-OB32 output module fails or is flagged during a routine control cabinet inspection, experienced maintenance engineers know that the fault rarely exists in isolation. A systematic approach to spare parts planning for SLC 500 systems should account for the full electrical circuit surrounding the output module.
Begin by verifying the 1746-P4 or 1746-P7 power supply module — output faults are frequently caused by power supply degradation rather than the output module itself. Confirm that the backplane voltage rails are within specification before condemning the 1746-OB32. Alongside the power supply, inspect the 1746-A10 or 1746-A13 chassis backplane for signs of corrosion, damaged connector pins, or intermittent slot contact that can mimic output module failures.
On the field wiring side, check the removable terminal block (RTB) associated with the 1746-OB32 for loose terminations, insulation breakdown, or overheated conductors — particularly on high-cycle output points driving solenoid valves or motor contactors. If the system includes 1746-IB32 or 1746-IA16 input modules in the same chassis, verify that input signal integrity has not been compromised by the same fault event that triggered the output failure.
For systems with communication-dependent output control, inspect the 1747-SDN DeviceNet Scanner or 1747-KE DH-485 communication module to confirm that network-commanded outputs are receiving valid data. A communication timeout can cause outputs to de-energize unexpectedly, which may be misdiagnosed as an output module fault.
In facilities running mixed SLC 500 and MicroLogix architectures, it is also advisable to maintain spares of the 1762-OB16 MicroLogix 1200 output module and 1769-OB16 CompactLogix output module to cover cross-platform maintenance scenarios. For analog output circuits in the same control cabinet, the 1746-NO4I analog output module should be included in the spare parts register alongside the 1746-OB32.
Finally, ensure that fuse blocks and branch circuit protection for the 24 VDC field power supply feeding the output module’s load circuits are inspected and documented. Blown fuses on output field power are a common root cause of apparent output module failures and should always be ruled out before module replacement.
Site Replacement Workflow
Step 1 — Isolate and document: Before removing the 1746-OB32, place the SLC 500 processor (1747-L553 or equivalent) in Program mode via RSLogix 500 or the keyswitch. Record the current output status table (O:x) and note any forced outputs that may need to be re-applied after replacement. Photograph the RTB wiring layout before disconnection.
Step 2 — Remove the RTB and module: Disconnect the removable terminal block first to preserve field wiring integrity. Slide the 1746-OB32 out of the chassis slot. Inspect the backplane connector on both the module and the chassis for damage or contamination.
Step 3 — Install the replacement module: Seat the new 1746-OB32 firmly into the same chassis slot. The SLC 500 platform supports hot-swap of I/O modules in some configurations, but it is recommended to perform replacement in Program mode to avoid unintended output activation during insertion.
Step 4 — Reconnect and verify: Reattach the RTB, confirm all terminal screws are torqued to specification, and return the processor to Run mode. Use the RSLogix 500 online monitoring view to verify that all 32 output points respond correctly to logic commands. Confirm field device operation before releasing the system to production.
Step 5 — Update maintenance records: Log the replacement in your CMMS, update the spare parts inventory, and reorder a replacement 1746-OB32 to restore buffer stock. SMARTNEXMSK supports long-term supply continuity for SLC 500 spare parts, including legacy and discontinued modules.
Spare Parts Support FAQ
Q1: Is this 1746-OB32 an original Allen-Bradley module or a compatible replacement?
This is an original Allen-Bradley 1746-OB32 module sourced through established industrial supply channels. It is not a third-party compatible or counterfeit substitute. Each unit is inspected and functionally tested prior to shipment to confirm genuine part integrity.
Q2: What is the warranty coverage and what does it include?
All 1746-OB32 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. Units are tested before dispatch; if a module fails on arrival or within the warranty period, we provide replacement or full refund support.
Q3: Can this module replace older 1746-OB32 revisions already installed in my SLC 500 chassis?
Yes. The 1746-OB32 is backward-compatible across SLC 500 modular chassis generations. Revision differences do not affect slot compatibility or I/O addressing. No RSLogix 500 program changes are required when replacing one 1746-OB32 revision with another in the same chassis slot.
Q4: How quickly can this module be shipped, and do you support urgent maintenance orders?
SMARTNEXMSK maintains ready stock of high-demand SLC 500 spare parts including the 1746-OB32. Standard orders are processed and shipped within 1–2 business days. For emergency maintenance situations requiring expedited dispatch, contact our sales team directly to confirm availability and arrange priority shipment.
