Allen-Bradley 1746SC-IN04VI Spare for SLC 500 Automation

Allen-Bradley 1746SC-IN04VI Spare for SLC 500 Automation: Reliable Spare Replacement for Continuous Industrial Operation

When a production line goes down due to a failed analog output module, every minute of unplanned downtime translates directly into lost revenue and compromised process integrity. The Allen-Bradley 1746SC-IN04VI is a 4-channel isolated analog output module engineered for the SLC 500 modular chassis platform — a control architecture that remains deeply embedded in petrochemical processing, water treatment, food and beverage manufacturing, and discrete assembly operations worldwide. Keeping a verified, tested spare of the 1746SC-IN04VI in your maintenance inventory is not optional for facilities running continuous or semi-continuous processes; it is a fundamental element of any credible maintenance strategy.

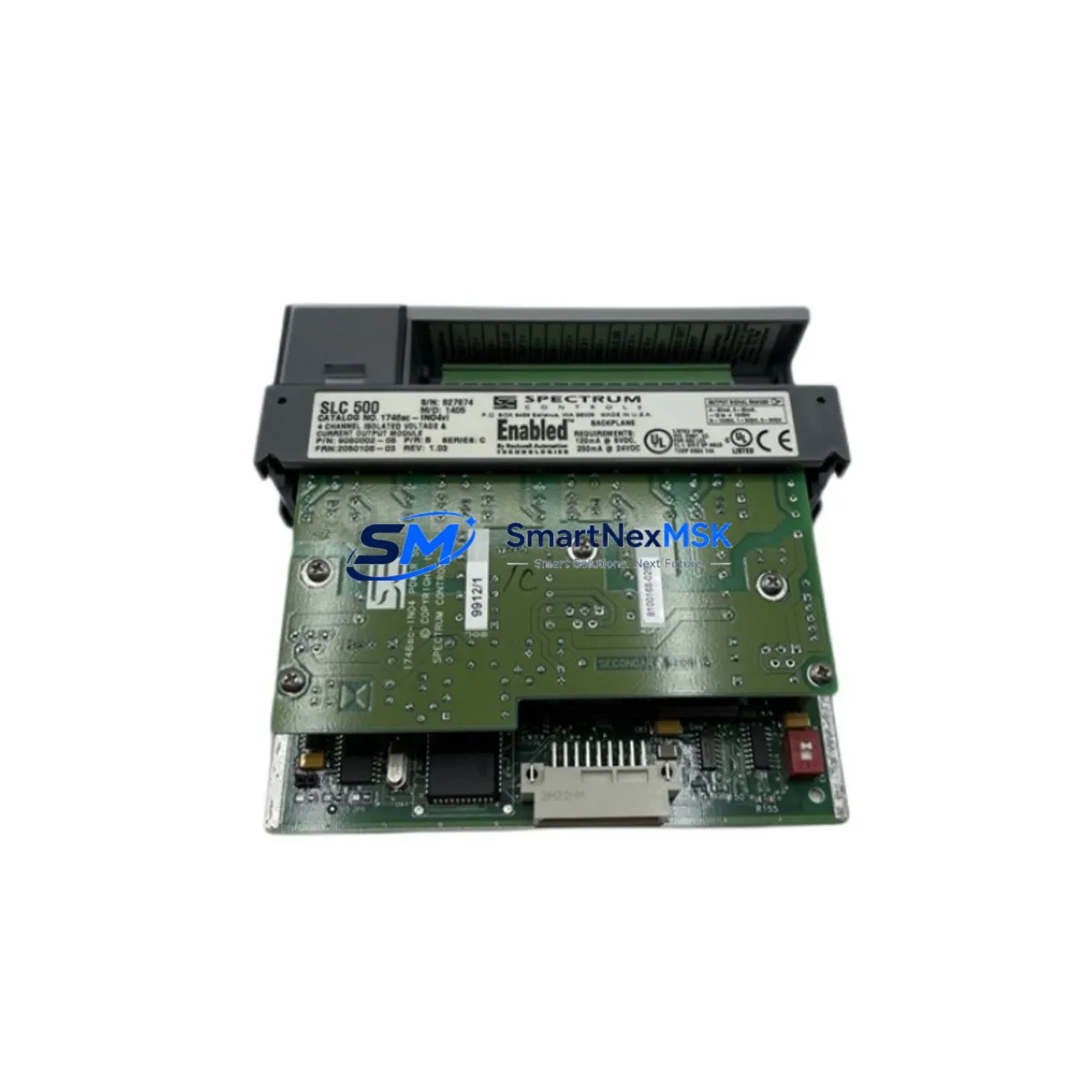

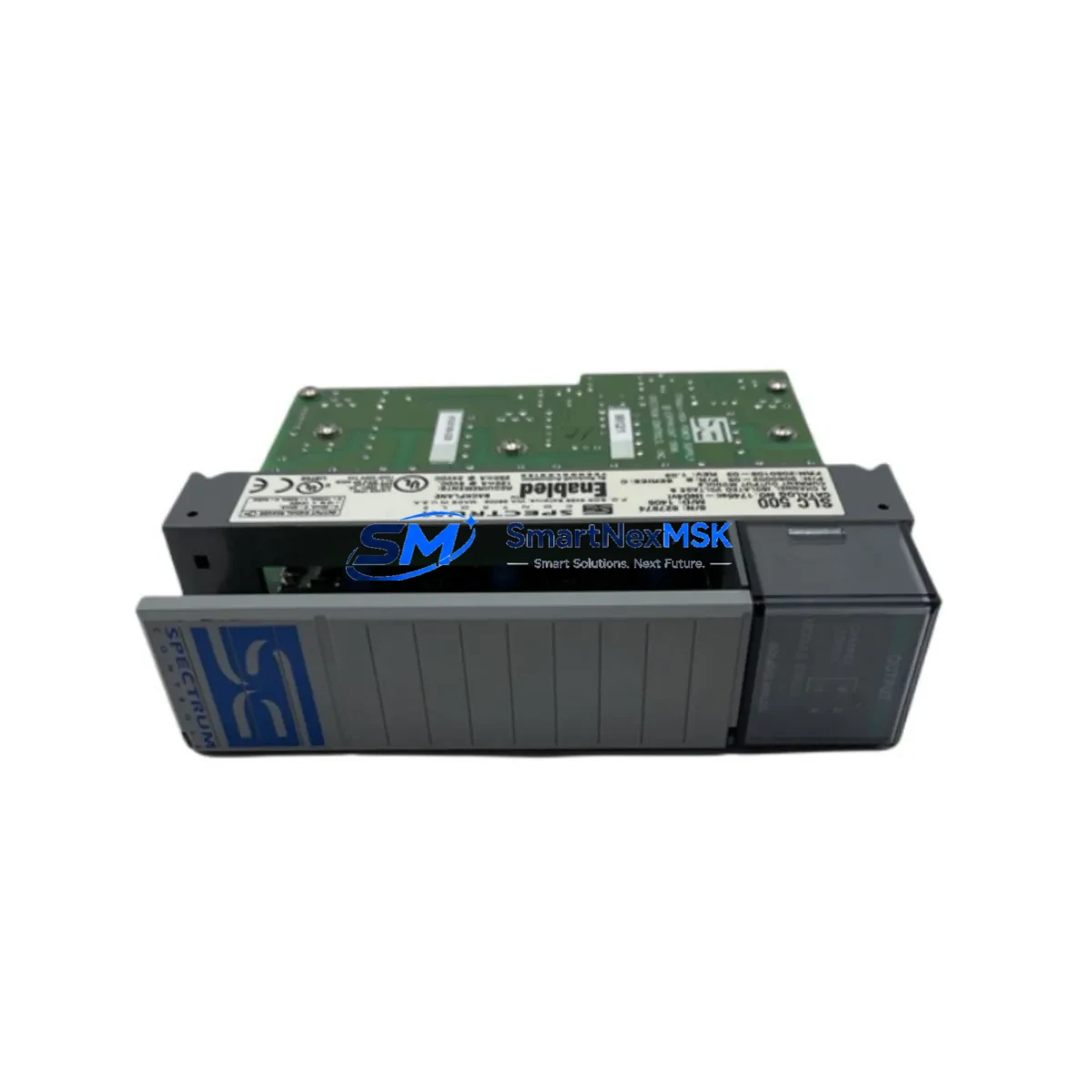

The 1746SC-IN04VI delivers four independently isolated analog output channels, supporting both voltage and current signal modes. Its isolation architecture prevents ground loops and cross-channel interference — a critical advantage in environments where multiple field instruments share a common control cabinet. Maintenance engineers working on SLC 500 systems recognize this module as a precision-grade component that must be replaced like-for-like to preserve calibration integrity and loop performance. A direct replacement with a genuine, factory-tested unit eliminates the risk of signal offset, range mismatch, or firmware incompatibility that can arise from using non-original substitutes.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A disciplined maintenance engineer does not replace the 1746SC-IN04VI in isolation. The SLC 500 control cabinet is an integrated system, and a failed analog output module is often a symptom of broader stress on the electrical environment. During any planned or emergency replacement of the 1746SC-IN04VI, the following components in the same cabinet or control loop should be inspected and, where appropriate, stocked as companion spares.

The 1746-P4 or 1746-P7 power supply module is the first item to verify. Analog output modules are sensitive to backplane voltage stability; a degraded power supply delivering marginal 5 VDC or 24 VDC rails can cause intermittent output errors that mimic a failed I/O module. Confirm that the power supply is within specification before commissioning the replacement 1746SC-IN04VI.

The 1746-A13 or 1746-A7 SLC 500 chassis backplane should be visually inspected for connector pin damage, oxidation, or mechanical stress. A damaged backplane slot will cause communication faults even with a healthy replacement module installed. If the chassis has been in service for more than ten years, proactive replacement of the backplane is a sound investment.

The 1747-L553 or 1747-L543 SLC 5/05 or SLC 5/04 processor should have its firmware version confirmed to ensure compatibility with the 1746SC-IN04VI module configuration. Processor firmware mismatches can prevent the module from being recognized during the I/O scan. Keeping a spare processor with a pre-loaded and verified program image dramatically reduces recovery time during a critical failure event.

Field wiring termination at the 1492-CABLE series pre-wired cables or terminal block assemblies connected to the 1746SC-IN04VI should be inspected for insulation degradation, loose ferrules, and corrosion. In high-vibration environments such as compressor stations or rolling mills, terminal connections loosen over time and introduce resistance that distorts the analog output signal reaching the final control element.

Signal isolators — such as the MTL5576 or equivalent DIN-rail-mounted galvanic isolators — installed between the 1746SC-IN04VI outputs and field instruments should be tested for drift. Isolators age and their transfer accuracy degrades, which can be misattributed to a faulty analog output module. Replacing the module without verifying the isolator will not resolve the underlying signal error.

The 1747-SDN DeviceNet scanner or 1747-SCNR Remote I/O scanner, if present in the same chassis, should be checked for communication health. A scanner module generating excessive backplane traffic can starve analog I/O modules of scan time, causing output update delays that appear as control instability. Reviewing the scanner’s diagnostic counters during the maintenance window costs nothing and can prevent a future unplanned outage.

Finally, the 1746-NI8 analog input module on the same chassis — which typically reads process feedback signals paired with the 1746SC-IN04VI outputs — should be calibrated and verified. A control loop is only as accurate as its weakest link; replacing the output module while leaving a drifted input module in service will not restore full loop performance.

Site Replacement Workflow

Replacing the 1746SC-IN04VI on a live SLC 500 system requires a structured approach to minimize downtime and avoid introducing new faults. The following workflow reflects best practices for maintenance engineers executing an emergency or planned replacement.

Step 1 — Pre-Replacement Verification. Before removing the suspect module, use RSLogix 500 or Studio 5000 (in legacy compatibility mode) to capture the current I/O configuration, channel scaling parameters, and output data table values. Export the processor program to a USB drive or engineering workstation as a backup. Confirm that the replacement 1746SC-IN04VI has the same catalog suffix and hardware revision to ensure full compatibility.

Step 2 — Safe Isolation. Place the SLC 500 processor in Program mode via the key switch or RSLogix 500 online connection. Verify that all field outputs driven by the 1746SC-IN04VI have been placed in a safe state — control valves at fail-safe position, drives at zero speed reference, and interlock systems acknowledged. Do not rely solely on software inhibit; physically verify field device states before proceeding.

Step 3 — Module Removal and Installation. With the chassis powered (hot-swap is supported on SLC 500 modular chassis), carefully remove the 1746SC-IN04VI by releasing the locking tab and sliding the module out of its slot. Insert the replacement module into the same slot. The backplane connector should seat firmly without excessive force. If resistance is felt, inspect the slot for bent pins before forcing the module.

Step 4 — Configuration Restore and Functional Test. Return the processor to Run mode and monitor the I/O status bits for the replacement module in RSLogix 500. Verify that all four output channels are recognized and that the output data table values are being written correctly. Perform a loop test on each channel by commanding known output values and confirming the corresponding field instrument response. Document the test results in the maintenance log.

Step 5 — Return to Service. Once all channels are verified, release the process to normal automatic control. Monitor the system for the first 30 minutes of operation to confirm stable analog output performance. Update the spare parts inventory record to reflect the consumed unit and initiate a replenishment order to maintain the recommended minimum stock level of one spare 1746SC-IN04VI per SLC 500 system.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 1746SC-IN04VI supplied by SMARTNEXMSK?
Every 1746SC-IN04VI shipped by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement or full refund after technical verification. Our warranty process is straightforward — contact sales@smartnexmsk.com with your order number and a brief fault description to initiate a claim.

Q2: How is the 1746SC-IN04VI tested before shipment?
Each unit undergoes a multi-point functional test prior to dispatch. Testing includes backplane communication verification, channel-by-channel output signal accuracy check across the full voltage and current output range, and isolation integrity confirmation. Units that do not meet original Allen-Bradley performance specifications are quarantined and not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: Is the 1746SC-IN04VI compatible with all SLC 500 chassis and processor revisions?
The 1746SC-IN04VI is designed for use in any SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and is compatible with all SLC 5/01 through SLC 5/05 processors. Configuration is performed through RSLogix 500 software. If your system uses an older processor firmware revision, we recommend confirming the module catalog suffix matches your existing installed unit to ensure identical hardware revision compatibility. Our technical team can assist with compatibility verification prior to purchase.

Q4: Can SMARTNEXMSK support long-term supply of the 1746SC-IN04VI for aging SLC 500 systems?
Yes. SMARTNEXMSK maintains dedicated inventory of SLC 500 series components specifically to support facilities operating legacy Allen-Bradley control systems beyond the original product lifecycle. We understand that many petrochemical, water treatment, and manufacturing plants cannot migrate to newer platforms on short notice, and we are committed to providing reliable, tested spare parts supply for the long term. Blanket order arrangements and reserved stock agreements are available for high-volume or critical-site customers — contact sales@smartnexmsk.com to discuss your requirements.
