Allen-Bradley 1747-L542 Maintenance-Ready Spare for SLC 5/04

Allen-Bradley 1747-L542 Maintenance-Ready Spare for SLC 5/04 Automation

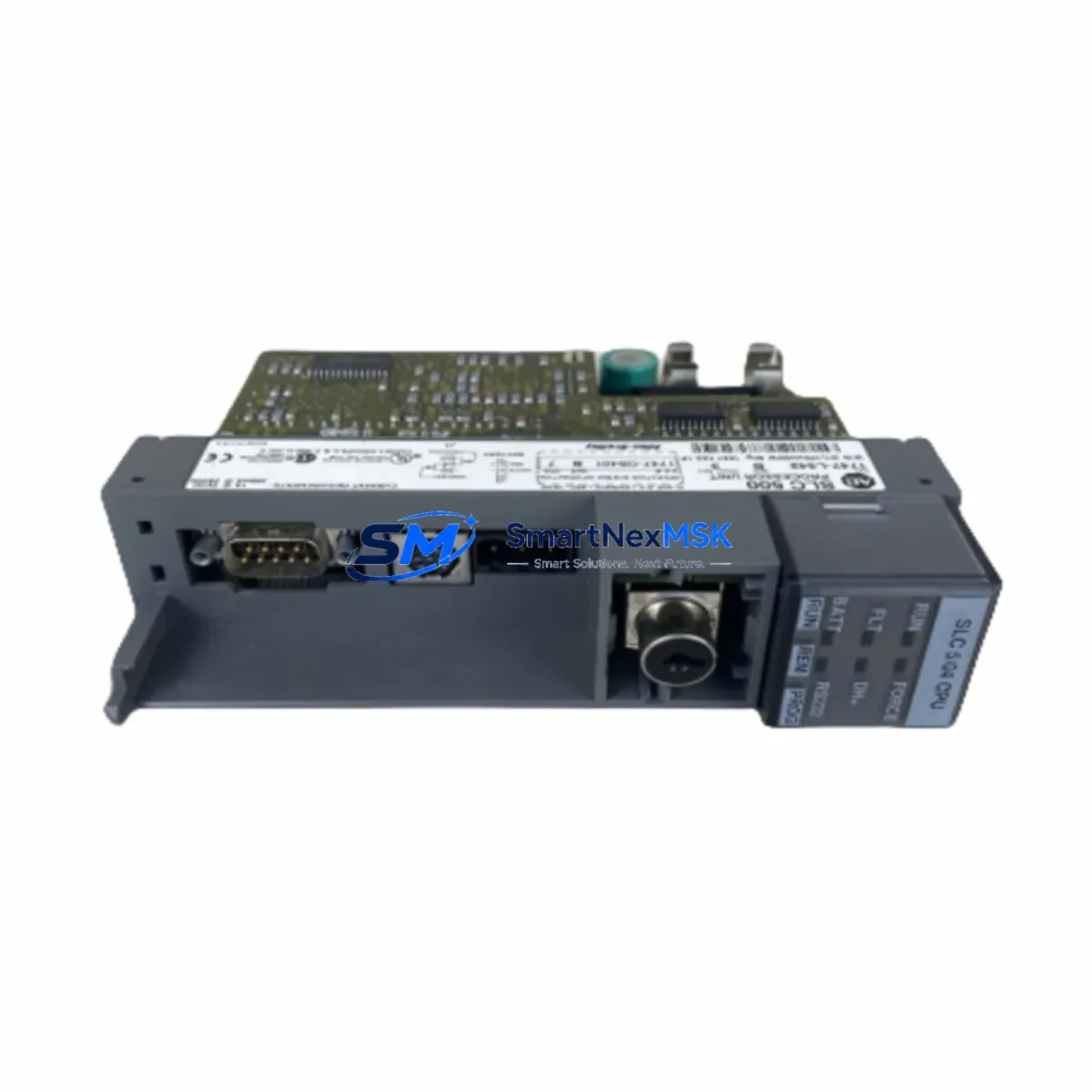

The Allen-Bradley 1747-L542 is a core processor module in the SLC 500 programmable controller family, widely deployed across discrete manufacturing, material handling, water treatment, and process automation facilities. As a maintenance-ready original spare, the 1747-L542 provides 32K words of user memory and supports the SLC 5/04 CPU platform with Data Highway Plus (DH+) and RS-232 communication interfaces. For maintenance engineers managing aging SLC 500 control systems, holding a verified 1747-L542 in the spare parts cabinet is a direct investment in uptime assurance and rapid downtime recovery.

Industrial facilities running SLC 5/04-based control panels face increasing pressure as original hardware reaches end-of-life. The 1747-L542 remains one of the most sought-after replacement processors for legacy SLC 500 racks, and sourcing a tested, original unit with documented warranty coverage is critical to avoiding extended production stoppages. Our stock is inspected, function-tested prior to shipment, and backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 1747-L542 processor fails or is flagged during a scheduled control cabinet inspection, the replacement workflow extends well beyond swapping the CPU module. A disciplined maintenance engineer will treat the processor fault as a trigger for a broader system health check across the entire SLC 500 rack and associated field wiring.

Begin with the 1746-P4 or 1746-P2 power supply module — processor faults are frequently caused by marginal DC bus voltage rather than a failed CPU. Measure output rails under load before condemning the 1747-L542. Next, inspect the 1746-IB16 digital input module and 1746-OB16 digital output module for blown fuses, damaged terminal blocks, or field wiring shorts that may have caused the processor to fault on I/O errors. If the system uses analog signals, verify the 1746-NI4 or 1746-NO4I analog I/O modules for calibration drift or channel failures that could have triggered a watchdog fault.

Communication integrity is equally important. The 1747-L542 relies on the 1747-KE or 1747-AIC Data Highway Plus link coupler for network connectivity; inspect the DH+ cable termination resistors and verify node addressing before restoring the replacement processor to the network. If the system includes a 1747-SDN DeviceNet Scanner module, confirm that the scanner configuration file is backed up and matches the replacement CPU’s memory image.

For facilities using PanelView 550 or PanelView 600 HMI terminals connected via DH+ to the SLC 5/04, verify that the HMI node address and communication parameters are documented before the processor swap — a replacement 1747-L542 loaded from backup will restore these settings, but undocumented configurations can cause post-replacement communication failures. Additionally, check 1492-J terminal blocks and 1492-CABLE wiring harnesses in the control cabinet for signs of heat damage, loose terminations, or insulation degradation that may have contributed to the original fault condition.

Facilities with safety-critical applications should also inspect any MSR127 or MSR138 safety relay modules in the same cabinet, as processor replacement is an ideal opportunity to verify safety circuit continuity and reset logs. Keeping a documented spare parts list that includes the 1747-L542 alongside these associated components ensures that a single cabinet fault does not cascade into a multi-day outage.

Site Replacement Workflow

Step 1 — Backup: Before removing the existing 1747-L542, use RSLogix 500 to upload and save the full program, including data files, I/O configuration, and communication settings, to a secure offline location. Verify the backup file integrity before proceeding.

Step 2 — Power Down: De-energize the SLC 500 chassis via the 1746-P series power supply disconnect. Confirm zero-energy state with a calibrated multimeter before handling the processor module.

Step 3 — Module Swap: Remove the faulty 1747-L542 from Slot 0. Install the replacement unit, ensuring the module is fully seated in the chassis backplane connector. Secure the retaining latch.

Step 4 — Program Download: Power up the chassis and connect via RSLogix 500. Download the verified backup program to the replacement 1747-L542. Confirm processor mode switches to RUN without faults.

Step 5 — I/O Verification: Force-test critical I/O points to confirm field device communication is restored. Verify DH+ network status and HMI connectivity before releasing the system to production.

Step 6 — Documentation: Record the replacement date, new module serial number, and post-replacement test results in the maintenance log. Update the spare parts inventory to trigger reorder of a replacement 1747-L542 for the next event.

This workflow minimizes mean time to repair (MTTR) and ensures system compatibility is maintained without requiring re-engineering of the existing SLC 500 architecture. The 1747-L542 is a direct drop-in replacement for earlier SLC 5/04 processors, preserving full program and I/O compatibility.

Spare Parts Support FAQ

Q1: Is the 1747-L542 compatible with all SLC 500 modular chassis?
Yes. The 1747-L542 is compatible with all SLC 500 modular chassis variants including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13. It occupies Slot 0 and interfaces with all standard 1746-series I/O modules. Confirm chassis power supply capacity (1746-P2 minimum for full rack configurations) before installation.

Q2: How is the unit tested before shipment?
Each 1747-L542 unit undergoes functional power-on testing and communication port verification prior to dispatch. Units are inspected for physical integrity, firmware version, and memory integrity. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: Can I load my existing RSLogix 500 program directly onto the replacement processor?
Yes, provided you have a valid program backup. The 1747-L542 accepts standard RSLogix 500 (.RSS) program files. Download via the RS-232 Channel 0 port or DH+ network connection. Ensure the processor memory size (32K) is sufficient for your program before download.

Q4: What is your lead time and long-term supply availability?
In-stock units ship within 1–3 business days. We maintain ongoing inventory of the 1747-L542 and associated SLC 500 spare components to support long-term maintenance programs. For facilities managing multiple SLC 500 systems, we recommend establishing a standing spare parts agreement to ensure availability during peak demand or supply disruptions.
