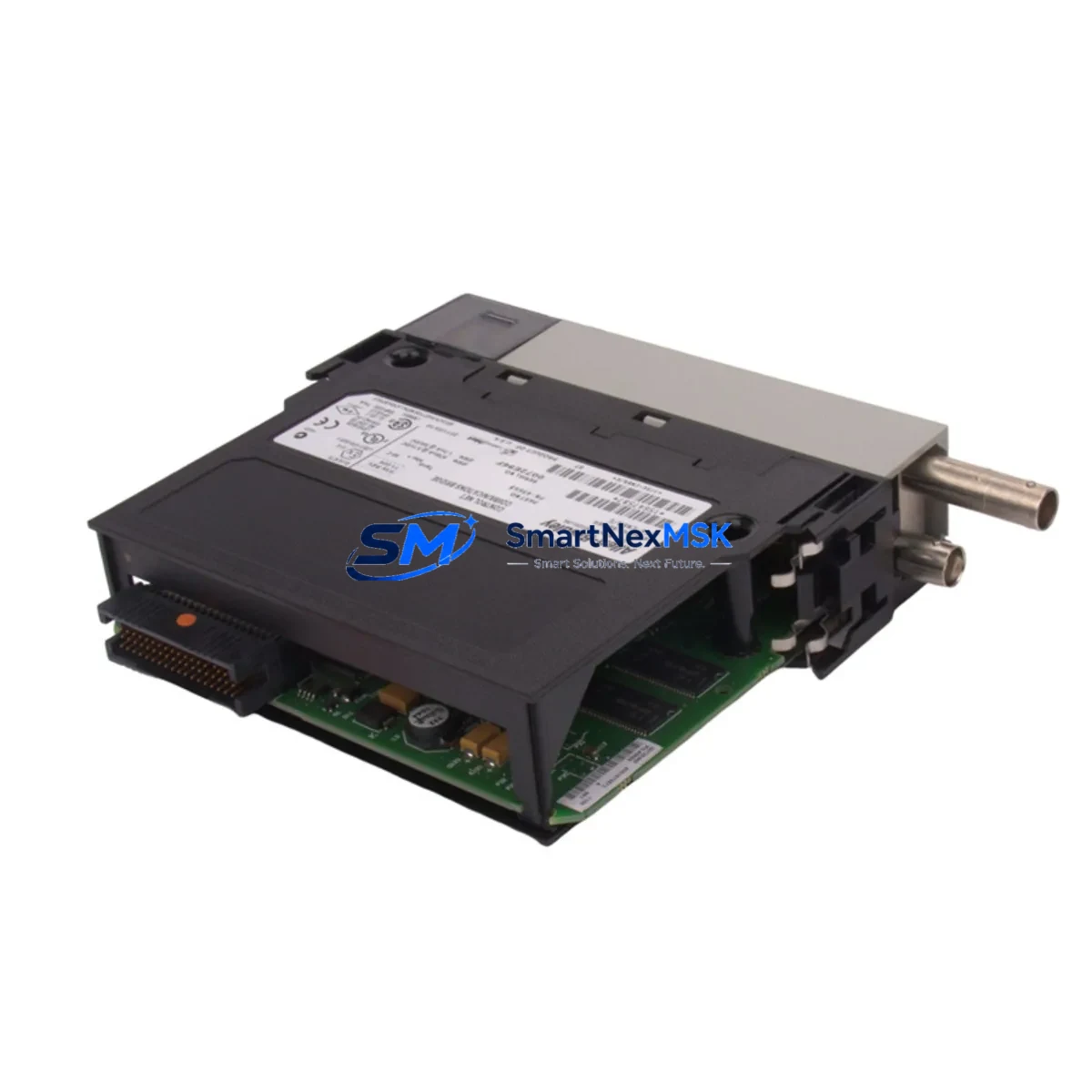

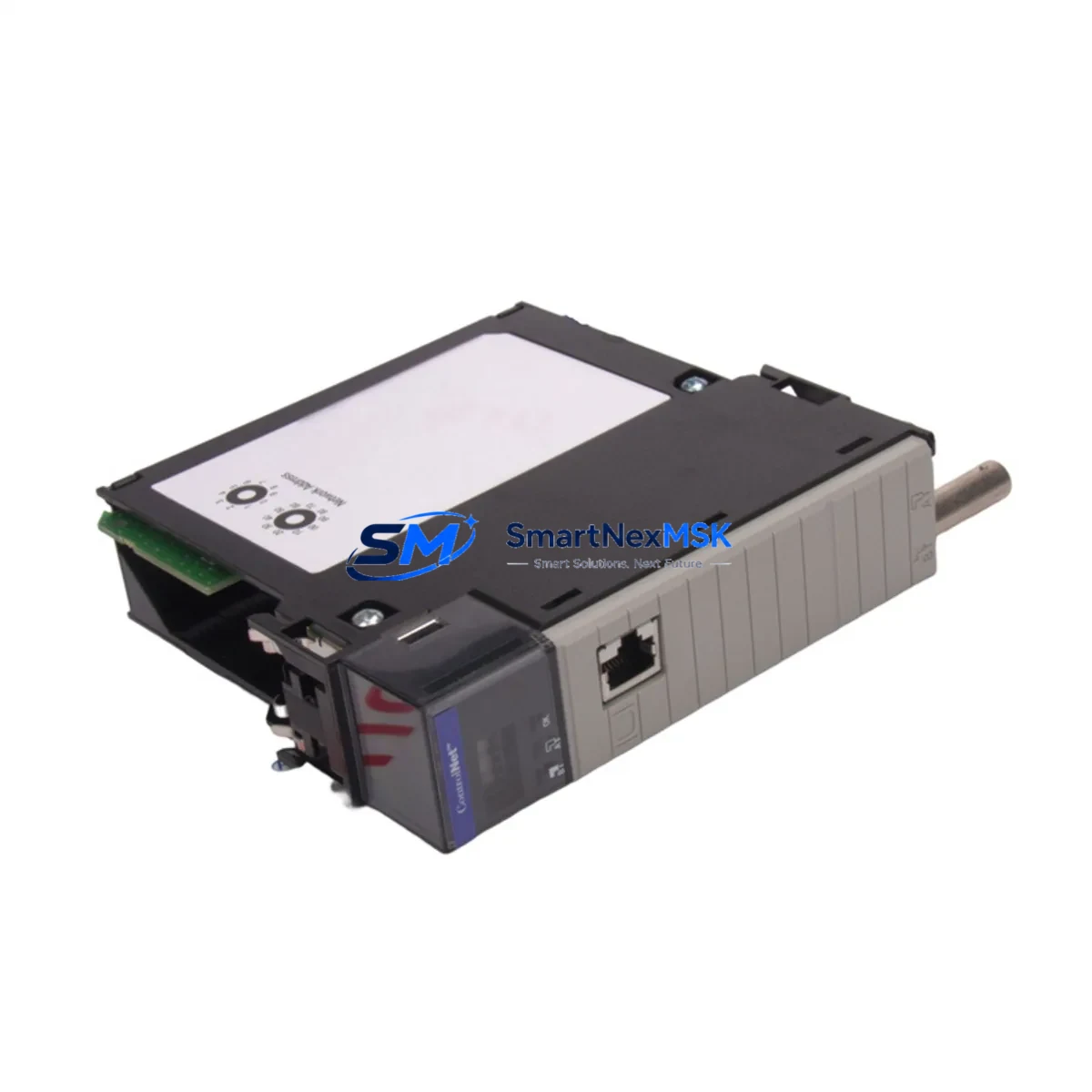

Allen-Bradley 1756-CNBR Safety-Enhanced ControlNet Bridge for Harsh Industrial Sites

Allen-Bradley 1756-CNBR Safety-Enhanced ControlNet Bridge for Harsh Industrial Sites

The Allen-Bradley 1756-CNBR is a ruggedized ControlNet Bridge Module engineered for the ControlLogix 1756 platform, purpose-built to sustain reliable communication and control integrity in the most demanding industrial environments. Whether deployed in petrochemical processing units, power generation switchgear rooms, underground mining control cabinets, water treatment SCADA panels, metallurgical furnace control systems, or continuous port logistics automation, the 1756-CNBR delivers deterministic ControlNet communication with the fault tolerance and signal stability that safety-critical applications demand.

In high-load production environments where control interruption carries serious operational and safety consequences, the 1756-CNBR acts as the backbone of the ControlNet segment, bridging the ControlLogix backplane to field-level devices and remote I/O racks without introducing latency or communication jitter. Its ruggedized design addresses the core failure modes that plague standard bridge modules in harsh sites: signal drift caused by electromagnetic interference from variable frequency drives and large motor starters, voltage transients from capacitor bank switching, and communication anomalies triggered by ground loops in extended cable runs.

When integrated into a properly designed control cabinet alongside the 1756-L73 or 1756-L74 ControlLogix CPU, the 1756-CNBR maintains scheduled and unscheduled ControlNet traffic with strict NUT (Network Update Time) compliance. This is essential in safety interlock loops where a missed scan can trigger an unplanned shutdown or, worse, fail to trigger a required protective action. Pairing the 1756-CNBR with a 1756-PA75 or 1756-PB75 power supply module ensures the backplane receives clean, regulated power, eliminating the risk of module brownout during load surges common in heavy industrial facilities.

For redundant architectures, the 1756-CNBR is commonly deployed in conjunction with the 1756-RM2 redundancy module, allowing seamless switchover between primary and secondary controller chassis without dropping ControlNet communication. This configuration is standard practice in critical process industries where zero-downtime operation is a contractual and safety requirement. The module also operates reliably alongside 1756-EN2T EtherNet/IP bridge modules in hybrid network topologies, supporting modern DCS migration projects where legacy ControlNet segments must coexist with Ethernet-based supervisory layers.

Field installations in harsh environments frequently expose control modules to surge events from nearby lightning strikes, motor back-EMF, and capacitive discharge. The 1756-CNBR’s internal surge protection circuitry, combined with proper installation of 1756-TBS6H terminal base units and shielded Belden 3084A ControlNet coaxial cable, creates a layered protection strategy that significantly reduces the probability of communication faults reaching the CPU. For sites with extreme EMI exposure, additional protection using Phoenix Contact or Weidmuller surge protection devices on the ControlNet trunk is recommended practice.

Remote I/O expansion using 1794-ACN15 FLEX I/O ControlNet adapters connected through the 1756-CNBR allows distributed control architectures to extend safely across large plant footprints — from central control rooms to field junction boxes hundreds of meters away — while maintaining the deterministic scan cycle required for process safety systems. In water treatment and chemical dosing applications, this architecture supports the precise timing of pump interlock sequences and valve position feedback loops that prevent overpressure and chemical spill events.

Every 1756-CNBR unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including ControlNet communication initialization testing, backplane slot compatibility confirmation, and visual inspection for connector integrity and board-level damage. Units are sourced from verified supply channels and stored in ESD-controlled environments to preserve module reliability from warehouse to installation. All modules carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Long-term spare parts availability is a critical concern for facilities running ControlLogix-based safety systems on extended lifecycles. SMARTNEXMSK maintains standing inventory of the 1756-CNBR and related 1756-series modules to support emergency replacement, planned maintenance shutdowns, and capital project builds. Our technical team can assist with cross-referencing compatible firmware revisions and advising on backplane slot allocation for multi-module chassis configurations.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the 1756-CNBR requires a layered approach to power quality, signal integrity, and redundancy. The foundation begins with a properly rated 1756-PA75 AC power supply or 1756-PB75 DC power supply, which delivers clean backplane voltage and protects all installed modules — including the 1756-CNBR, 1756-L74 CPU, and 1756-EN2T EtherNet/IP communication module — from upstream power disturbances. For sites with unstable utility power, an online UPS with less than 4ms transfer time is essential upstream of the panel.

ControlNet media integrity is maintained using Belden 3084A RG-6 coaxial cable with proper termination resistors at each trunk end. The 1756-CNBR’s dual BNC ports support redundant media configurations, allowing the network to survive a single cable fault without dropping communication — a critical feature in continuous process plants where cable damage from mechanical impact or rodent activity is a real operational risk.

For distributed I/O nodes connected through the 1756-CNBR, 1794-ACN15 FLEX I/O ControlNet adapters provide a compact and reliable remote I/O solution. Surge protection devices installed at each field junction box, combined with proper cable shielding and grounding practices per IEEE 1100, prevent transient energy from propagating back through the ControlNet trunk to the bridge module. In high-EMI environments near large VFDs or arc furnaces, ferrite cores on ControlNet cable runs provide additional common-mode noise rejection.

Redundant controller architectures using the 1756-RM2 redundancy module ensure that a CPU fault does not result in a ControlNet communication loss. The 1756-CNBR in the secondary chassis mirrors the primary’s network state, enabling bumpless switchover in under 100ms — well within the tolerance of most process control loops. This architecture is standard in SIL 2-rated safety instrumented systems where the 1756-CNBR bridges the safety PLC to field transmitters and final control elements.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 1756-CNBR is deployed in emergency shutdown (ESD) system architectures where ControlNet links the safety PLC to pressure transmitters, flame detectors, and solenoid valve actuators. The module’s deterministic NUT ensures that interlock response times remain within the SIL-rated requirements even under maximum network load.

In power generation and substation control, the 1756-CNBR connects ControlLogix controllers to protection relay I/O modules and generator excitation control panels. Its EMI tolerance is critical in environments with high magnetic field intensity from large transformers and bus bars.

In underground mining operations, control cabinets face extreme vibration, dust ingress, and humidity. The ruggedized 1756-CNBR maintains communication integrity in conveyor interlock systems, ventilation fan control loops, and methane detection alarm circuits where a communication dropout could trigger a site-wide evacuation or equipment damage event.

In water and wastewater treatment plants, the 1756-CNBR supports SCADA-connected pump station control, chemical dosing interlock sequences, and overflow prevention logic. Its reliable scheduled ControlNet traffic ensures that level sensor data reaches the controller within the required scan cycle for accurate PID control of dosing pumps.

In metallurgical and steel mill applications, the module operates in control cabinets adjacent to induction furnaces and rolling mill drives, where power quality is severely compromised. The 1756-CNBR’s surge-tolerant design and backplane isolation prevent furnace switching transients from corrupting the ControlNet communication frame.

Safety and Quality FAQ

Q1: What warranty does the 1756-CNBR carry, and what does it cover?
Every 1756-CNBR supplied by SMARTNEXMSK carries a 12-month warranty covering functional defects and communication failures under normal operating conditions. If a module fails within the warranty period, we provide full replacement support with priority shipment to minimize your site downtime.

Q2: How is each module tested before shipment?
All 1756-CNBR units undergo pre-shipment testing that includes ControlNet communication initialization, backplane slot compatibility verification, connector integrity inspection, and ESD handling compliance. Modules are packed in anti-static packaging with desiccant to maintain condition during transit.

Q3: Is the 1756-CNBR compatible with all ControlLogix chassis and firmware versions?
The 1756-CNBR is compatible with all standard ControlLogix 1756-series chassis. Firmware compatibility depends on the RSLogix 5000 / Studio 5000 project version in use. Our technical team can advise on specific firmware revision requirements for your application before shipment to ensure seamless integration.

Q4: Can SMARTNEXMSK support long-term and emergency spare parts supply for the 1756-CNBR?
Yes. We maintain standing inventory of the 1756-CNBR and related ControlLogix 1756-series modules specifically to support emergency replacement orders, planned maintenance shutdowns, and multi-year spare parts agreements. Contact our team to discuss volume pricing and reserved stock arrangements for your facility.
