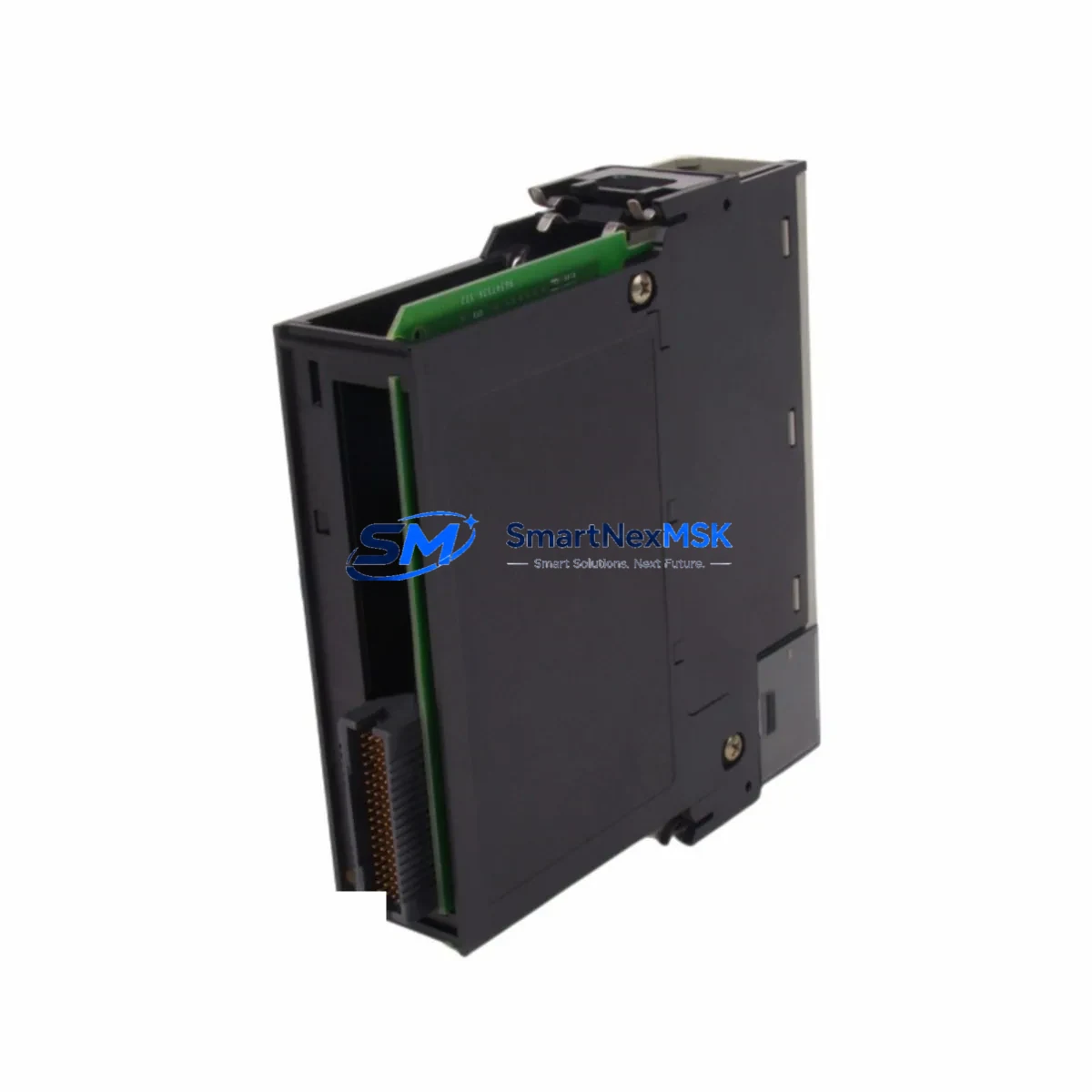

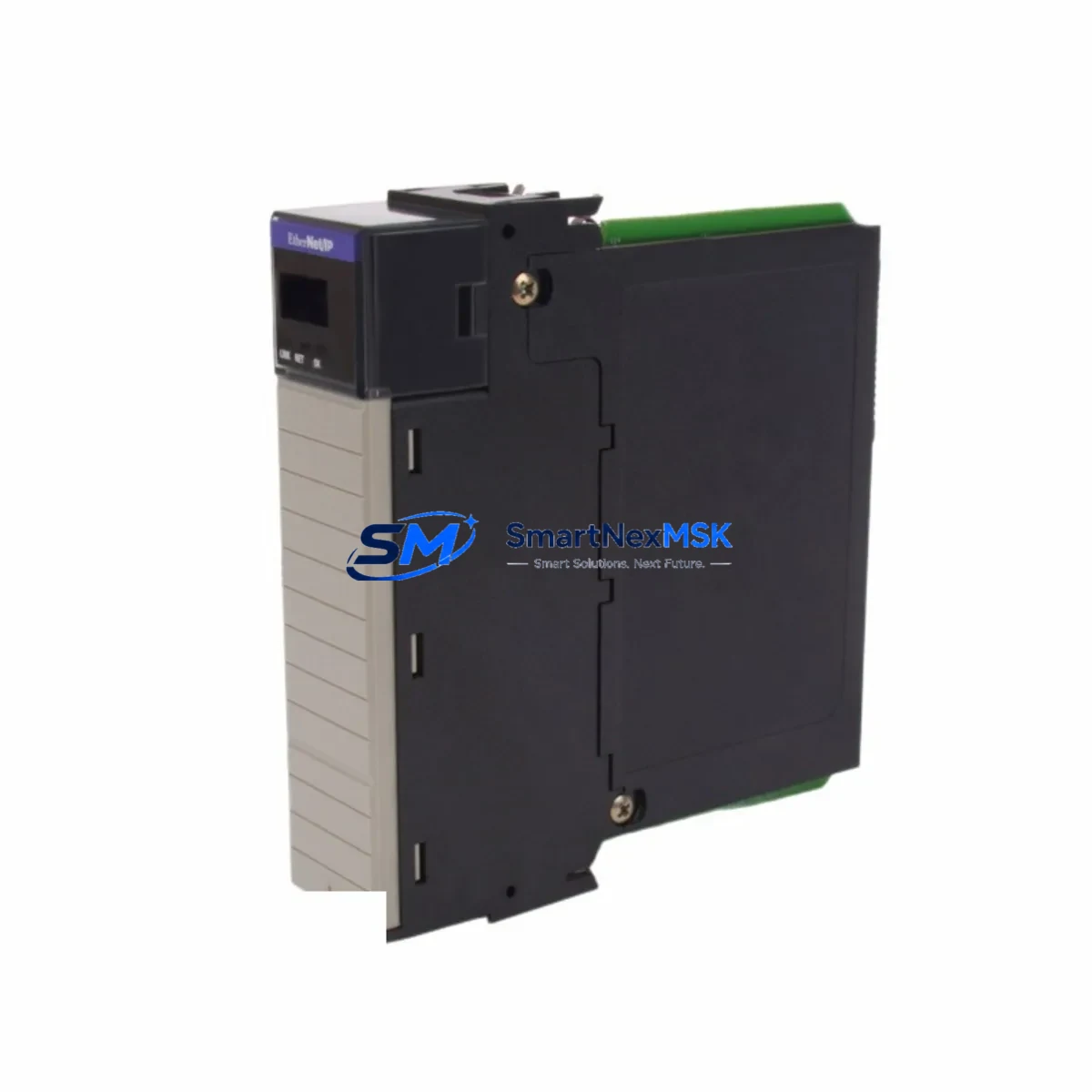

Allen-Bradley 1756-ENBT/A Safety-Enhanced EtherNet/IP Bridge: Reliable Control in Harsh Industrial Sites
The Allen-Bradley 1756-ENBT/A is a ControlLogix-platform EtherNet/IP bridge module engineered for mission-critical industrial communication in high-noise, high-load, and continuously operating environments. Designed to serve as the backbone of Ethernet-based control architectures, the 1756-ENBT/A delivers deterministic, low-latency data exchange between ControlLogix controllers and field devices — even under severe electromagnetic interference, voltage fluctuations, and thermal stress conditions common to petrochemical plants, power generation facilities, mining operations, and heavy metallurgical processes.
In safety-critical control cabinets where uptime is non-negotiable, the 1756-ENBT/A provides the communication integrity that prevents control interruptions, signal drift, and module misbehavior. Its robust hardware design and firmware-level diagnostics actively monitor network health, enabling early detection of communication anomalies before they escalate into process shutdowns or safety incidents. For facilities operating under IEC 61511 or IEC 62061 functional safety frameworks, the 1756-ENBT/A is a trusted component in SIL-assessed control loops.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| Model / SKU | 1756-ENBT/A |
| Brand / Series | Allen-Bradley / ControlLogix 1756 |
| Product Type | EtherNet/IP Communications Bridge Module |
| Communication Protocol | EtherNet/IP (IEEE 802.3), CIP |
| Network Speed | 10/100 Mbps, Auto-negotiate |
| Connections Supported | Up to 64 CIP connections |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| EMC / EMI Protection | IEC 61000-4 series compliant; high-noise immunity |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Shock Resistance | IEC 60068-2-27 compliant |
| Safety Compatibility | SIL-assessed control loop compatible |
| Backplane Compatibility | 1756 ControlLogix chassis (all slot sizes) |
| Power Consumption | Supplied via 1756 backplane |
| Certifications | UL, CE, cUL, C-Tick |
| Origin | United States |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
| Pre-shipment Testing | Full functional and communication test performed before dispatch |
| Stock Status | In Stock — ready for immediate shipment |
Control Cabinet Protection Strategy
In a well-engineered ControlLogix control cabinet, the 1756-ENBT/A does not operate in isolation — it functions as the communication hub within a tightly integrated protection architecture. Paired with a 1756-L71 or 1756-L73 ControlLogix controller, the module ensures that all EtherNet/IP I/O data is exchanged with deterministic timing, eliminating the communication latency that can cause safety relay miscoordination or interlock delays in emergency shutdown systems.
Power integrity is foundational to reliable module operation. The 1756-PA72 or 1756-PB72 power supply modules provide stable, filtered DC power to the ControlLogix backplane, protecting the 1756-ENBT/A and co-resident modules from voltage sags, surges, and transient spikes that are endemic to heavy industrial power environments. In facilities with unstable grid power — such as those near large motor drives or arc furnaces — supplementing the cabinet with a dedicated UPS and surge protection device (SPD) on the incoming AC feed is strongly recommended to prevent module brownout and unexpected resets.
For distributed I/O architectures, the 1756-ENBT/A bridges the ControlLogix backplane to remote 1734 POINT I/O or 1769 CompactLogix I/O racks over EtherNet/IP, maintaining real-time control even across geographically dispersed field panels. In high-vibration environments such as mining conveyors or offshore platforms, the 1492-CABLE series wiring accessories and DIN-rail mounted terminal blocks should be used to ensure that all Ethernet cable terminations remain mechanically secure and electrically stable.
Where network redundancy is required for safety-critical loops — such as burner management systems or turbine overspeed protection — the 1756-ENBT/A can be deployed alongside a 1756-EN2TR dual-port EtherNet/IP module in a Device Level Ring (DLR) topology, providing automatic failover in the event of a single cable or switch fault. This configuration is widely adopted in power plant distributed control systems (DCS) and chemical plant safety instrumented systems (SIS) to meet IEC 61511 availability requirements.
Communication integrity is further protected by managed industrial Ethernet switches — such as the Stratix 5700 series — which provide VLAN segmentation, QoS prioritization for CIP traffic, and port-level diagnostics. These switches prevent broadcast storms and unauthorized device access from disrupting the 1756-ENBT/A’s communication sessions, a critical safeguard in large-scale SCADA and DCS integration projects.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In continuous process environments where a communication fault can trigger emergency shutdowns or safety system activations, the 1756-ENBT/A provides the reliable EtherNet/IP backbone required for burner management, compressor control, and emergency depressurization interlock systems. Its high EMI immunity ensures stable operation near variable frequency drives (VFDs), high-voltage switchgear, and large transformer banks.
Power Generation & Transmission: Thermal, hydro, and wind power facilities rely on ControlLogix-based control systems for turbine governor control, excitation system management, and protection relay coordination. The 1756-ENBT/A enables high-speed, deterministic communication between the controller and protection relays, ensuring that trip signals are transmitted within the required response time windows defined by IEEE and IEC protection standards.
Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, vibration, and temperature cycling. The 1756-ENBT/A’s industrial-grade construction and wide operating temperature range make it suitable for conveyor control, crusher automation, and ventilation safety systems in these demanding environments.
Water & Wastewater Treatment: Municipal and industrial water treatment facilities use ControlLogix systems for pump station control, chemical dosing, and SCADA integration. The 1756-ENBT/A enables reliable remote I/O communication across geographically distributed pump stations, supporting uninterrupted 24/7 operation with minimal maintenance intervention.
Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference that can disrupt standard industrial communication modules. The 1756-ENBT/A’s robust EMC design ensures communication stability in these environments, supporting precise speed and tension control loops that are critical to product quality and equipment protection.
Port & Material Handling Automation: Container cranes, automated stacking systems, and conveyor networks in port logistics require high-availability communication between PLCs and distributed drive systems. The 1756-ENBT/A supports the real-time EtherNet/IP communication required for coordinated motion control and safety interlock monitoring across large-scale material handling installations.
Safety and Quality FAQ
Q1: What warranty coverage is provided with the 1756-ENBT/A?
Every 1756-ENBT/A unit supplied by SMARTNEXMSK is covered by a 12-month warranty against manufacturing defects and functional failure. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Warranty claims are processed promptly with dedicated technical support.
Q2: What pre-shipment testing is performed on each unit?
Each 1756-ENBT/A undergoes a comprehensive functional test prior to dispatch, including backplane communication verification, EtherNet/IP connection establishment, firmware version confirmation, and physical inspection for connector integrity and housing condition. Test records are available upon request for quality-critical procurement processes.
Q3: Is the 1756-ENBT/A compatible with all ControlLogix chassis and firmware versions?
The 1756-ENBT/A is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot) and is supported by Rockwell Automation Studio 5000 Logix Designer and RSLogix 5000 programming environments. Firmware compatibility should be verified against the specific controller firmware revision in use; our technical team can advise on compatibility for your specific application.
Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated inventory of the 1756-ENBT/A and other ControlLogix communication modules to support ongoing spare parts programs and emergency replacement requirements. We supply to maintenance teams, system integrators, and OEMs globally, with fast dispatch and reliable lead times. Contact our sales team to discuss blanket order arrangements or consignment stock programs for high-criticality facilities.
