Allen-Bradley 1756-IG16 Spare for ControlLogix Automation: Spare Replacement & Industrial Downtime Risk Control

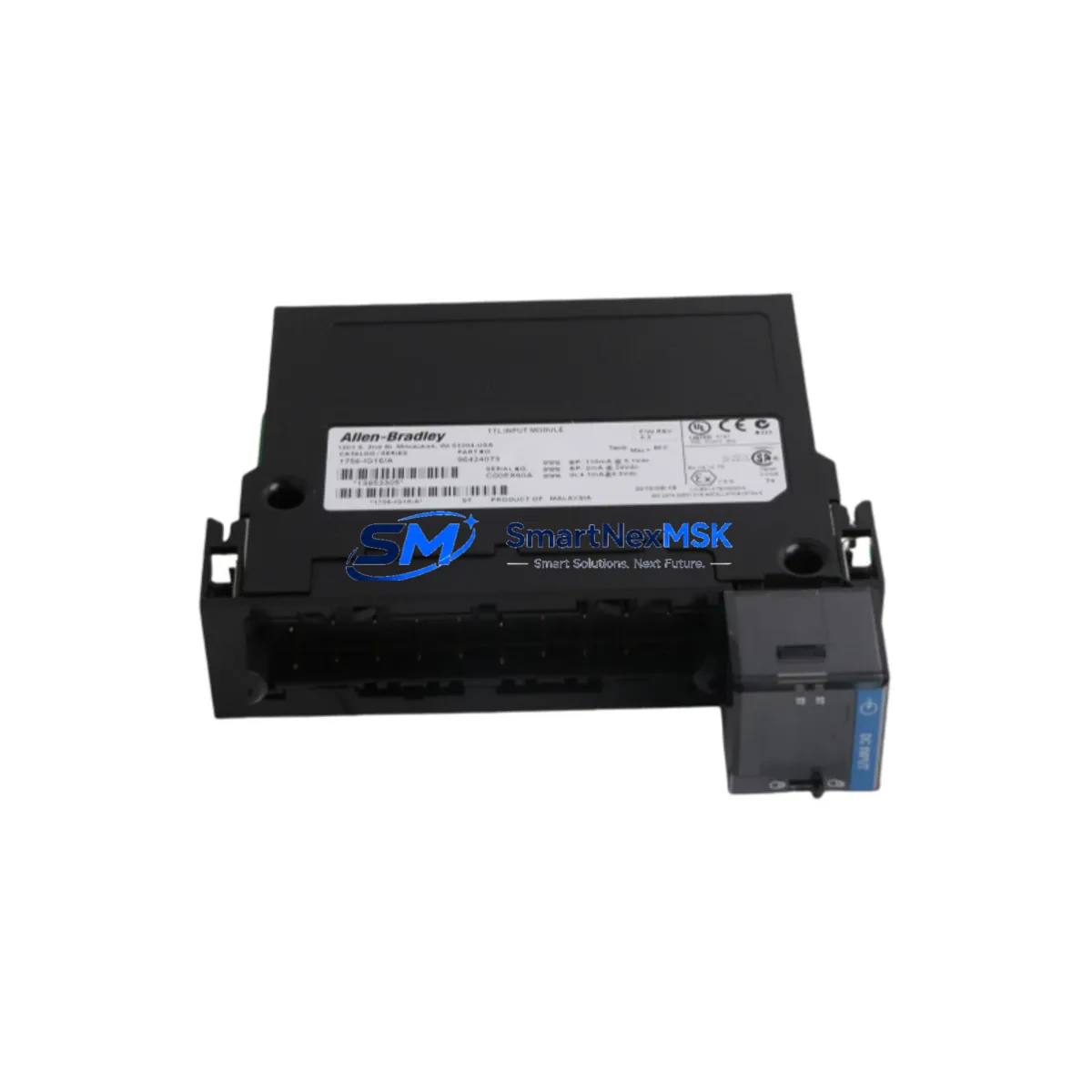

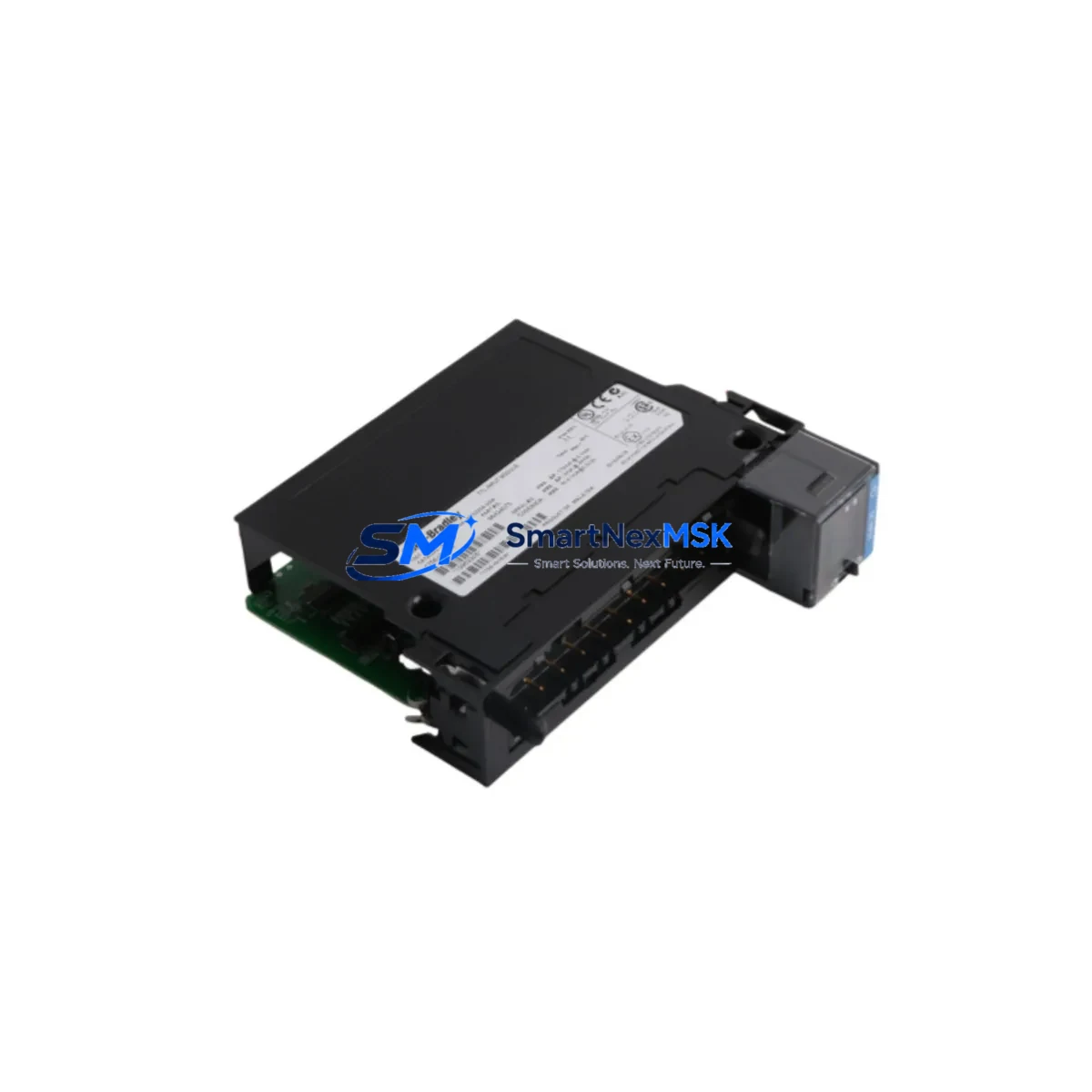

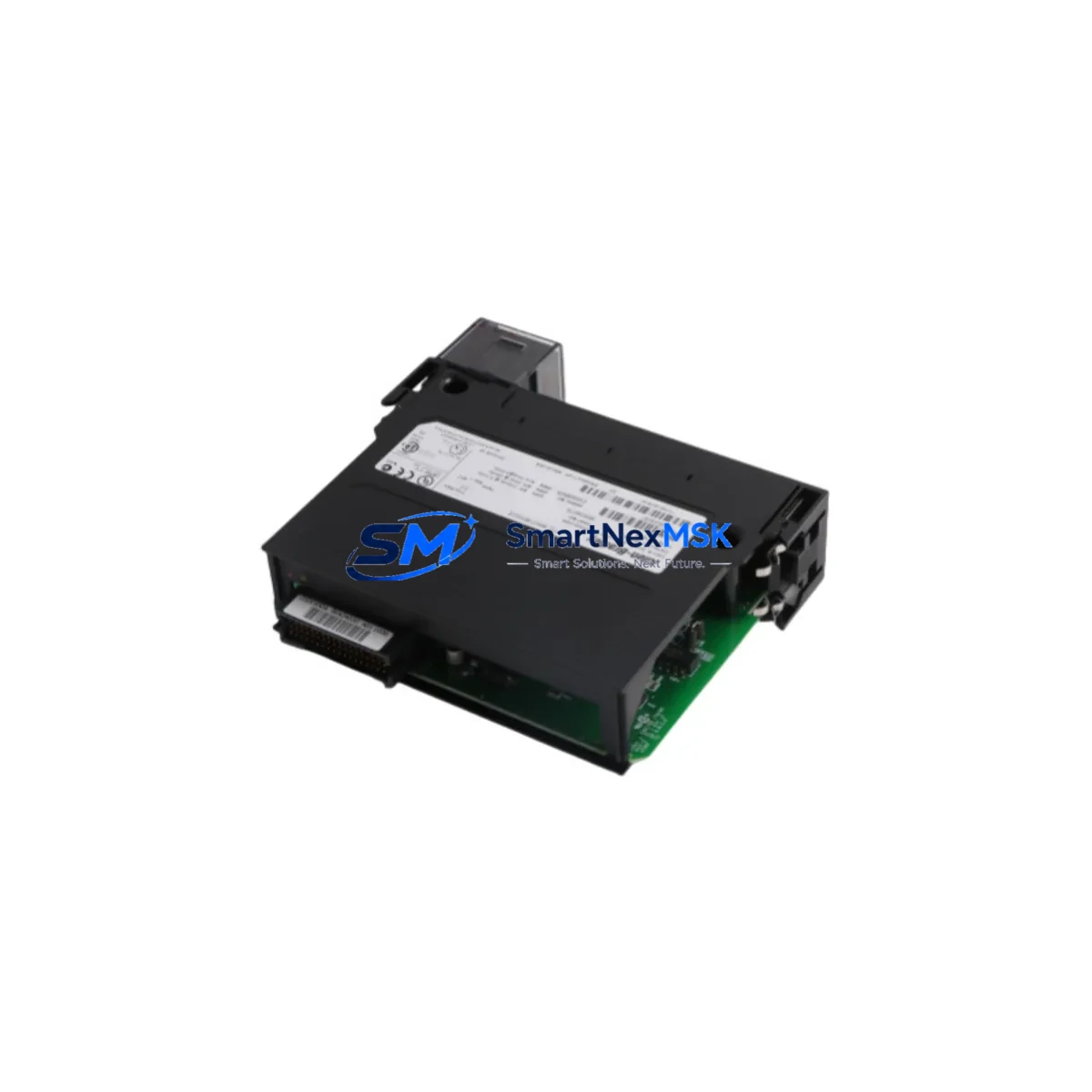

The Allen-Bradley 1756-IG16 is a 16-point isolated DC input module designed for the ControlLogix 1756 chassis platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, oil & gas, water treatment, and heavy industry. When this module fails or degrades, the consequences extend beyond a single I/O point: the entire rack’s input integrity may be compromised, triggering unplanned shutdowns, false diagnostics, and cascading process faults.

Sourcing a verified, original 1756-IG16 spare is the first line of defense against extended downtime. This listing provides a maintenance-ready, tested unit with a 12-month warranty — suitable for immediate field replacement, bench-stock replenishment, or planned overhaul cycles. Every unit is inspected and functionally verified prior to shipment, ensuring it meets the electrical and firmware compatibility requirements of your existing ControlLogix system.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-IG16 in a live ControlLogix system is rarely an isolated task. Maintenance engineers and procurement teams should treat this module replacement as an opportunity to audit the surrounding electrical environment and associated components to prevent repeat failures and ensure system stability.

Begin with the 1756-PA75 or 1756-PB75 power supply feeding the chassis. A degraded power supply delivering marginal voltage can cause intermittent input faults that mimic module failure — verify output voltage under load before condemning the 1756-IG16. Similarly, inspect the 1756-A7, 1756-A10, or 1756-A17 chassis backplane for signs of corrosion, bent connector pins, or thermal stress at the module slot.

On the field wiring side, check the 1756-TBCH or 1756-TBS6H removable terminal blocks for loose terminations, oxidized contacts, or insulation breakdown — particularly in high-vibration or high-humidity environments. Isolated input modules like the 1756-IG16 are especially sensitive to ground loops introduced through improperly bonded field devices; a signal isolator or loop isolator installed upstream of the input wiring can prevent recurrence.

If the 1756-IG16 is part of a mixed I/O rack, also inspect adjacent 1756-OB16 or 1756-OW16 output modules for thermal damage or relay contact wear, as output-side faults can induce noise on shared power rails. For systems using 1756-EN2T or 1756-ENBT EtherNet/IP communication modules, confirm that the module’s IP configuration and I/O tree mapping remain intact after the replacement — a slot number change will require a controller download.

In DCS-adjacent or hybrid architectures, verify that any 1756-DNB DeviceNet bridge modules or 1756-CN2 ControlNet modules sharing the same chassis are not generating excessive backplane traffic that could delay input scan times. For safety-rated installations, cross-reference the replacement with your 1756-L7xS GuardLogix safety controller configuration to ensure the I/O module is correctly mapped in the safety task.

Finally, update your site’s spare parts inventory register to reflect the replacement and flag the 1756-IG16 as a critical-path spare requiring a minimum stock level of one unit per chassis in service.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the replacement 1756-IG16 matches the catalog number and series revision of the installed unit. Check the module label for revision letter (e.g., Series B). In Studio 5000 Logix Designer, note the module’s slot number, I/O configuration, and any inhibit status before removal.

Step 2 — Safe removal: Place the controller in Program mode or inhibit the affected I/O module in the software to prevent false input signals from triggering downstream logic. Remove the wiring terminal block (1756-TBCH) before extracting the module from the chassis slot — this preserves field wiring continuity and reduces reconnection errors.

Step 3 — Module installation: Insert the replacement 1756-IG16 into the same chassis slot. The keyed module design prevents incorrect seating. Reattach the terminal block and verify all field wiring terminations are secure and correctly labeled.

Step 4 — Online verification: Return the controller to Run mode. In Studio 5000, confirm the module status indicator shows a solid green light and that all 16 input points are reporting correctly in the I/O tree. Perform a point-by-point functional test by activating each field device and verifying the corresponding input bit toggles in the controller tag database.

Step 5 — Documentation: Record the replacement in your maintenance management system (CMMS), including the date, technician, module serial number, and any observations about the failed unit. Retain the failed module for root cause analysis if recurrence is suspected.

This workflow minimizes mean time to repair (MTTR), maintains system compatibility, and ensures the replacement is fully validated before returning the process to automatic control.

Spare Parts Support FAQ

Q1: Is this 1756-IG16 an original Allen-Bradley module or a third-party compatible?
This is an original Allen-Bradley (Rockwell Automation) 1756-IG16 module — not a clone, aftermarket, or remanufactured substitute. Each unit is sourced from verified supply channels and carries the original factory markings, catalog number, and series designation. Functional testing is performed prior to shipment to confirm electrical performance meets OEM specifications.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. To initiate a warranty claim, contact our technical support team with the order number, module serial number, and a description of the fault. Replacement or repair will be arranged within the warranty period.

Q3: How do I confirm compatibility with my existing ControlLogix chassis and controller revision?
The 1756-IG16 is compatible with all 1756 ControlLogix chassis variants (1756-A4, A7, A10, A13, A17) and is supported by RSLogix 5000 v13 and later, as well as all versions of Studio 5000 Logix Designer. If your system uses an older L5x-series controller, verify the module’s series revision matches your existing configuration. Our technical team can assist with compatibility confirmation before purchase.

Q4: Can you supply multiple units for a planned maintenance shutdown or long-term spare parts contract?
Yes. We support bulk procurement for planned shutdowns, annual maintenance contracts, and long-term spare parts programs. Volume pricing is available for orders of 3 or more units. We maintain ongoing stock of the 1756-IG16 and can provide lead time commitments for scheduled delivery aligned with your maintenance windows. Contact us to discuss a supply agreement tailored to your site’s requirements.
