Allen-Bradley 1756-IT6I2 Maintenance-Ready Spare for ControlLogix Automation

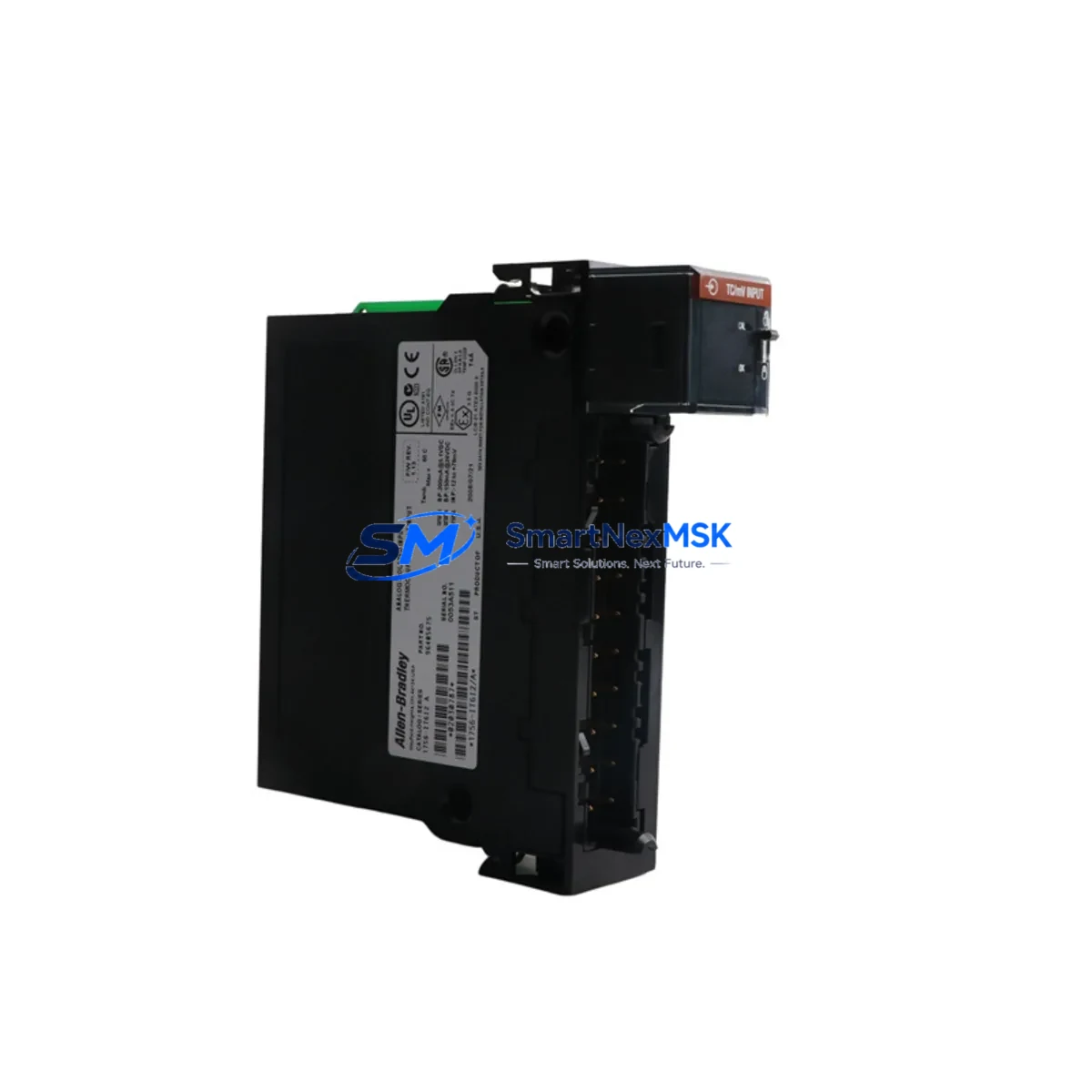

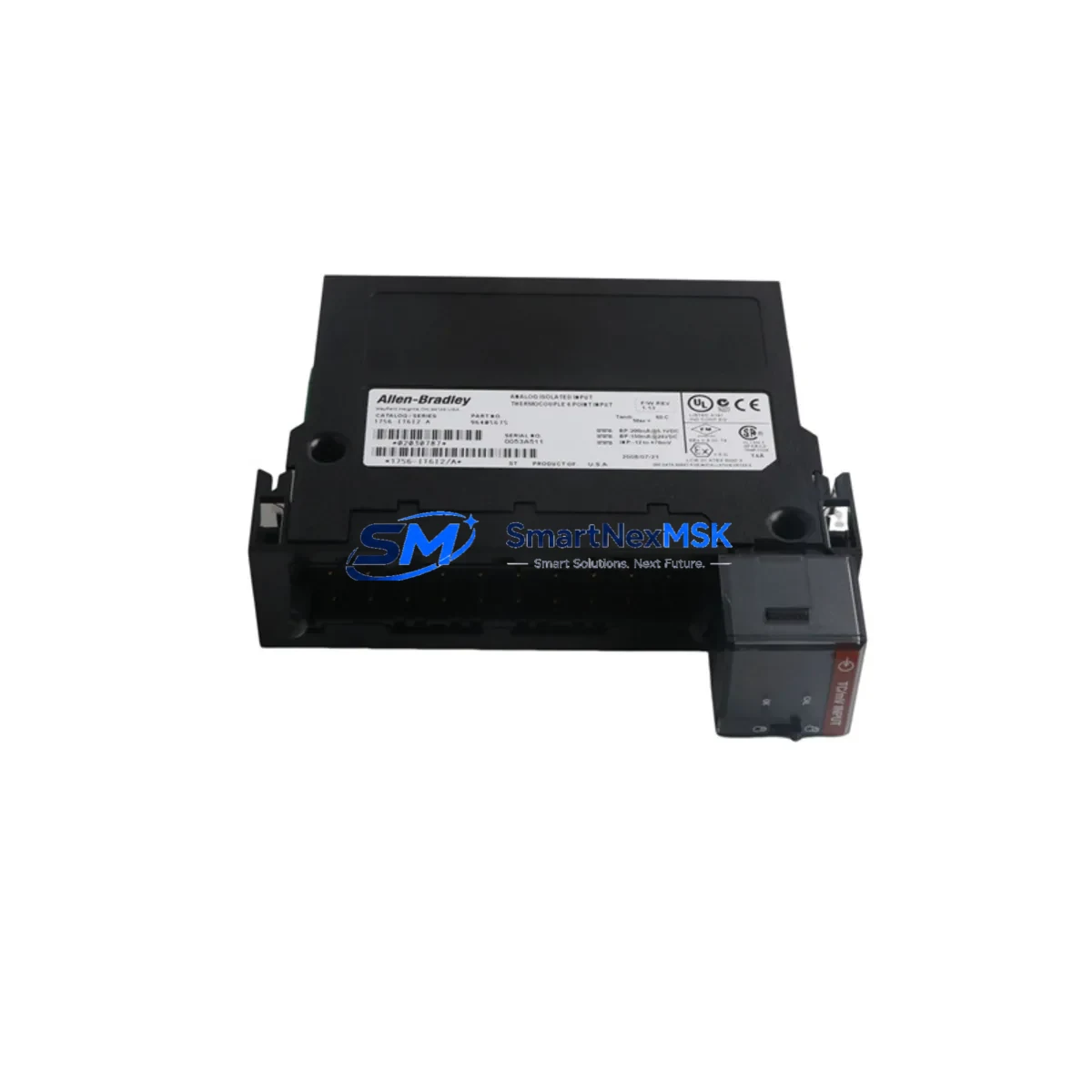

The Allen-Bradley 1756-IT6I2 is a 6-channel isolated thermocouple/millivolt input module designed for the ControlLogix 1756 chassis platform. As a critical measurement component in temperature-intensive industrial processes — including furnace control, heat treatment, chemical reactors, and HVAC automation — this module is a high-priority spare for any maintenance engineer managing continuous production environments. Sourced as an original Allen-Bradley unit, the 1756-IT6I2 is tested prior to shipment and backed by a 12-month warranty, ensuring your replacement program is built on verified, reliable inventory.
For maintenance and procurement engineers, the 1756-IT6I2 represents a precision analog front-end that directly impacts process accuracy and uptime. When this module fails or degrades, temperature readings become unreliable, triggering false alarms, process shutdowns, or — worse — undetected thermal excursions. Stocking a verified spare eliminates the lead-time risk associated with sourcing obsolete or long-cycle Allen-Bradley modules during an emergency.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 1756-IT6I2 |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | ControlLogix 1756 |
| Module Type | 6-Channel Isolated Thermocouple / mV Input |
| Input Channels | 6 (fully isolated, channel-to-channel) |
| Thermocouple Types Supported | B, E, J, K, N, R, S, T and mV ranges |
| Resolution | 16-bit |
| Backplane Current Draw | 120 mA @ 5 VDC (typical) |
| Operating Temperature | 0 °C to 60 °C |
| Chassis Compatibility | 1756 ControlLogix chassis (all slot counts) |
| Communication | ControlLogix backplane (via 1756 chassis) |
| Origin | United States (Original Allen-Bradley) |
| Condition | Original / Genuine — Pre-shipment tested |
| Warranty | 12 Months |
| Application Environment | Industrial process control, furnace, HVAC, chemical |
| Maintenance Recommendation | Inspect wiring terminals annually; verify CJC calibration; check for thermocouple open-circuit faults via RSLogix 5000 / Studio 5000 diagnostics |
Maintenance Planning for Continuous Operation
Replacing the 1756-IT6I2 in a live ControlLogix system requires a structured approach to avoid cascading failures. Maintenance engineers should treat this module replacement as part of a broader control cabinet inspection. Before or during the swap, the following associated components should be evaluated:
The 1756-PA75 or 1756-PB75 power supply module should be checked for output voltage stability — a degraded power supply is a common root cause of analog module faults. Alongside this, inspect the 1756-A17 or 1756-A10 chassis backplane for physical damage or connector wear, as backplane integrity directly affects module communication reliability.
On the I/O side, if the thermocouple input module is part of a mixed analog system, verify the condition of any co-installed 1756-OF8 analog output modules or 1756-IF16 analog input modules sharing the same chassis. Wiring termination blocks — particularly 1492-CABLE series wiring systems or equivalent terminal blocks — should be inspected for corrosion, loose connections, or thermal stress damage, which are frequent failure contributors in high-temperature environments.
For systems using 1756-EN2T or 1756-EN2TR EtherNet/IP communication modules, confirm that the network configuration remains intact post-replacement and that the module’s IP address and slot assignment are correctly mapped in Studio 5000. If the system includes a 1756-L7x or 1756-L8x ControlLogix controller, verify that the I/O configuration tree reflects the new module and that no unresolved faults are present in the controller’s fault log.
In thermocouple-heavy applications, signal isolation is critical. Consider auditing any signal isolators or signal conditioners installed between field sensors and the 1756-IT6I2 input terminals. Degraded isolators can introduce offset errors that mimic module failure. Additionally, check fuse blocks and circuit protection on the 24 VDC field power rail to ensure no upstream protection device has been compromised.
For facilities running legacy ControlLogix systems, the 1756-IT6I2 is a key component in extending system life. Pairing it with a documented spare parts list — including the controller, power supply, and at least one analog I/O module per type — is the foundation of a sound predictive maintenance strategy.
Site Replacement Workflow
Step 1 — Pre-replacement verification: Confirm the replacement 1756-IT6I2 matches the firmware revision and channel configuration of the installed unit. Use Studio 5000 / RSLogix 5000 to export the current module configuration before removal.
Step 2 — Safe removal: The 1756 platform supports hot-swap on most chassis configurations. Inhibit the module in the controller I/O tree before physical removal to prevent nuisance faults. Remove the wiring termination block first, then extract the module.
Step 3 — Installation and configuration restore: Insert the replacement 1756-IT6I2 into the same chassis slot. Re-attach the wiring termination block. In Studio 5000, un-inhibit the module and allow the controller to re-establish communication. Verify that all 6 channels report valid process values and that no open-circuit or out-of-range faults are active.
Step 4 — Functional validation: Compare live thermocouple readings against a calibrated reference or known-good sensor. Confirm CJC (Cold Junction Compensation) is operating correctly. Log the replacement date, module serial number, and channel verification results in your maintenance management system.
Step 5 — Spare replenishment: Immediately initiate a reorder for the consumed spare to maintain your minimum stock level. For high-criticality systems, a minimum of one 1756-IT6I2 per installed chassis is recommended.
Spare Parts Support FAQ
Q1: Is this 1756-IT6I2 an original Allen-Bradley unit or a compatible replacement?
This is an original Allen-Bradley 1756-IT6I2 module — not a third-party compatible or remanufactured unit. Each unit is sourced from verified supply channels and undergoes pre-shipment functional testing to confirm channel integrity and backplane communication.
Q2: What is the warranty coverage and what does it include?
All 1756-IT6I2 units are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are eligible for replacement or full refund, subject to return inspection.
Q3: How do I confirm compatibility with my existing ControlLogix chassis and controller?
The 1756-IT6I2 is compatible with all 1756 ControlLogix chassis variants (4, 7, 10, 13, and 17-slot) and all 1756-series controllers including the L6x, L7x, and L8x families. Compatibility is confirmed via the module’s electronic keying in Studio 5000. If you require compatibility verification for a specific firmware revision or project file, contact our technical team with your controller catalog number and firmware version.
Q4: What is your lead time and can you support emergency or urgent orders?
In-stock units ship within 1–3 business days under standard processing. For emergency downtime situations, expedited shipping options are available. Contact us directly at sales@smartnexmsk.com or +86 18259474341 to confirm real-time stock availability and arrange priority dispatch.
