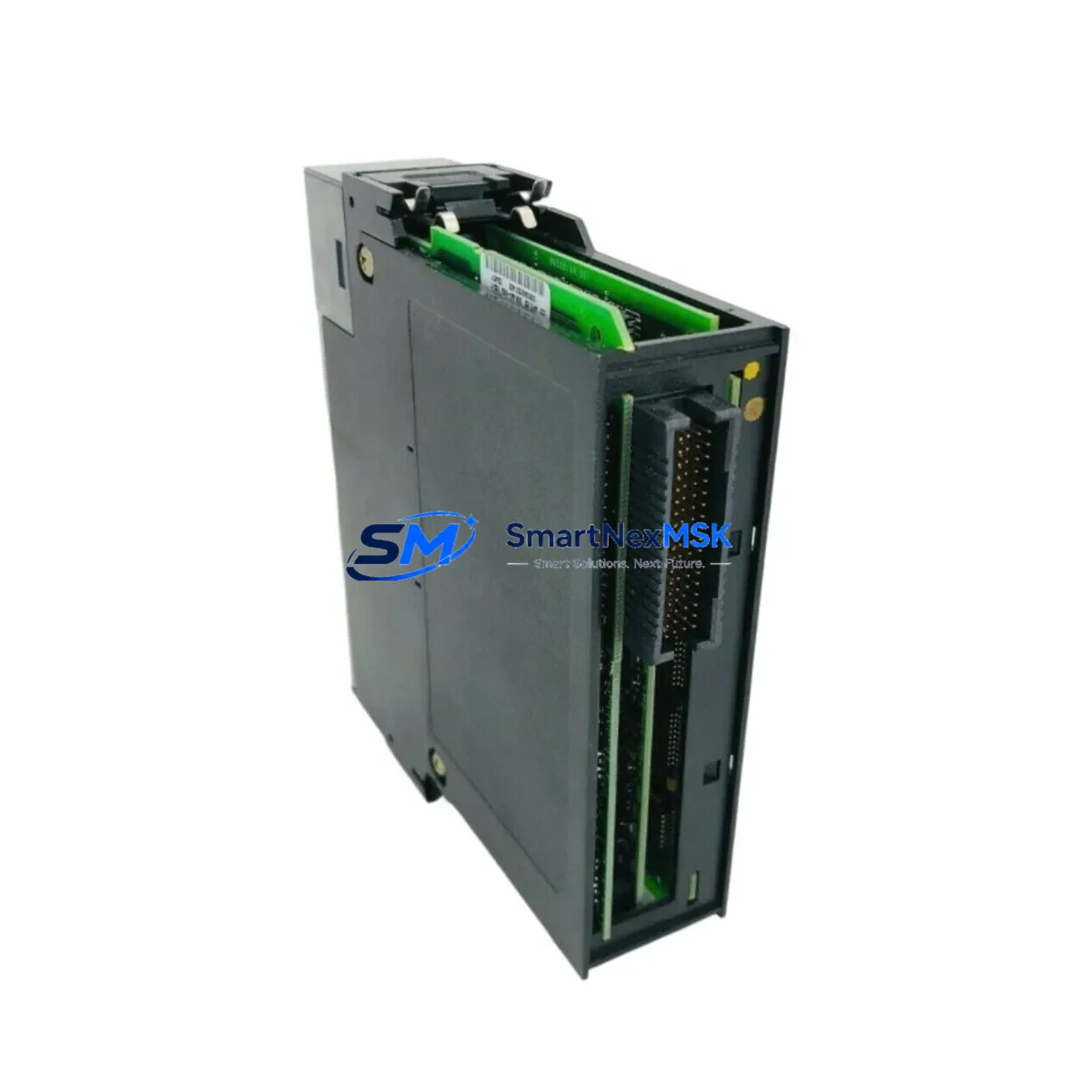

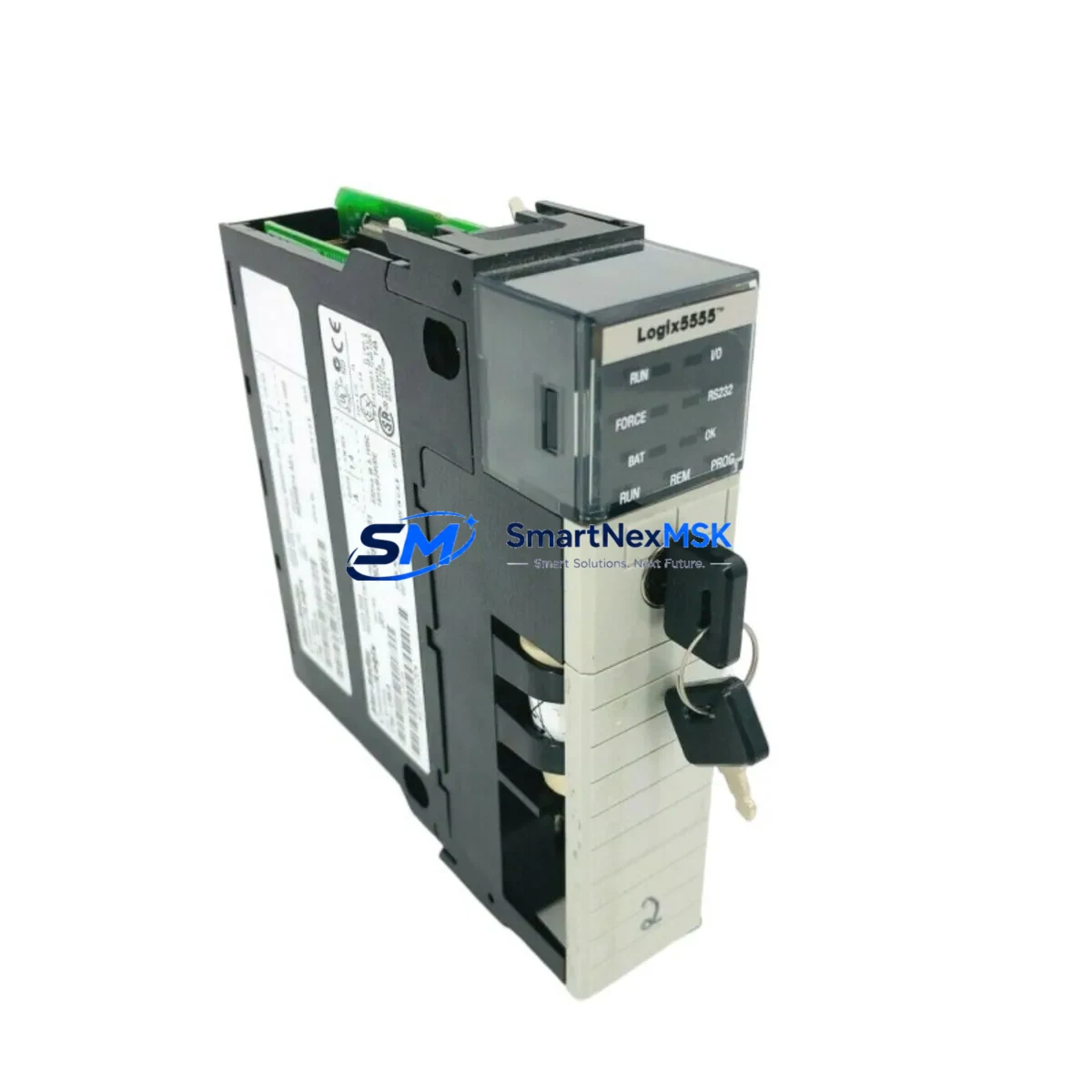

Allen-Bradley 1756-L55M22 Safety-Enhanced PLC Processor

Allen-Bradley 1756-L55M22 Safety-Enhanced PLC Processor: Reliable Control for Harsh Industrial Sites

The Allen-Bradley 1756-L55M22 is a high-performance ControlLogix Logix5555 PLC processor engineered for mission-critical industrial automation environments where control interruption is not an option. With 1.5MB of non-volatile memory (NVM) and the robust ControlLogix 1756 backplane architecture, this processor delivers deterministic scan-cycle execution, superior noise immunity, and sustained operational stability across the most demanding industrial sites — including petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical complexes, port logistics, and continuous manufacturing lines.

In high-load, high-interference control cabinets, the 1756-L55M22 serves as the central decision-making core of safety-critical interlock loops and process control architectures. Its hardened firmware and memory management design actively resist signal drift caused by electromagnetic interference (EMI), ground loops, and power supply fluctuations — common failure triggers in heavy industrial environments. When paired with the 1756-PA75 or 1756-PB75 power supply modules, the system maintains stable 1.2A backplane current delivery even under surge conditions, preventing the module misfires and spurious outputs that can cascade into unplanned shutdowns.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1756-L55M22 within a well-engineered ControlLogix control cabinet requires a layered protection strategy to ensure continuous, fault-free operation. At the power layer, the 1756-PA75 AC power supply provides regulated backplane power with built-in surge clamping, while an upstream 1606-XLP power supply or equivalent DIN-rail 24VDC source conditions field device power to prevent voltage sag from propagating into the processor bus. For applications requiring redundant power, the 1756-PSCA2 power supply chassis adapter enables seamless switchover without scan-cycle interruption.

At the I/O layer, digital output modules such as the 1756-OB16D and analog input modules like the 1756-IF16 interface directly with the 1756-L55M22 over the high-speed ControlLogix backplane, delivering sub-millisecond I/O update times critical for safety interlock response. For distributed I/O in remote field panels, the 1756-ENBT/A EtherNet/IP bridge module extends the processor’s reach across plant networks while maintaining deterministic communication latency. In environments with heavy cable runs and potential ground potential differences, the 1756-DNB DeviceNet bridge or 1756-RIO Remote I/O adapter provides galvanically isolated field connectivity.

For safety-rated applications requiring SIL 2 or SIL 3 compliance, the 1756-L55M22 can be integrated into a GuardLogix 1756-L61S or 1756-L62S safety controller architecture, where it handles standard process control tasks while the safety controller manages the protective interlock layer — a dual-processor topology widely adopted in chemical reactor control, turbine protection, and emergency shutdown (ESD) systems. Surge arrestors, fiber-optic media converters, and shielded cable assemblies complete the cabinet-level protection envelope.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 1756-L55M22 is widely deployed in hydrocarbon processing units where continuous operation is mandatory. It manages burner management system (BMS) logic, compressor anti-surge control, and high-integrity pressure protection systems (HIPPS), where any control interruption risks both production loss and personnel safety. Its non-volatile memory ensures that control programs survive unexpected power cycles without data corruption, enabling rapid restart without manual re-initialization.

Power Generation & Utilities: In coal-fired, gas turbine, and hydroelectric generation facilities, the processor coordinates boiler drum level control, turbine speed governing, and generator excitation sequences. The deterministic scan cycle of the 1756-L55M22 ensures that protective relay trip signals are processed within defined time windows, preventing equipment damage from overspeed or overpressure events.

Mining & Mineral Processing: Underground and open-pit mining environments subject control hardware to extreme vibration, dust ingress, and wide temperature swings. The 1756-L55M22’s industrial-grade construction and conformal-coated circuit boards (on ruggedized variants) maintain reliable operation in conveyor drive control, crusher sequencing, and ventilation fan interlock systems — applications where a false trip or missed interlock can result in serious injury.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 1756-L55M22 for pump station control, chemical dosing sequencing, and SCADA integration. Its EtherNet/IP connectivity via the 1756-ENBT/A module enables seamless integration with plant-wide historian systems and remote monitoring platforms, supporting regulatory compliance and predictive maintenance programs.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting operations, the processor handles high-speed electrode regulation, mold level control, and cooling water interlock logic under extreme electromagnetic interference generated by high-current bus bars and induction heating equipment. The 1756-L55M22’s EMI immunity ensures control signal integrity even in close proximity to high-power electrical equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1756-L55M22?
The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we provide free repair or replacement. This applies to both new and tested-surplus units that have passed our pre-shipment functional verification protocol.

Q2: What pre-shipment testing is performed on each unit?
Every 1756-L55M22 undergoes a multi-point functional verification before dispatch: power-on self-test (POST) completion, memory read/write integrity check, backplane communication handshake verification, and firmware version confirmation. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: Is the 1756-L55M22 compatible with existing ControlLogix 1756 chassis and I/O modules?
Yes. The 1756-L55M22 is fully compatible with all standard 1756-series chassis (4, 7, 10, 13, and 17-slot), all 1756-series I/O modules, and all 1756-series communication modules including EtherNet/IP, ControlNet, DeviceNet, and Remote I/O bridges. It is programmable via RSLogix 5000 and Studio 5000 Logix Designer software.

Q4: Can long-term supply and replacement support be guaranteed for critical production lines?
Yes. We maintain standing inventory of the 1756-L55M22 and related ControlLogix components to support planned maintenance, emergency replacement, and lifecycle extension programs. For customers with critical production dependencies, we offer reserved stock arrangements and priority dispatch to minimize mean time to repair (MTTR) in the event of an unplanned module failure.
