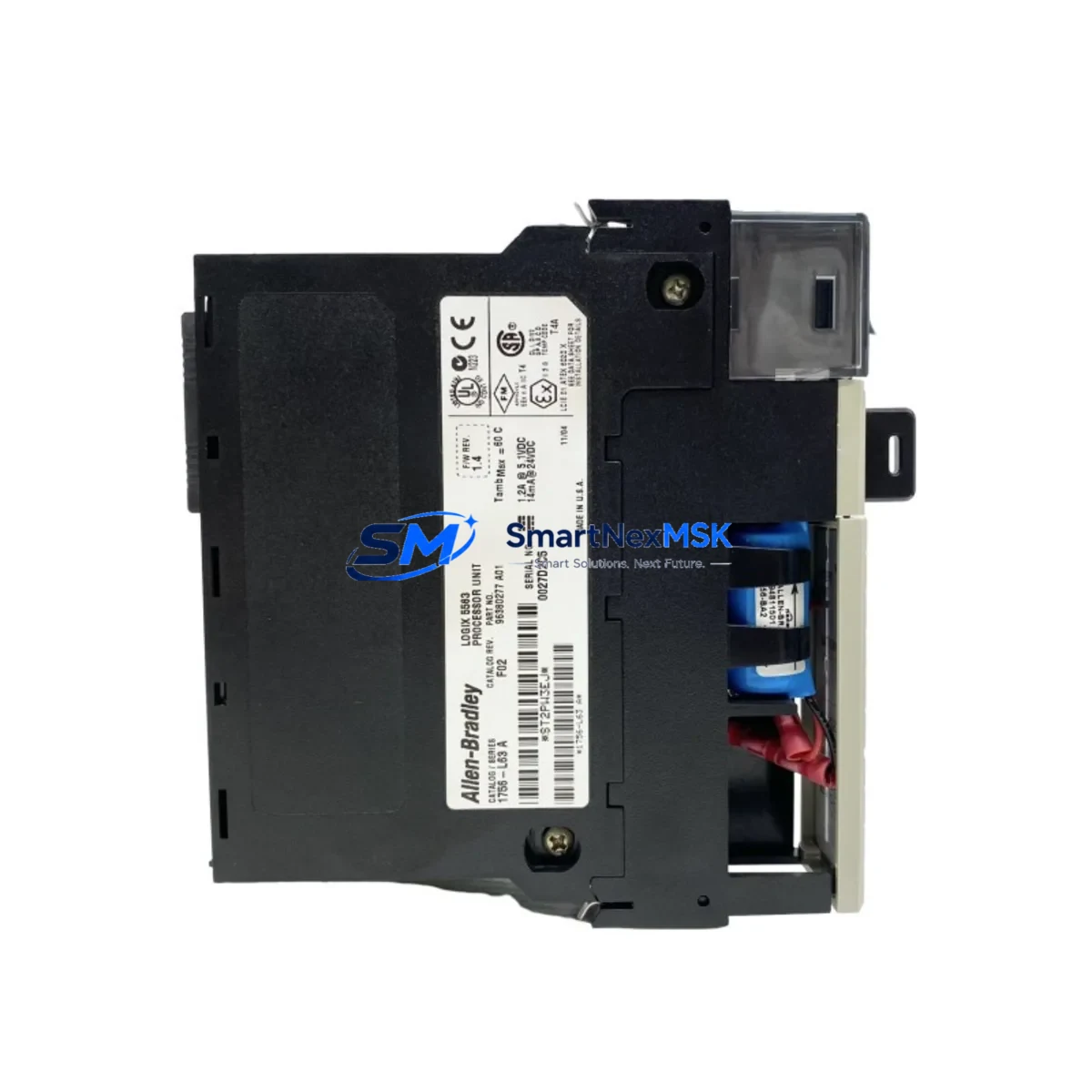

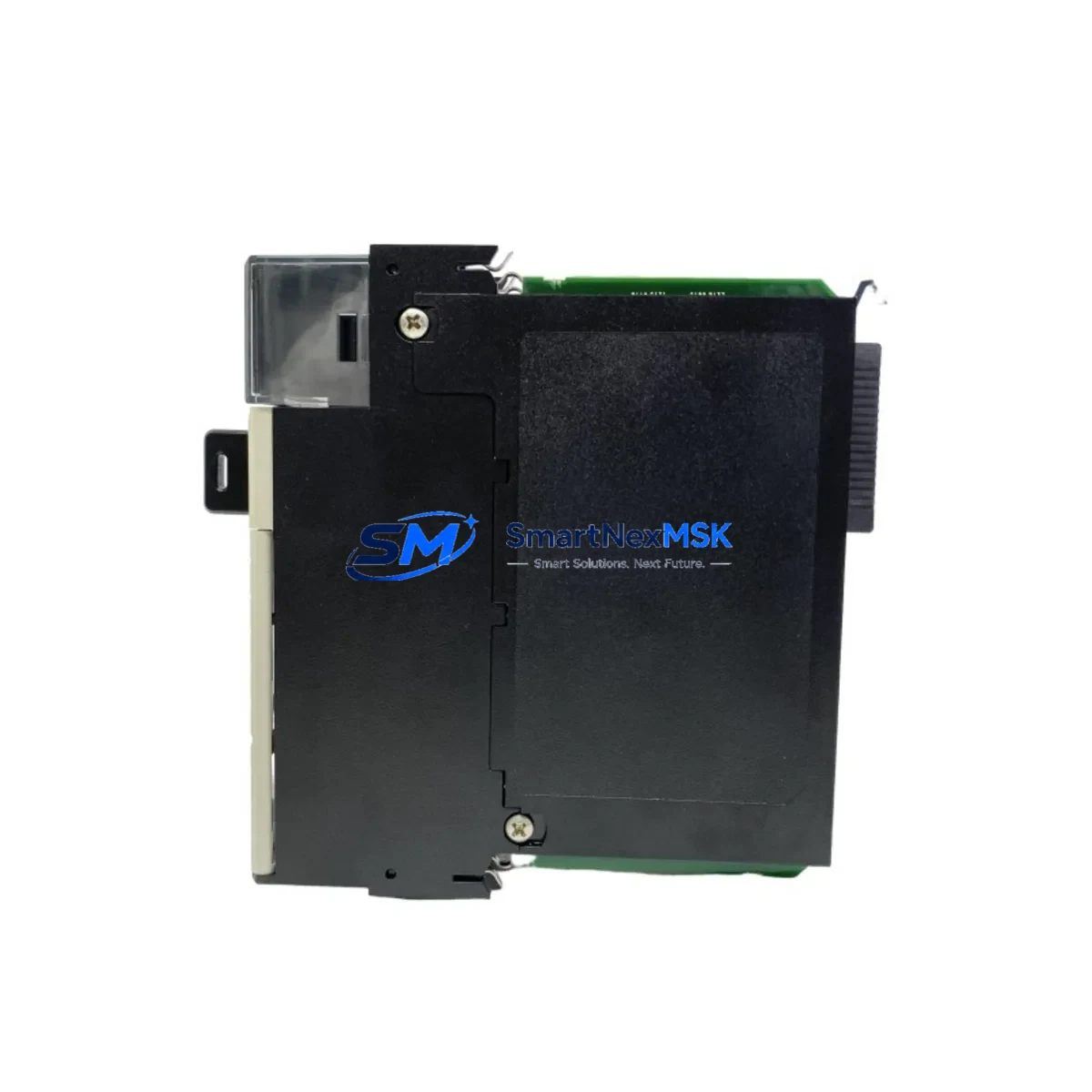

Allen-Bradley 1756-L63/A Safety-Enhanced PAC Processor

Allen-Bradley 1756-L63/A Safety-Enhanced PAC Processor: Reliable Control for Harsh Industrial Sites

The Allen-Bradley 1756-L63/A is a high-performance ControlLogix PAC processor engineered for mission-critical industrial automation environments where control continuity, signal integrity, and operational safety are non-negotiable. With 8MB of user memory and a robust hardware architecture, the 1756-L63/A delivers deterministic scan-cycle execution and fault-tolerant control logic across demanding applications including petrochemical processing, power generation, mining operations, water treatment, metallurgy, port logistics, and continuous manufacturing lines.

In high-load production environments, the 1756-L63/A operates as the central intelligence of a ControlLogix chassis, coordinating I/O modules, motion axes, and safety interlocks with sub-millisecond response times. Its architecture is designed to withstand electrical noise, voltage transients, and thermal stress — conditions that routinely cause lesser processors to fault, misfire, or drop communications. When installed alongside a 1756-PA75 or 1756-PB75 power supply module, the system maintains stable 5VDC and 24VDC backplane power even during upstream grid fluctuations, dramatically reducing the risk of spurious module trips or unplanned shutdowns.

Signal integrity is a persistent challenge in heavy industrial control cabinets. The 1756-L63/A supports structured tag-based programming and deterministic task scheduling, which eliminates the scan-time jitter that can cause analog input modules — such as the 1756-IF16 16-channel analog input card — to report false process values. In critical interlock loops, even a momentary signal drift can trigger unnecessary safety shutdowns or, worse, mask a genuine fault condition. The 1756-L63/A’s execution model prevents both failure modes, making it a trusted backbone for safety instrumented functions in SIL-rated control architectures.

Communication reliability is equally critical. The 1756-L63/A integrates natively with the 1756-EN2T EtherNet/IP communication module, enabling high-speed, deterministic data exchange across distributed control networks. In facilities where PROFIBUS or DeviceNet legacy infrastructure coexists with modern EtherNet/IP topology, the processor’s multi-network support — via modules such as the 1756-DNB DeviceNet Bridge or 1756-PBE PROFIBUS adapter — ensures seamless protocol bridging without introducing latency or packet loss that could compromise supervisory control or historian data accuracy.

For applications requiring redundant control — such as turbine governor systems, compressor surge control, or reactor feed management — the 1756-L63/A is fully compatible with the ControlLogix Redundancy system using the 1756-RM2 redundancy module. This configuration provides automatic controller switchover in under 10 milliseconds upon primary processor fault detection, ensuring continuous process control without operator intervention. Paired with 1756-ENBT or 1756-EN2TR ring-topology Ethernet modules, the redundant architecture eliminates single points of failure across both the control and network layers.

In hazardous area installations and safety-critical interlock circuits, the 1756-L63/A is commonly deployed alongside the 1756-OB16IS isolated digital output module and 1756-IB16 digital input module to form hardwired safety loops that comply with IEC 61511 functional safety requirements. The processor’s ability to execute safety tasks at independent, protected scan rates — isolated from standard control tasks — ensures that emergency shutdown logic remains responsive even when the main control program is under heavy computational load.

Surge protection and power conditioning are essential in environments with large motor drives, arc furnaces, or high-voltage switching equipment. The 1756-L63/A’s internal power management circuitry provides inherent protection against backplane voltage spikes, and when combined with external surge suppression devices and a properly grounded 1756-A17 or 1756-A10 chassis, the system achieves the electromagnetic compatibility margins required for CE and UL industrial certifications. This makes the 1756-L63/A suitable for installation in control rooms adjacent to high-power variable frequency drives and transformer banks without additional shielding.

Every 1756-L63/A unit supplied by SMARTNEXMSK undergoes a comprehensive pre-shipment functional test protocol. Each processor is powered up, firmware-verified, and subjected to a communication handshake test with a live ControlLogix chassis before packaging. Units are shipped in anti-static, moisture-resistant packaging with full traceability documentation. A 12-month warranty covers all hardware defects, with advance replacement support available for critical production environments to minimize downtime exposure.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust ControlLogix control cabinet built around the 1756-L63/A requires a layered protection strategy that addresses power quality, I/O integrity, network resilience, and safety interlock reliability. At the power layer, the 1756-PA75 AC power supply provides regulated backplane power with built-in overcurrent protection, while an external 1756-PSCA2 power supply chassis adapter allows dual-supply configurations for added redundancy in critical installations. Upstream, a properly rated UPS and surge suppression device protects the entire cabinet from grid-borne transients common in heavy industrial facilities.

At the I/O layer, the 1756-IB16 24VDC digital input module and 1756-OB16IS isolated digital output module form the hardwired interface between the processor and field devices such as emergency stop buttons, safety relays, solenoid valves, and motor contactors. For analog process signals — pressure, temperature, flow — the 1756-IF16 analog input module provides 16-channel, 16-bit resolution with per-channel diagnostics that flag open-wire and out-of-range conditions before they propagate into control logic errors. The 1756-OF8 analog output module closes the loop on modulating control elements such as control valves and variable speed drives.

Network protection is managed through the 1756-EN2TR dual-port EtherNet/IP module, which supports Device Level Ring (DLR) topology — a self-healing ring architecture that automatically reroutes traffic around a broken network segment within milliseconds, preventing a single cable fault from isolating the controller from its I/O or SCADA system. In legacy environments, the 1756-DNB DeviceNet Bridge module maintains communication with older field devices while the 1756-L63/A manages the modern EtherNet/IP backbone.

For safety interlock circuits, the 1756-L63/A executes safety tasks in a protected partition of the processor, ensuring that emergency shutdown logic — such as high-pressure trips, flame failure detection, and motor overload interlocks — cannot be inadvertently overwritten by standard control program updates. This architecture is fundamental to achieving and maintaining functional safety certification in petrochemical, power, and mining applications where a control system failure can have catastrophic consequences.

Critical Industrial Safety Applications

In petrochemical and refinery environments, the 1756-L63/A serves as the primary controller for distillation column control, compressor anti-surge systems, and fired heater burner management. Its deterministic execution and redundancy support make it a preferred choice for Safety Instrumented Systems (SIS) that must achieve SIL 2 or SIL 3 integrity levels under IEC 61511.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the 1756-L63/A manages turbine governor control, boiler drum level regulation, and generator excitation interlocks. Its ability to execute high-speed tasks at 1ms intervals ensures that protective relay coordination and load-shedding logic respond within the time windows required by grid stability standards.

In underground and open-pit mining operations, the 1756-L63/A controls conveyor drive sequencing, ventilation fan management, and dewatering pump systems. Its wide operating temperature range and vibration resistance allow installation in surface control rooms and underground electrical substations where ambient conditions are far outside the tolerance of standard commercial-grade controllers.

In water and wastewater treatment plants, the 1756-L63/A manages chemical dosing systems, filtration backwash sequences, and effluent discharge interlocks. Its tag-based programming model simplifies compliance reporting by providing structured, auditable data logs that satisfy environmental regulatory requirements.

In metallurgical and steel mill applications, the 1756-L63/A coordinates rolling mill drive control, furnace temperature regulation, and cooling water flow management. Its EMC immunity and surge protection characteristics are essential in environments dominated by large thyristor drives and induction furnaces that generate severe electrical noise.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the 1756-L63/A?
A: The 12-month warranty covers all hardware defects in materials and workmanship from the date of shipment. If the unit fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement or repair at no additional cost. Advance replacement options are available for critical production environments to minimize downtime.

Q: What pre-shipment testing is performed on each 1756-L63/A unit?
A: Every unit undergoes a full functional test protocol including power-on verification, firmware version confirmation, backplane communication test with a live ControlLogix chassis, and physical inspection for connector integrity and housing condition. Units that do not pass all test criteria are quarantined and not shipped.

Q: Is the 1756-L63/A compatible with my existing ControlLogix chassis and I/O modules?
A: Yes. The 1756-L63/A is compatible with all standard ControlLogix chassis (1756-A4 through 1756-A17) and the full range of 1756-series I/O modules. It is also compatible with ControlLogix redundancy configurations using the 1756-RM2 module. Firmware compatibility should be verified against your existing RSLogix 5000 or Studio 5000 project version before installation.

Q: Can SMARTNEXMSK guarantee long-term supply and replacement support for the 1756-L63/A?
A: Yes. SMARTNEXMSK maintains dedicated inventory of the 1756-L63/A and compatible ControlLogix components to support ongoing spare parts programs and emergency replacement requirements. Our procurement network ensures continued availability even for products that have transitioned to limited production status, providing customers with a reliable long-term supply chain for their installed base.
