Allen-Bradley 1756-L63 Maintenance-Ready Spare for ControlLogix

Allen-Bradley 1756-L63 Maintenance-Ready Spare for ControlLogix Automation

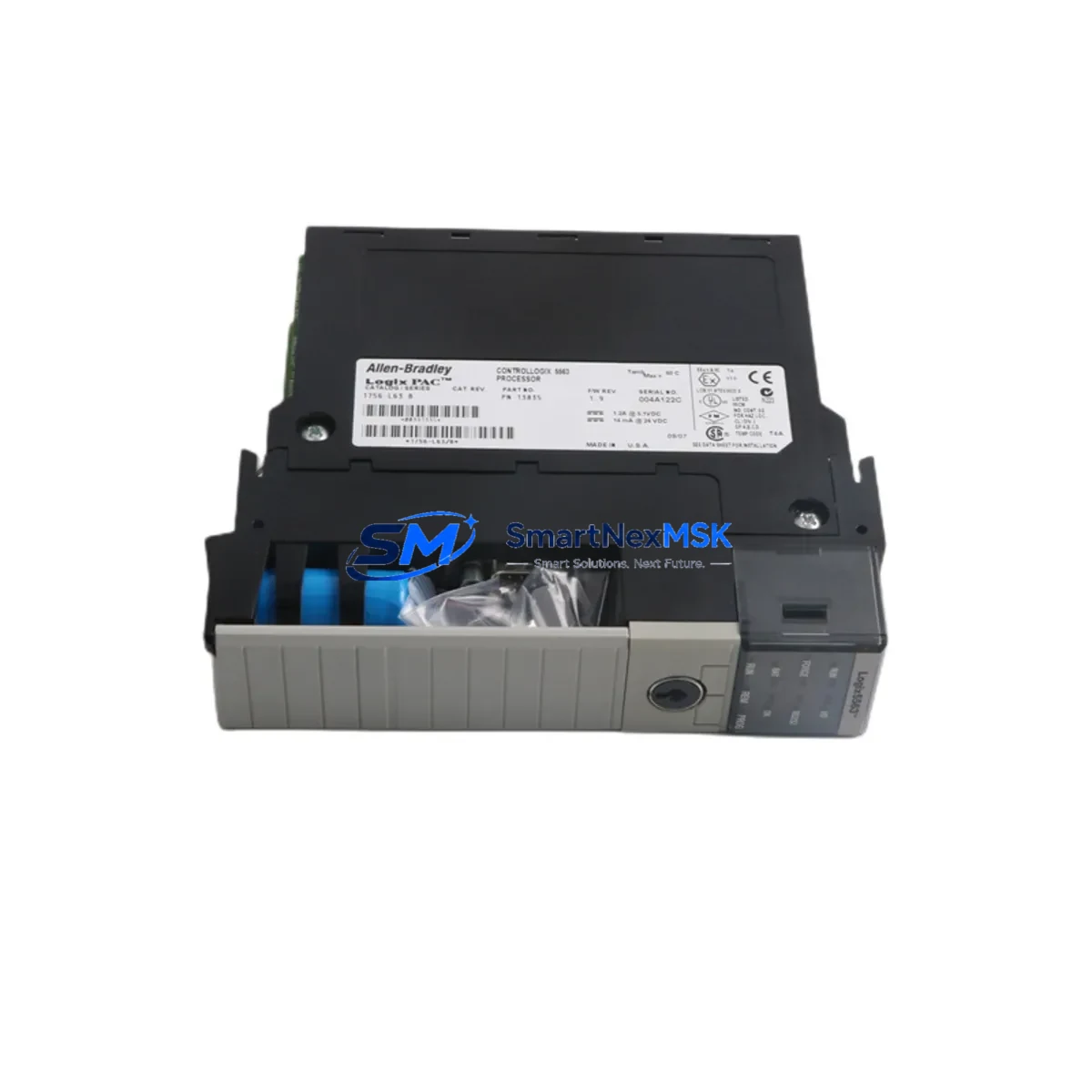

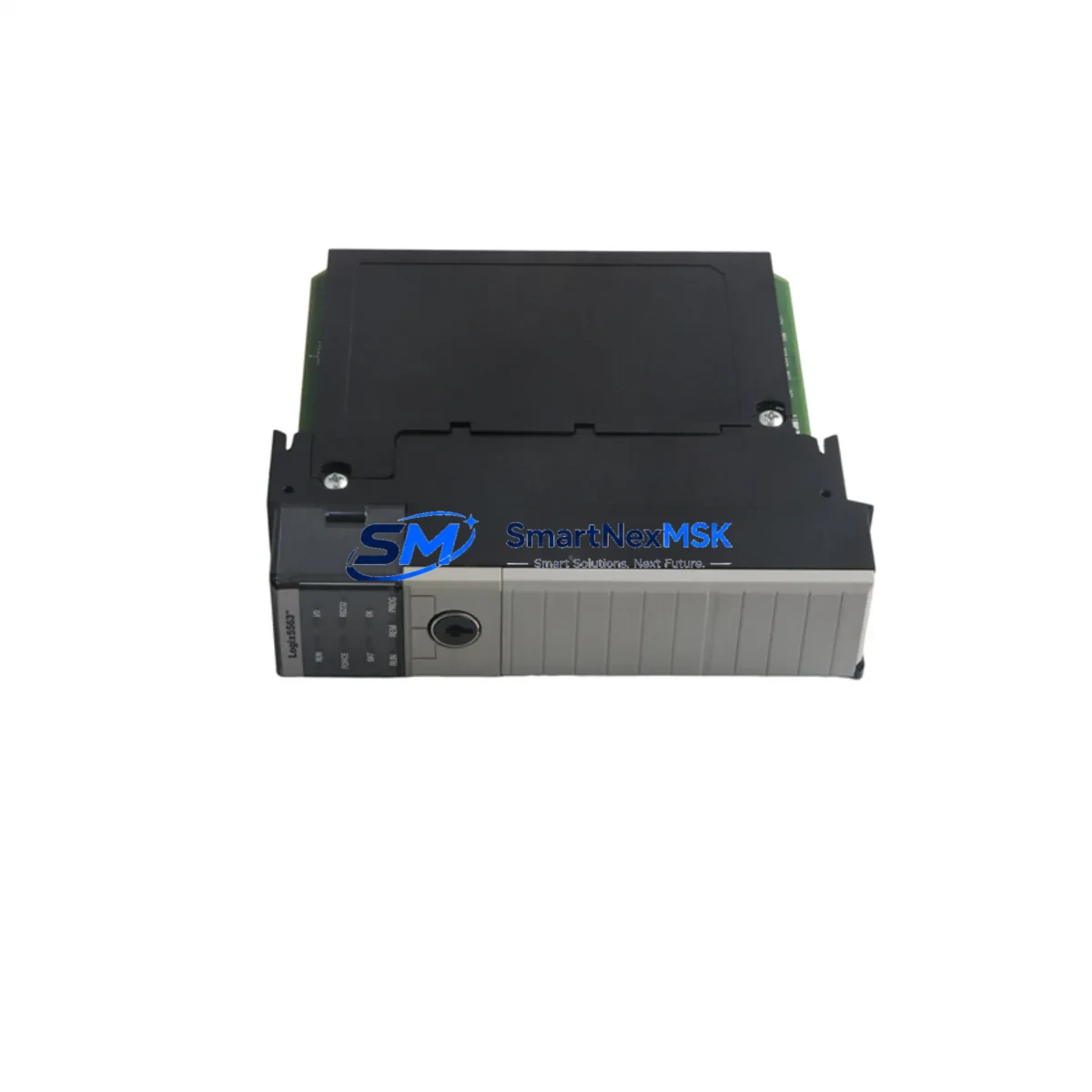

The Allen-Bradley 1756-L63 is a high-performance ControlLogix processor module designed for demanding industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and tested to support rapid replacement in 1756-series control systems — minimizing unplanned downtime and protecting production continuity. Whether you are managing a scheduled overhaul, responding to an emergency fault, or building a strategic spare parts inventory, the 1756-L63 delivers the reliability and compatibility that maintenance engineers and procurement teams depend on.

The 1756-L63 features 8 MB of user memory and supports the full ControlLogix instruction set, making it a direct drop-in replacement for aging or failed processors in existing 1756 chassis. Its compatibility with Logix Designer (Studio 5000) ensures that existing programs, tag databases, and I/O configurations can be restored without modification — a critical advantage when every minute of downtime carries operational cost.

Each unit is dispatched after functional verification, with firmware version documentation provided on request. Long-term supply availability is maintained to support legacy system life extension programs, where replacing the entire control architecture is not economically justified. The 1756-L63 is an ideal candidate for multi-year spare parts agreements in industries including automotive, oil and gas, water treatment, food and beverage, and discrete manufacturing.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1756-L63 processor in a live ControlLogix system, a thorough inspection of the surrounding control cabinet components is strongly recommended. Processor failures are rarely isolated events — they are often preceded or accompanied by degradation in adjacent modules and power infrastructure.

Begin with the chassis power supply. The 1756-PA72 or 1756-PB72 should be load-tested before the new processor is installed; a marginal power supply can cause intermittent faults or corrupt the processor’s memory during startup. Inspect the backplane connector on the chassis itself for signs of arcing or contamination.

Next, audit the communication infrastructure. If the system relies on EtherNet/IP for supervisory control or SCADA integration, verify the condition of the 1756-EN2T or 1756-ENBT communication module. A faulty network module can prevent the replacement processor from establishing a connection with the programming terminal or the historian, delaying commissioning even after the hardware swap is complete.

For systems with remote I/O racks connected via ControlNet, inspect the 1756-CNB or 1756-CN2 ControlNet bridge module. Verify that the network address and keying parameters are correctly set before powering up the replacement processor. Similarly, if DeviceNet is in use, confirm the 1756-DNB scanner module configuration is intact.

Discrete I/O modules such as the 1756-IB16 input module and 1756-OB16E output module should be checked for blown fuses, failed output transistors, or wiring terminal corrosion — particularly in high-cycle applications. Analog I/O modules, including the 1756-IF8 and 1756-OF8, should be calibrated after the processor replacement to ensure signal accuracy is maintained.

If the control cabinet includes a PanelView HMI terminal, verify that the HMI application is compatible with the firmware version loaded on the replacement 1756-L63. Firmware mismatches between the processor and the HMI communication driver are a common source of post-replacement commissioning delays. Maintaining a documented firmware baseline for each control system is a best practice that significantly reduces recovery time during emergency replacements.

Finally, review the condition of terminal blocks, cable shields, and grounding conductors within the cabinet. Loose or corroded connections can introduce noise that manifests as spurious faults after the new processor is online — faults that are difficult to diagnose without a clean electrical baseline.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Back up the existing processor program using Studio 5000 or RSLogix 5000. Save the project file with a version-stamped filename and store it on a secure network drive. Confirm the firmware revision of the existing 1756-L63 so the replacement unit can be flashed to match before installation.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. Remove the processor module from the 1756 chassis by releasing the top and bottom locking tabs. Handle the module by its edges to avoid electrostatic discharge damage to the backplane connector.

Step 3 — Firmware alignment: Using a USB programming cable, connect the replacement 1756-L63 to a laptop running Studio 5000. Update the firmware to match the version documented in Step 1. This step eliminates the most common cause of post-replacement communication failures.

Step 4 — Installation and program restore: Seat the replacement processor in the original chassis slot. Power up the chassis and download the backed-up project file. Verify that all I/O modules go online and that the processor transitions to RUN mode without faults.

Step 5 — System validation: Perform a functional check of all critical I/O points, communication links, and HMI screens. Document the replacement in the site maintenance log, including the serial number of the removed unit and the replacement unit, the firmware version, and the date of replacement.

This workflow is applicable whether the 1756-L63 is replacing a failed unit on an emergency basis or being installed as part of a planned preventive maintenance cycle. Keeping a pre-configured spare — with firmware pre-loaded and the latest program backup stored on a USB drive attached to the spare — can reduce mean time to repair (MTTR) to under 30 minutes for experienced maintenance teams.

Spare Parts Support FAQ

Q1: Is this 1756-L63 an original Allen-Bradley unit, and how is it tested before shipment?
Yes. Every 1756-L63 unit we supply is an original Allen-Bradley (Rockwell Automation) component. Prior to shipment, each unit undergoes power-on functional verification, backplane communication testing, and visual inspection for physical damage or counterfeit indicators. A test report is available on request. Units are packed in anti-static packaging with foam protection to prevent transit damage.

Q2: What is the warranty coverage, and what does it include?
All units are covered by a 12-month warranty from the date of shipment. The warranty covers hardware defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or unauthorized firmware modifications. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification.

Q3: Can this unit replace older 1756-L6x series processors such as the 1756-L61 or 1756-L62?
The 1756-L63 is mechanically and electrically compatible with the 1756 chassis and can be installed in any slot previously occupied by a 1756-L61 or 1756-L62. However, the user memory capacity differs between models (2 MB for L61, 4 MB for L62, 8 MB for L63), so the replacement processor must have equal or greater memory than the original to run the existing program without modification. Firmware compatibility with the existing I/O and communication modules should also be verified before installation.

Q4: Do you support long-term supply for legacy ControlLogix systems?
Yes. We maintain ongoing stock of 1756-series components to support legacy system life extension programs. For customers managing multiple sites or planning multi-year maintenance contracts, we offer reserved stock arrangements and volume pricing. Contact our technical sales team to discuss your spare parts strategy and annual consumption requirements.
