Allen-Bradley 1756-L63S Safety-Enhanced Processor for Harsh Sites

Allen-Bradley 1756-L63S Safety-Enhanced Processor for Harsh Industrial Sites

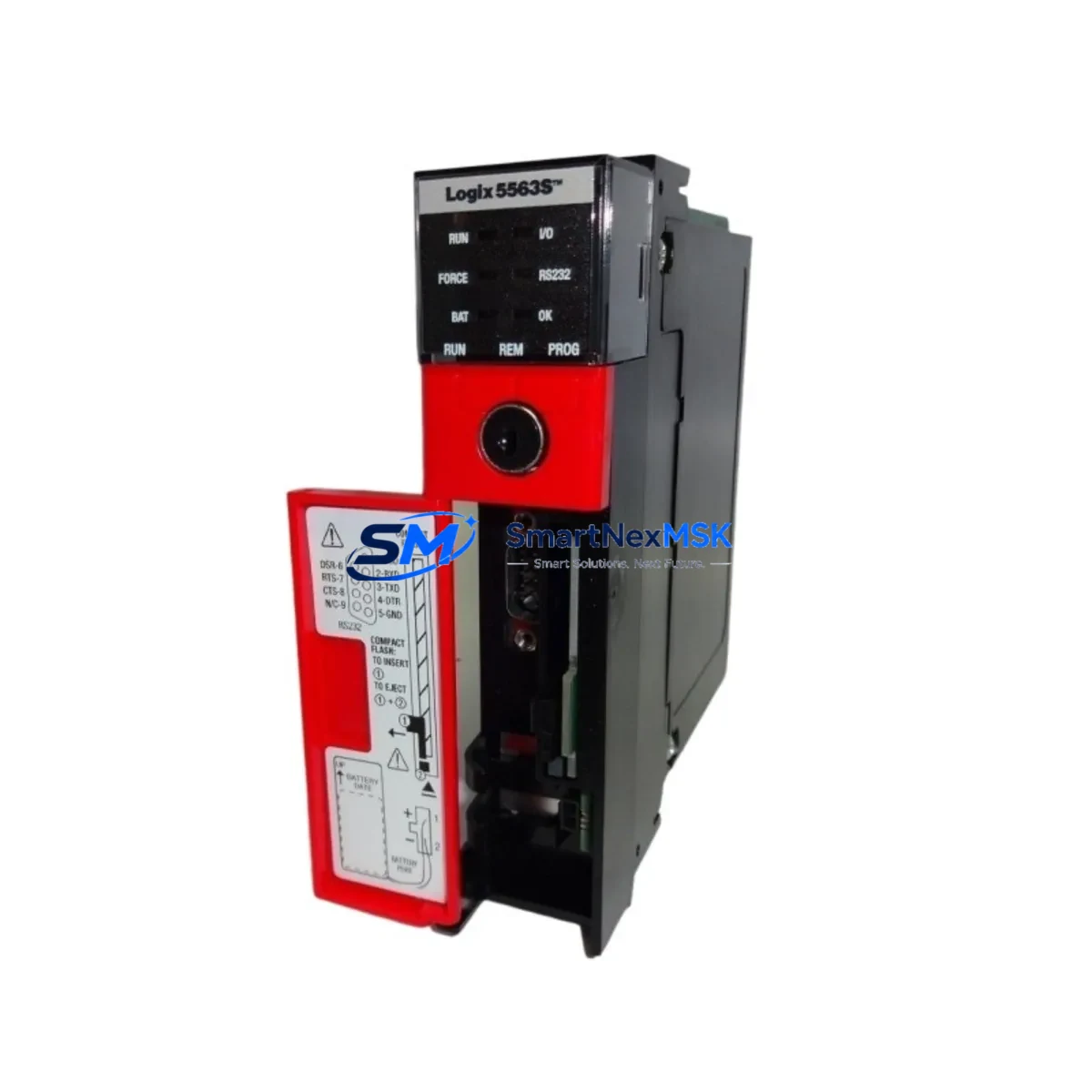

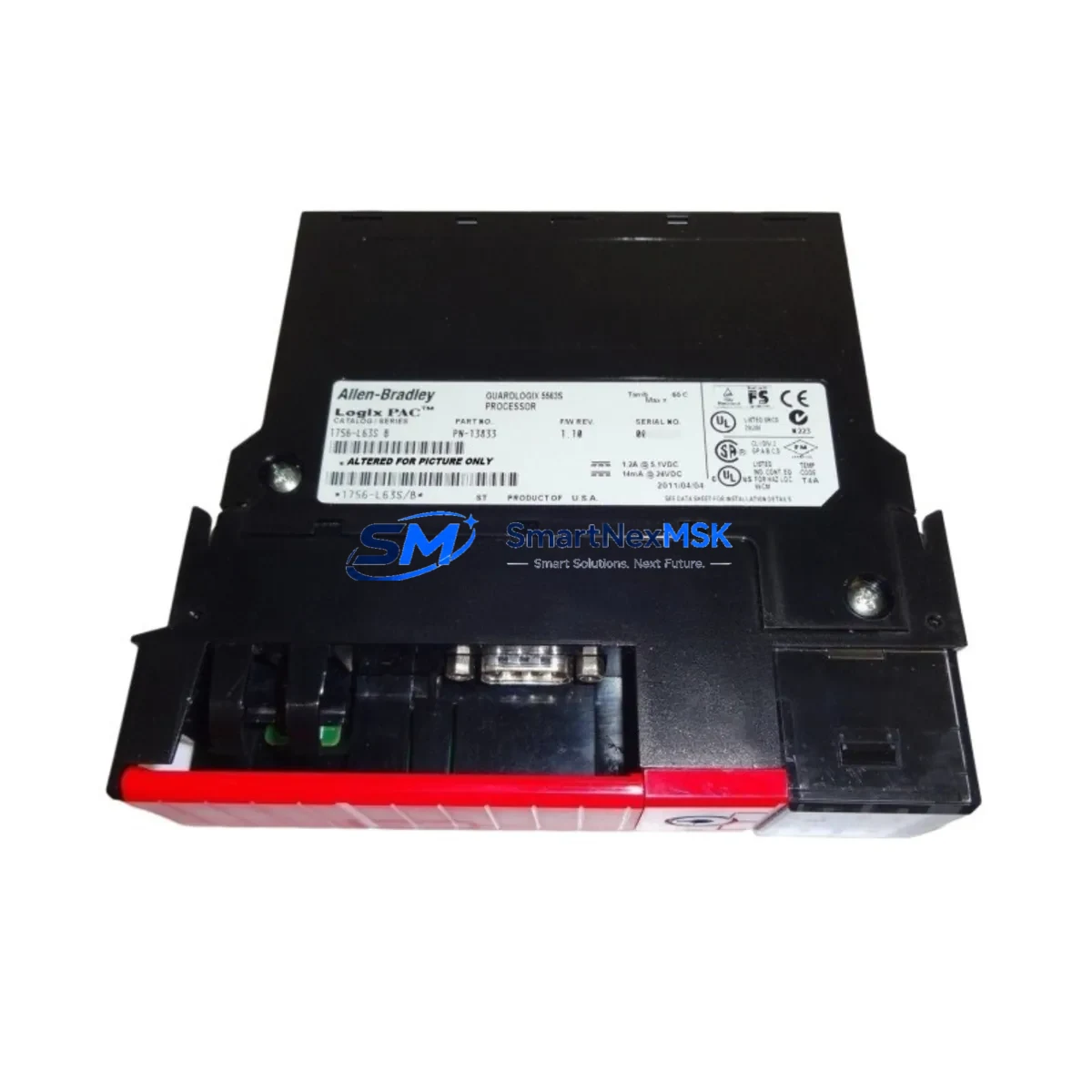

The Allen-Bradley 1756-L63S is a ControlLogix Safety Processor Module engineered for mission-critical industrial automation environments where control integrity, personnel safety, and uninterrupted production are non-negotiable. Rated to SIL 2 (Safety Integrity Level 2) per IEC 61508 and IEC 62061, this processor is purpose-built to execute safety-instrumented functions (SIF) alongside standard control tasks within a single ControlLogix chassis — eliminating the need for a separate safety controller and reducing cabinet footprint without compromising protection.

In high-load continuous manufacturing, petrochemical processing, power generation, and heavy metallurgical operations, control system interruptions carry severe consequences — from production loss and equipment damage to personnel injury and regulatory non-compliance. The 1756-L63S addresses these risks directly. Its dual-processor architecture performs continuous self-diagnostics, cross-checking safety logic execution in real time to detect faults before they propagate into unsafe states. Signal drift, memory corruption, and communication anomalies are identified and isolated automatically, triggering safe-state transitions without operator intervention.

The module operates reliably across a wide industrial temperature range and is designed to withstand the electromagnetic interference (EMI), vibration, and power fluctuations common in heavy industrial control cabinets. When paired with the 1756-IB16S Safety Digital Input Module and 1756-OB16S Safety Digital Output Module, the 1756-L63S forms a complete safety I/O loop capable of monitoring emergency stop circuits, safety gate interlocks, and pressure relief interlocks with deterministic response times. This combination is widely deployed in safety instrumented systems (SIS) across refinery unit operations and chemical batch reactors.

Power stability is foundational to safety processor reliability. The 1756-L63S is typically installed alongside the 1756-PA75 or 1756-PB75 ControlLogix Power Supply, which provides regulated, filtered DC power to the backplane. In critical applications, redundant power configurations using dual 1756-PA75 units with the 1756-PSCA2 Power Supply Chassis Adapter ensure that a single power supply failure does not interrupt safety logic execution. Surge and transient protection at the cabinet level — using DIN-rail mounted surge protective devices — further shields the processor from voltage spikes introduced by large motor starts, arc flash events, or utility switching.

For process communication, the 1756-L63S integrates seamlessly with 1756-EN2T EtherNet/IP Communication Modules for high-speed deterministic data exchange across plant networks, and with 1756-DNB DeviceNet Scanner Modules for legacy field device connectivity. In safety-critical architectures, the processor’s CIP Safety protocol support enables certified safe communication over standard EtherNet/IP infrastructure — removing the need for dedicated hardwired safety buses while maintaining SIL 2 communication integrity. This is particularly valuable in distributed control architectures spanning large petrochemical complexes or multi-unit power plants.

The 1756-L63S also supports seamless integration with Rockwell Automation GuardLogix safety programming via Studio 5000 Logix Designer, enabling engineers to develop, verify, and validate safety application code within a unified development environment. Safety task configuration, proof-test interval management, and safety signature locking are all handled natively — reducing validation effort and accelerating SIL verification documentation for functional safety audits.

In mining and mineral processing operations, where continuous conveyor systems, crusher interlocks, and hoisting equipment demand fail-safe control, the 1756-L63S provides the processing headroom and safety task isolation required to manage complex interlock matrices without compromising scan time performance. Similarly, in water and wastewater treatment facilities, the module’s robust diagnostics support the reliable operation of chemical dosing interlocks, pump protection circuits, and overflow prevention systems — environments where a spurious trip or missed fault can have serious environmental and public health consequences.

Every 1756-L63S unit supplied by SMARTNEXMSK undergoes pre-shipment functional testing, including power-on self-test verification, safety task execution confirmation, and communication port integrity checks. Units are sourced from verified supply channels, inspected for firmware version compatibility, and shipped with full documentation. Stock is maintained for immediate dispatch, supporting both planned maintenance schedules and emergency replacement requirements. A 12-month warranty covers all supplied units against manufacturing defects and functional failures, with technical support available throughout the warranty period.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust safety control cabinet built around the 1756-L63S requires a layered protection strategy that addresses power quality, I/O integrity, communication reliability, and physical environmental resilience. At the power layer, the 1756-PA75 ControlLogix Power Supply delivers clean, regulated backplane power, while DIN-rail mounted surge protective devices guard against transient overvoltages from nearby variable frequency drives (VFDs) and motor starters. For applications requiring continuous operation through power interruptions, an uninterruptible power supply (UPS) module integrated at the cabinet level maintains processor operation during utility fluctuations — a common requirement in petrochemical and power generation facilities.

At the I/O layer, 1756-IB16S Safety Digital Input Modules connect to field-mounted safety devices — emergency stop buttons, safety light curtains, and interlocked access gates — while 1756-OB16S Safety Digital Output Modules drive safety-rated contactors and solenoid valves. For analog process measurements in safety loops, the 1756-IF16S Safety Analog Input Module provides SIL 2-rated signal acquisition for pressure transmitters, temperature sensors, and flow meters used in safety instrumented functions. All I/O modules communicate with the 1756-L63S over the ControlLogix backplane using CIP Safety protocol, ensuring that signal integrity is continuously verified and any communication fault triggers a safe-state response.

Network communication is handled by the 1756-EN2T EtherNet/IP Communication Module, which connects the safety controller to the plant DCS, SCADA system, or historian over a standard industrial Ethernet network. In facilities with legacy DeviceNet field devices, the 1756-DNB DeviceNet Scanner Module provides backward-compatible connectivity without requiring field rewiring. For remote I/O expansion across large plant areas, 1794 FLEX I/O modules connected via EtherNet/IP extend the safety system’s reach to remote junction boxes and field panels — maintaining SIL 2 integrity across distributed architectures.

Critical Industrial Safety Applications

The Allen-Bradley 1756-L63S is deployed across the most demanding industrial safety applications globally. In petrochemical and refinery operations, it executes emergency shutdown (ESD) logic for high-pressure reactor vessels, managing burner management system (BMS) interlocks and high-integrity pressure protection systems (HIPPS) that prevent catastrophic overpressure events. Its SIL 2 rating satisfies the functional safety requirements of IEC 61511, the process industry safety standard, making it a compliant choice for safety instrumented system (SIS) applications subject to third-party safety lifecycle audits.

In power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — the 1756-L63S manages turbine protection interlocks, generator protection circuits, and boiler safety shutdowns. Its deterministic safety task execution ensures that trip signals are processed and acted upon within defined response times, preventing equipment damage from overspeed, overtemperature, or loss-of-flame conditions. The module’s ability to run standard control logic concurrently with safety logic in a single chassis simplifies cabinet design and reduces the number of controllers required in turbine control panels.

In mining and mineral processing, the 1756-L63S protects conveyor systems, crushers, and hoisting equipment through fail-safe interlock management. Pull-cord emergency stops, belt misalignment switches, and blocked chute detectors are all monitored through safety I/O modules connected to the processor, with any fault condition triggering an immediate controlled shutdown of the affected equipment section. In water and wastewater treatment facilities, the module manages chemical dosing interlocks, pump protection circuits, and high-level overflow prevention systems — ensuring regulatory compliance and protecting both infrastructure and public health.

In metallurgical and steel production environments, where arc furnaces, rolling mills, and continuous casting lines operate under extreme thermal and electrical stress, the 1756-L63S provides the EMI immunity and thermal stability required for reliable safety function execution. Its robust design tolerates the high-frequency electrical noise generated by large power electronics, maintaining safety logic integrity even in the most electrically hostile control rooms. Port and bulk material handling terminals also rely on the 1756-L63S for crane anti-collision systems, conveyor belt protection, and ship loader interlock management — applications where a missed safety signal can result in multi-million-dollar equipment damage and serious personnel injury.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the 1756-L63S?
All 1756-L63S units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. The warranty covers functional defects and manufacturing faults. In the event of a warranty claim, replacement units are dispatched promptly to minimize site downtime. Technical support is available throughout the warranty period to assist with installation, configuration, and troubleshooting.

Q2: What pre-shipment testing is performed on each unit?
Every 1756-L63S undergoes a structured pre-shipment inspection that includes a power-on self-test (POST) to verify processor initialization, confirmation of safety task execution capability, and communication port integrity verification. Units are also checked for firmware version compatibility with current Studio 5000 Logix Designer releases. Test records are available upon request for quality documentation purposes.

Q3: Is the 1756-L63S compatible with existing ControlLogix chassis and I/O modules?
Yes. The 1756-L63S is fully compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot configurations) and can operate alongside standard ControlLogix I/O modules, communication modules, and motion modules in the same chassis. Safety I/O modules (1756-IB16S, 1756-OB16S, 1756-IF16S) are required for safety-rated I/O connections. Compatibility with specific firmware versions and chassis configurations can be confirmed prior to order.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated stock of the 1756-L63S to support both planned maintenance programs and emergency replacement requirements. For facilities operating long-lifecycle safety systems, we offer reserved stock arrangements and advance procurement support to ensure continuity of supply. Our sourcing network covers multiple verified supply channels, providing resilience against market shortages and extended lead times from primary distribution.
