Allen-Bradley 1756-OB32 Spare for ControlLogix Automation

Allen-Bradley 1756-OB32 Spare for ControlLogix Automation

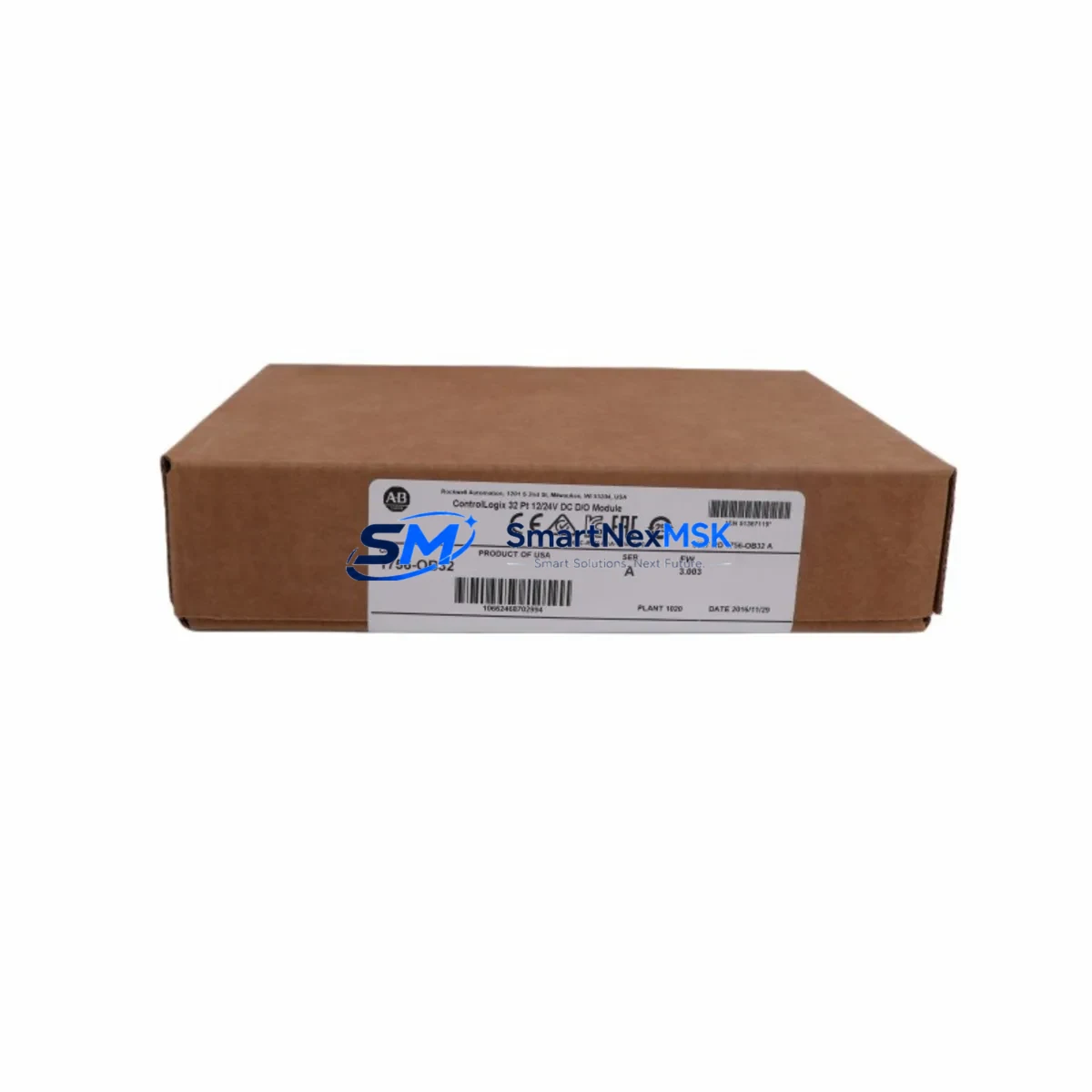

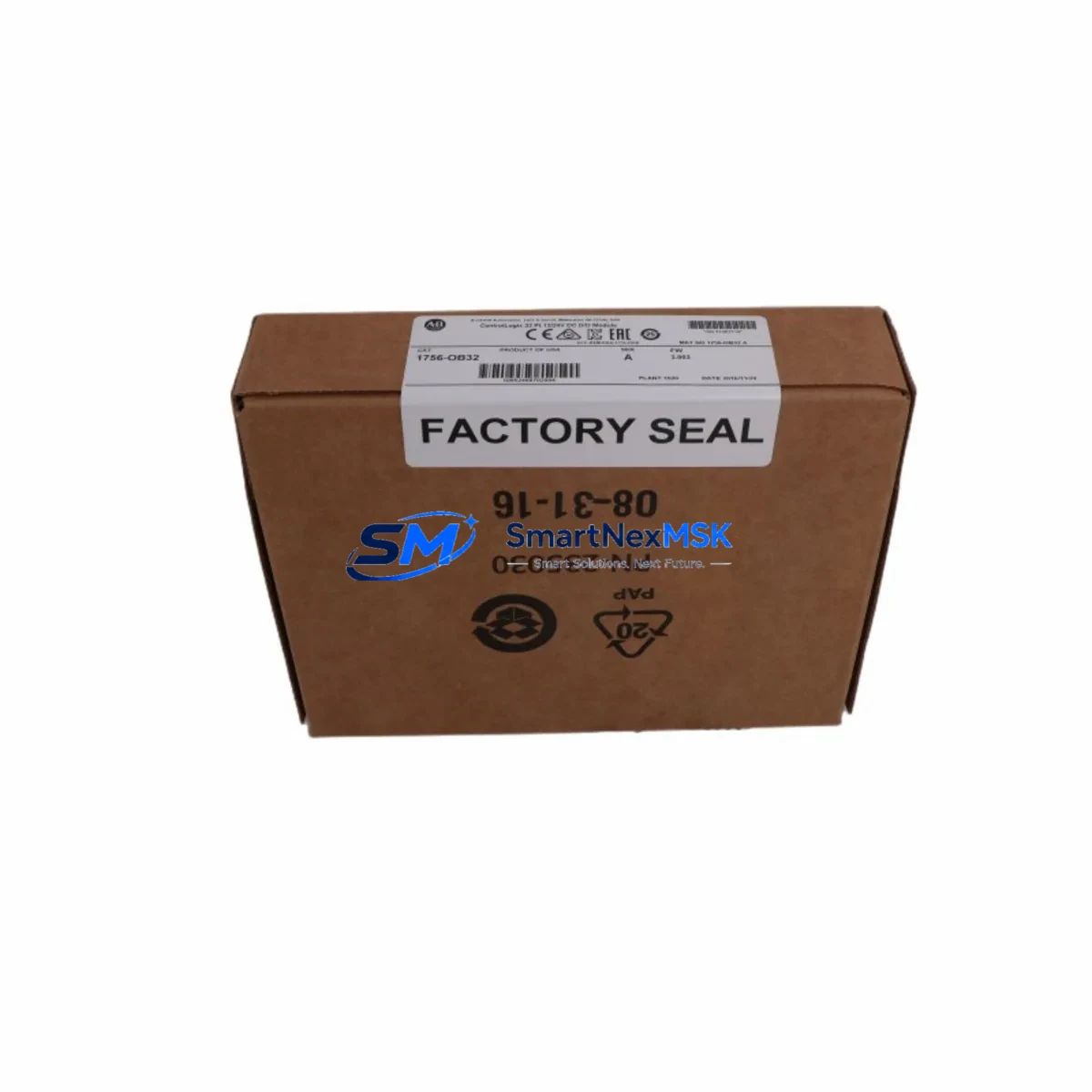

The Allen-Bradley 1756-OB32 is a 32-point, 24V DC sourcing digital output module designed for the ControlLogix 1756 chassis platform. As a maintenance-ready spare, it is the direct replacement for aging or failed output modules in production lines, packaging systems, material handling conveyors, and process control panels. Sourced as an original Rockwell Automation component, each unit is inspected and tested prior to shipment to ensure full functional integrity upon installation.

For maintenance engineers managing aging ControlLogix systems, holding a verified 1756-OB32 spare eliminates the risk of extended downtime caused by output module failure. The module supports 0.5A per point (8A per common) and is compatible with the 1756-TBCH and 1756-TBS6H removable terminal blocks, allowing rapid field swap without rewiring. Its 24V DC sourcing architecture is widely used in solenoid valve control, motor starter coil activation, and indicator lamp circuits across discrete manufacturing environments.

When planning a replacement of the 1756-OB32, maintenance and procurement engineers should conduct a concurrent inspection of adjacent modules and system components to prevent repeat failures. The 1756-IB32 32-point 24V DC sinking input module paired in the same chassis slot group should be verified for contact wear and input signal integrity. The 1756-PA75 or 1756-PB75 chassis power supply should be load-tested to confirm it can sustain full output current draw after the new module is installed. Backplane communication health can be validated through the 1756-EN2T or 1756-EN3TR EtherNet/IP communication module, which also serves as the primary diagnostic gateway for ControlLogix I/O faults.

In control cabinet inspections, the 1492-IFM40F-24D interface module and associated terminal blocks should be checked for oxidation and loose terminations, as degraded wiring connections are a leading cause of premature output module failure. Fuse integrity on the output commons — typically protected by 1A–2A fast-blow fuses in the field wiring panel — must be confirmed before energizing the replacement module. If the system uses a 1756-OW16I relay output module in the same cabinet for high-voltage or AC load switching, its relay contacts should be inspected for pitting during the same maintenance window.

For facilities running extended ControlLogix installations, the 1756-L74 or 1756-L85E controller firmware version should be confirmed compatible with the replacement module’s revision level. The 1756-RM2 redundancy module, if present, requires a chassis rescan after any I/O module swap to maintain redundancy synchronization. HMI operators using a PanelView Plus 7 or FactoryTalk View SE workstation should be notified of the maintenance window to avoid false alarm acknowledgment during the replacement procedure.

SMARTNEXMSK maintains long-term inventory of the 1756-OB32 and its associated ControlLogix ecosystem components to support both emergency breakdown recovery and planned preventive maintenance programs. All units ship with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured maintenance plan around the 1756-OB32 should address the full output circuit from controller to field device. During scheduled downtime or control cabinet inspections, engineers should simultaneously evaluate the following components to prevent cascading failures:

• 1756-IB32 — 32-point 24V DC sinking input module: verify input signal integrity and check for stuck-on or stuck-off channels that may indicate field wiring faults.
• 1756-PA75 / 1756-PB75 — Chassis power supply: load-test under full I/O draw; a degraded PSU is a common root cause of intermittent output module faults.
• 1756-EN2T / 1756-EN3TR — EtherNet/IP communication module: confirm no I/O connection timeouts or RPI errors that could mask output module diagnostics.
• 1492-IFM40F-24D — Interface module and terminal blocks: inspect for oxidation, loose screws, and insulation degradation on field wiring terminations.
• 1756-OW16I — Relay output module (if co-located): inspect relay contacts for pitting; relay modules in the same cabinet often share the same maintenance cycle.
• 1756-RM2 — Redundancy module: rescan chassis after I/O swap to maintain redundancy synchronization and confirm no module mismatch alarms.
• Panel fusing — Fast-blow fuses (1A–2A) on output commons: replace as a precaution during any output module swap to eliminate fuse-related nuisance trips.
• PanelView Plus 7 / FactoryTalk View SE — HMI: notify operators of maintenance window; confirm alarm suppression is active during module replacement to avoid false acknowledgments.
• 1756-L74 / 1756-L85E — ControlLogix controller: verify firmware revision compatibility with replacement module and confirm no I/O tree errors post-installation.

Site Replacement Workflow

Replacing the 1756-OB32 in a live ControlLogix system follows a structured sequence to minimize downtime and maintain system compatibility:

1. Isolate the output circuit — De-energize field loads connected to the module’s output commons. Do not remove the module under live load.
2. Remove the terminal block — Disconnect the 1756-TBCH or 1756-TBS6H wiring assembly. The removable terminal block preserves all field wiring, eliminating rewiring time.
3. Extract the failed module — Use the module locking tab to release and slide the 1756-OB32 from the chassis slot.
4. Insert the replacement module — Seat the new 1756-OB32 firmly until the locking tab engages. The ControlLogix backplane will auto-configure the module from the controller’s I/O tree.
5. Reconnect the terminal block — Reattach the wiring assembly and verify all terminal screws are torqued to specification.
6. Verify in RSLogix 5000 / Studio 5000 — Confirm the module status indicator shows green and no I/O faults are present in the controller fault log.
7. Functional test — Force individual output points in test mode to confirm field device response before returning the system to automatic operation.

This workflow supports hot-swap replacement in non-redundant systems and maintains full compatibility with existing ladder logic and I/O addressing without program modification.

Spare Parts Support FAQ

Q1: Is the 1756-OB32 compatible with all ControlLogix chassis sizes?
Yes. The 1756-OB32 is compatible with all standard 1756 ControlLogix chassis configurations including 4-slot, 7-slot, 10-slot, 13-slot, and 17-slot variants. No chassis-specific firmware or configuration is required.

Q2: How is each unit tested before shipment?
All 1756-OB32 units supplied by SMARTNEXMSK undergo functional verification prior to dispatch. Testing confirms backplane communication, output point activation, and current draw within specification. A test report is available upon request for critical applications.

Q3: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling. Warranty claims are processed with return authorization and replacement dispatch within standard lead times.

Q4: Can SMARTNEXMSK support long-term or blanket spare parts orders for the 1756 series?
Yes. SMARTNEXMSK maintains standing inventory of the 1756-OB32 and related ControlLogix I/O modules to support both emergency procurement and planned annual maintenance budgets. Contact our team to discuss volume pricing, reserved stock agreements, and multi-SKU spare parts kitting for your facility’s control system.
