Allen-Bradley 1756-PB50 Spare for ControlLogix Automation

Allen-Bradley 1756-PB50 Spare for ControlLogix Automation

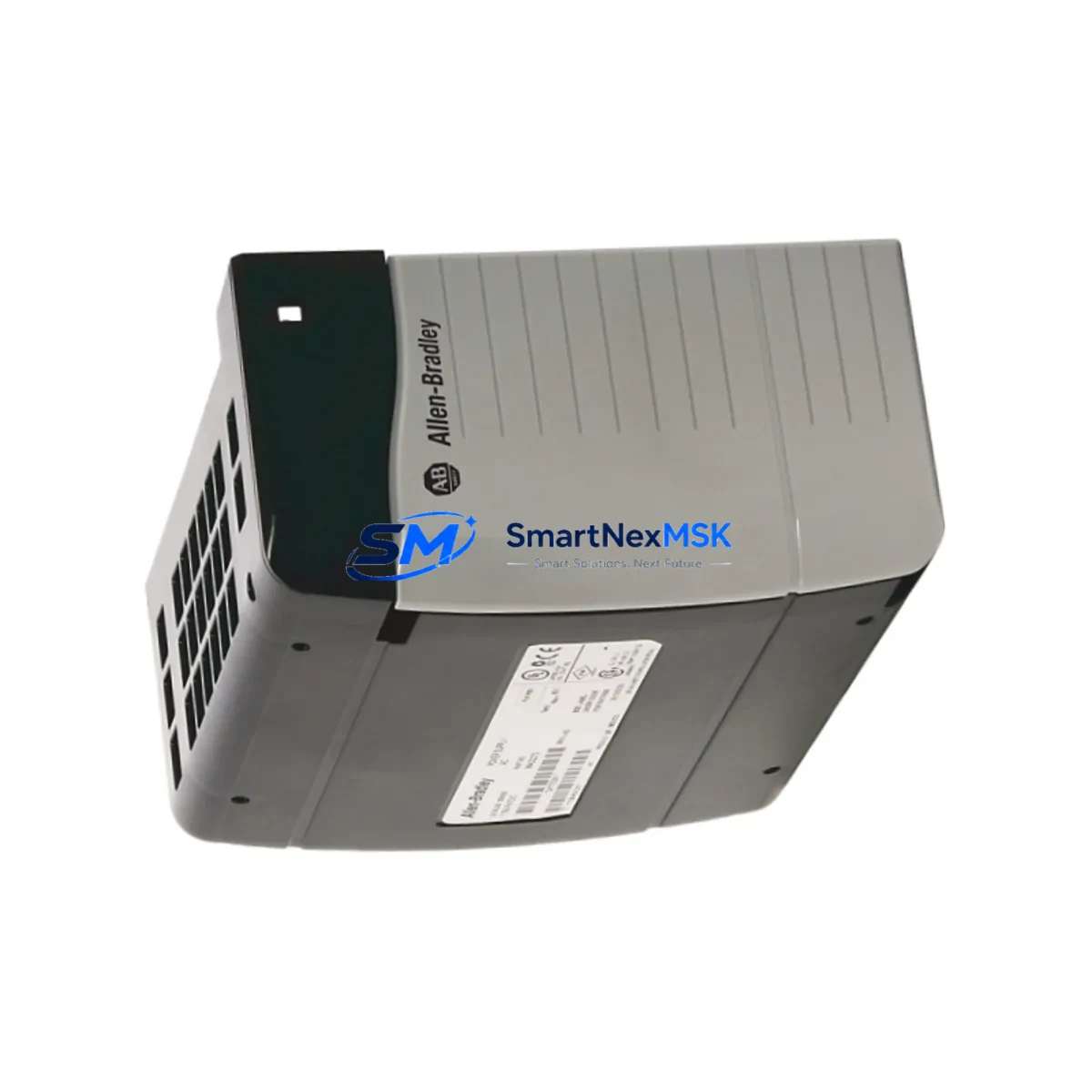

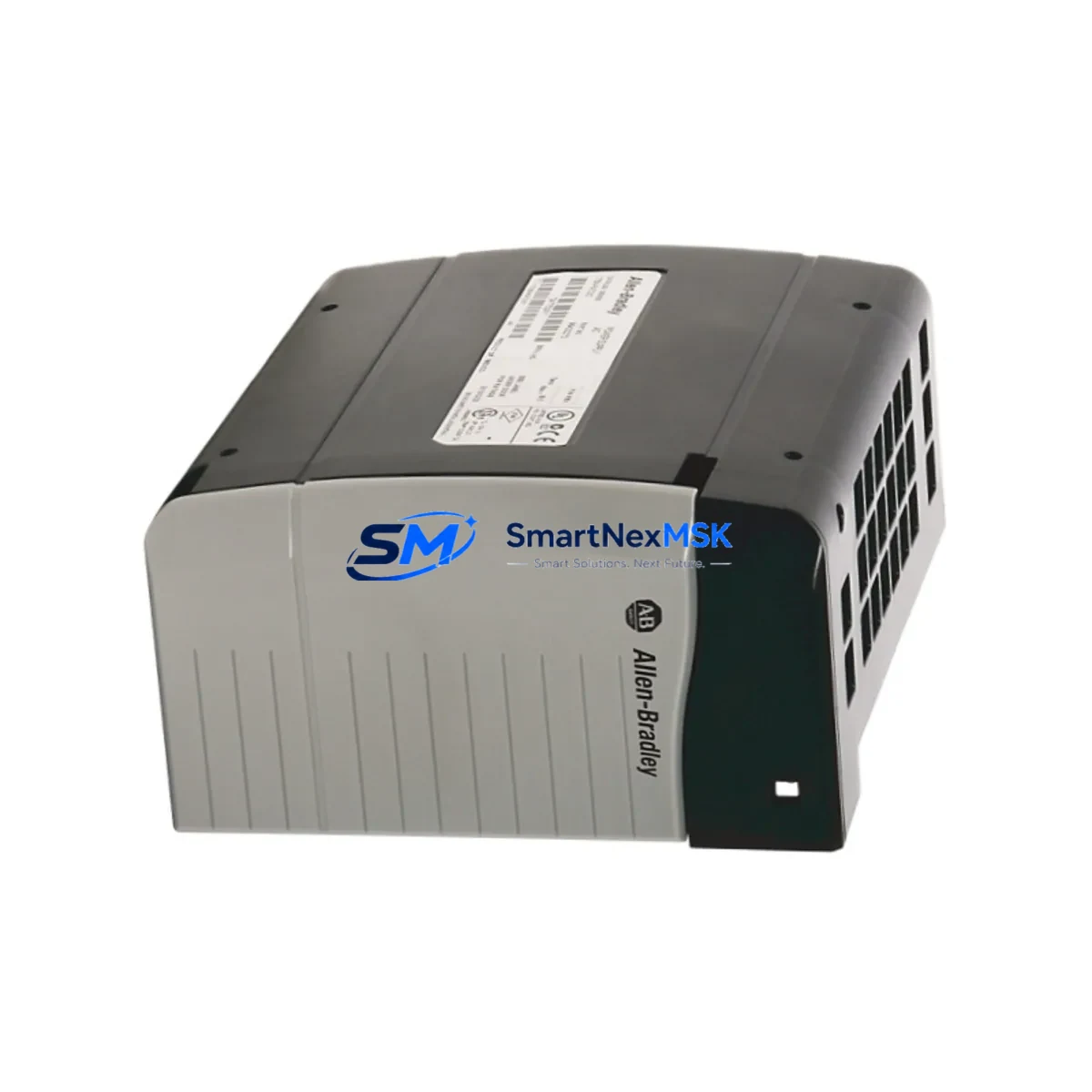

The Allen-Bradley 1756-PB50 is a 24VDC input power supply module designed for the ControlLogix 1756 chassis platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, process control, and critical infrastructure. When this module fails or reaches end-of-service life, the entire ControlLogix rack loses power, bringing production to a halt. Maintaining a verified original 1756-PB50 spare on the shelf is the single most effective measure a maintenance team can take to minimize unplanned downtime in 1756-based control systems.

This listing supplies a genuine, original Allen-Bradley 1756-PB50 power supply module — not a counterfeit, not a grey-market refurbished unit. Every unit is bench-tested prior to shipment, ships with full documentation, and is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. We support maintenance engineers and procurement teams across industrial automation, oil & gas, automotive assembly, water treatment, and building management sectors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A power supply failure in a ControlLogix rack is rarely an isolated event. Experienced maintenance engineers know that when a 1756-PB50 trips or fails, the root cause often lies upstream or downstream of the module itself. Before returning the system to service after a 1756-PB50 replacement, a thorough inspection of the surrounding electrical environment is essential.

Start at the 24 VDC feed: verify the upstream power distribution panel, check the dedicated circuit breaker or fuse protecting the 24 VDC rail, and confirm that input voltage is stable within the 18–32 VDC operating window. Voltage sags caused by a failing SMPS (switched-mode power supply) or an overloaded distribution bus are a common cause of premature 1756-PB50 failure. If the plant uses a 1756-PA75 (120/240 VAC input variant) in adjacent racks, inspect those units simultaneously — shared bus faults can cascade across multiple chassis.

Next, audit the chassis backplane. The 1756-A7 or 1756-A10 chassis backplane connectors should be inspected for oxidation, bent pins, or thermal discoloration. A damaged backplane can cause repeated power supply failures even after a new 1756-PB50 is installed. If the chassis is more than 10 years old, consider stocking a spare chassis alongside the power supply.

Review the I/O modules drawing power from the backplane. High-density digital output modules such as the 1756-OB16E or analog output modules like the 1756-OF8 can draw significant backplane current. If the total load has grown since the original system design — due to added I/O cards or communication modules — the 1756-PB50’s 50 W output may be operating near its thermal limit, accelerating wear. In such cases, evaluate whether a higher-capacity supply or a second chassis is warranted.

Communication modules also deserve attention during any power supply maintenance event. The 1756-EN2T EtherNet/IP communication module and the 1756-DHRIO Data Highway Plus/Remote I/O module both rely on stable backplane power. A brief power interruption can corrupt firmware states or cause communication faults that persist after power is restored. Verify module status LEDs and re-establish communication paths before declaring the system operational.

For systems using redundant controller configurations, inspect the 1756-PSCA2 power supply redundancy adapter and confirm that the redundant supply — often a second 1756-PB50 or 1756-PA75 — is healthy and ready to assume load. Redundancy adapters should be tested annually as part of planned maintenance.

Finally, check the 1756-L7x or 1756-L8x ControlLogix controller module itself. Power events can trigger controller faults or energy storage module (ESM) discharge cycles. Inspect the ESM charge status and replace if the module is approaching its rated cycle count. Relay output modules such as the 1756-OW16I and terminal blocks on the I/O wiring side should also be inspected for loose connections that may have been disturbed during the power event.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the 1756-PB50, record the current controller program state, I/O status, and any active faults using RSLogix 5000 or Studio 5000 Logix Designer. If the system is in a safe state, perform a controlled shutdown. If the system is already down due to power supply failure, proceed directly to removal.

Step 2 — Remove the failed module. The 1756-PB50 is installed in Slot 0 of the ControlLogix chassis. Disconnect the 24 VDC input wiring from the terminal block on the module face. Loosen the captive screws and slide the module out of the chassis. Inspect the chassis slot connector for damage before installing the replacement.

Step 3 — Install the replacement 1756-PB50. Slide the new module into Slot 0 until the backplane connector is fully seated. Tighten the captive screws to the specified torque. Reconnect the 24 VDC input wiring, observing correct polarity. Verify that the input voltage is within specification before applying power.

Step 4 — Power-up and verify. Apply 24 VDC input power. The module’s OK LED should illuminate solid green within a few seconds. Verify that all I/O modules, communication modules, and the controller module return to normal status. Clear any latched faults in Studio 5000 and confirm that the controller resumes normal program execution.

Step 5 — Document and restock. Log the replacement in the site maintenance management system (CMMS). Immediately initiate a reorder for the consumed spare to maintain minimum stock levels. A single 1756-PB50 spare per installed chassis is the recommended minimum; critical systems should maintain two units on-site.

Spare Parts Support FAQ

Q: Is this 1756-PB50 a genuine original Allen-Bradley module or a third-party replacement?
A: This is a genuine original Allen-Bradley 1756-PB50 module sourced through authorized industrial supply channels. It is not a counterfeit, clone, or third-party compatible substitute. Each unit carries the original Rockwell Automation part markings and is supplied with original documentation where available.

Q: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact us at sales@smartnexmsk.com with your order number and a description of the fault. We will arrange a replacement or repair at no additional cost after fault verification.

Q: How is the module tested before shipment?
A: Every 1756-PB50 unit is bench-tested prior to shipment. Testing includes input voltage range verification, output power load test, and backplane connector inspection. A test report is available upon request for critical infrastructure procurement.

Q: Can this module replace an older 1756-PB50 revision without reprogramming the controller?
A: Yes. The 1756-PB50 is a direct drop-in replacement across all chassis revisions of the ControlLogix 1756 platform. No controller reprogramming or firmware changes are required. Verify that the input wiring gauge and terminal torque specifications match the replacement module’s requirements before energizing.
