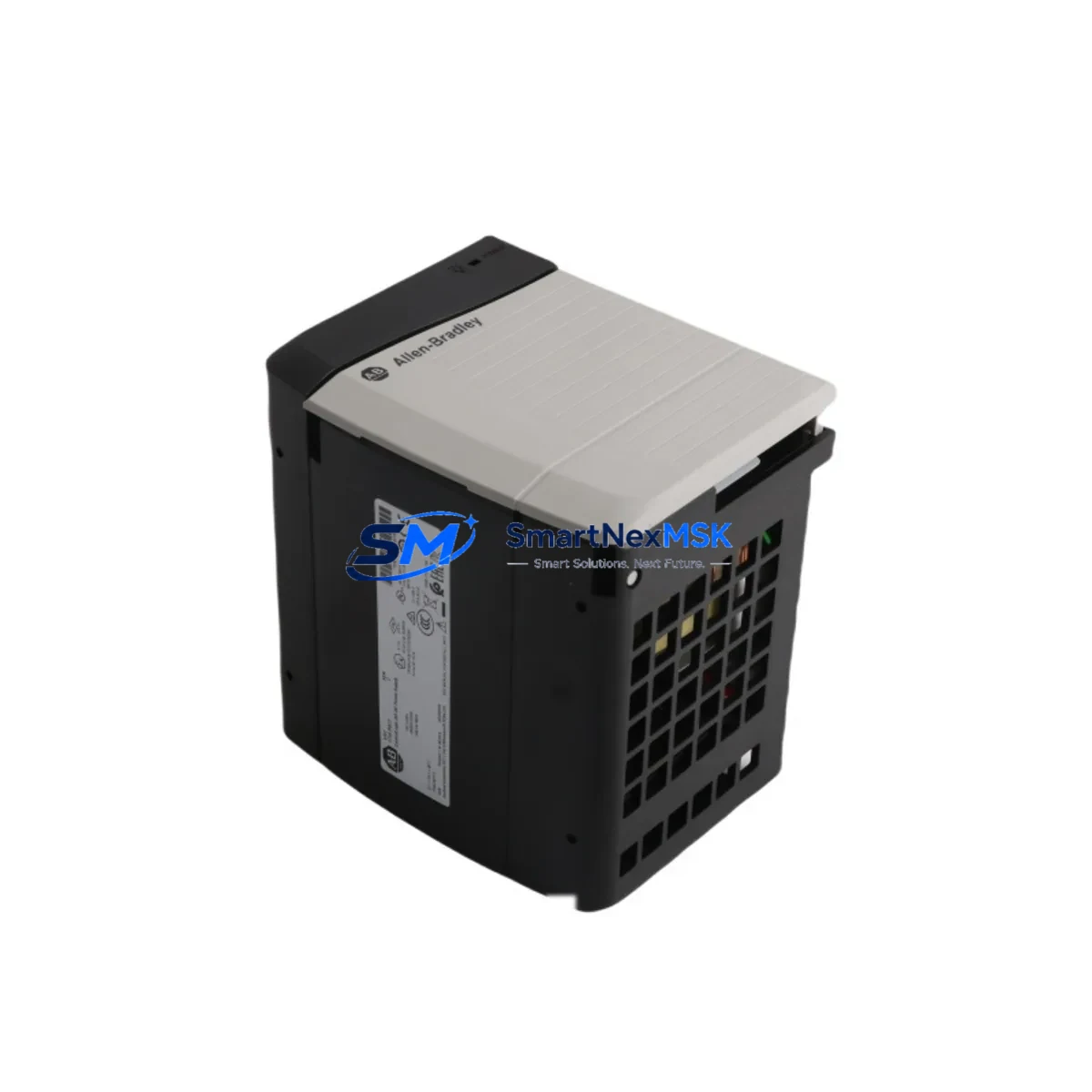

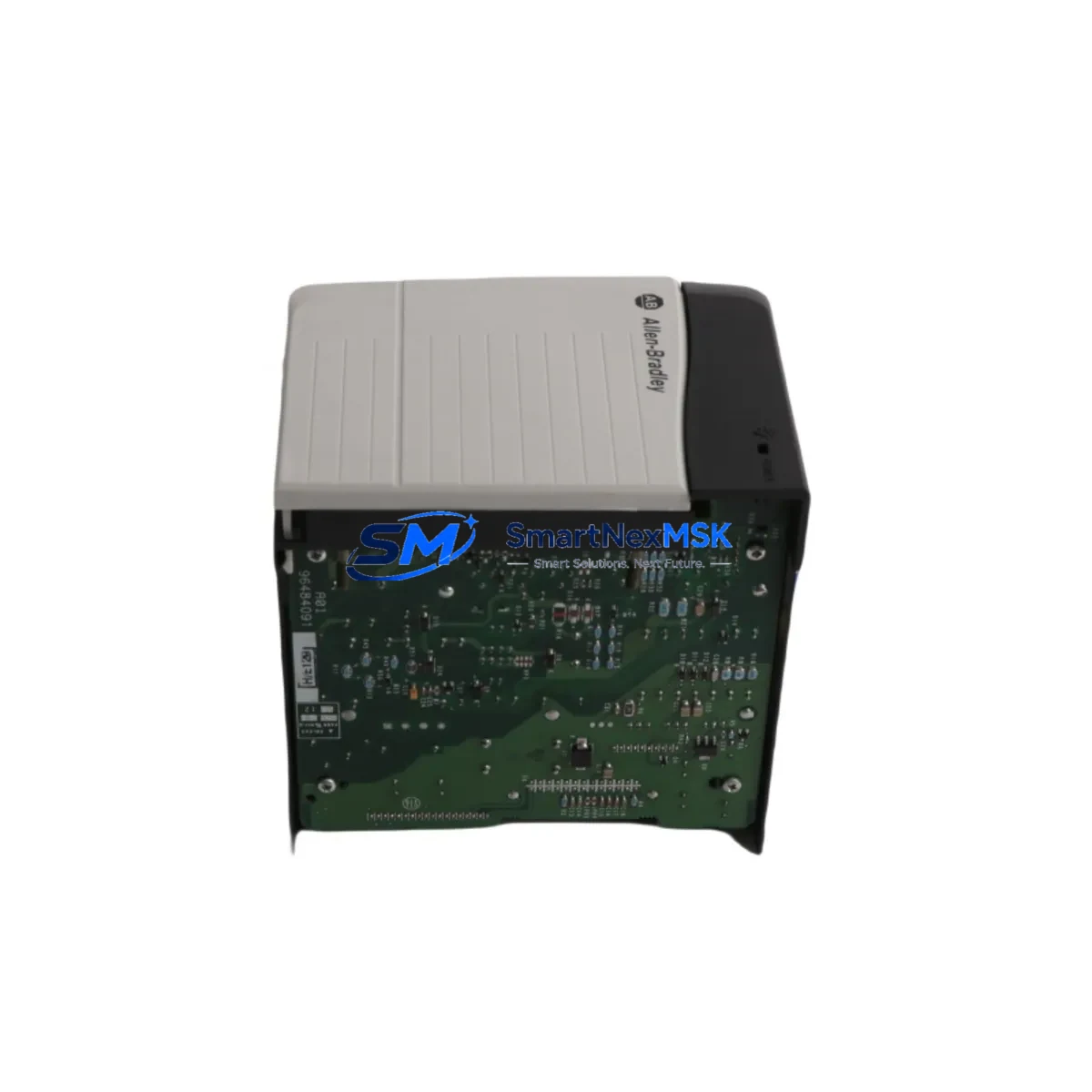

Allen-Bradley 1756-PBR2 Safety-Enhanced Redundant Power Module

Allen-Bradley 1756-PBR2 Safety-Enhanced Redundant Power Module: Engineered for Harsh Industrial Control Reliability

The Allen-Bradley 1756-PBR2 is a ruggedized redundant power supply module purpose-built for the ControlLogix 1756 platform, designed to sustain uninterrupted power delivery in the most demanding industrial control environments. Whether deployed in petrochemical processing units, power generation substations, mining extraction control rooms, water treatment SCADA systems, metallurgical smelting lines, or continuous-process manufacturing facilities, the 1756-PBR2 provides the power redundancy backbone that keeps critical safety interlocks and control loops alive — even when primary power sources fail or fluctuate.

In high-stakes industrial operations, a momentary power interruption to a ControlLogix chassis can cascade into unplanned shutdowns, process upsets, or — in worst-case scenarios — safety system failures. The 1756-PBR2 eliminates this single point of failure by enabling true hot-standby redundant power within the 1756 chassis backplane. When paired with a primary 1756-PA75R or 1756-PB75R power supply, the 1756-PBR2 seamlessly assumes full load without any interruption to the CPU, I/O modules, or communication adapters installed in the same rack. This bumpless power transfer is critical for applications where even a 20-millisecond dropout can trigger emergency shutdowns or corrupt in-flight process data.

The module is rated for operation across a wide input voltage range and is engineered to withstand the electrical noise, vibration, thermal cycling, and surge events common in heavy industrial environments. Its robust design addresses the core failure modes that plague control cabinets in harsh sites: signal drift caused by power rail instability, module mis-operation triggered by voltage sags, communication anomalies on EtherNet/IP or ControlNet backbones due to power transients, and nuisance trips in safety-rated interlock circuits. By maintaining a stable, clean DC bus across the 1756 backplane, the 1756-PBR2 directly reduces the risk of spurious outputs from 1756-OB16E digital output modules, erroneous readings from 1756-IF16 analog input modules, and communication dropouts on 1756-EN2T EtherNet/IP communication modules.

In control cabinet protection strategies for critical process industries, the 1756-PBR2 is typically deployed alongside complementary protective components. Upstream surge protection devices and line filters guard against grid-borne transients before they reach the power supply inputs. Within the cabinet, 1756-A17 or 1756-A10 chassis provide the physical housing, while the 1756-L85E or 1756-L83E ControlLogix controllers rely on the stable power rail the 1756-PBR2 maintains. For safety-rated applications, the module supports architectures where a 1756-L8SP Safety controller governs SIL 2 or SIL 3 interlock functions — and any power instability that could compromise the safety CPU’s watchdog or I/O scan cycle is precisely what the 1756-PBR2 is designed to prevent. In distributed control architectures, 1756-RM2 redundancy modules coordinate controller-level failover, while the 1756-PBR2 handles power-level redundancy — two complementary layers of protection operating in parallel.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust industrial control cabinet in a continuous-process or safety-critical facility is never built around a single power source. The 1756-PBR2 is the cornerstone of a layered power protection strategy within ControlLogix-based control panels. In a typical high-availability cabinet design, the 1756-PBR2 operates in tandem with a primary 1756-PB75R DC input power supply, with both units feeding the chassis backplane simultaneously. Should the primary supply experience an input undervoltage, overcurrent fault, or internal failure, the 1756-PBR2 assumes full load within microseconds — transparent to the 1756-L85E controller, the 1756-IF16 analog input modules scanning field transmitters, and the 1756-OB16E output modules driving actuators and solenoid valves.

For communication integrity, the 1756-EN2T EtherNet/IP communication module and 1756-CNB ControlNet bridge module both depend on a stable backplane power rail. Voltage sags or micro-interruptions on the backplane bus can cause these communication modules to reset, dropping EtherNet/IP connections to SCADA systems or ControlNet links to remote I/O racks — events that can trigger process alarms or force operators into manual control. The 1756-PBR2 eliminates this vulnerability. In safety-instrumented system (SIS) architectures, where a 1756-L8SP Safety PLC governs emergency shutdown (ESD) logic, the power supply redundancy provided by the 1756-PBR2 is often a mandatory design requirement to achieve the required SIL level and meet IEC 61511 functional safety standards.

Beyond the chassis itself, cabinet-level protection is completed by coordinating the 1756-PBR2 with external 24 VDC UPS modules, redundant DC bus bars, and properly rated circuit breakers on each supply input. This multi-layer approach ensures that neither grid disturbances, internal supply faults, nor maintenance activities on one supply branch can interrupt the control system’s operation.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the 1756-PBR2 supports ControlLogix-based burner management systems (BMS) and emergency shutdown (ESD) panels where power continuity is a process safety requirement. A power interruption to the control chassis in a fired heater or reactor control loop can trigger uncontrolled shutdowns with significant safety and financial consequences.

Power Generation & Substations: Turbine control systems, generator excitation controllers, and substation automation panels built on the ControlLogix platform rely on the 1756-PBR2 to maintain control availability during grid switching events, generator load transients, and utility power quality disturbances — conditions that routinely stress single-supply control systems.

Mining & Mineral Processing: In underground and surface mining operations, control systems managing conveyor drives, crusher circuits, and ventilation interlocks operate in environments with severe vibration, dust ingress, and unstable power from diesel generators or remote grid connections. The 1756-PBR2’s redundant architecture and ruggedized design make it a preferred choice for these high-availability, harsh-environment applications.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities running ControlLogix-based SCADA and PLC systems for pump station control, chemical dosing, and filtration management depend on continuous control availability. The 1756-PBR2 ensures that power supply faults do not interrupt treatment processes or compromise regulatory compliance monitoring.

Metallurgy & Steel Production: Rolling mills, electric arc furnaces, and continuous casting lines generate extreme electrical noise and power transients. The 1756-PBR2’s surge-tolerant input design and hot-standby redundancy protect ControlLogix systems managing these processes from the power quality challenges inherent in heavy metallurgical environments.

Port & Material Handling Automation: Automated crane control systems, ship loader PLCs, and conveyor management systems in port terminals require high-availability control power. The 1756-PBR2 supports 24/7 operational demands where unplanned control system downtime directly impacts cargo throughput and vessel scheduling.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1756-PBR2?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. This includes redundancy switchover failure, backplane power output degradation, and input protection component failure. Warranty claims are supported with replacement or repair at no additional cost, with expedited processing for critical production applications.

Q2: What pre-shipment testing is performed on each 1756-PBR2 unit?
Every unit undergoes a full functional test protocol prior to dispatch: input voltage range verification, output power load test at rated capacity, redundancy hot-transfer simulation (primary supply removal with load monitoring), and visual inspection for physical integrity. Test records are available upon request for quality documentation purposes.

Q3: Is the 1756-PBR2 compatible with all ControlLogix 1756 chassis and controllers?
Yes. The 1756-PBR2 is compatible with all standard ControlLogix 1756 series chassis (1756-A4, A7, A10, A13, A17) and operates alongside all 1756 series controllers, I/O modules, and communication adapters. It is designed to pair with 1756-PB75R or equivalent DC input primary power supplies. Compatibility with specific chassis revisions or controller firmware versions can be confirmed prior to order.

Q4: Can long-term supply and spare parts availability be guaranteed?
We maintain dedicated stock of the 1756-PBR2 to support both immediate replacement needs and planned maintenance programs. For customers managing multi-year maintenance contracts or critical infrastructure spares strategies, we offer reserved stock arrangements and advance purchase agreements to ensure supply continuity regardless of market availability fluctuations. Contact our technical sales team to discuss your specific spare parts planning requirements.
