Allen-Bradley 1756-TBCH Safety Terminal Block for Industrial Sites

Allen-Bradley 1756-TBCH Safety Terminal Block for Industrial Sites

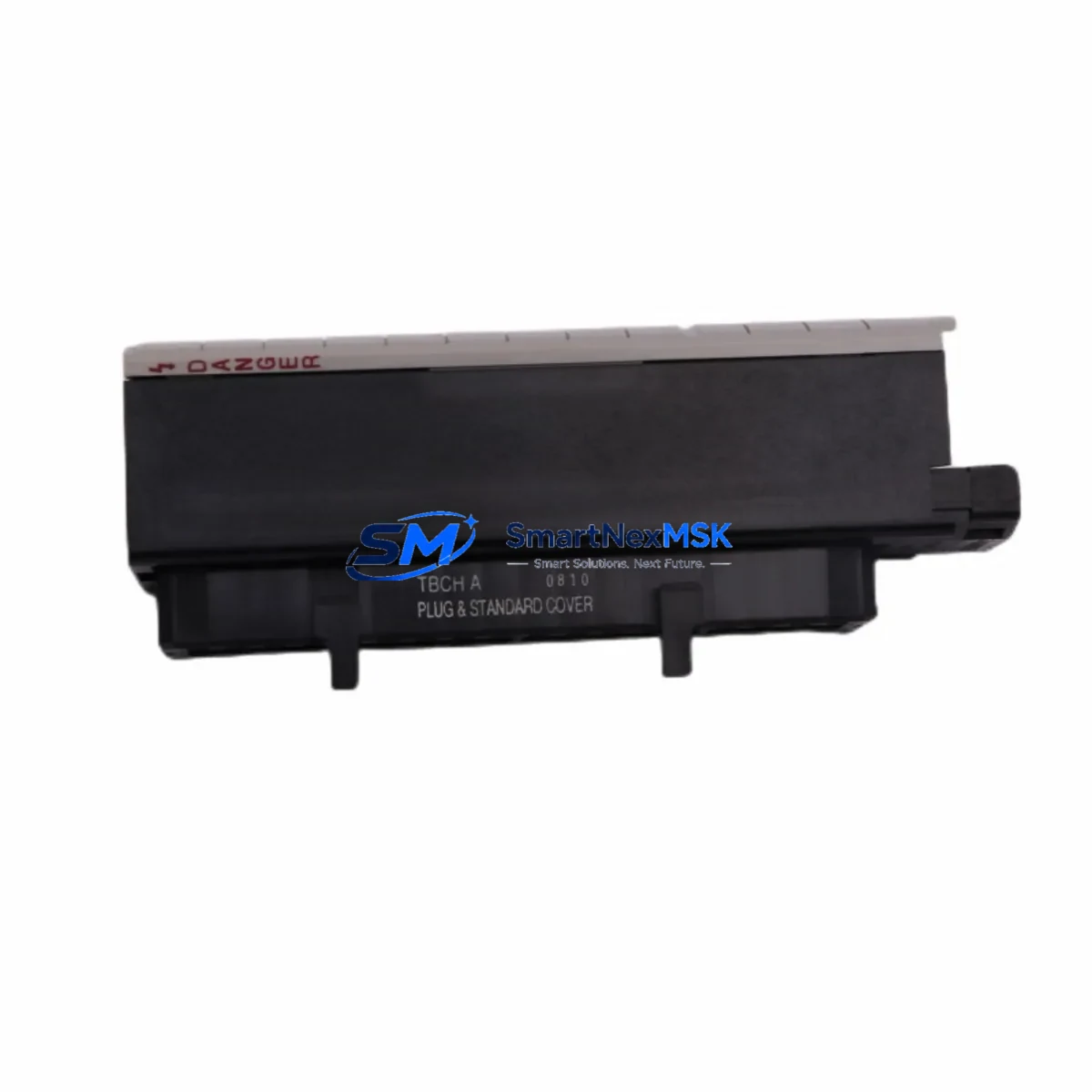

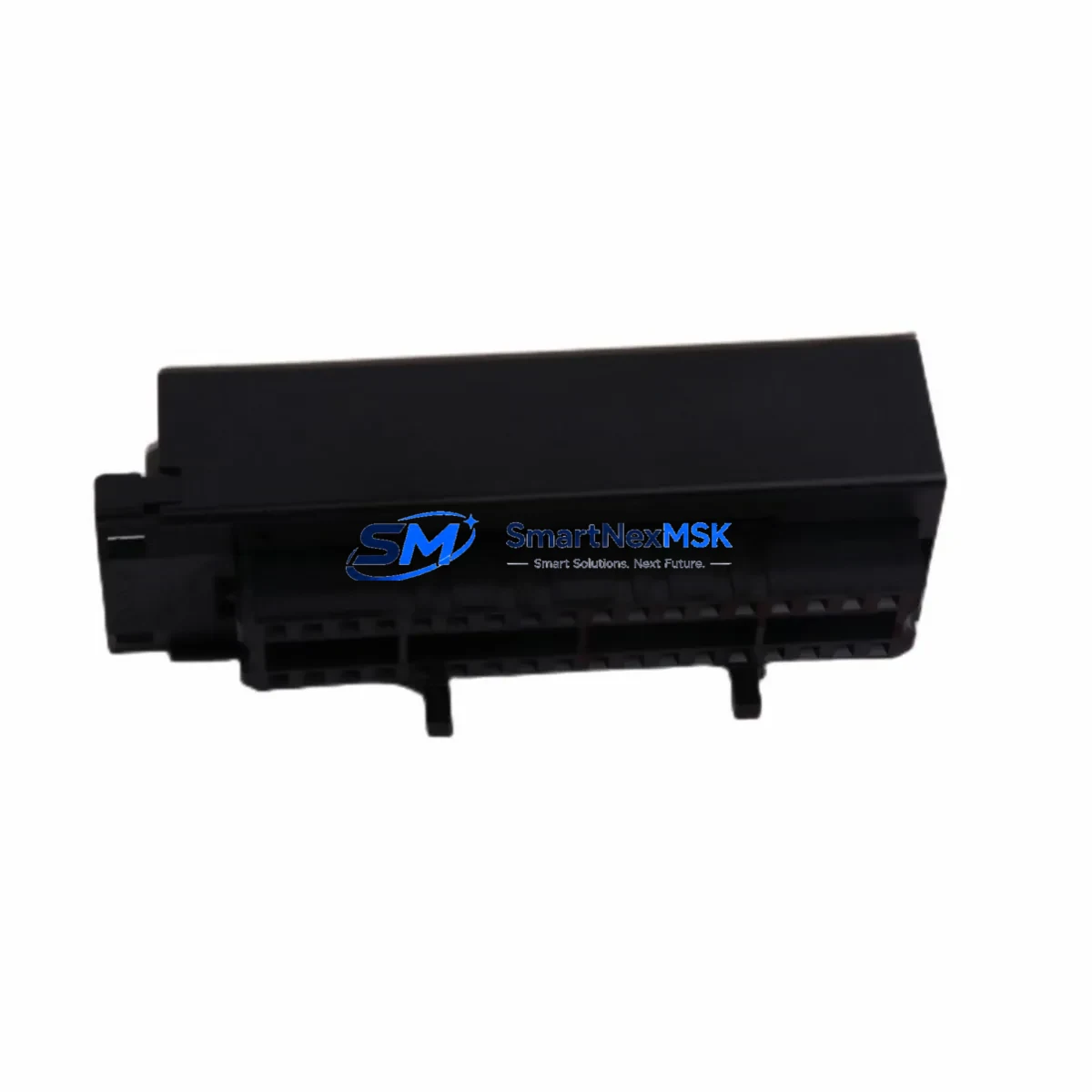

The Allen-Bradley 1756-TBCH is a ruggedized 36-pin screw-type terminal block engineered for direct integration with Rockwell Automation ControlLogix I/O modules. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the 1756-TBCH serves as a critical field-wiring interface in control cabinets where signal integrity, mechanical stability, and long-term operational safety are non-negotiable.

In heavy industrial settings — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port automation systems — the quality of every terminal connection directly affects the safety and continuity of the entire control loop. A loose, corroded, or thermally degraded terminal block can introduce signal drift, intermittent faults, or complete I/O module failure, triggering unplanned shutdowns and potentially dangerous process upsets. The 1756-TBCH addresses these risks through its robust screw-clamp design, high-grade contact materials, and full mechanical compatibility with the ControlLogix 1756 chassis ecosystem.

When installed alongside the Allen-Bradley 1756-IB16 16-point 24VDC digital input module or the 1756-OB16E electronically fused digital output module, the 1756-TBCH provides a secure, vibration-resistant wiring interface that maintains consistent contact resistance even under thermal cycling and mechanical shock. In safety interlock circuits — where the 1756-TBCH may terminate field signals feeding into a 1756-L73 ControlLogix controller running a SIL-rated safety program — any degradation in terminal integrity can compromise the entire protective function. The 1756-TBCH’s captive screw design prevents accidental loosening during panel vibration, a common failure mode in rotating-equipment control rooms.

Power supply stability is equally critical in these environments. When the 1756-TBCH is used in cabinets powered by a 1756-PA75R redundant power supply module, the terminal block must withstand transient voltage surges and inrush currents without deforming or losing contact integrity. Its rated insulation and conductor cross-section capacity ensure compatibility with the full range of field cable gauges used in industrial installations, from fine-gauge sensor wiring to heavier analog signal cables connected to 1756-IF16 analog input modules monitoring process variables such as pressure, temperature, and flow.

In distributed control architectures where ControlLogix racks communicate over EtherNet/IP via 1756-EN2T communication modules, the reliability of every I/O termination point directly affects network-level diagnostics. A faulty terminal connection can generate spurious I/O faults that propagate through the controller’s fault log, masking real process alarms and delaying operator response. By using the 1756-TBCH as the standard field-wiring interface across all I/O modules in the rack, maintenance teams can isolate wiring issues quickly during troubleshooting without disturbing the module itself — the removable terminal block design allows field wiring to remain connected while the I/O module is replaced, dramatically reducing mean time to repair (MTTR) in critical production environments.

For applications involving hazardous-area field devices — such as intrinsically safe sensors wired through MTL or P+F Zener barriers into ControlLogix analog input modules — the 1756-TBCH provides a clean, labeled termination point that supports systematic cable management and loop documentation. In safety-critical interlock systems, such as emergency shutdown (ESD) circuits or burner management systems (BMS), every component in the signal path must be traceable, testable, and replaceable without process interruption. The 1756-TBCH supports partial stroke testing and loop verification procedures by providing accessible, individually numbered terminal points for each I/O channel.

Surge and transient protection is another key consideration in harsh industrial sites. When the 1756-TBCH terminates field cables running long distances across plant floors — where induced voltages from variable frequency drives (VFDs), motor starters, or high-current bus bars can couple into signal wiring — it is recommended to install Phoenix Contact or Weidmüller surge protection devices in series with the field wiring before the terminal block. This layered protection strategy, combined with the 1756-TBCH’s robust insulation rating, ensures that transient events do not damage the downstream 1756-IA16 AC input module or corrupt the digital signals being processed by the ControlLogix controller.

Every 1756-TBCH unit supplied by SMARTNEXMSK undergoes pre-shipment inspection including visual examination, dimensional verification, and contact continuity testing. Units are sourced from authorized distribution channels and stored in controlled-environment warehousing to prevent oxidation, moisture ingress, or mechanical damage prior to dispatch. Stable inventory is maintained to support both planned maintenance schedules and emergency replacement requirements, with same-day or next-business-day dispatch available for in-stock items.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust ControlLogix control cabinet in a continuous-process plant is only as reliable as its weakest termination point. The 1756-TBCH is the standard field-wiring interface for the entire 1756 I/O family, and its role in cabinet-level protection strategy extends across multiple subsystems. In a typical safety-rated cabinet, the 1756-TBCH terminates field signals from pressure transmitters, temperature sensors, and valve position switches into modules such as the 1756-IF8 analog input module and the 1756-IB32 high-density digital input module. Output signals controlling solenoid valves, motor contactors, and alarm annunciators are terminated through the 1756-TBCH into 1756-OB32 or 1756-OW16I relay output modules.

Cabinet power distribution is managed by the 1756-PA75R redundant AC power supply, which feeds the ControlLogix backplane and all installed modules. Surge protection devices installed on the incoming AC supply and on individual field cable entries protect the entire assembly from lightning-induced transients and switching surges. The 1756-EN2TR dual-port EtherNet/IP module provides redundant network connectivity, ensuring that a single cable fault does not isolate the controller from the SCADA system or DCS integration layer. The 1756-TBCH’s removable design means that during annual maintenance shutdowns, field wiring can be disconnected from the I/O modules as a single assembly, allowing module bench-testing without disturbing the field cable schedule.

In safety interlock applications, the 1756-TBCH may also terminate signals feeding into a 1756-L85E ControlLogix 5580 controller running a safety task alongside the standard control program. The physical separation of safety-rated field wiring from standard control wiring — enforced through dedicated terminal block labeling and color-coded cable management — is a fundamental requirement of IEC 61511 functional safety management. The 1756-TBCH’s individually numbered terminal points support this documentation discipline and simplify loop testing during SIL verification audits.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the 1756-TBCH terminates field signals from flame detectors, gas analyzers, and emergency shutdown valve position switches into ControlLogix safety controllers. The captive screw design prevents terminal loosening caused by thermal expansion cycles in high-temperature process areas, maintaining signal integrity in ESD and fire-and-gas (F&G) interlock systems.

Power Generation & Substation Control: In coal-fired, gas turbine, and hydroelectric power plants, ControlLogix systems manage turbine protection, generator excitation control, and switchgear automation. The 1756-TBCH provides reliable termination for high-density I/O modules monitoring generator parameters, with its insulation rating ensuring safe operation in environments with elevated electromagnetic interference from high-voltage bus bars and transformer switching.

Mining & Mineral Processing: Underground and surface mining operations subject control cabinets to extreme vibration, dust ingress, and temperature variation. The 1756-TBCH’s robust mechanical design and captive screw terminals maintain reliable connections in conveyor control, crusher automation, and ventilation safety systems where intermittent signal loss can trigger emergency stops and production losses.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on ControlLogix systems for pump sequencing, chemical dosing control, and alarm management. The 1756-TBCH terminates field signals from flow meters, level sensors, and chlorine analyzers, supporting continuous 24/7 operation with minimal maintenance intervention.

Metallurgical & Steel Processing: In electric arc furnace (EAF) and continuous casting operations, control systems must withstand severe electromagnetic interference from high-current furnace electrodes and induction heating equipment. The 1756-TBCH, combined with shielded field cables and proper cabinet grounding, maintains signal integrity in these demanding environments.

Port & Material Handling Automation: Container crane control systems, automated stacking cranes, and conveyor networks in port logistics facilities use ControlLogix platforms for coordinated motion control and safety monitoring. The 1756-TBCH provides reliable I/O termination in outdoor and semi-outdoor control cabinets subject to humidity, salt air, and temperature extremes.

Safety and Quality FAQ

Q1: What warranty does SMARTNEXMSK provide for the Allen-Bradley 1756-TBCH?
All 1756-TBCH units supplied by SMARTNEXMSK are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Replacement or refund is provided promptly upon verification of the defect, with no requirement to return to the original manufacturer.

Q2: What pre-shipment testing is performed on each unit?
Every 1756-TBCH undergoes a pre-shipment inspection protocol including visual examination for physical damage, dimensional verification of the connector interface, and electrical continuity testing of all 36 terminal positions. Units that do not pass inspection are quarantined and not dispatched. Test records are retained for traceability.

Q3: Is the 1756-TBCH compatible with all ControlLogix 1756-series I/O modules?
The 1756-TBCH is compatible with all Allen-Bradley 1756-series I/O modules that use the 36-pin screw-type terminal block interface, including digital input, digital output, analog input, and analog output modules. It is not compatible with modules requiring the cage-clamp (1756-TBNH) or spring-clamp (1756-TBSH) terminal block variants. Always verify the module’s catalog number against Rockwell Automation’s terminal block compatibility table before ordering.

Q4: Can SMARTNEXMSK support long-term and emergency replacement requirements?
Yes. SMARTNEXMSK maintains stable inventory of the 1756-TBCH and other ControlLogix accessories to support both planned annual maintenance schedules and unplanned emergency replacement scenarios. For critical production facilities, we recommend maintaining a minimum spare parts holding of 10–20% of installed quantity. Contact our sales team to discuss consignment stock arrangements or priority dispatch agreements for key accounts.
