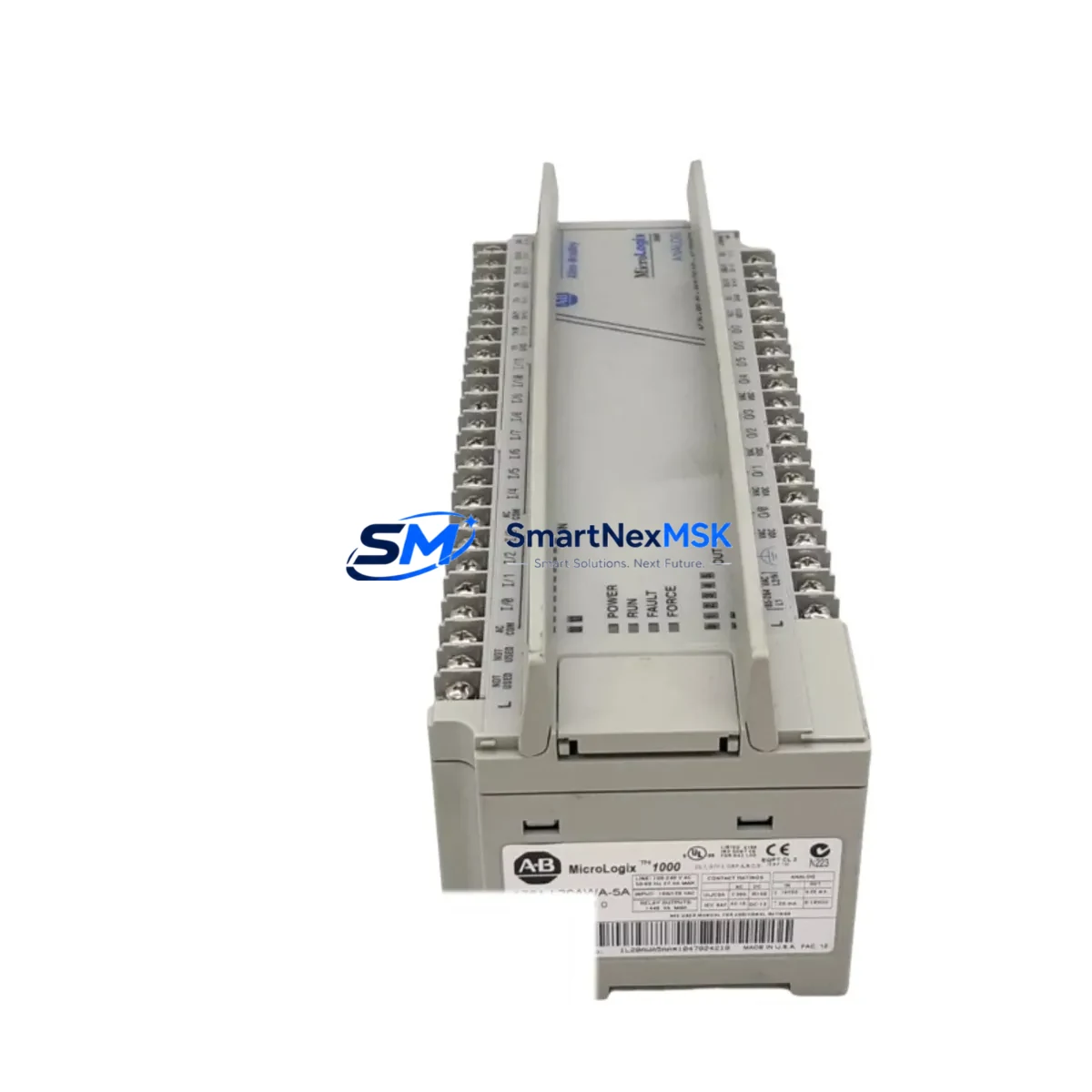

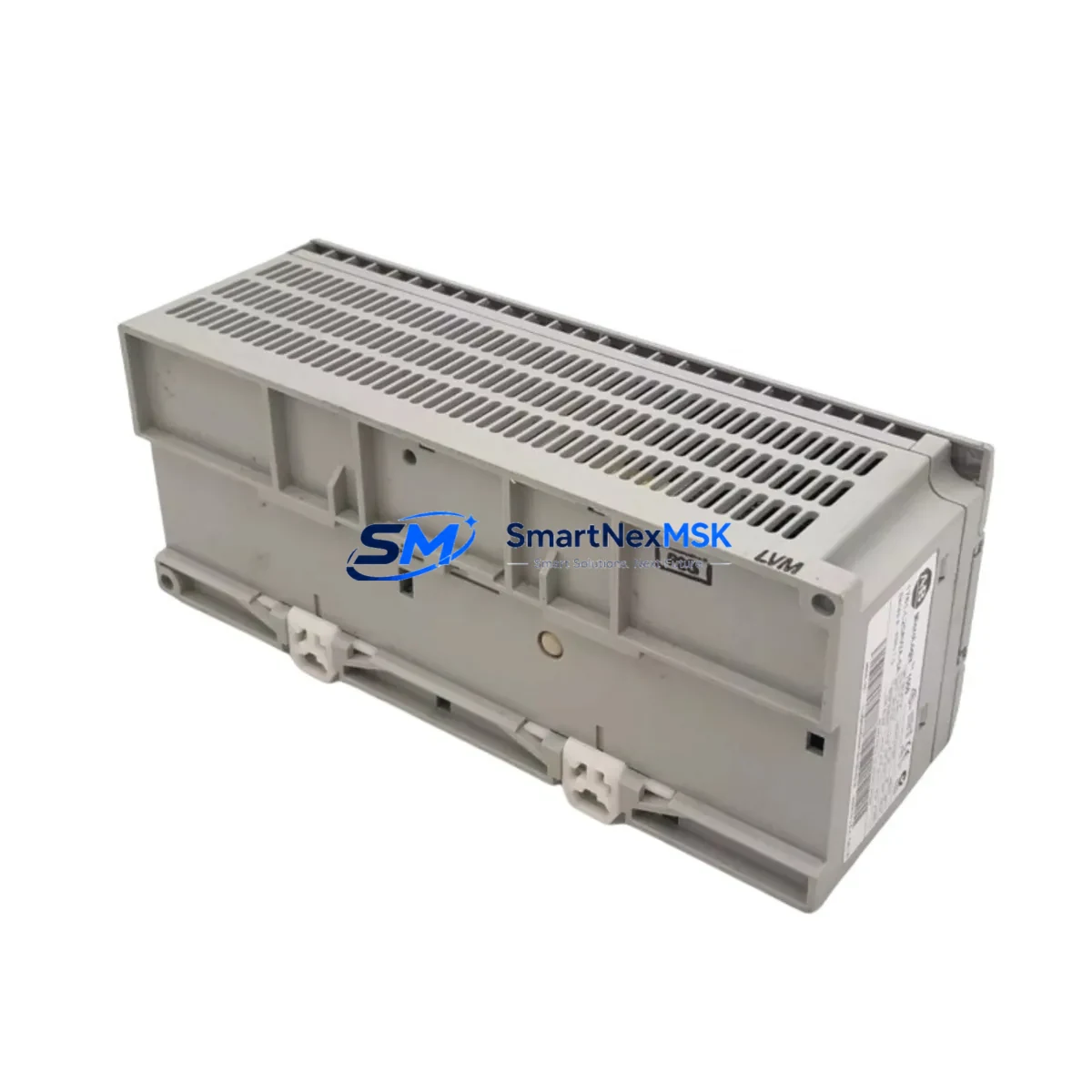

Allen-Bradley 1761-L20AWA-5A Safety-Enhanced PLC

Allen-Bradley 1761-L20AWA-5A Safety-Enhanced PLC: Reliable Control for Harsh Industrial Sites

The Allen-Bradley 1761-L20AWA-5A is a 20-point AC-powered MicroLogix 1100 Programmable Logic Controller engineered for continuous, uninterrupted operation in demanding industrial environments. With its robust AC input/output architecture, this PLC module delivers the control loop integrity and signal stability that safety-critical applications in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port logistics systems demand. Whether installed in a high-vibration control cabinet on a continuous casting line or integrated into a safety interlock circuit at a chemical dosing station, the 1761-L20AWA-5A is built to maintain deterministic scan-cycle performance even under severe electrical noise, voltage fluctuation, and thermal stress.

In high-load production environments, control interruptions caused by module malfunction or signal drift can trigger cascading shutdowns, equipment damage, or — in worst-case scenarios — personnel safety incidents. The 1761-L20AWA-5A addresses these risks through its hardened AC relay output design, which provides galvanic isolation between the control logic and field devices, significantly reducing the risk of cross-circuit interference and spurious output activation. Its onboard EtherNet/IP communication port enables real-time diagnostics and remote monitoring, allowing maintenance engineers to detect anomalies — such as communication timeouts or I/O faults — before they escalate into unplanned downtime. When paired with a 1761-NET-ENI Ethernet interface module or integrated into a ControlLogix backplane via a 1756-ENBT bridge, the MicroLogix 1100 becomes a node in a fully supervised, fault-tolerant control network.

Power quality is a persistent threat in heavy industrial sites. Voltage surges from large motor starts, arc furnace switching, or capacitor bank switching can propagate through the control cabinet and damage sensitive logic modules. The 1761-L20AWA-5A is designed to tolerate the AC power variations typical of industrial utility feeds, and when protected upstream by a 1606-XLP power supply or a dedicated isolation transformer, its operational continuity is further reinforced. For applications requiring additional surge suppression, installing a 1783-ETAP TAP module or a dedicated surge protection device on the incoming AC line is a recommended best practice that SMARTNEXMSK engineers routinely advise for critical interlock circuits.

In safety interlock and emergency shutdown (ESD) architectures, the 1761-L20AWA-5A is frequently deployed as a local control node that interfaces with safety relays, 440R-series GuardMaster safety relay modules, and hardwired emergency stop circuits. Its relay outputs are rated for the inductive loads typical of motor starters, solenoid valves, and contactor coils, making it suitable for direct integration into machine safety circuits without additional signal conditioning. The module’s built-in LCD display and keypad provide on-site status visibility — a critical feature in environments where remote HMI access may be intermittent due to network disruptions or hazardous area restrictions.

For distributed control architectures, the 1761-L20AWA-5A supports RS-232 and RS-485 serial communication, enabling integration with SCADA systems, variable frequency drives such as the PowerFlex 40 or PowerFlex 525, and third-party field instruments via Modbus RTU or DF1 protocols. This communication flexibility ensures that the module can serve as a reliable data acquisition and control node in legacy system upgrades without requiring a full platform migration — a significant advantage for facilities managing long equipment lifecycles in mining, water treatment, or port operations.

SMARTNEXMSK maintains verified stock of the 1761-L20AWA-5A and conducts pre-shipment functional testing on every unit, including I/O point verification, communication port integrity checks, and power-on self-test validation. Each module is shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our inventory also includes complementary components such as the 1761-L32BWA, 1762-IQ16, 1762-OW16, 1762-IF4, and 1762-OF4 expansion modules, ensuring that customers can source complete MicroLogix 1100 system configurations — including analog I/O expansion, digital I/O expansion, and communication adapters — from a single, reliable supplier.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet design around the 1761-L20AWA-5A begins with clean, regulated power. Pairing the module with a 1606-XLP power supply ensures stable 24VDC auxiliary power for sensors and transmitters within the same cabinet, while an upstream isolation transformer suppresses common-mode noise from the AC utility feed. For surge protection on relay output lines driving inductive loads — such as motor starters or solenoid valves — installing varistors or RC snubber circuits across the coil terminals is essential to prevent back-EMF from damaging the relay contacts.

Communication integrity is maintained by routing EtherNet/IP cables away from high-voltage conductors and using shielded Cat5e or Cat6 cabling terminated at a 1783-US5T unmanaged switch or a managed 1783-BMS10CGL Stratix switch for larger network topologies. For serial communication loops using RS-485, proper termination resistors and cable shielding grounded at a single point prevent ground loops that can cause signal drift or communication errors in electrically noisy environments.

Digital input wiring from field devices — including proximity sensors, pressure switches, and flow switches — should be routed through 1492-IFM interface modules or terminal block assemblies with integrated LED status indicators, enabling rapid fault localization without opening the cabinet under live conditions. Analog signals from 4–20mA transmitters feeding a 1762-IF4 analog input module should use individually shielded twisted-pair cables to minimize inductive coupling from adjacent power cables.

For applications requiring safety relay integration, the 1761-L20AWA-5A relay outputs can interface directly with 440R-D22R2 GuardMaster dual-channel safety relays, providing a hardwired safety layer that operates independently of the PLC logic — a critical design requirement for Category 3 or PLd safety functions per ISO 13849-1. This architecture ensures that even in the event of a PLC firmware fault or communication loss, the safety relay circuit maintains its protective function.

Critical Industrial Safety Applications

In petrochemical and refinery facilities, the 1761-L20AWA-5A is deployed in pump control panels, valve actuator circuits, and compressor interlock systems where continuous operation and fail-safe behavior are non-negotiable. Its relay outputs directly drive solenoid valves and motor contactors, while its EtherNet/IP port feeds real-time status data to the plant DCS via an OPC-DA or OPC-UA gateway.

In power generation and substation automation, the module serves as a local control node for auxiliary systems — cooling fans, oil pumps, and battery charger monitoring — where its AC power input eliminates the need for a separate 24VDC power supply, simplifying panel design and reducing potential failure points.

In mining and mineral processing, the 1761-L20AWA-5A controls conveyor belt interlocks, crusher feed gates, and sump pump systems in environments characterized by heavy dust, vibration, and intermittent power quality. Its wide AC input voltage tolerance and relay output robustness make it a preferred choice for remote pump stations and underground control panels.

In water and wastewater treatment, the module manages dosing pump sequences, UV disinfection system interlocks, and blower control circuits, where reliable I/O operation directly impacts regulatory compliance and public safety outcomes.

In port and logistics automation, the 1761-L20AWA-5A is integrated into crane control systems, conveyor routing panels, and access gate interlock circuits, where its compact form factor and standard DIN-rail mounting simplify installation in space-constrained electrical enclosures.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1761-L20AWA-5A?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including I/O point failures, communication port faults, and power supply section defects. Each unit undergoes pre-shipment functional testing — including power-on self-test, I/O point verification, and communication port integrity checks — before dispatch. Warranty claims are processed with replacement unit dispatch within 5 business days upon fault confirmation.

Q2: How is compatibility with existing MicroLogix 1100 systems verified?
The 1761-L20AWA-5A is a standard Rockwell Automation catalog item fully compatible with RSLogix 500 / Studio 5000 Logix Designer programming environments and all 1762-series expansion modules. SMARTNEXMSK verifies firmware revision and hardware series (Series A/B/C) prior to shipment and can supply units matched to your existing system revision upon request.

Q3: Is long-term supply availability guaranteed for spare parts and replacement units?
SMARTNEXMSK maintains dedicated safety stock of the 1761-L20AWA-5A and key MicroLogix 1100 expansion modules to support long-term spare parts programs for facilities with extended equipment lifecycles. Customers operating in industries with 10–20 year equipment lifecycles — such as power generation, water treatment, and mining — can arrange scheduled supply agreements to ensure replacement unit availability without lead-time risk.

Q4: Can the 1761-L20AWA-5A be used in safety interlock circuits requiring IEC 61508 compliance?
The 1761-L20AWA-5A is a standard (non-SIL-rated) PLC and is not independently certified to IEC 61508 SIL levels. However, it is widely used in safety-related control applications at lower risk levels (SIL 1 equivalent) when combined with external safety relays — such as the 440R-series GuardMaster modules — that provide the required diagnostic coverage and redundancy. For SIL 2 or higher applications, a dedicated safety PLC platform such as the Allen-Bradley GuardLogix 5580 is recommended.
