Allen-Bradley 1762-L24BWAR Safety-Enhanced PLC for Harsh Sites

Allen-Bradley 1762-L24BWAR Safety-Enhanced PLC for Harsh Industrial Sites

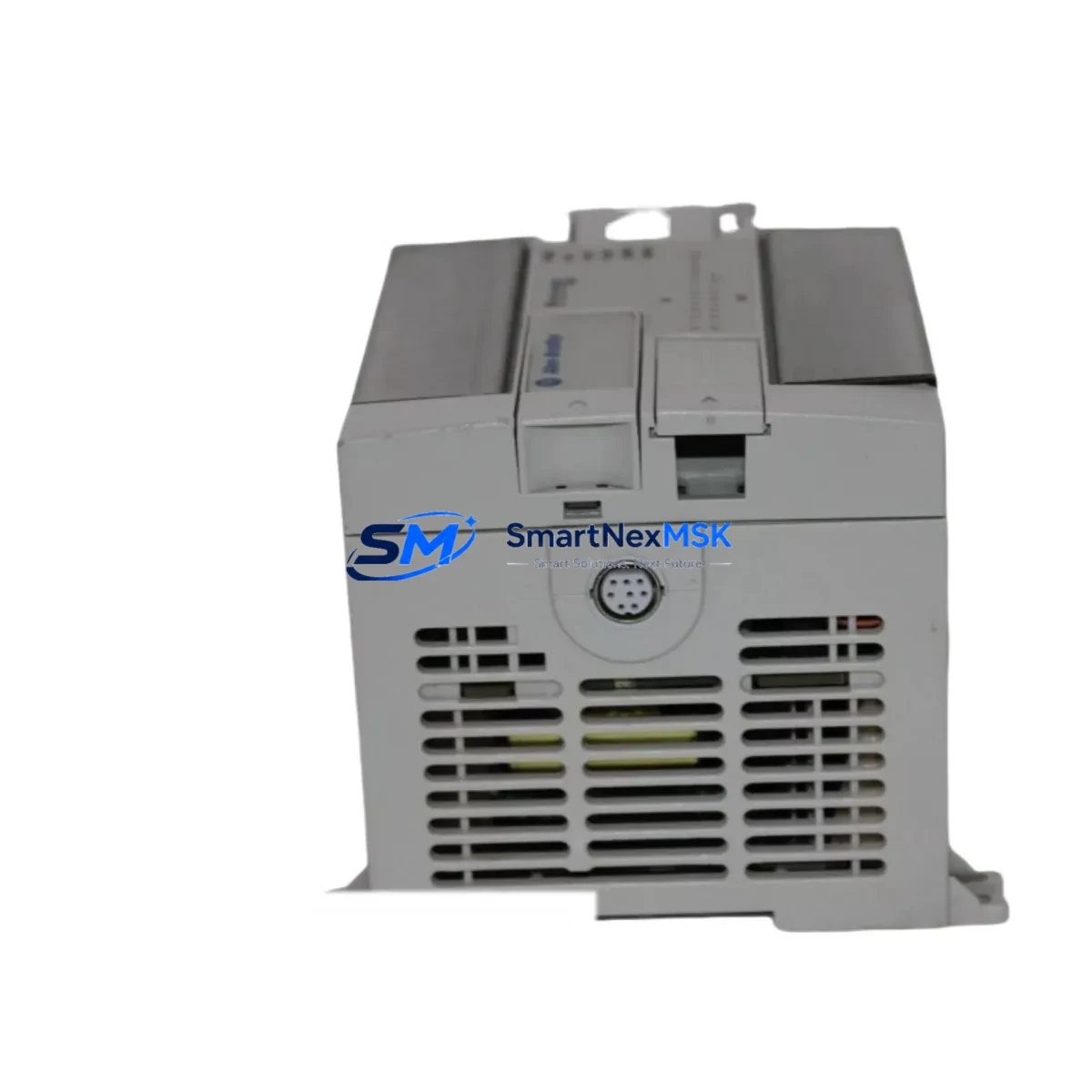

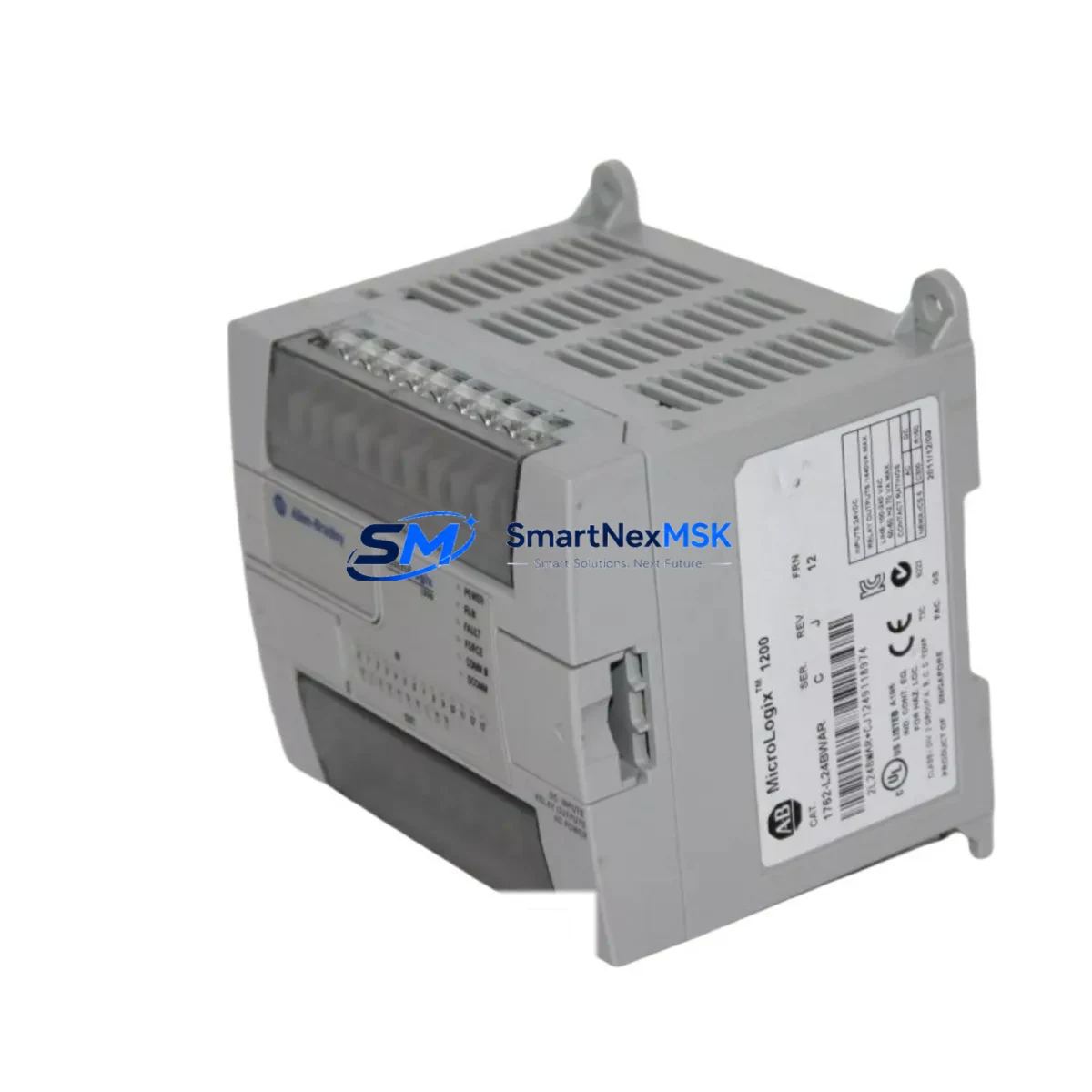

The Allen-Bradley 1762-L24BWAR is a MicroLogix 1200 series compact programmable logic controller engineered to deliver uncompromising control reliability in the most demanding industrial environments. Designed for continuous-duty operation in high-load, high-interference settings, this controller provides the safety-critical performance that process engineers and maintenance teams depend on when uptime is non-negotiable. Whether deployed in a chemical processing plant, a coal preparation facility, a water treatment station, or a heavy-duty port crane control cabinet, the 1762-L24BWAR is built to maintain stable, deterministic control logic execution even under severe electrical stress.

The 1762-L24BWAR features 24 I/O points in a compact DIN-rail-mountable housing, with 14 DC inputs and 10 relay outputs rated for AC/DC loads. Its wide operating temperature range and robust EMI shielding make it a preferred choice for control cabinets exposed to motor drive interference, welding equipment noise, and high-frequency switching transients. The relay output architecture provides inherent galvanic isolation between the controller logic and field devices, reducing the risk of signal cross-contamination in safety-critical interlock circuits. When paired with a 1762-IQ16 digital input expansion module or a 1762-OW16 relay output module, the system I/O capacity scales to meet complex machine safety requirements without compromising the controller’s core stability.

In high-load production environments, power quality is a persistent threat to controller availability. The 1762-L24BWAR is designed to tolerate input voltage fluctuations and brief power interruptions that would cause lesser controllers to fault or lose program state. For installations where power quality is particularly poor — such as mining substations or steel mill auxiliary panels — engineers routinely pair this controller with a 1606-XLP72E power supply module to provide regulated, surge-protected 24 VDC to the controller and its I/O bus. Adding a 1762-IQ8OW6 combination I/O module further consolidates wiring in confined control cabinet spaces, reducing the number of terminal connections that could introduce intermittent faults under vibration.

Communication integrity is equally critical in safety-sensitive applications. The 1762-L24BWAR supports RS-232 and RS-485 serial communication natively, enabling integration with SCADA systems, HMI panels, and remote I/O networks via DF1, DH-485, and Modbus RTU protocols. In facilities where legacy communication infrastructure must be preserved during a phased modernization, this controller bridges old and new architectures without requiring a full network redesign. A 1761-NET-AIC Advanced Interface Converter is commonly used alongside this controller to extend DH-485 network segments or isolate communication channels in electrically noisy environments. For sites transitioning to EtherNet/IP, the 1761-NET-ENI Serial-to-Ethernet module provides a straightforward path to network integration without replacing the controller platform.

Field safety applications demand that control logic remain protected against unauthorized modification and that the controller continue executing its safety interlock program even during partial system faults. The 1762-L24BWAR supports password-protected program memory and retentive data storage, ensuring that critical interlock logic — such as emergency stop circuits, motor overload interlocks, and pressure relief valve controls — remains intact through power cycling events. When used in conjunction with a PanelView Component C400 or C600 HMI terminal, operators gain real-time visibility into safety status without requiring a laptop connection, reducing the risk of inadvertent program changes during live production.

For petrochemical, power generation, and metallurgical applications where the controller must operate continuously for months without scheduled maintenance windows, the 1762-L24BWAR’s solid-state design and conformal-coated circuit board option provide the long-term reliability that safety engineers require. Its compatibility with RSLogix 500 and Studio 5000 Logix Designer programming environments means that existing program libraries, function block templates, and safety logic routines developed for other MicroLogix or SLC 500 platforms can be adapted and reused, significantly reducing commissioning time and validation effort.

Safety Reliability Table

Control Cabinet Protection Strategy

Deploying the 1762-L24BWAR in a safety-critical control cabinet requires a layered protection strategy that addresses power quality, signal integrity, thermal management, and communication reliability simultaneously. The foundation of this strategy begins with a properly rated power supply. The 1606-XLP72E power supply provides 72W of regulated 24 VDC output with active power factor correction and built-in surge suppression, making it the preferred companion for MicroLogix 1200 installations in environments with unstable grid power.

On the I/O side, field wiring entering the control cabinet from motors, sensors, and actuators must be protected against induced transients. Surge protection terminal blocks — such as those in the Phoenix Contact TERMITRAB or Weidmuller VSSC series — are routinely installed at the cabinet entry point to clamp voltage spikes before they reach the controller’s input terminals. The 1762-IQ16 digital input module and 1762-OW16 relay output module provide additional I/O expansion while maintaining the same protective relay output architecture as the base controller.

For cabinets housing variable frequency drives alongside the PLC, physical and electrical separation is essential. Shielded cable trays, ferrite core suppressors on drive output cables, and dedicated grounding bars for the controller chassis all contribute to reducing conducted and radiated interference. The 1762-L24BWAR’s DH-485 port should be connected using Belden 3106A shielded twisted-pair cable, terminated at both ends with 120-ohm resistors to prevent signal reflections that could cause communication timeouts in safety-critical SCADA polling cycles.

When the control cabinet also houses a PanelView Component C600 HMI, the RS-232 link between the HMI and the 1762-L24BWAR should be routed away from power wiring and protected with a 1761-NET-AIC interface converter to provide optical isolation on the communication channel. This prevents ground loop currents — common in large industrial facilities with multiple earthing points — from corrupting HMI-to-PLC communication and triggering spurious alarm conditions in safety interlock displays.

Critical Industrial Safety Applications

The 1762-L24BWAR is deployed across a wide range of safety-critical industrial applications where control continuity directly affects personnel safety and asset protection.

In petrochemical and refinery facilities, this controller manages emergency shutdown (ESD) pre-alarm logic, pump interlock sequences, and pressure relief valve position monitoring. Its relay output isolation ensures that a fault on one output channel does not propagate to adjacent safety circuits, a requirement in SIL-rated interlock applications.

In electric power generation and substation auxiliary systems, the 1762-L24BWAR controls cooling fan sequencing, battery room ventilation interlocks, and transformer tap changer position feedback. Its tolerance for wide input voltage variation makes it suitable for substation environments where auxiliary AC supply quality is often poor.

In mining and mineral processing, the controller manages conveyor belt safety interlocks, crusher overload protection, and dust suppression system sequencing. The relay output architecture provides the dry-contact outputs required by safety relay modules and motor protection relays without additional signal conditioning.

In water and wastewater treatment, the 1762-L24BWAR controls dosing pump interlocks, UV disinfection system sequencing, and high-level alarm outputs. Its Modbus RTU communication capability allows direct integration with SCADA systems from multiple vendors without requiring proprietary communication modules.

In metallurgical and steel processing facilities, the controller manages furnace door interlock logic, cooling water flow monitoring, and fume extraction system controls. Its operating temperature rating and conformal coat option allow installation in control cabinets located close to heat sources that would compromise less robust controllers.

In port and heavy lifting applications, the 1762-L24BWAR controls crane anti-collision logic, overload protection relay sequencing, and emergency stop circuit monitoring. Its compact form factor allows installation in space-constrained pendant control stations and crane cab panels.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the 1762-L24BWAR?
A: The 12-month warranty covers all defects in materials and workmanship from the date of shipment. If the unit fails under normal operating conditions within the warranty period, we will repair or replace it at no charge. The warranty does not cover damage caused by incorrect installation, overvoltage events beyond rated specifications, or physical mishandling.

Q: What pre-shipment testing is performed before the unit is dispatched?
A: Every 1762-L24BWAR unit undergoes a full functional test prior to shipment. This includes power-on verification, I/O channel continuity testing, communication port functionality check, and program load/execute verification using a standard RSLogix 500 test routine. A test report is available upon request.

Q: Is the 1762-L24BWAR compatible with existing MicroLogix 1200 program files and expansion modules?
A: Yes. The 1762-L24BWAR is fully compatible with RSLogix 500 program files developed for other MicroLogix 1200 variants. Existing 1762-series expansion modules — including the 1762-IQ16, 1762-OW16, 1762-IF4, and 1762-OF4 — connect directly to the controller’s expansion port without modification. Communication configurations for DF1, DH-485, and Modbus RTU are preserved when loading existing program files.

Q: Can you guarantee long-term supply availability for ongoing maintenance and spare parts programs?
A: We maintain dedicated inventory of the 1762-L24BWAR and related MicroLogix 1200 components to support long-term maintenance contracts and emergency spare parts requirements. Orders are typically processed and shipped within 2–5 business days. For large-volume or scheduled delivery requirements, contact our sales team to arrange a supply agreement with guaranteed lead times.
